አጭር

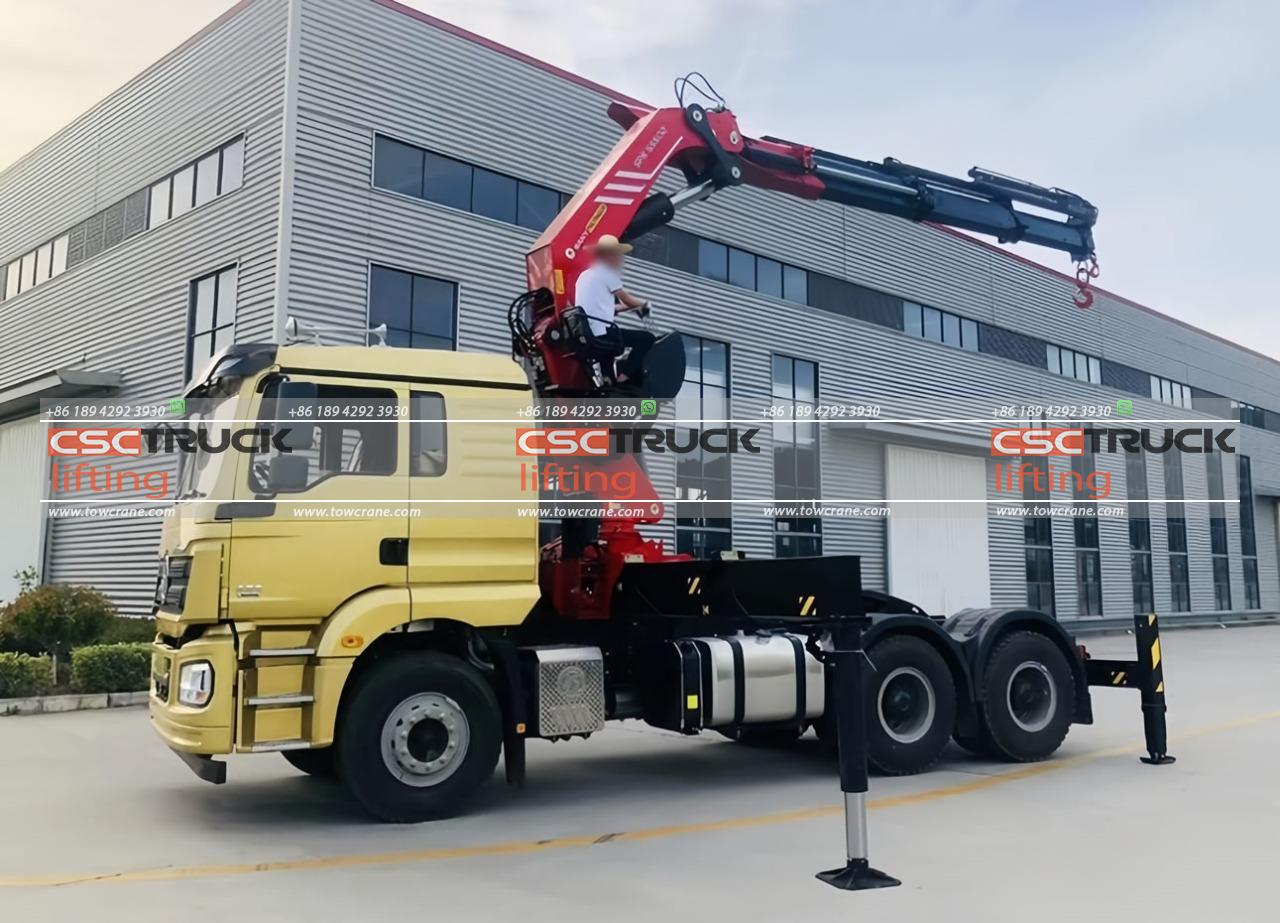

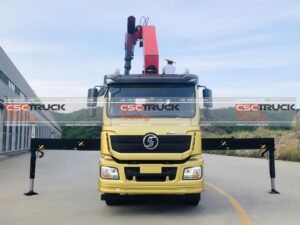

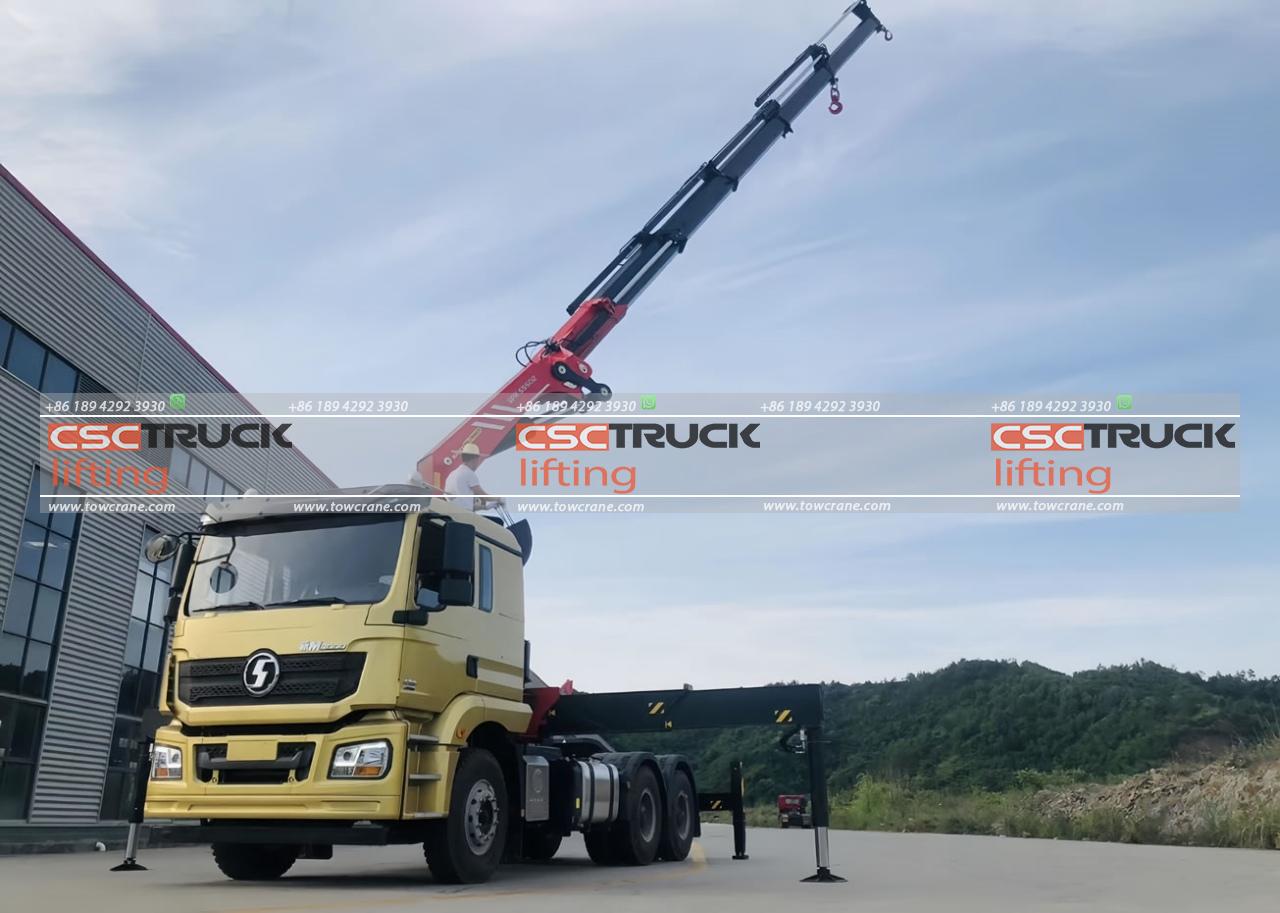

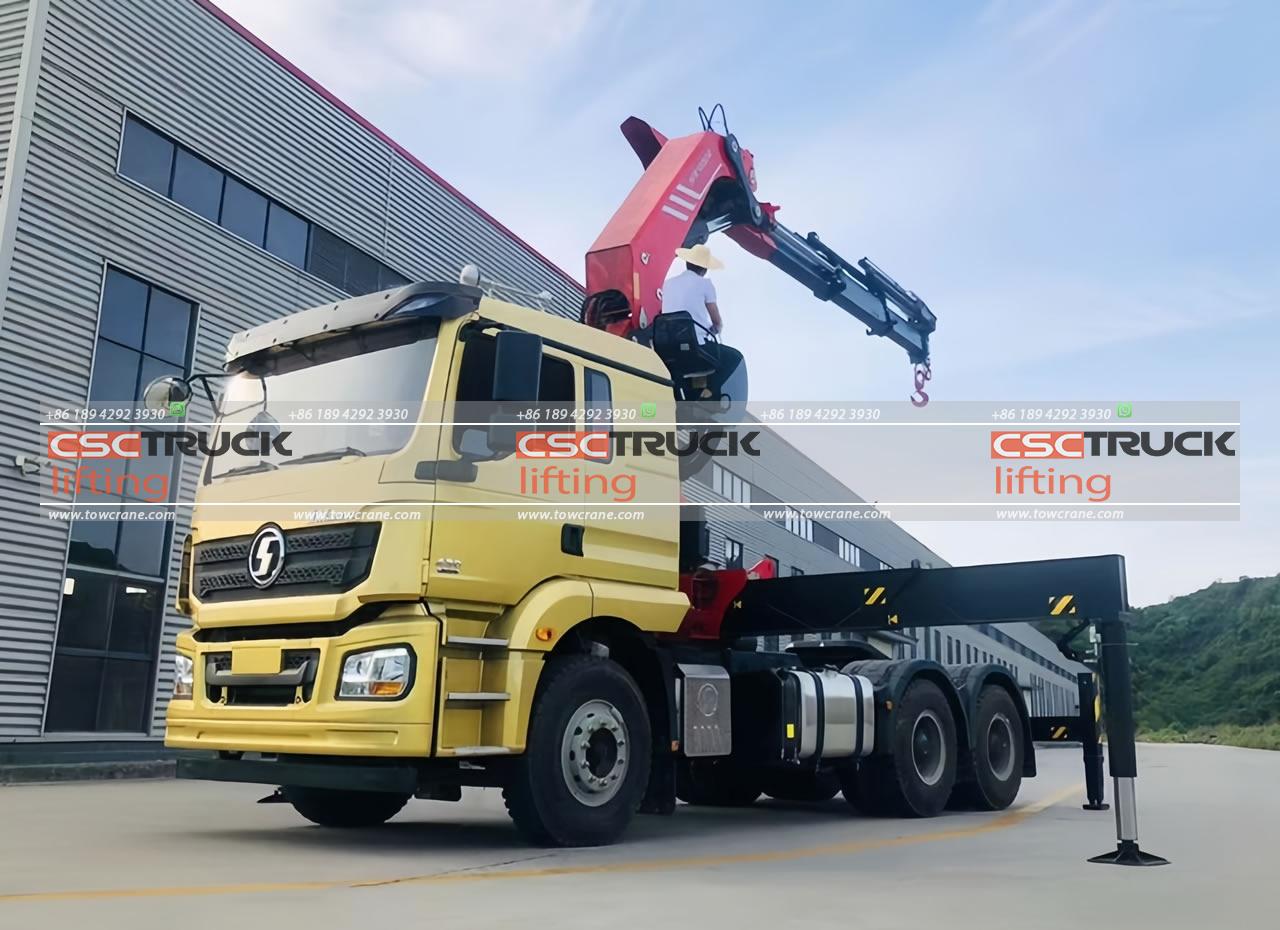

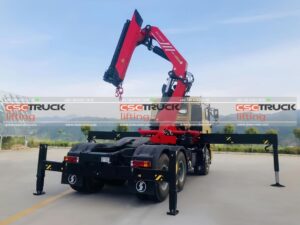

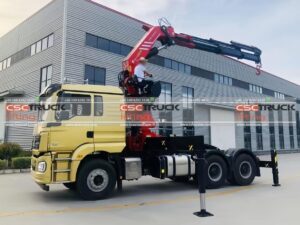

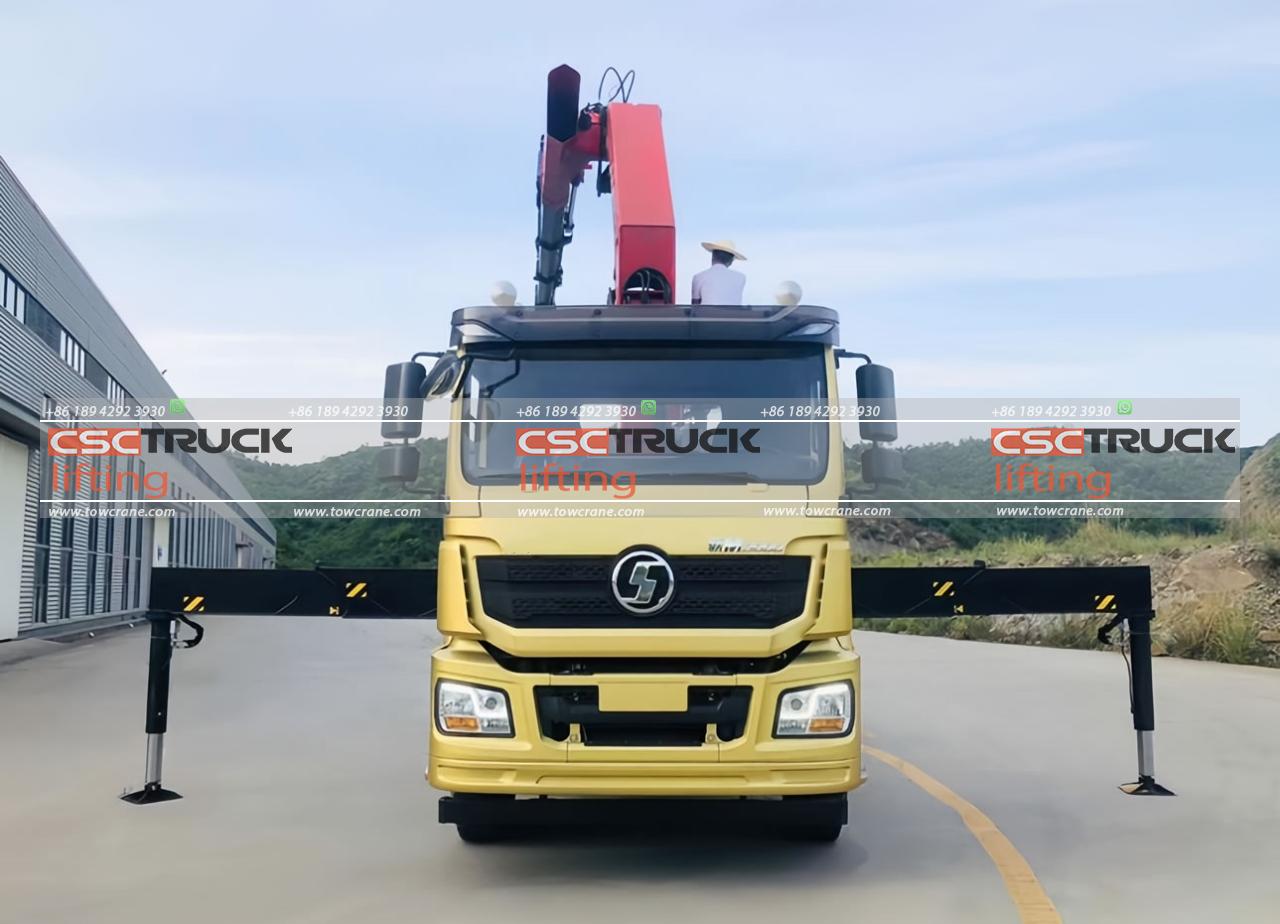

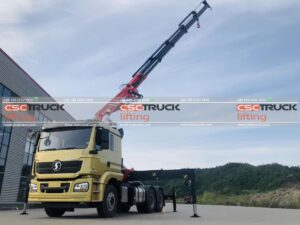

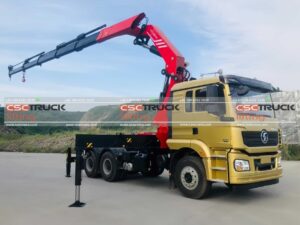

የ 10-መንኮራኩር, 20-ton አንጓ ቡም ክሬን በ CSCTRUCK ተጎታች ክሬን exemplifies robust engineering and versatile performance for heavy lifting operations. This crane features 4 hydraulic boom extensions, allowing for a flexible reach and positioning of loads. With a maximum lifting capacity of 19,500 kg and a substantial lifting moment of 53.9 metric tons, it is designed to handle heavy and complex tasks efficiently.
የ አንጓ ቡም ክሬን‘s maximum hydraulic outreach is 11.5 ሜትር, enabling it to manage operations significantly, and making it suitable for various industrial and construction environments. It offers a 370° slewing angle, providing a wide range of motion for precise load placement. The slewing torque of 6.5 metric tons ensures smooth and powerful rotation, enhancing the crane’s operational effectiveness.
Equipped with a pump capacity of 60-80 liters per minute and operating at a pressure of 33 megapascals, the crane’s hydraulic system delivers consistent and reliable performance. The standard weight of the crane is 5641 ኪ.ግ, which balances the need for sturdiness with the practical considerations of maneuverability and transport.
በአጠቃላይ, የ CSCTRUCK ተጎታች ክሬን‘s 10-wheel, 20-ton አንጓ ቡም ክሬን is a high-capacity, versatile piece of machinery designed to meet the demands of heavy-duty lifting. Its lifting power, መድረስ, and hydraulic efficiency make it a valuable asset for industries requiring robust and adaptable lifting solutions.
ባህሪያት
1. High Lifting Capacity and Moment:
– The crane boasts a maximum lifting capacity of 19,500 ኪ.ግ, allowing it to handle heavy loads with ease. It also features a lifting moment of 53.9 metric tonnes (ሜትር), which indicates its powerful lifting performance.
2. Extended Reach and Versatile Hydraulic Boom:
– የታጠቁ 4 hydraulic boom extensions, the crane can achieve a maximum hydraulic outreach of 11.5 ሜትር. This extended reach enhances its versatility in handling tasks that require significant horizontal reach.
3. Efficient and Robust Slewing Mechanism:
– The crane has a slewing angle of 370 ዲግሪዎች, providing extensive rotational capability for optimal positioning of loads. በተጨማሪም, it offers a slewing torque of 6.5 metric tonnes(ሜትር), ensuring stable and efficient rotation under heavy loads.
4. Powerful Hydraulic System:
– The crane operates with a pump capacity ranging from 60 ወደ 80 liters per minute (L/min) and an operating pressure of 33 megapascals (MPa). This robust hydraulic system ensures efficient and powerful operation, supporting the crane’s heavy lifting and outreach capabilities.
5. Heavy-Duty and Well-Balanced Design:
– With a standard crane weight of 5,641kg, the crane is designed to be durable and stable. The 10-wheeler configuration further enhances its balance and maneuverability, making it suitable for a variety of heavy-duty towing and lifting operations.
SPECIFICATION
| ንጥል | ክፍል | CSCKBC55502C | CSCKBC55502D | CSCKBC55502E |
| Hydr. boom extensions | / | 4 | 5 | 6 |
| Lifting moment | ሜትር | 53.9 | 53.9 | 53.9 |
| ከፍተኛ. የማንሳት አቅም | ኪ.ግ | 19,500 | 18,600 | 18,000 |
| ከፍተኛ. የሃይድሮሊክ ስርጭት | ኤም | 11.5 | 13.7 | 15.9 |
| የሚንሸራተት አንግል | ° | 370 | 370 | 370 |
| Slewing torque | ሜትር | 6.5 | 6.5 | 6.5 |
| Pump capacity | L/min | 60-80 | 60-80 | 60-80 |
| Operating pressure | Mpa | 33 | 33 | 33 |
| Standard crane weight | ኪ.ግ | 5641 | 5783 | 6020 |

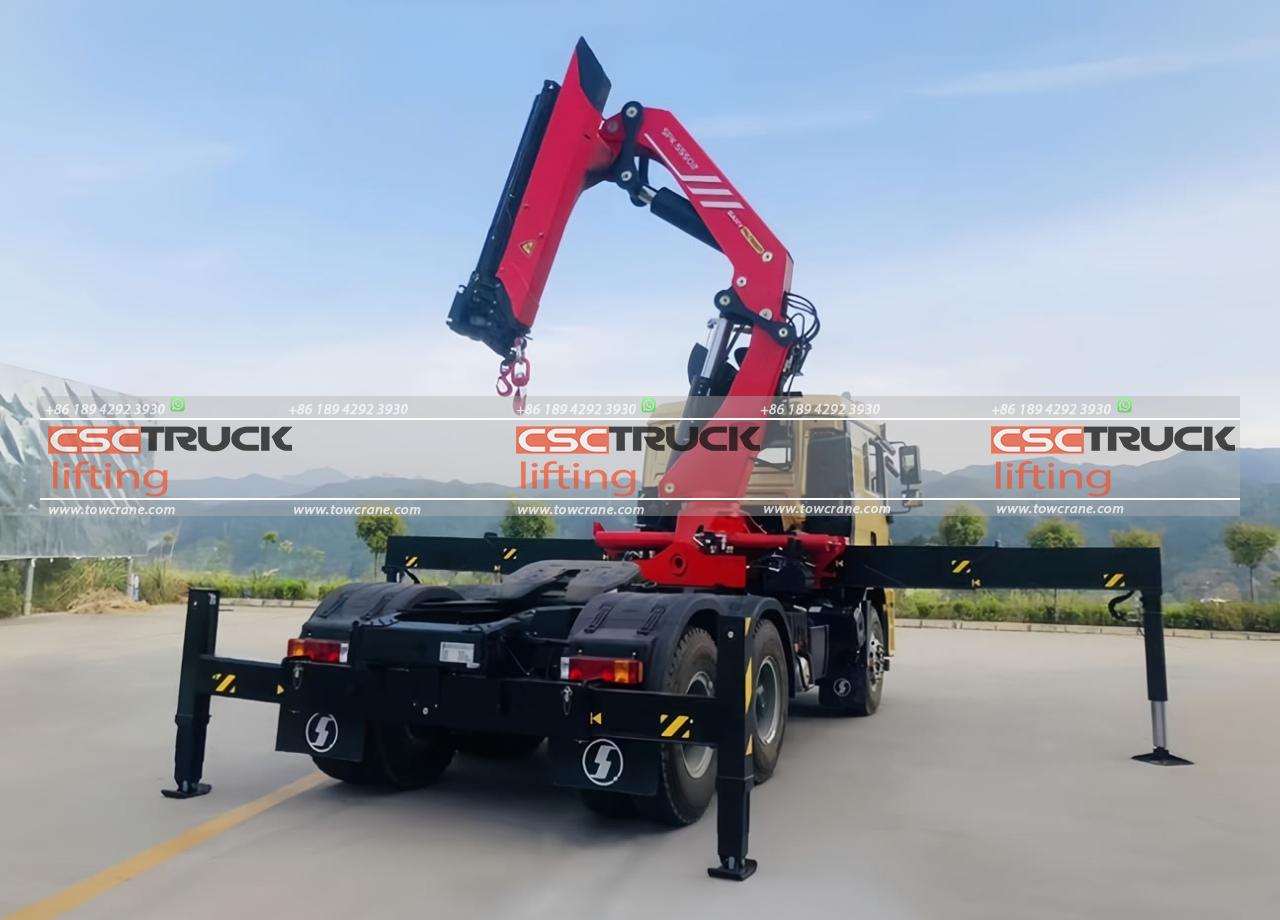

| Outrigger span(ሚ.ሜ) | R3X-STZS3 | 7400 | 7400 | 7400 |
| R3X-STZY | 7413 | 7413 | 7413 |
