Brief:

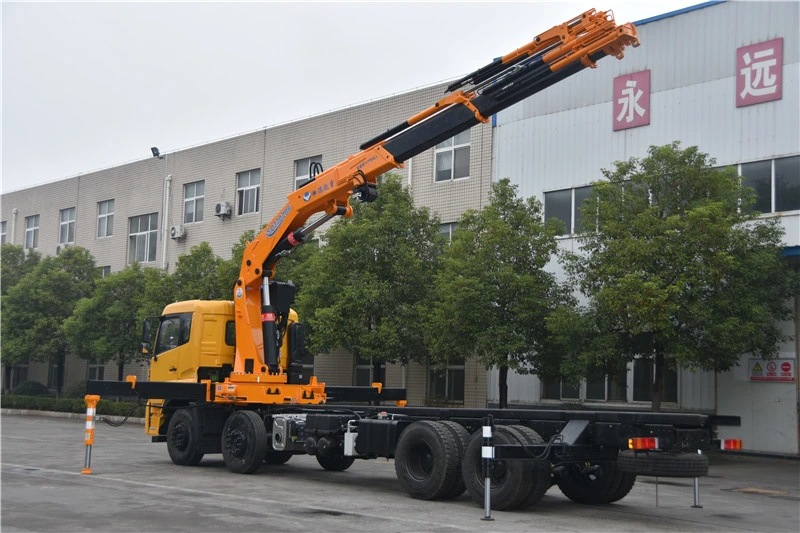

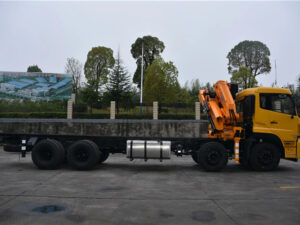

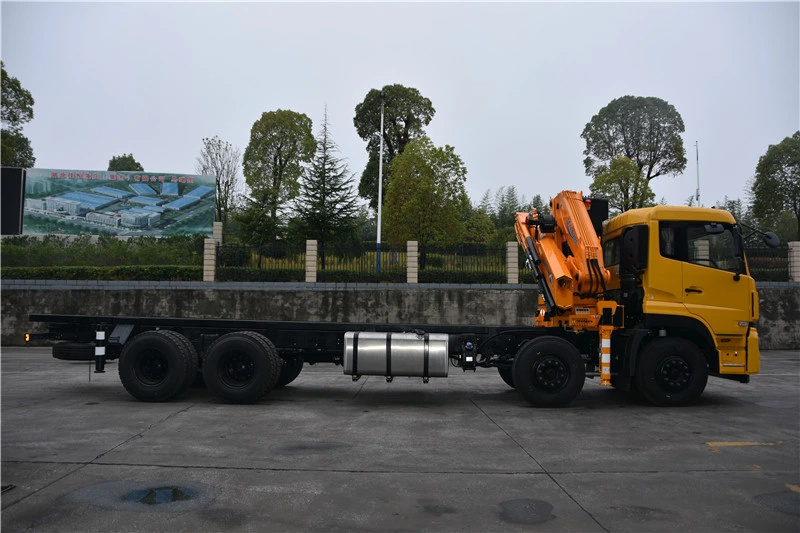

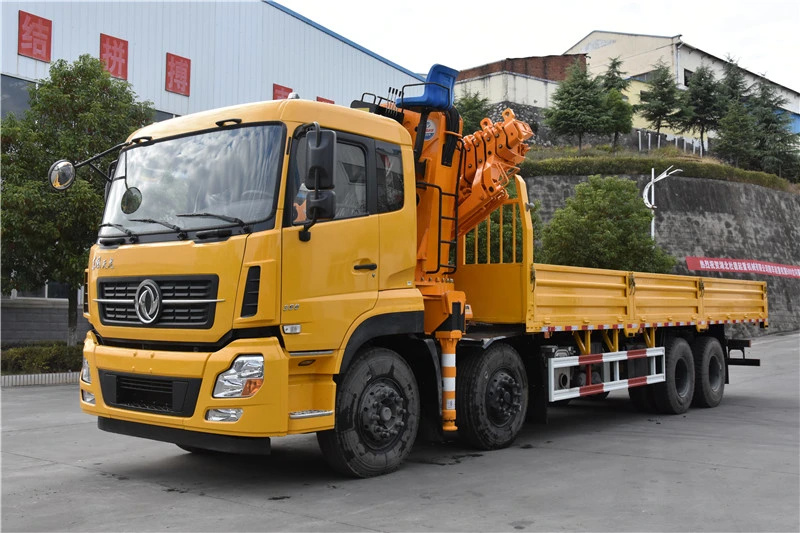

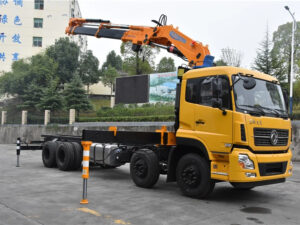

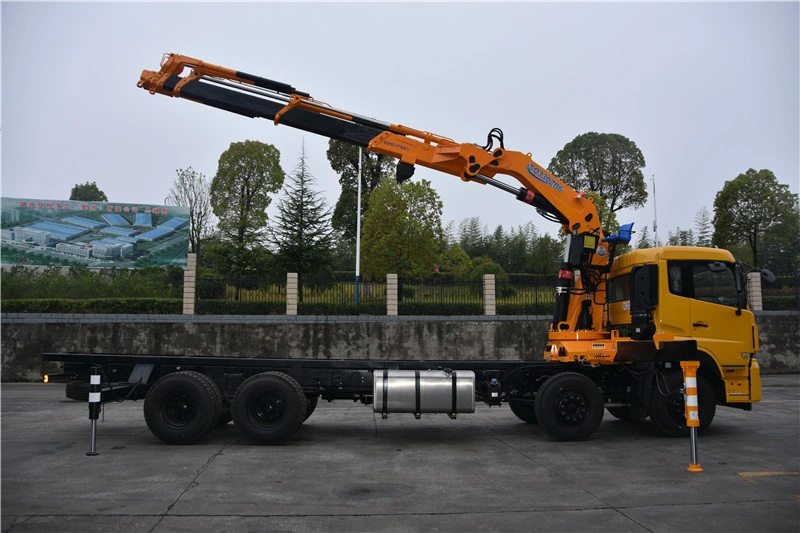

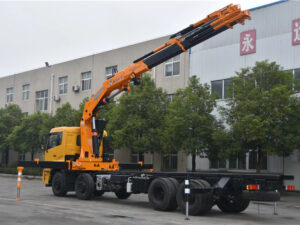

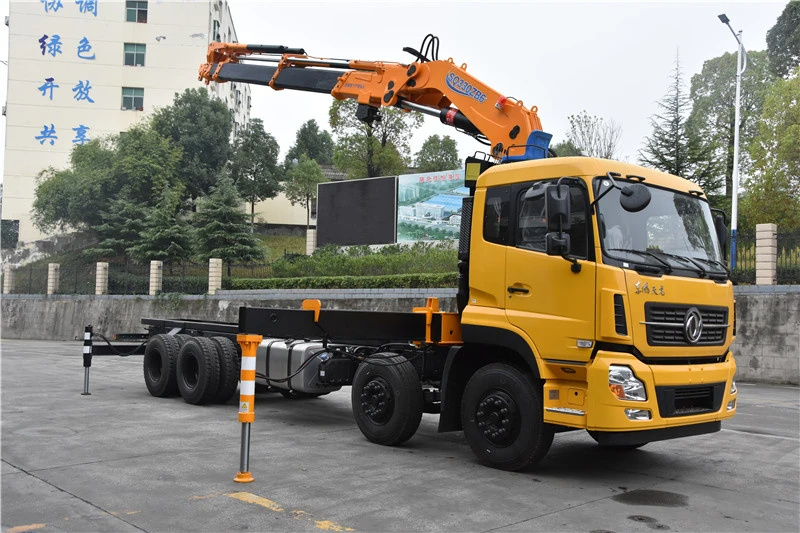

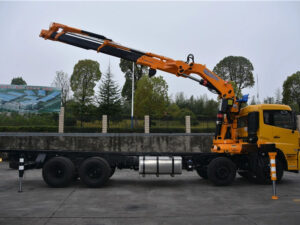

የ ዶንግፌንግ 16 Ton Knuckle Boom Truck Mounted Crane is a versatile and powerful lifting solution designed to handle various heavy lifting tasks with precision and efficiency. This crane combines robust construction with advanced features to ensure safe and reliable performance in a wide range of applications.
ይህ Knuckle Boom Truck Mounted Crane is designed to meet high-performance standards, making it an ideal choice for various lifting and construction applications. Its powerful crane and robust truck chassis ensure exceptional lifting capacity and reliability.
Features:
- ሞዴል: SQ330ZB4 / Knuckle Crane 10.65 ton at 3m
- Max Lifting Moment: 330 Kn.m
- Max Lifting Capacity:
- 10,650 kg at 3.0m
- 5,400 kg at 6m
- 2,800 kg at 9.6m
- 2,200 kg at 11.4m
- Max Lifting Height: 13.8ኤም
- Max Working Radius: 11.4ኤም
- Boom Section: 4 stages
- Rotation Angle: 360° All Rotation
- Rated Working Pressure: 28 MPa
- Oil Tank Capacity: 120ኤል
- Related Oil Flow: 60 L/min
- Outrigger Span: 2,330 – 7,100 ሚ.ሜ
- Outrigger: 4, adjustable, Hydraulic operating
- Crane Weight: 4,800 ኪ.ግ
- Installation Space: 1,470 ሚ.ሜ
- Swing Type: Planetary gear reduction
- Safety Device: Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device
- Options: Aux. አሸናፊ, Aux. ቡም, Remote Control
- Material: HG785D
Truck for Reference:
- Truck Brand: ዶንግፌንግ (other truck brands can be customized)
- Cabin:
- Driving Type: 6×4
- Left Hand Drive (Right Hand Drive Type Can Be Customized)
- Color is Optional
Vehicle Main Dimensions:
- አጠቃላይ መጠን (L x W x H): 11,950 x 2,490 x 3,850 ሚ.ሜ
- Wheel Base: 5,850 + 1,350 ሚ.ሜ
- Cargo Body: 8,400 x 2,300 x 550 ሚ.ሜ
Weight in KGS:
- GVW (አጠቃላይ የተሽከርካሪ ክብደት): 25,000 ኪ.ግ
- ቀሚስ ክብደት: 16,250 ኪ.ግ
- Front Axle Loading Capacity: 2 x 2,500 ኪ.ግ
- Rear Axles Loading Capacity: 2 x 27,500 ኪ.ግ
ሞተር:
- ዓይነት: ናፍጣ, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
- Horse Power: 240 ኤች.ፒ (177 kW)
- Max Torque: 1,000 ኤን.ኤም
- የልቀት ደረጃ: Euro V
- Max Speed: 102 ኪሜ በሰአት
Gearbox:
- Manual gearbox with 9 forwards & 1 የተገላቢጦሽ, with PTO
Tire:
- 11.00R20 (11 pieces including one spare tire)
መግለጫዎች:
| ሞዴል # | SQ330ZB4 / Knuckle Crane 10.65 ton at 3m |
|---|---|
| Max Lifting Moment | 330 Kn.m |
| Max Lifting Capacity | – 10,650 kg at 3.0m |
| – 5,400 kg at 6m | |
| – 2,800 kg at 9.6m | |
| – 2,200 kg at 11.4m | |
| Max Lifting Height | 13.8ኤም |
| Max Working Radius | 11.4ኤም |
| Boom Section | 4 stages |
| Rotation Angle | 360° All Rotation |
| Rated Working Pressure | 28 MPa |
| Oil Tank Capacity | 120ኤል |
| Related Oil Flow | 60 L/min |
| Outrigger Span | 2,330 – 7,100 ሚ.ሜ |
| Outrigger | 4, adjustable, Hydraulic operating |
| Crane Weight | 4,800 ኪ.ግ |
| Installation Space | 1,470 ሚ.ሜ |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | Aux. አሸናፊ, Aux. ቡም, Remote Control |
| Material | HG785D |
| Truck for Reference | |
| Truck Brand | ዶንግፌንግ (other truck brands can be customized) |
| Cabin | Driving Type: 6×4, Left Hand Drive (Right Hand Drive Type Can Be Customized) |
| Color is Optional | |
| Vehicle Main Dimensions | |
| አጠቃላይ መጠን (L x W x H) | 11,950 x 2,490 x 3,850 ሚ.ሜ |
| Wheel Base | 5,850 + 1,350 ሚ.ሜ |
| Cargo Body | 8,400 x 2,300 x 550 ሚ.ሜ |
| Weight in KGS | |
| GVW | 25,000 ኪ.ግ |
| ቀሚስ ክብደት | 16,250 ኪ.ግ |
| Front Axle Loading Capacity | 2 x 2,500 ኪ.ግ |
| Rear Axles Loading Capacity | 2 x 27,500 ኪ.ግ |
| ሞተር | |
| ዓይነት | ናፍጣ, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power | 240 ኤች.ፒ (177 kW) |
| Max Torque | 1,000 ኤን.ኤም |
| የልቀት ደረጃ | ዩሮ 2, ዩሮ 3, ዩሮ 4, ዩሮ 5 |
| Max Speed | 102 ኪሜ በሰአት |
| Gearbox | Manual gearbox with 9 forwards & 1 የተገላቢጦሽ, with PTO |
| Tire | 11.00R20 (11 pieces including one spare tire) |
