አጭር:

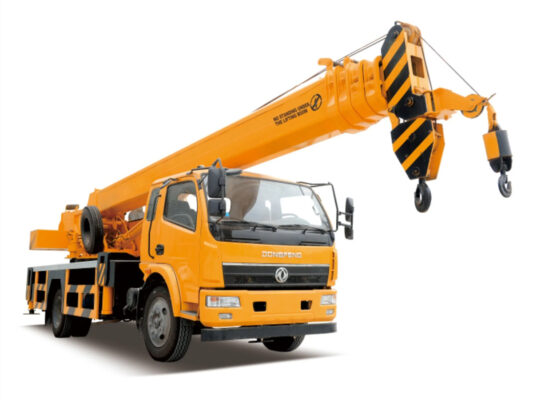

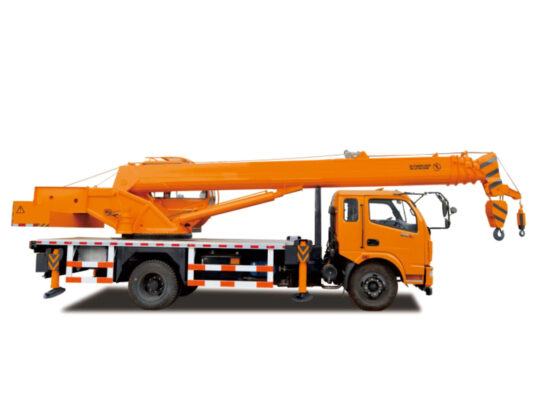

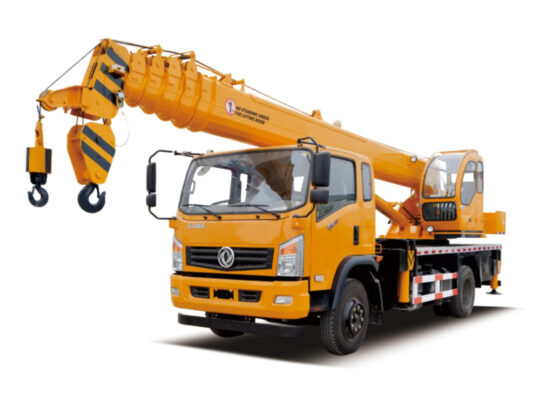

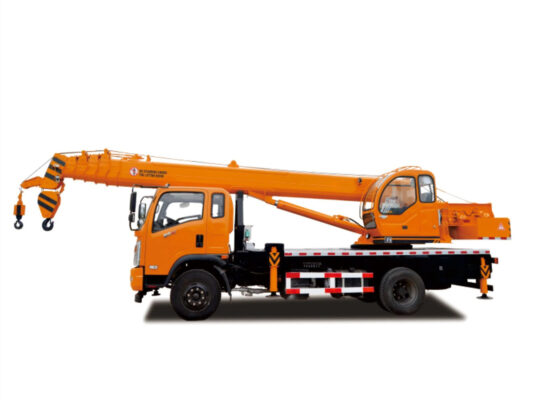

The DONGFENG 8 Ton Loader Crane Hydraulic Telescopic Boom Truck is a versatile heavy-duty mobile crane designed for a wide range of lifting operations. It offers exceptional reach, የማንሳት አቅም, and stability, making it suitable for various construction and industrial applications.
ይህ የመጫኛ ክሬን is a powerful and versatile lifting solution suitable for demanding construction and industrial projects. Its combination of compact design, impressive lifting capacity, and advanced features makes it an asset for various applications.
ባህሪያት:

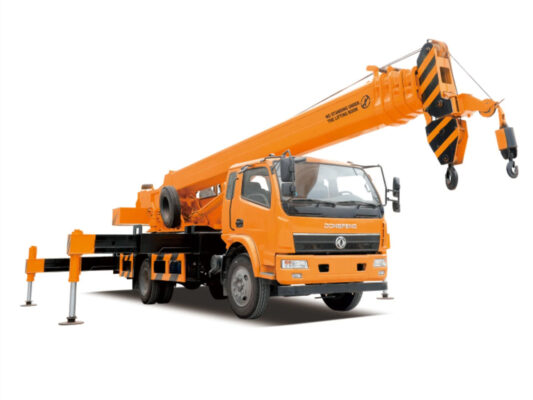

- Crane Dimensions: The crane’s compact dimensions of 9030mm x 2240mm x 3095mm ensure ease of maneuverability and operation in tight spaces. The outriggers provide stability, with a longitudinal span of 3900mm a horizontal span of 2240-4840mm, and a total of 5 outrigger pieces.
- መሰረታዊ ቡም: The crane’s basic boom offers a lifting length ranging from 7.45 meters to an impressive 25.5 ሜትር, providing flexibility for a wide range of lifting tasks. The main boom can be elevated from 3° to 80°, allowing for precise positioning of loads.
- Chassis and Truck Data: The crane is mounted on a 4×2 left-hand drive chassis, complying with Euro 5 emission standards. It is powered by a robust 102 HP engine with a displacement of 3707 ml. The front and rear axle load is distributed at 2520 kg and 7480 ኪ.ግ, respectively.
- Tire Size: The crane is equipped with sturdy 8.25-16LT tires, providing excellent traction and load-bearing capabilities. The front and rear track dimensions are 1690mm and 1650mm, respectively, with a wheelbase of 3500mm.
- Working Parameter: The crane features a 5-piece hexagon boom with a maximum total lifting capacity of 8000 ኪ.ግ. The basic boom lifting torque can reach a maximum of 240 KN.ም, and it offers a maximum lifting height of 28 ሜትር. The longest boom lifting torque is 18 KN.ም, and the working radius spans from 3 ወደ 18 ሜትር.
- Winches: The crane is equipped with both a main winch and an auxiliary winch, each capable of a maximum speed of 95 meters per minute, ensuring efficient load handling.
- Traveling Parameter: With a maximum travel speed of 75 ኪሜ በሰአት, the crane can be quickly relocated between job sites. It offers a 30% gradeability and has a minimum turning diameter of 14 ሜትር, enhancing its maneuverability during transport.
መግለጫዎች:
| Crane Dimension | |
|---|---|
| ሞዴል | QY 8-5-28 |
| ልኬቶች (ርዝመትWidthHeight) | 9030mm x 2240mm x 3095mm |
| Outrigger Longitudinal Span/Horizontal Span | 3900ሚ.ሜ / 2240-4840ሚ.ሜ |
| Outriggers Quantity | 5 |
| Basic Boom Lifting Length | 7.45ኤም – 25.5ኤም |
| Main Boom Elevation | 3° – 80° |
| Chassis Truck Data and Weight | |
|---|---|
| Total Mass | 9805ኪ.ግ |
| Front and Rear Axle Load | 2520ኪ.ግ / 7480ኪ.ግ |
| የሞተር ኃይል / Engine Displacement | 102 ኤች.ፒ / 3707 ml |
| የማሽከርከር አይነት | 4*2 Left Hand Drive |
| የልቀት ደረጃ | ዩሮ 5 |
| Tyre Size | 8.25-16LT |
| ፊት ለፊት / Rear Track | 1690ሚ.ሜ / 1650ሚ.ሜ |
| Wheel Base | 3500ሚ.ሜ |
| Working Parameter | |
|---|---|
| Sections | 5 Pieces Hexagon Sections |
| Speed of Single Rope (No Load) | 95 m/min |
| Hydraulic Tank Capacity | 160ኤል |
| ከፍተኛ. Total Lifting Capacity | 8000ኪ.ግ |
| The Basic Boom Lifting Torque (ከፍተኛ) | 240 KN.ም |
| Max Lifting Height | 28ኤም |
| The Longest Boom Lifting Torque (ከፍተኛ) | 18 KN.ም |
| Working Radius | 3ኤም – 18ኤም |
| ከፍተኛ. Speed for Main Winch | 95 m/min | | ከፍተኛ. Speed for Auxiliary Winch | 95 m/min |
| Traveling Parameter | |
|---|---|
| ከፍተኛ. Travel Speed | 75 Km/h |
| ከፍተኛ. Gradeability | 30% |
| Min. Turning Diameter | 14ኤም |
