Brief:

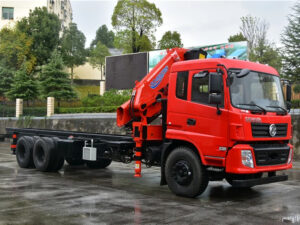

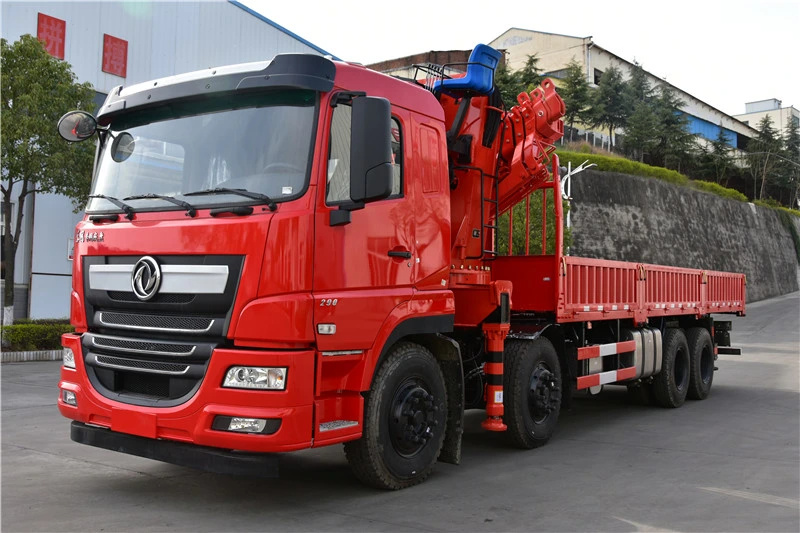

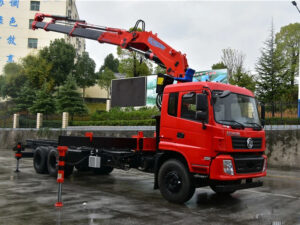

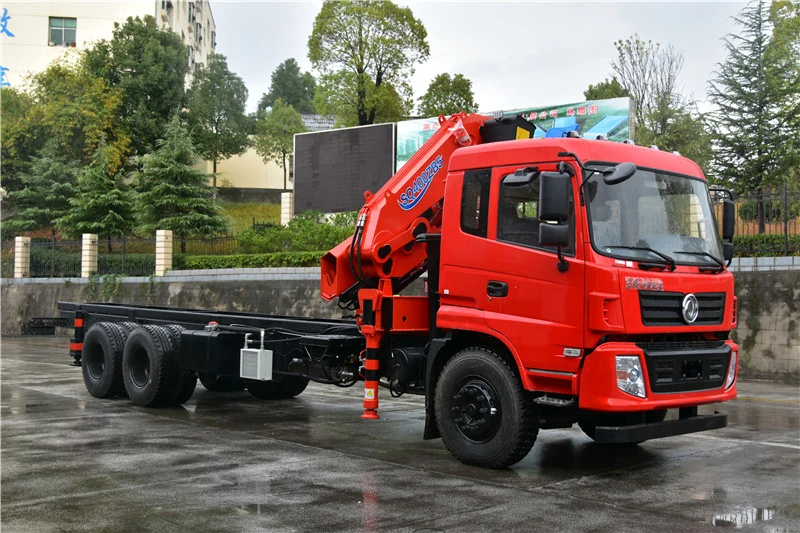

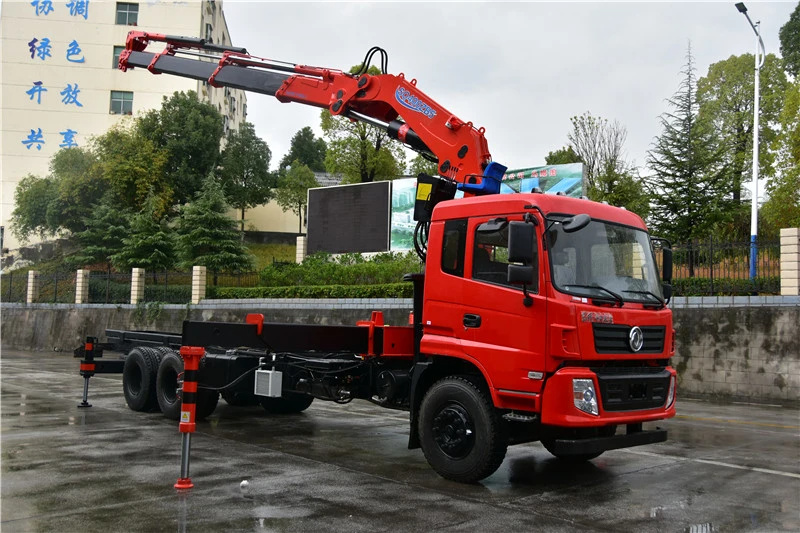

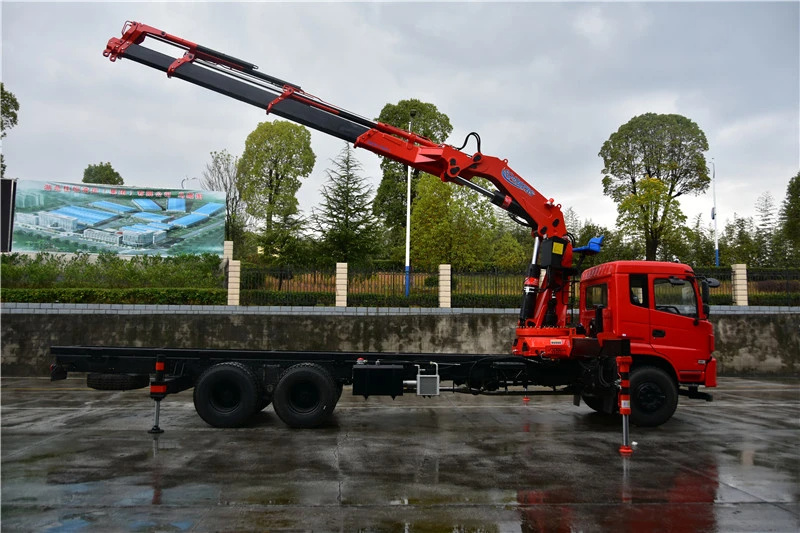

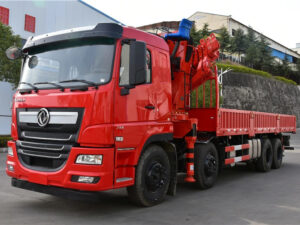

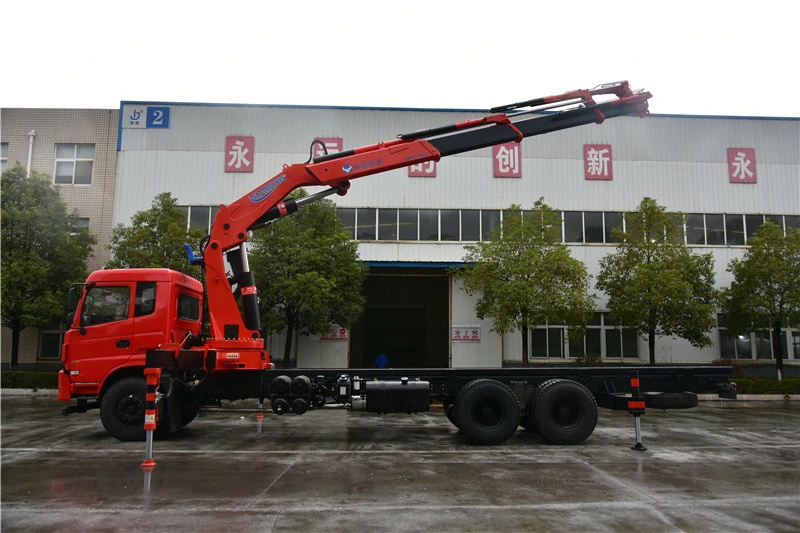

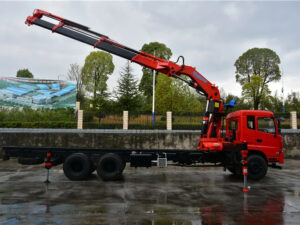

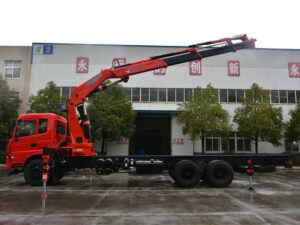

የ DONGFENG Chassis 20 ቶን ክኑክል ቡም የሃይድሮሊክ ክሬን መኪና, equipped with the SQ400ZB5 knuckle crane, is a versatile and powerful solution designed for heavy lifting and various applications. This truck offers exceptional lifting capacity, ተለዋዋጭነት, and safety features, making it an ideal choice for demanding tasks.
የ Knuckle Boom Hydraulic Crane Truck is designed to meet rigorous lifting demands, ensuring efficiency, አስተማማኝነት, and safety in various industrial applications.
Features:
- ሞዴል: SQ400ZB5 Knuckle Crane with a lifting capacity of 20 tons at 2 ሜትር.
- Max Lifting Moment: Impressive 400 Kn.m for heavy-duty lifting requirements.
- Max Lifting Capacity:
- 12,000 kg at 3.0 ሜትር
- 6,300 kg at 6.15 ሜትር
- 3,600 kg at 9.75 ሜትር
- 2,300 kg at 13.3 ሜትር
- Max Lifting Height: Reaches up to 15.7 meters for high-reaching tasks.
- Max Working Radius: Provides a working radius of 13.3 ሜትር.
- Boom Section: Features 5 stages, enhancing reach and flexibility.
- Rotation Angle: Full 360° rotation capability for precise positioning.
- Rated Working Pressure: High-pressure hydraulic system with a rating of 28 MPa.
- Oil Tank Capacity: Equipped with a 200-liter oil tank for extended operation.
- Related Oil Flow: Offers a flow rate of 64 L/min for efficient crane operation.
- Outrigger Span: Adjustable outriggers with a span range of 2,330 ወደ 7,100 ሚ.ሜ.
- Outrigger: Four hydraulic-operated, adjustable outriggers ensure stability during operation.
- Crane Weight: 5,600 kg for balanced lifting and maneuverability.
- Installation Space: Requires 1,530 mm for installation, optimizing truck configuration.
- Swing Type: Utilizes a planetary gear reduction mechanism for precision and control.
- Safety Device: Includes load indicators, hydraulic safety valves, counter-balance valves, automatic swing brakes, and hook safety devices.
- Options: Available with auxiliary winch, auxiliary boom, and remote control for added versatility.
- Material: Built with HG785D steel for durability and strength.
Truck Specifications:
- Truck Brand: ዶንግፌንግ (customizable to other brands).
- Cabin: Designed for an 8X4 configuration with left-hand drive (right-hand drive available upon request).
- Color Options: Optional for personalized aesthetics.
- Vehicle Main Dimensions:
- አጠቃላይ መጠን (L x W x H): 11,950 x 2,500 x 3,800 ሚ.ሜ
- የዊልቤዝ: 1,800 + 4,600 + 1,350 ሚ.ሜ
- Cargo Body: 6,800 x 2,350 x 500 ሚ.ሜ
- የክብደት አቅም:
- GVW (Gross Vehicle Weight): 31,000 ኪ.ግ
- ቀሚስ ክብደት: 14,500 ኪ.ግ
- Front Axle Loading Capacity: 2 X 7,000 ኪ.ግ
- Rear Axles Loading Capacity: 2 X 16,000 ኪ.ግ
- Engine Specifications:
- የሞተር ዓይነት: ናፍጣ, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter cooling.
- የፈረስ ጉልበት: 371 ኤች.ፒ (273 kW)
- Max Torque: 1,500 ኤን.ኤም
- የልቀት ደረጃ: Euro II
- Max Speed: Capable of reaching speeds of up to 102 ኪሜ በሰአት.
- Gearbox: Manual gearbox featuring 10 forwards & 2 reverses, equipped with PTO.
- Tire: Comes with 12R22.5 tubeless tires, ጨምሮ 13 pieces and one spare tire.
መግለጫዎች:
| Parameter | Specification |
|---|---|
| Crane Model | SQ400ZB5 / Knuckle Crane 20-ton at 2m |
| Max Lifting Moment | 400 Kn.m |
| Max Lifting Capacity | – 12,000 kg at 3.0m |
| – 6,300 kg at 6.15m | |
| – 3,600 kg at 9.75m | |
| – 2,300 kg at 13.3m | |
| Max Lifting Height | 15.7ኤም |
| Max Working Radius | 13.3ኤም |
| Boom Section | 5 stages |
| Rotation Angle | 360° All Rotation |
| Rated Working Pressure | 28 MPa |
| Oil Tank Capacity | 200ኤል |
| Related Oil Flow | 64 L/min |
| Outrigger Span | 2,330 – 7,100 ሚ.ሜ |
| Outrigger | 4, adjustable, Hydraulic operating |
| Crane Weight | 5,600 ኪ.ግ |
| Installation Space | 1,530 ሚ.ሜ |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | Aux. አሸናፊ, Aux. ቡም, Remote Control |
| Material | HG785D |
| Truck for Reference | |
| Truck Brand | ዶንግፌንግ (other truck brands can be customized) |
| Cabin | – Driving Type: 8X4 |
| – Left Hand Drive (Right Hand Drive Type Can Be Customized) | |
| – Color is Optional | |
| Vehicle Main Dimensions | – አጠቃላይ መጠን (L x W x H): 11,950 x 2,500 x 3,800 ሚ.ሜ |
| – Wheel Base: 1,800 + 4,600 + 1,350 ሚ.ሜ | |
| – Cargo Body: 6,800 x 2,350 x 500 ሚ.ሜ | |
| Weight in KGS | – GVW (Gross Vehicle Weight): 31,000 ኪ.ግ |
| – ቀሚስ ክብደት: 14,500 ኪ.ግ | |
| Front Axle Loading Capacity | – 2 X 7,000 ኪ.ግ |
| Rear Axles Loading Capacity | – 2 X 16,000 ኪ.ግ |
| ሞተር | – ዓይነት: ናፍጣ, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| – Horse Power: 371 ኤች.ፒ (273 kW) | |
| – Max Torque: 1,500 ኤን.ኤም | |
| – የልቀት ደረጃ: Euro II | |
| Max Speed | 102 ኪሜ በሰአት |
| Gearbox | Manual gearbox with 10 forwards & 2 reverses, with PTO |
| Tire | – 12R22.5 tubeless tire, 13 pieces including one spare tire |
