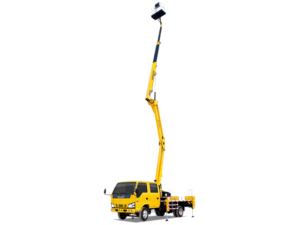

The Isuzu 19.2 Meter የተሰበረ ባልዲ ሊፍት መኪና is a high – performance piece of equipment engineered to meet the diverse needs of aerial work. It combines Isuzu’s renowned automotive expertise with cutting – edge lift – truck technology.
1.Robust and Reliable Chassis
The foundation of this truck is Isuzu’s robust chassis. Crafted with high – quality materials and advanced manufacturing techniques, the chassis is designed to endure heavy loads and harsh working conditions. Its excellent load – bearing capacity allows it to support the extended 19.2 – meter boom, along with the operator and any tools or equipment in the bucket, without compromising stability. The chassis also features a well – tuned suspension system, which not only provides a smooth ride during transportation but also helps maintain stability during operation, even on uneven or sloping surfaces.
2.Impressive Articulated Boom
የ 19.2 – meter articulated boom is the highlight of this vehicle. It offers an extended reach, enabling access to elevated areas that are often inaccessible with standard equipment. The multiple articulation points on the boom provide an exceptional degree of flexibility. Operators can easily maneuver the boom around complex obstacles, such as large – scale building structures, dense tree canopies, or overhead power lines. This flexibility allows for precise positioning of the bucket at various angles and heights, making it suitable for a wide range of tasks, from delicate façade restoration to large – scale tree – felling operations.
3.Precise Hydraulic Control System
An advanced hydraulic system powers the movement of the boom and bucket. This system is engineered for precision, providing smooth and responsive control. Operators can make minute adjustments to the boom’s extension, elevation, and rotation, as well as the bucket’s position. Whether it’s a slow and careful ascent to a specific height or a minor lateral shift to align with a work target, the hydraulic controls respond promptly and accurately. This level of precision is crucial for tasks that require delicate handling, such as installing small components on high – rise buildings or performing detailed inspections.
4.Comprehensive Safety Features
Safety is at the forefront of the Isuzu 19.2 Meter Articulated Bucket Lift Truck’s design. The bucket is equipped with non – slip flooring and sturdy handrails to prevent accidental slips and falls. The truck also incorporates a range of safety sensors and interlocks. These include sensors that monitor the position of the outriggers, the load on the boom, and the integrity of the hydraulic system. If any unsafe conditions are detected, the safety interlocks will prevent the boom from operating, ensuring the safety of the operator and those in the vicinity. በተጨማሪም, the operator’s cab is designed with ergonomic considerations, reducing fatigue during long working hours and enhancing overall safety.
SPECIFICATION
የሻሲ ሞዴል: ISUZU QL1070BUKWY
የሞተር ሞዴል: ISUZU 4KH1CN6LB/88kW
Rated Load of the Work Bucket: 200 ኪ.ግ
Maximum Working Height: 19.2 ኤም
Maximum Working Range: 9.1 ኤም
Number of Passengers: 5
አጠቃላይ ልኬቶች: 7120mm×2000mm×3180mm
