Кароткі

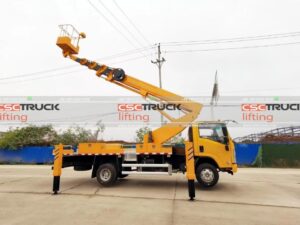

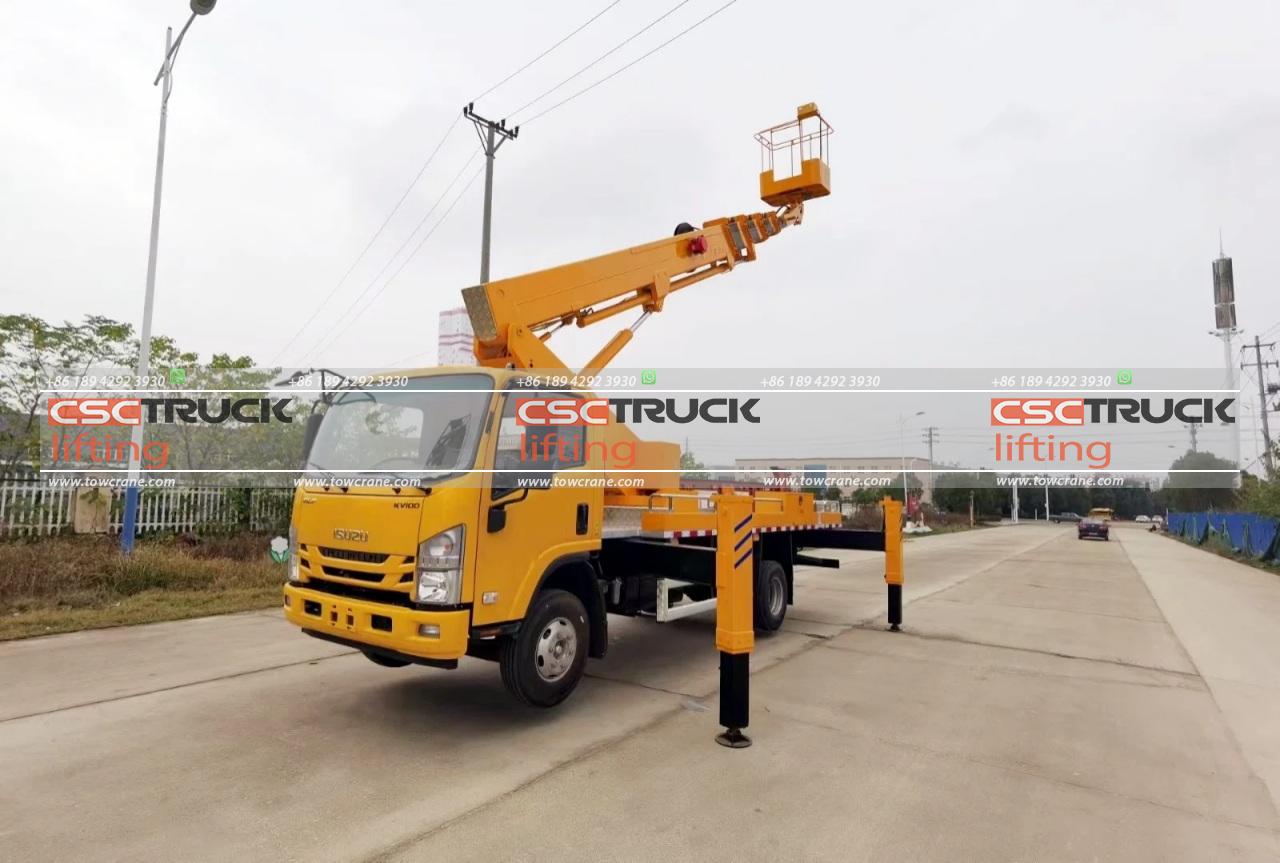

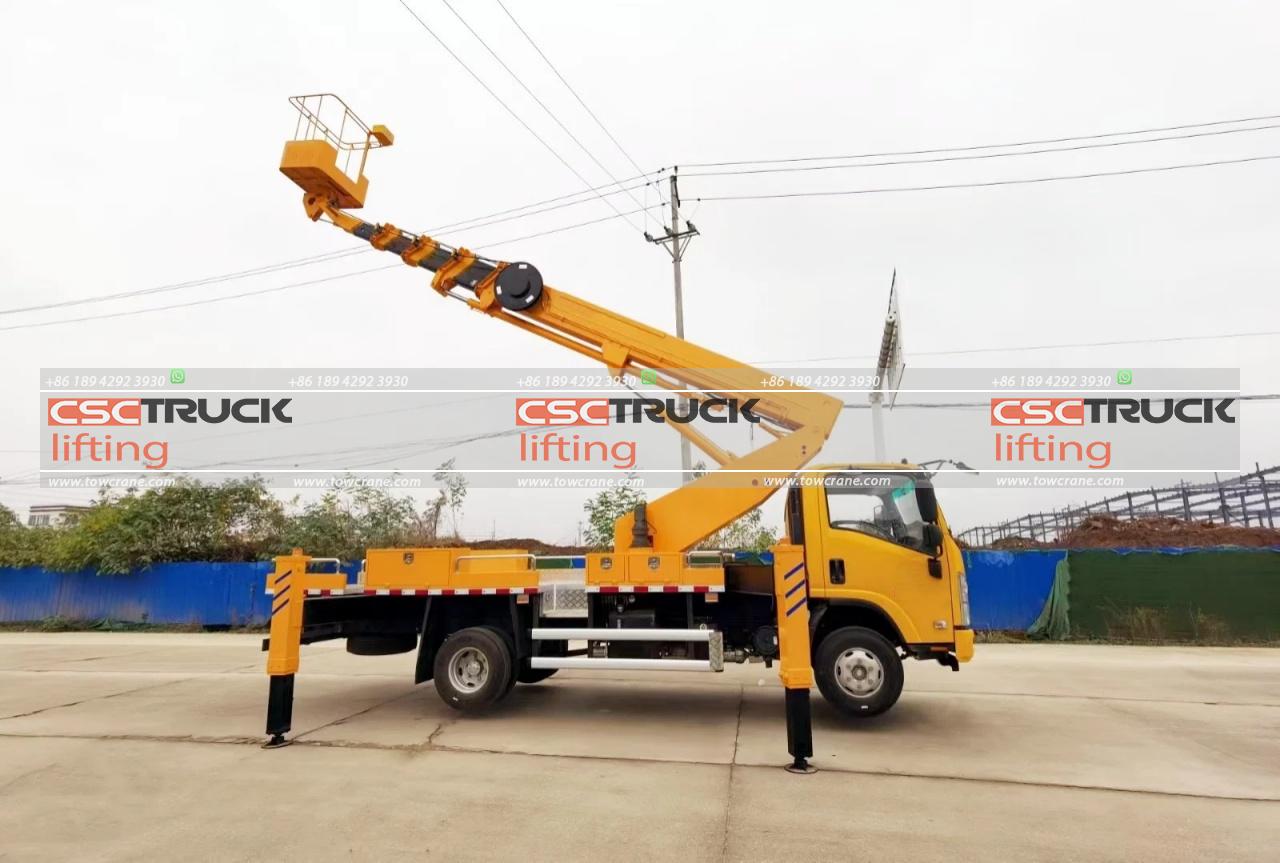

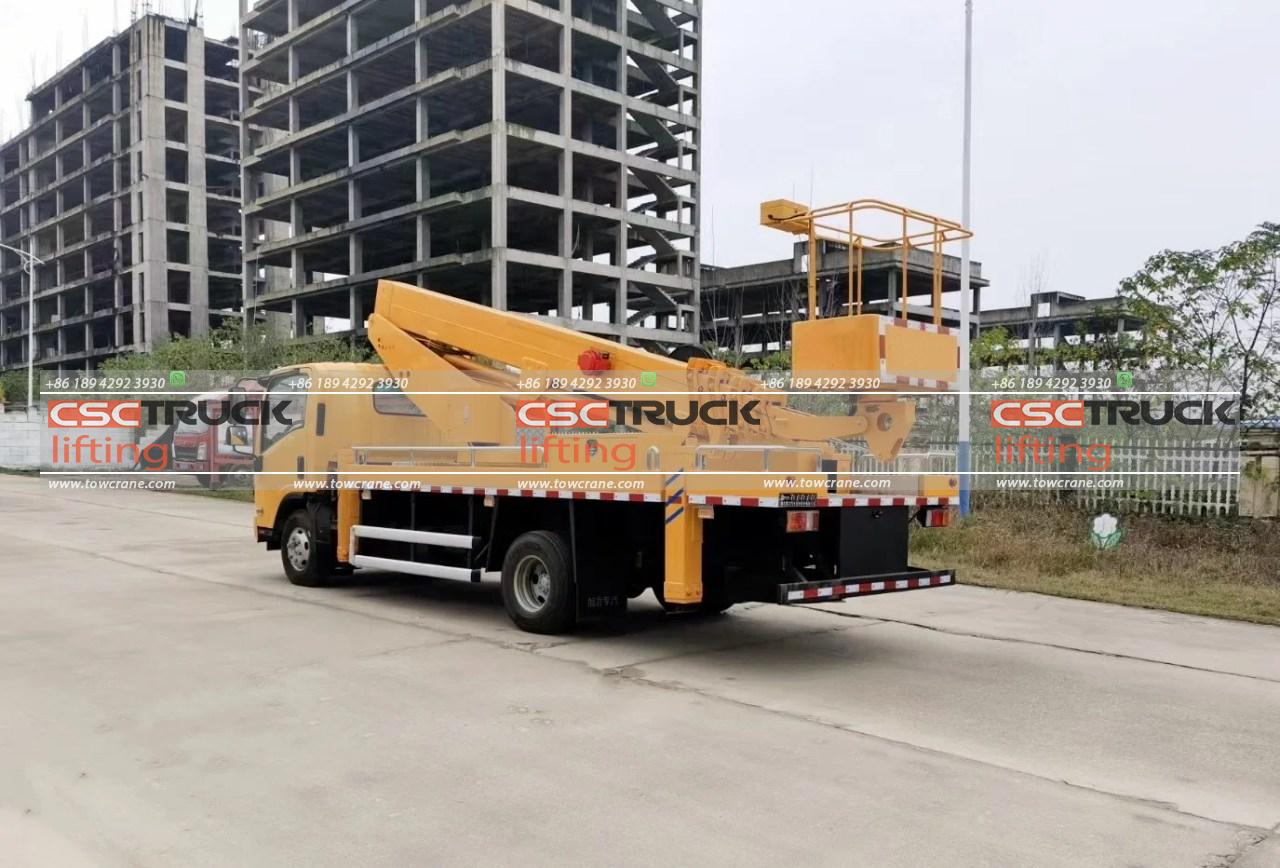

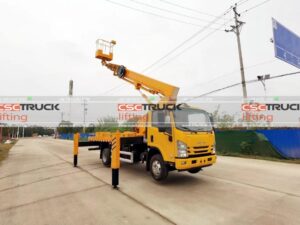

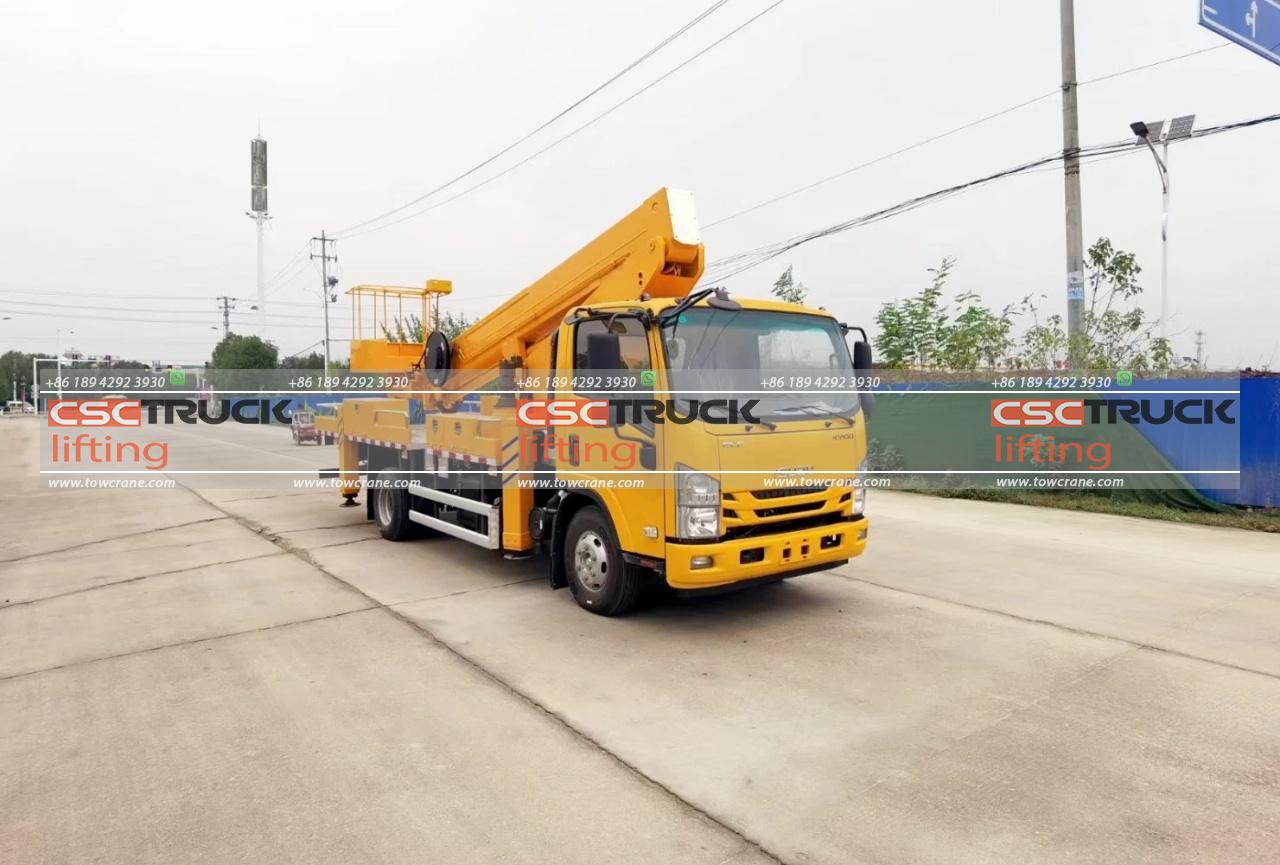

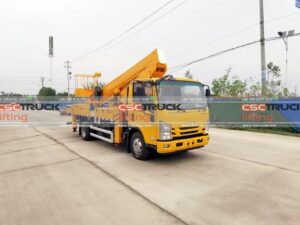

CSCTRUCK Tow Crane, a renowned manufacturer in the specialized vehicle industry, has unveiled its latest innovation: а ISUZU 23m Ізаляваны грузавік вядра. This cutting-edge vehicle is engineered to meet the diverse needs of utility and maintenance professionals, offering exceptional performance and safety features.
Built on a robust ISUZU chassis with a 4×2 drive type, the new Ізаляваны грузавік вядра is powered by a B140 33 engine model, delivering a potent 141 конскія сілы. The vehicle can reach a maximum driving speed of 90 km/h, ensuring timely arrival at job sites. The standout feature of this truck is its 23-meter maximum working height, providing access to elevated workspaces with ease.
The bucket, designed with insulation for enhanced safety, has a rated weight capacity of 200 kilograms, making it suitable for a wide range of tasks, from electrical line maintenance to tree trimming. This focus on safety is further emphasized by the truck’s ability to maintain stability and control, even under demanding conditions.
The introduction of the ISUZU 23m Insulated Bucket Truck highlights CSCTRUCK Tow Crane‘s commitment to delivering high-quality, reliable vehicles that cater to the evolving needs of their clients. With its powerful engine, significant reach, and enhanced safety features, this new model is set to become an invaluable asset for industries requiring elevated work platforms.
Рысы
1. High Working Height:
– А Ізаляваны грузавік вядра offers a maximum working height of 23 meters, making it suitable for tasks that require elevated access such as electrical line maintenance, tree trimming, and high-reach repairs.
2. Robust ISUZU Chassis:
– Built on a reliable ISUZU chassis, this truck combines durability and performance, ensuring it can withstand the rigors of demanding work environments.
3. Powerful Engine:
– Equipped with a B140 33 engine model that delivers 141 конскія сілы, the truck has the necessary power to handle various operational needs efficiently.
4. Stable and Efficient Drive Type:
– Featuring a 4×2 drive type, the truck provides stable and controlled driving on most road conditions, ensuring safety and reliability during transit and operation.
5. Ample Bucket Capacity:
– The insulated bucket has a rated weight capacity of 200kg, allowing it to safely carry personnel and tools necessary for the job while offering insulation for added protection when working near electrical hazards.
Спецыфікацыя
ISUZU 23m Insulated Bucket Truck |
|||
| Overall dimensions(LxWxH) | 7,410 x 2,210 x 3,550mm | ||
| Gross vehicle weight | 8,950kg | ||
| Калабара | 3,800 мм | ||
| F/R track base | 1,110/1,990мм | ||
| Approach/departure angle | 21/12° | ||
| Cabin | Single Row Cabin, 2 Passenger Allowed, | ||
| Engine | Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling | ||
| Displacement/ HP | 3,760CC / 141HP | ||
| Max speed | 90km/h | ||
| Спецыфікацыя шын | 7.60 – 16, 6 Pieces with 1 Spare | ||
| Traction system | 4×2 | ||
| Number of axles | 2 | ||
| Bucket | Max. work height: 23 meters | ||
| Max. bucket floor height: 22meters | |||
| Max. work radius: 10 meters | |||
| Rated load: 200kg | |||
| Dimension(L×W×H): 1,000×650×1,200(мм) | |||
| Boom | Тып: 4-section telescopic synchronously | ||
| Rotation angle: 360° | |||
| Elevation angle: -12°~80° | |||
| Outriggers | Тып: H | ||
| 4,000×4,000мм | |||
| Major Feature | Outrigger | The computer-controlled system, 1 key to stretch out & balance the level of the truck | |
| Balancing | Automatically Balancing system with Tilting Angle Sensor & level detector | ||
| Getting on & off Lock | A computer control system | ||
| Telescopic Arm Control | Controlling system in the bucket, with manual control | ||
| Platform Control system | LED Screen Display with Button control | ||
| Range Control | Large Angle Sensor to Detect the Arm Length & Rotation Range | ||
| Walkie-Talkie | Included | ||
