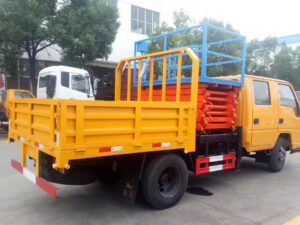

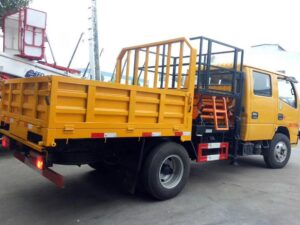

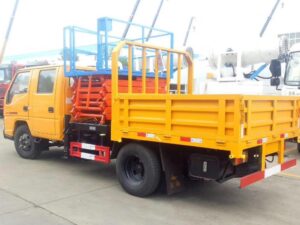

Жак 4 Tons Telescopic Aerial Lift Truck

SUMMARY

Рысы

А JAC 4 Tons Telescopic Aerial Lift Truck is a versatile and efficient piece of equipment designed for a variety of high-altitude operations. Here are some of its key features:

1. Chassis and Engine: The truck is built on a robust JAC chassis, ensuring reliable driving performance. It is powered by a JAC engine, which is known for its super power and reliable performance, requiring no overhaul within 100,000 km .
2. Lift Capacity and Reach: With a telescopic boom that can extend up to 20 метраў, the JAC aerial lift truck offers exceptional reach for tasks such as maintenance, construction, and installation at height .
3. Working Cage: The working cage can be made of steel structure or reinforced fiberglass (insulated cage), allowing for different levels of insulation and strength depending on the task .
4. Rotation and Support: The working cage can rotate 90 degrees in both left and right directions, providing flexibility during operations. The truck is equipped with 4 outriggers and a front support, which significantly improve operation stability and safety .
5. Safety Devices: A range of safety devices are available, including relief valves, balance valves, double-way hydraulic locks, and a motor emergency system, ensuring the safety of the operator .
6. Control Systems: The JAC aerial lift truck can be operated using a wireless remote control system, adding convenience and ease of use .
7. Specifications: The truck has a total mass of 4495kg, with a curb weight of 4365kg. It is equipped with a D20TCIF16 engine, displacing 1999ml and producing 103kW of power, which is equivalent to 140 конскія сілы. The vehicle features a five-speed transmission with air conditioning, steering assistance, central locking, electric doors and windows, and a remote control key .
8. Leg Configuration: The truck features a front V and rear V double leg support, providing a stable base for the aerial lift operations. The horizontal and vertical span of the legs is 4600mm, allowing for a wide range of motion and stability .
9. Hanging Basket: The size of the hanging basket is 1600×700×1100mm, with a rated load of the work platform being 200kg, making it suitable for various aerial work tasks .
10. Extensions: The truck boasts a lateral extension of 10m and a backward extension of 14m, providing a significant working range in addition to the maximum homework height of 20m .

These features make the JAC 4 Tons Telescopic Aerial Lift Truck an ideal choice for a wide range of applications where reaching high and working safely are paramount.

SPECIFICATIONS
