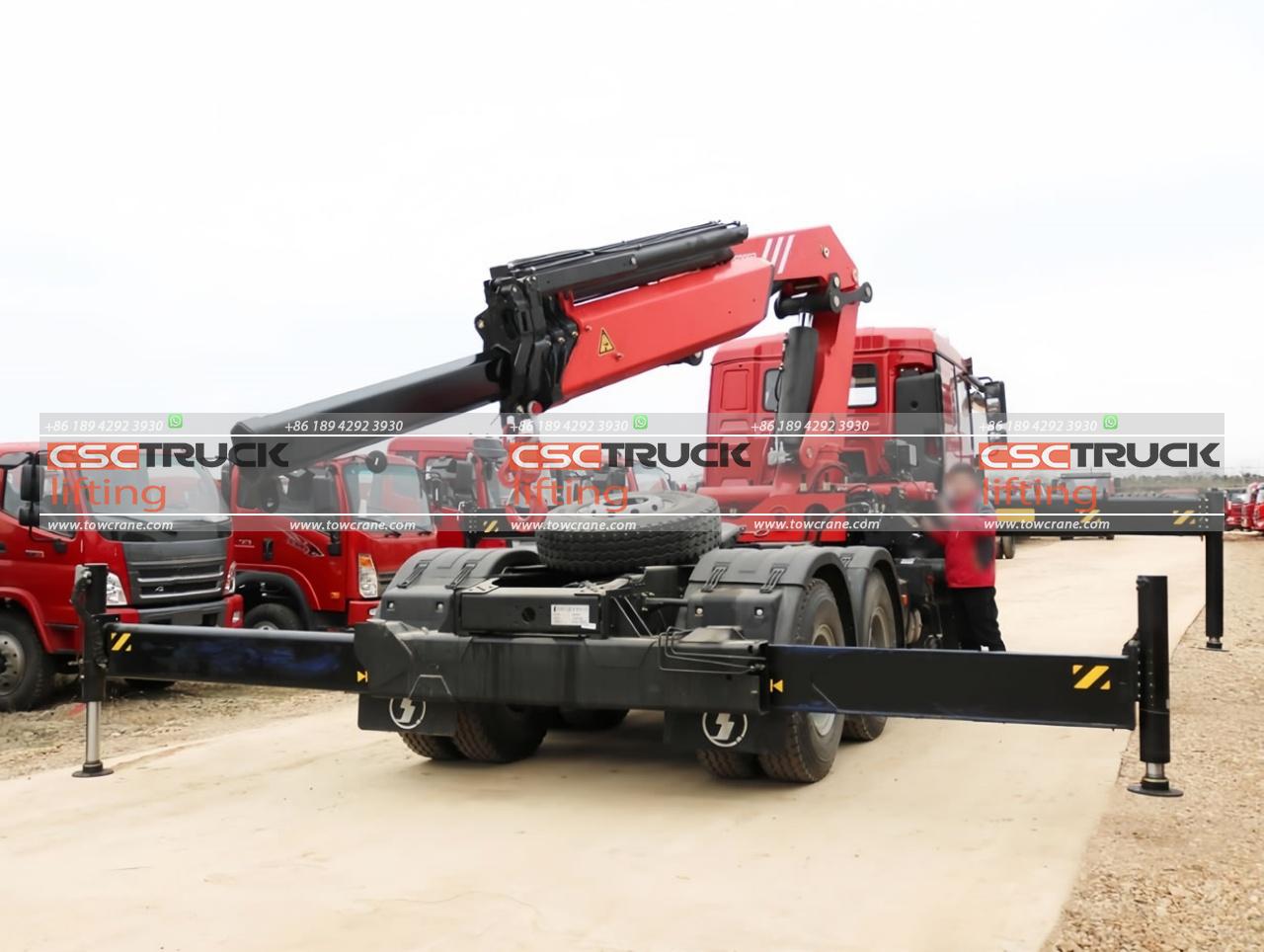

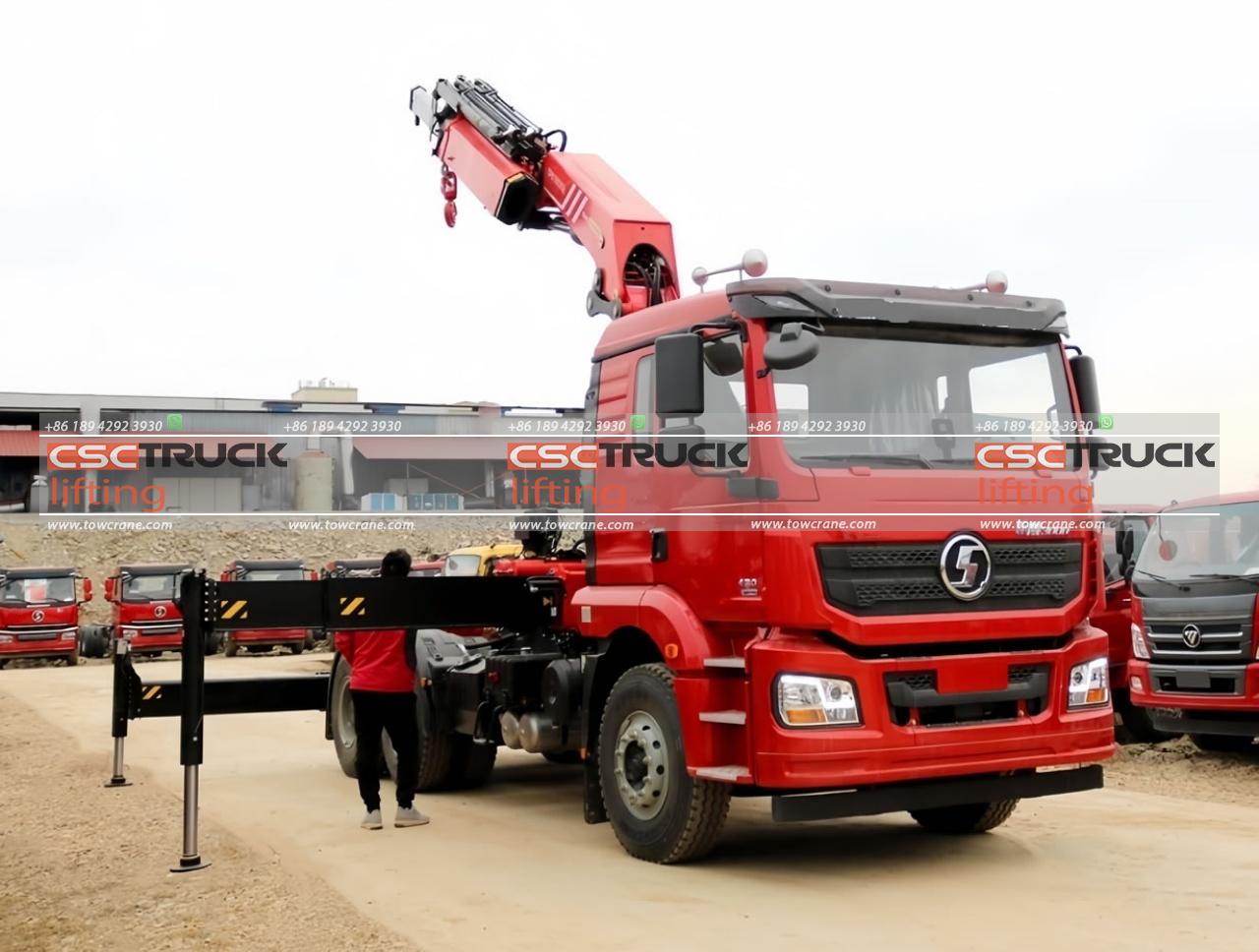

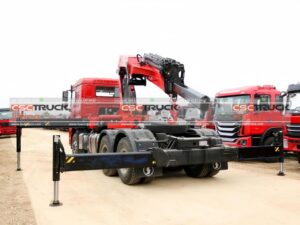

А SHACMAN 16-ton knuckle boom crane, produced by CSCTRUCK Tow Crane, is a robust and versatile lifting solution engineered for demanding applications. This model is mounted on a 6×4 drive-type chassis, ensuring excellent traction and stability across various terrains. Key features include 3 hydraulic boom extensions, providing a substantial lifting moment of 49 metric tons and a maximum lifting capacity of 16,000 kilograms.

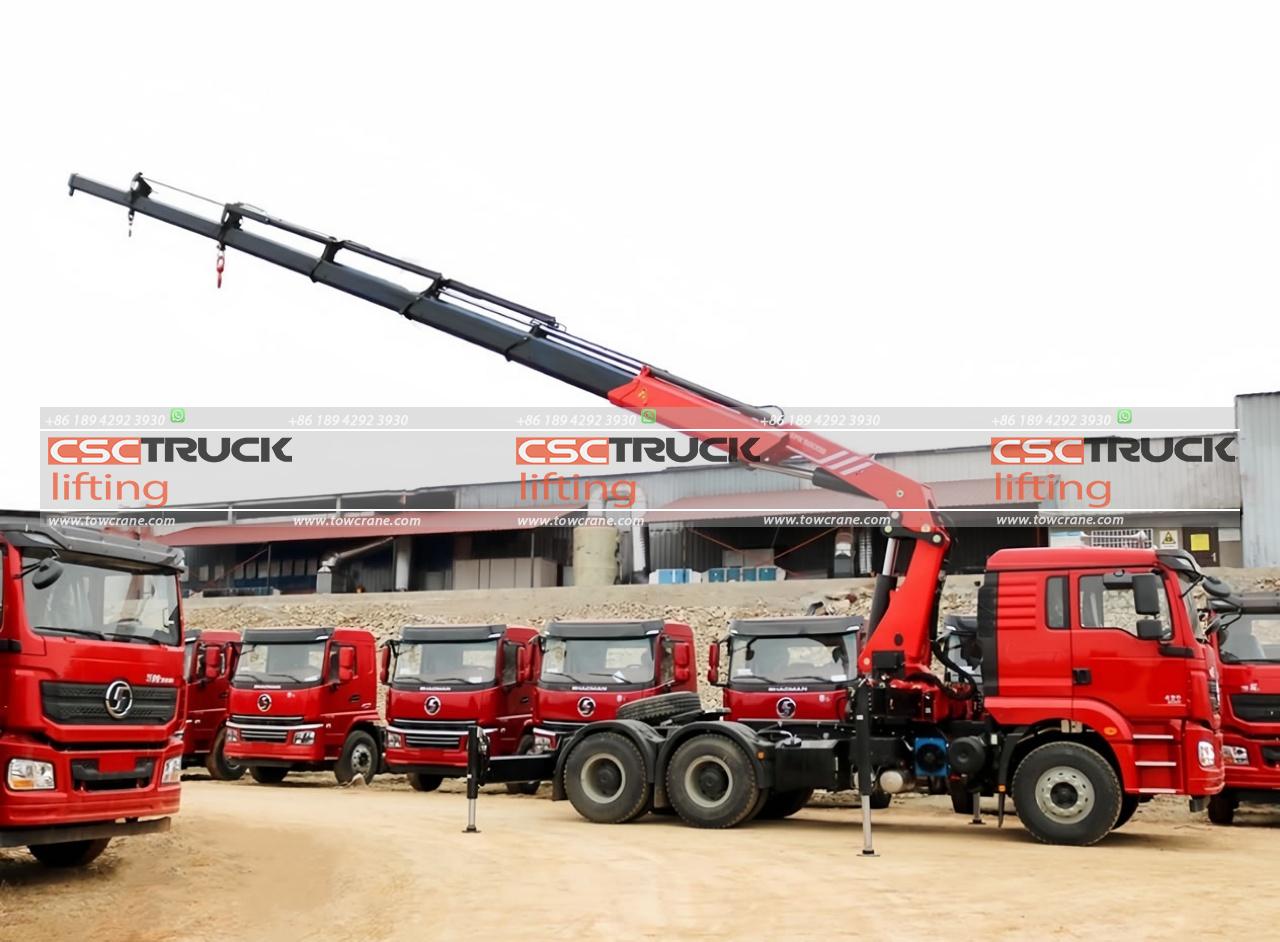

Designed for extended reach and precision, а SHACMAN 16-ton knuckle boom crane boasts a maximum hydraulic outreach of 10 meters, facilitating efficient operations over a wide area. Its 400° slewing angle allows for comprehensive maneuverability, ensuring precise positioning of loads in diverse working conditions. The crane’s slewing torque of 5.5 metric tons meters further enhances its capability to handle heavy loads with ease.
The hydraulic system is powered by a pump with a capacity ranging from 55 to 80 liters per minute, operating at a pressure of 33 megapascals. This ensures smooth and consistent performance, even under strenuous conditions. Weighing in at 4,750 kilograms, the crane strikes a balance between robust construction and operational efficiency.
У цэлым, а SHACMAN 16-ton knuckle boom crane да CSCTRUCK Tow Crane is designed to meet the rigorous demands of construction, logistics, and industrial applications. Its advanced hydraulic system, extensive reach, and high lifting capacity make it an indispensable tool for tasks requiring precise and powerful lifting capabilities.
Рысы
1. High Lifting Capacity and Reach:
– This crane has a maximum lifting capacity of 16,000 kg and a maximum hydraulic outreach of 10 meters, making it suitable for heavy-duty lifting tasks with significant reach.

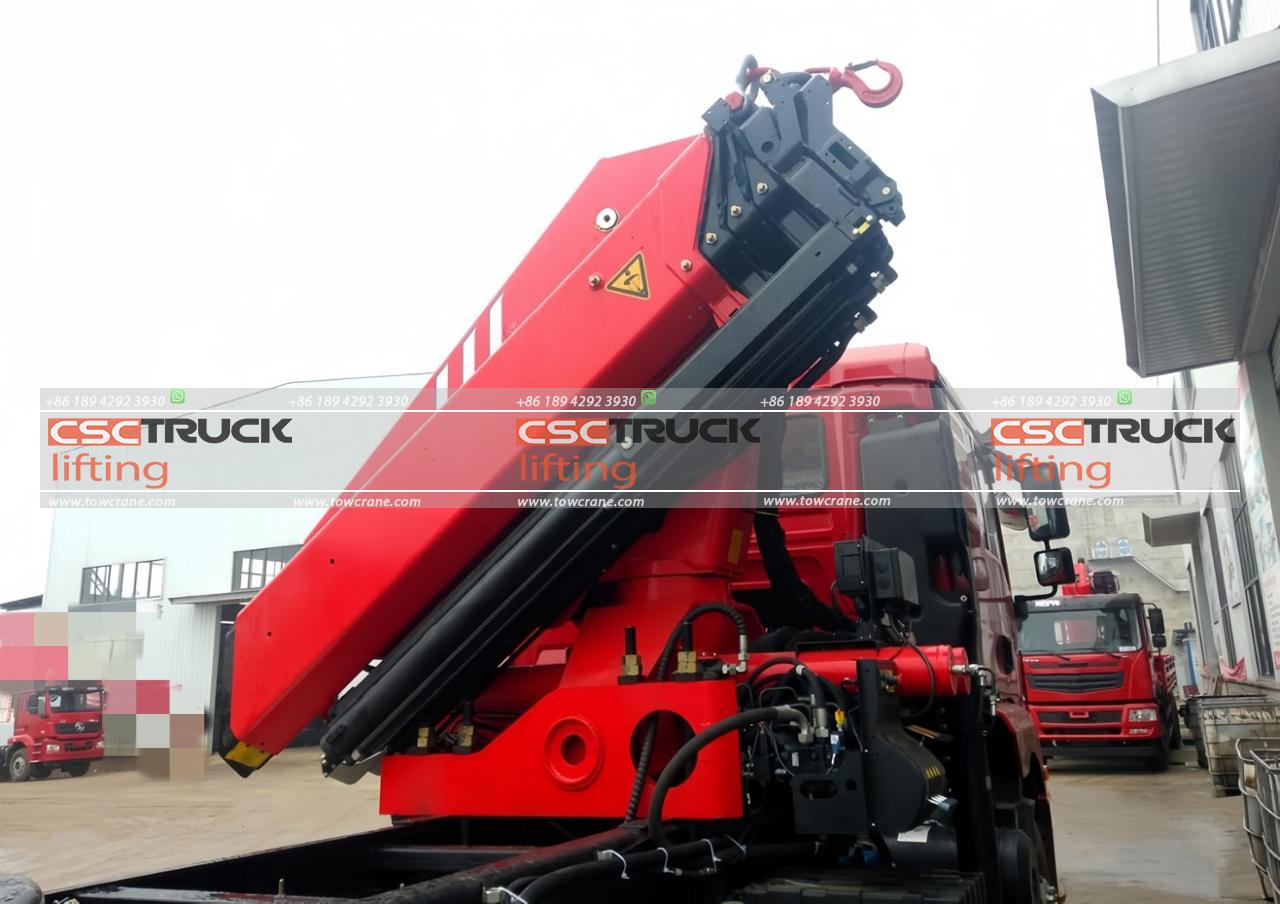

2. Hydraulic Boom Extensions:
– The crane is equipped with 3 hydraulic boom extensions, enhancing its flexibility and versatility in handling various lifting scenarios.
3. Powerful Slewing Mechanism:
– With a 400° slewing angle and 5.5 mt slewing torque, the crane can rotate almost fully around its base, providing excellent maneuverability for precise positioning of loads.
4. Efficient Hydraulic System:
– The crane operates with a pump capacity of 55-80 L/min and an operating pressure of 33Mpa, ensuring efficient hydraulic performance and the ability to handle demanding tasks smoothly.
5. Robust Construction and Drive Type:
– The crane is mounted on a 6×4 drive-type chassis, providing strong traction and stability. Дадаткова, its standard crane weight of 4,750 kg contributes to its robust and durable construction.
Спецыфікацыя
| Item | Unit | CSCKBC50002B | CSCKBC50002C | CSCKBC50002D | CSCKBC50002E |
| Hydr. boom extensions | / | 3 | 4 | 5 | 6 |
| Lifting moment | mt | 49 | 49 | 49 | 49 |
| Max. lifting capacity | кг | 16,000 | 15,790 | 15,200 | 14,200 |
| Max. hydraulic outreach | м | 10 | 12.1 | 14.5 | 16.8 |
| Slewing angle | ° | 400 | 400 | 400 | 400 |
| Slewing torque | mt | 5.5 | 5.5 | 5.5 | 5.5 |
| Pump capacity | L/min | 55-80 | 55-80 | 55-80 | 55-80 |
| Operating pressure | Mpa | 33 | 33 | 33 | 33 |
| Standard crane weight | кг | 4,750 | 4,950 | 5,180 | 5,400 |

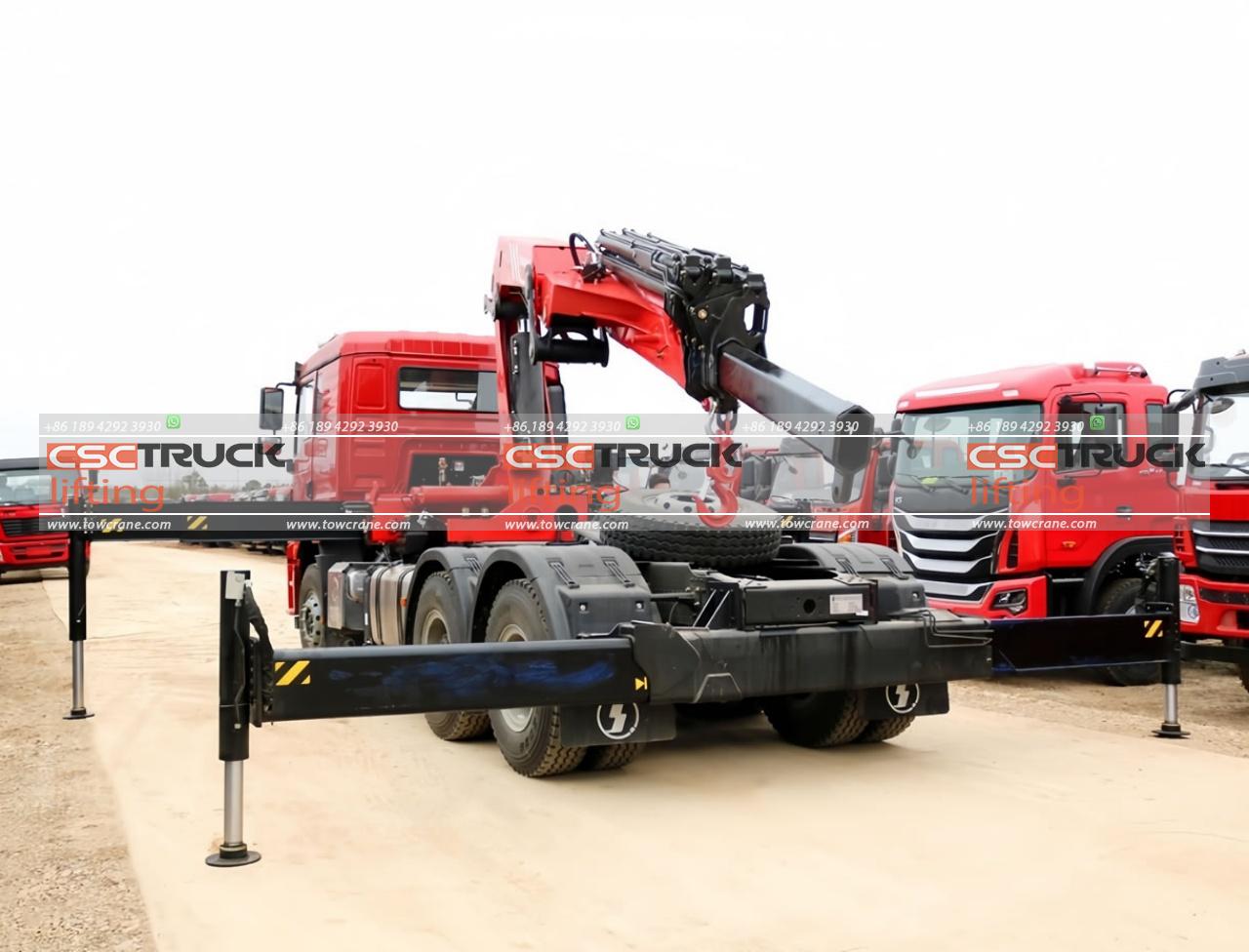

| Outrigger span(мм) | R3X | 6,600 | 6,600 | 6,600 | 6,600 |
