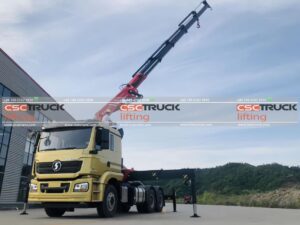

U 10-wheel, 20-ton knuckle boom crane produced by CSCTRUCK Tow Crane exemplifies robust engineering and versatile performance for heavy lifting operations. This crane features 4 hydraulic boom extensions, allowing for a flexible reach and positioning of loads. With a maximum lifting capacity of 19,500 kg and a substantial lifting moment of 53.9 metric tons, it is designed to handle heavy and complex tasks efficiently.
U knuckle boom crane‘s maximum hydraulic outreach is 11.5 metri, enabling it to manage operations significantly, and making it suitable for various industrial and construction environments. It offers a 370° slewing angle, providing a wide range of motion for precise load placement. The slewing torque of 6.5 metric tons ensures smooth and powerful rotation, enhancing the crane’s operational effectiveness.
Equipped with a pump capacity of 60-80 liters per minute and operating at a pressure of 33 megapascals, the crane’s hydraulic system delivers consistent and reliable performance. The standard weight of the crane is 5641 kg, which balances the need for sturdiness with the practical considerations of maneuverability and transport.
Overall, U CSCTRUCK Tow Crane‘s 10-wheel, 20-ton knuckle boom crane is a high-capacity, versatile piece of machinery designed to meet the demands of heavy-duty lifting. Its lifting power, reach, and hydraulic efficiency make it a valuable asset for industries requiring robust and adaptable lifting solutions.
Caratteristiche
1. High Lifting Capacity and Moment:
– The crane boasts a maximum lifting capacity of 19,500 kg, allowing it to handle heavy loads with ease. It also features a lifting moment of 53.9 metric tonnes (mt), which indicates its powerful lifting performance.
2. Extended Reach and Versatile Hydraulic Boom:
– Equipped with 4 hydraulic boom extensions, the crane can achieve a maximum hydraulic outreach of 11.5 metri. This extended reach enhances its versatility in handling tasks that require significant horizontal reach.
3. Efficient and Robust Slewing Mechanism:
– The crane has a slewing angle of 370 degrees, providing extensive rotational capability for optimal positioning of loads. Inolescente, it offers a slewing torque of 6.5 metric tonnes(mt), ensuring stable and efficient rotation under heavy loads.
4. Powerful Hydraulic System:
– The crane operates with a pump capacity ranging from 60 à 80 liters per minute (L/min) and an operating pressure of 33 megapascals (MPa). This robust hydraulic system ensures efficient and powerful operation, supporting the crane’s heavy lifting and outreach capabilities.
5. Heavy-Duty and Well-Balanced Design:
– With a standard crane weight of 5,641kg, the crane is designed to be durable and stable. The 10-wheeler configuration further enhances its balance and maneuverability, making it suitable for a variety of heavy-duty towing and lifting operations.
Specificazione
| Item | Unità | CSCKBC55502C | CSCKBC55502D | CSCKBC55502E |
| Hydr. boom extensions | / | 4 | 5 | 6 |
| Lifting moment | mt | 53.9 | 53.9 | 53.9 |
| Max. lifting capacity | kg | 19,500 | 18,600 | 18,000 |
| Max. hydraulic outreach | m | 11.5 | 13.7 | 15.9 |
| Slewing angle | ° | 370 | 370 | 370 |
| Slewing torque | mt | 6.5 | 6.5 | 6.5 |
| Pump capacity | L/min | 60-80 | 60-80 | 60-80 |
| Operating pressure | Mpa | 33 | 33 | 33 |
| Standard crane weight | kg | 5641 | 5783 | 6020 |
| Outrigger span(mm) | R3X-STZS3 | 7400 | 7400 | 7400 |
| R3X-STZY | 7413 | 7413 | 7413 |
