STRUČNÝ

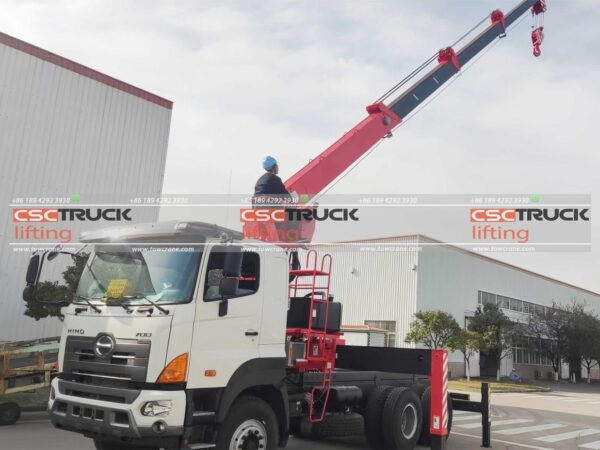

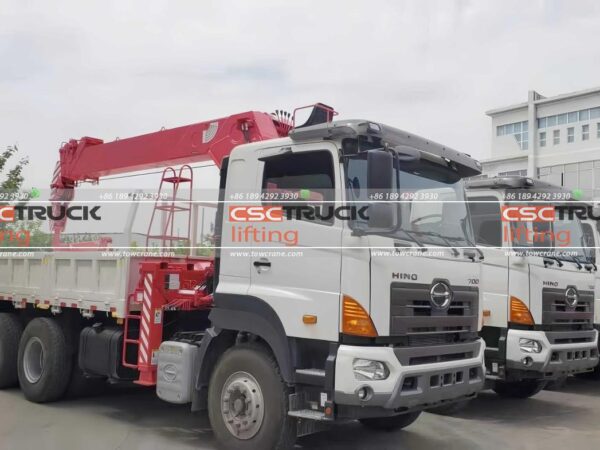

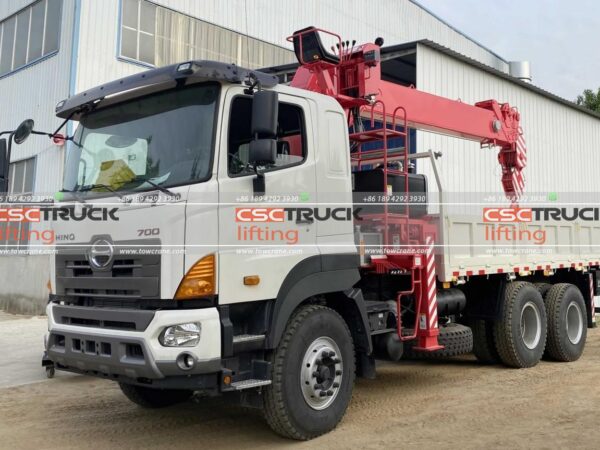

The HINO 10-ton truck telescopic crane, produkoval CSCTRUCK TOW CRANE, is a robust and versatile lifting solution designed for heavy-duty operations. This crane is mounted on a 6×4 drive type chassis, providing excellent stability and maneuverability across various terrains. It boasts a substantial rated lifting capacity of 10,100 kg, making it suitable for a wide range of industrial and construction applications.
Key features of this crane include its impressive reach and height capabilities. It has a maximum working radius of 13.69 meters and a maximum lifting height of 15.6 metrů, enabled by its 4-section boom. The crane’s boom sections ensure flexibility and precision in positioning loads at various heights and distances.
For operational stability, the crane is equipped with a 5.7-meter outrigger span. This wide stance supports safe lifting operations by minimizing the risk of tipping, even when handling heavy loads at extended reaches. The truck telescopic crane also features a continuous 360° turning angle, allowing for seamless and efficient movement around the worksite. With a turning speed of 2.0 ot./min, operators can position the crane swiftly for optimal lifting angles.
The hydraulic system of the HINO telescopic crane is powered by a 120-liter hydraulic oil tank, ensuring smooth and consistent performance. This capacity supports extended operational periods without the need for frequent refilling, enhancing productivity on the job.
Celkově, a HINO 10-ton truck telescopic crane podle CSCTRUCK TOW CRANE is a powerful, reliable, and efficient piece of equipment, designed to meet the demanding needs of modern lifting and construction tasks.
VLASTNOSTI
1. High Lifting Capacity: This crane has a substantial rated lifting capacity of 10,100 kg, making it suitable for heavy-duty lifting tasks.
2. Extended Reach and Height: The crane boasts a maximum working radius of 13.69 meters and a maximum lifting height of 15.6 metrů, facilitated by its 4 boom sections, allowing it to handle a wide range of lifting operations.
3. 360° Continuous Rotation: It features a 360° consecutive turning angle with a turning speed of 2.0 rmp, providing flexibility and efficiency in positioning loads.
4. Robust Stability: The crane is equipped with a 5.7-meter outrigger span, ensuring stability during lifting operations. The outriggers help to distribute the load and maintain balance.
5. Efficient Hydraulic System: It includes a 120-liter hydraulic oil tank capacity, supporting the powerful hydraulic system required for smooth and efficient crane operation.
SPECIFIKACE
| Basic data | CSCTTC1004 |
| Rated lifting capacity | 10,100kg |
| Rated lifting moment | 10,100*2.5m |
| Max. working radius | 13.69m |
| Max. Výška zvedání | 15.6m |
| Boom section | 4 |
| Outrigger Span | 5.7m |
| Turning angle | Consecutively turn 360° |
| Turning speed | 2.0 ot./min |
| Hydraulic oil tank capacity | 120L |
