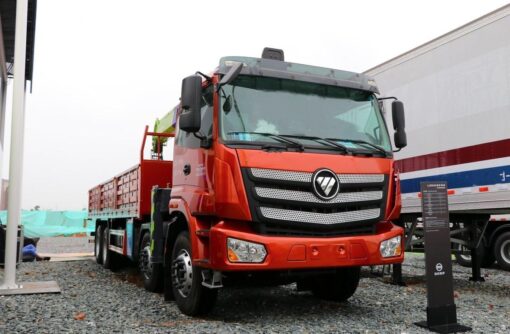

Fotos 31 Tonnen LKW-Teleskopkran

SUMMARY

MERKMALE

Der Fotos 31 Tonnen LKW-Teleskopkran is a robust and versatile piece of heavy machinery designed for lifting and transporting heavy loads. Here are some of its key features:

1. Chassis and Driving Type: The crane is mounted on a Foton EST chassis, which is known for its durability and performance. It has an 8×4 driving type, which provides excellent traction and maneuverability on various terrains.
2. Overall Dimensions and Weight: The overall dimensions of the crane truck are 12000mm x 2550mm x 3990mm. It has a gross weight of 31,000 kg and a curb weight of 20,800 kg, indicating its substantial capacity for lifting heavy loads.
3. Motor: Powered by a Foton Cummins diesel engine, model ISGe3-380, it delivers a maximum horsepower of 380 PS. This engine meets Euro 3 Emissionsstandards, ensuring both power and environmental compliance.
4. Transmission and Axle: The crane truck is equipped with a HW23712 transmission, allowing for smooth operation. The front axle has a loading capacity of 5.26 Tonnen, while the rear axle can handle up to 16 Tonnen, providing a balanced weight distribution.
5. Reifen: It comes with 12.00R20 20PR tires, and there are 12+1 tires in total, ensuring stability and a smooth ride.
6. Crane Specifications: The 28-ton folding crane has a maximum lifting capacity of 28,000 kg and can reach a maximum lifting height of 21 Meter. The work radius is 18.5 Meter, and it offers a 360-degree all-rotation feature, providing flexibility in various lifting scenarios.
7. Safety and Comfort: The crane truck features a standard cab for two passengers, providing a comfortable working environment. It also includes safety features such as ABS+EBD and front disc rear drum brakes.
8. Paint and Exterior: The exterior is finished with automotive metallic paint, giving the crane truck a professional and durable appearance.
9. Hydrauliksystem: Modern hydraulic truck cranes like this Foton model are single-engine machines, with the same engine powering both the undercarriage and the crane. The upper part of the crane is usually powered via hydraulics run through the turntable from the pump mounted on the lower part of the crane.

Das Fotos 31 Tonnen LKW-Teleskopkran is an ideal choice for construction sites, Logistik, and other heavy-duty lifting applications, combining power, capacity, and maneuverability in a single package.
