LYHYT

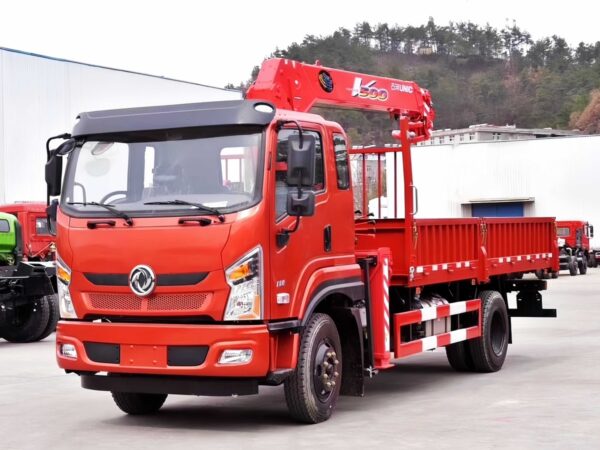

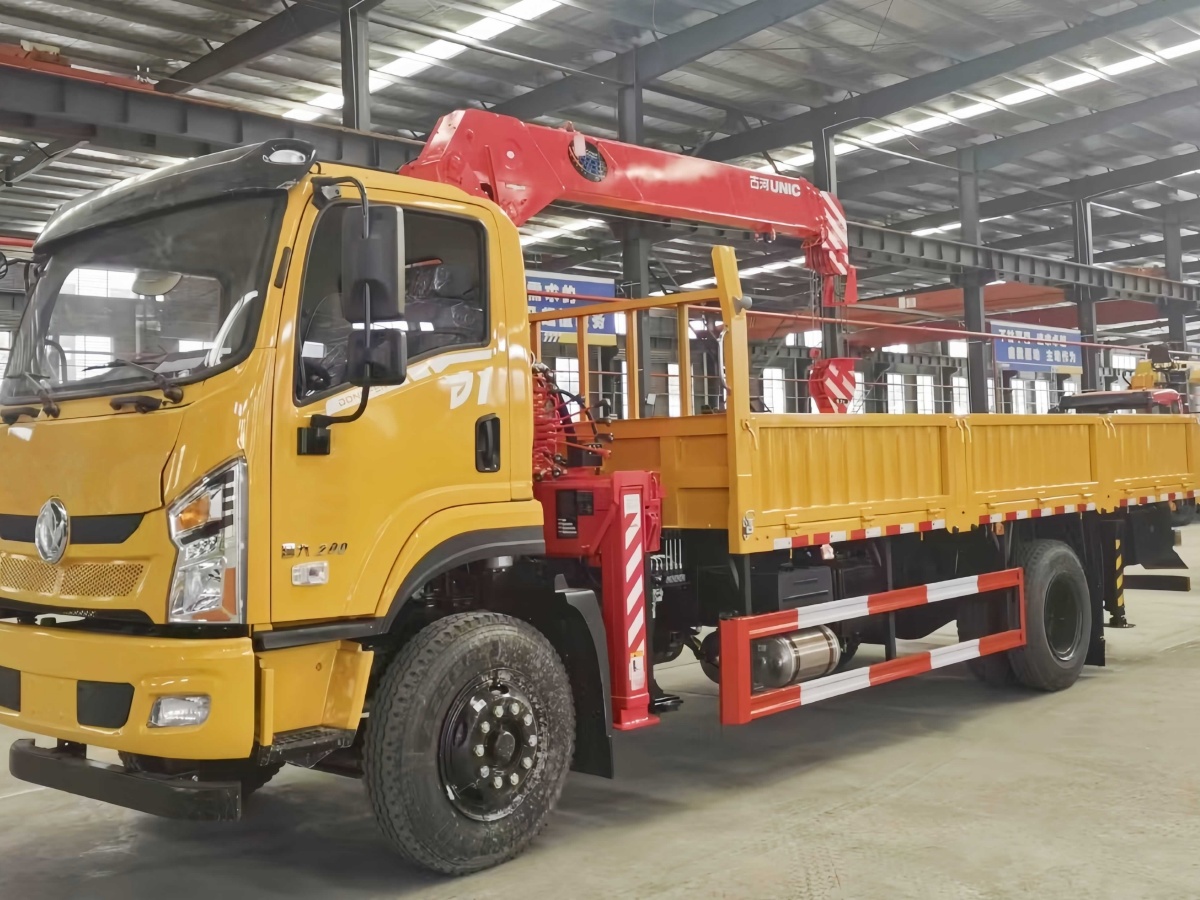

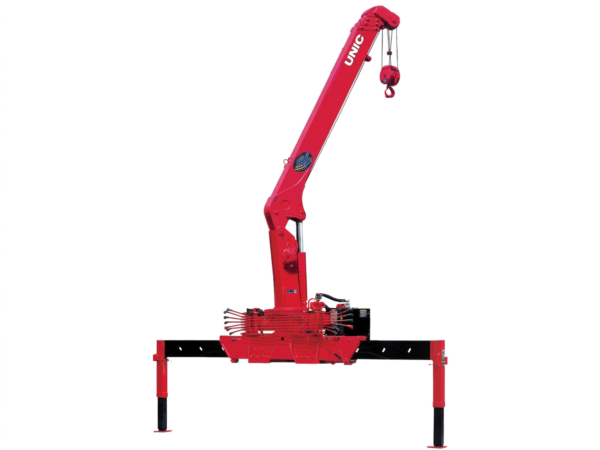

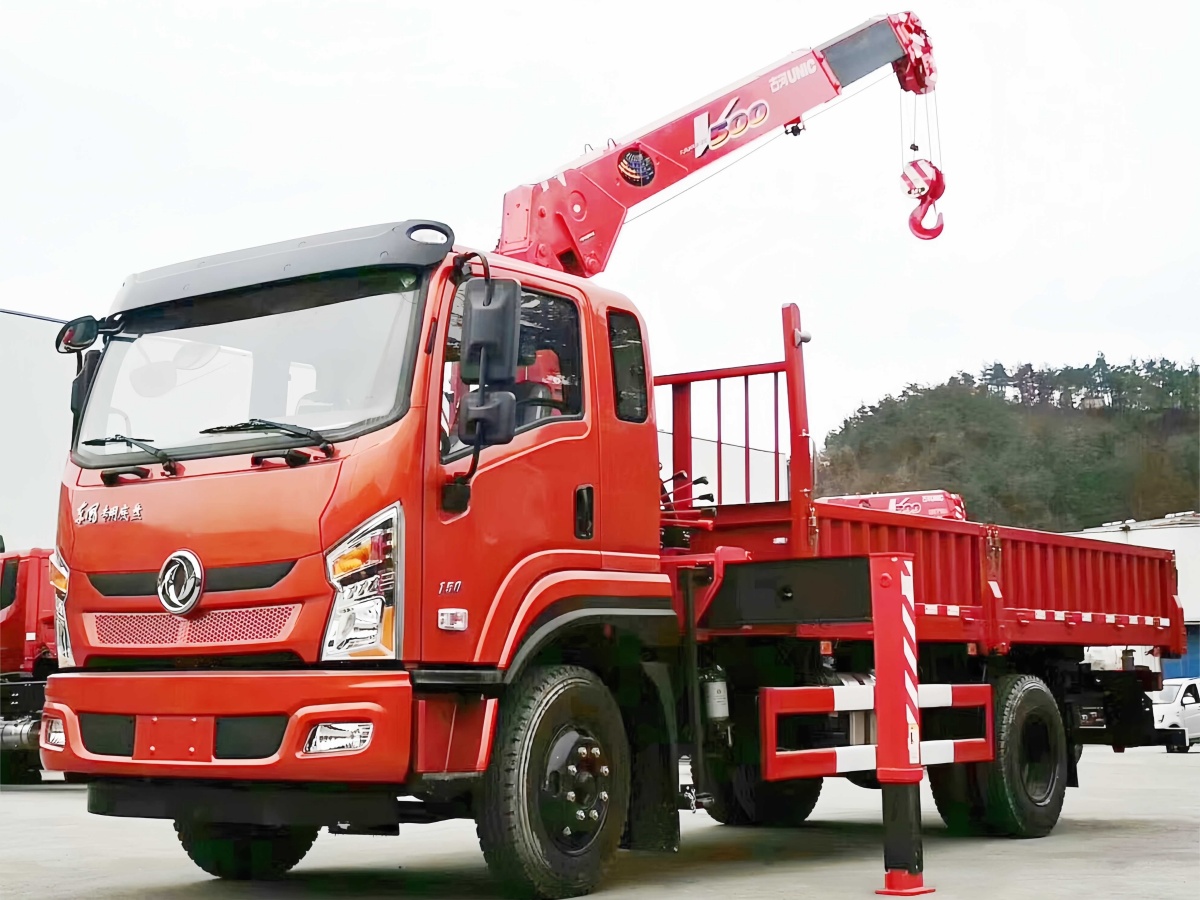

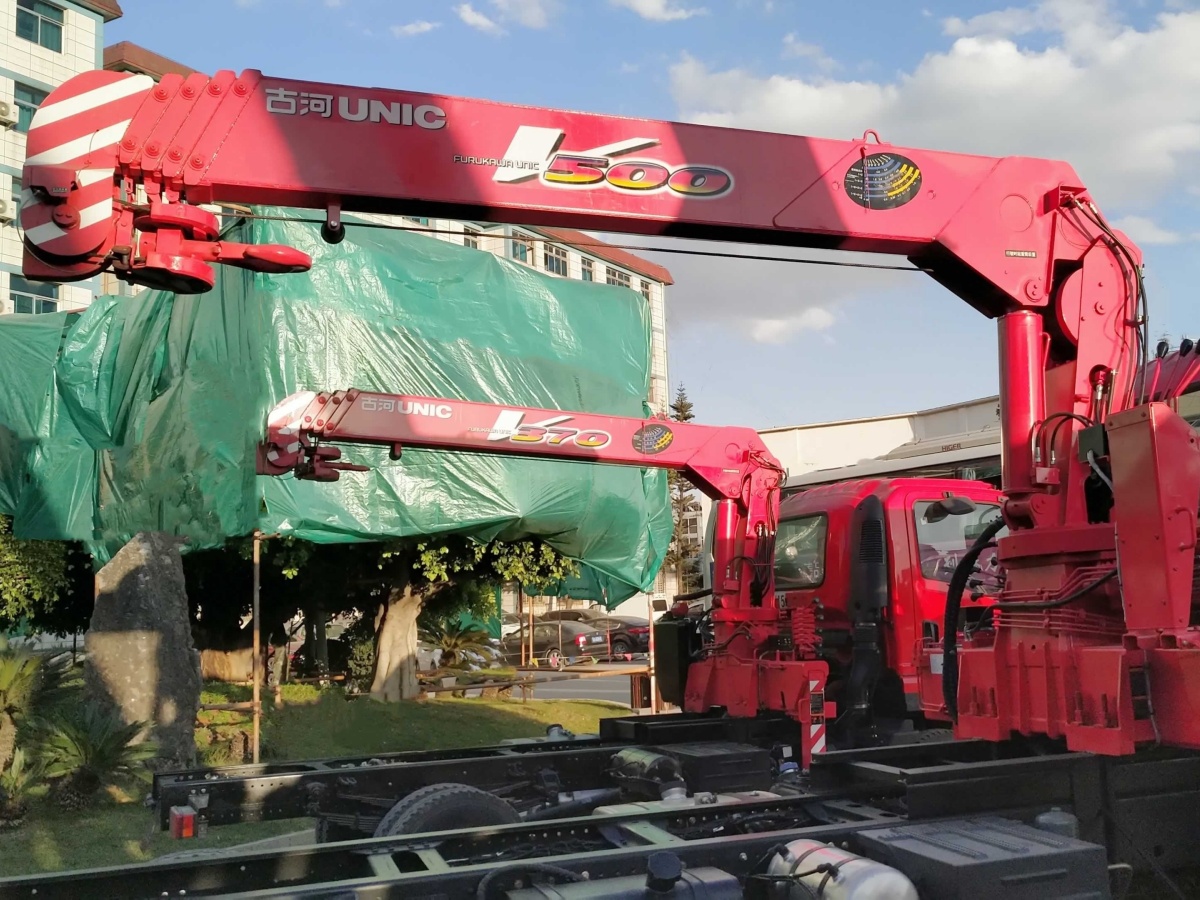

The UNIC 5-ton telescopic boom crane superstructure is a compact, luotettava, and highly efficient lifting solution designed for medium-duty operations. Combining proven engineering with user-focused safety features, it delivers stable and precise performance across a wide range of applications including logistics, construction, and equipment handling.

Its lightweight design enhances vehicle payload efficiency, while the optimized boom structure ensures excellent reach and lifting capability. What sets this nosturi apart is its integrated safety and monitoring system, which provides real-time load feedback and automatic protection functions, ensuring safer and more controlled operations.

With 360° slewing capability and easy truck integration, the UNIC 5T teleskooppinen nosturi offers a practical, cost-effective, and dependable solution for modern lifting needs.

Piirteet

1. Reliable 5-Ton Lifting Performance

Delivers stable lifting capacity up to 5.05 tonnia, ensuring dependable performance for daily medium-duty operations.

2. Compact and Lightweight Design

Weighing approximately 2210 kg, the crane maximizes truck payload efficiency while maintaining strong lifting capability.

3. Flexible Telescopic Boom System

The 3-section boom provides excellent reach and adaptability, while remaining compact when retracted for transport efficiency.

4. 360° Slewing for Operational Flexibility

Full rotation allows lifting from any direction without repositioning the vehicle, improving efficiency in tight job sites.

5. Optimized Working Range

With up to 8.13 m outreach and over 10 m lifting height, the crane reduces repositioning and increases productivity.

6. Integrated Load Monitoring System

Load Indicator + Hydraulic Load Meter: Provides real-time load information, helping operators stay within safe working limits and avoid overloading.

7. Overwinding Protection System

• Alarm for overwinding
• Automatic stop function: Prevents hook over-lifting, protecting both the crane structure and wire rope from damage.

8. Automatic Hook Stowing Function

Automatically secures the hook during transport, improving driving safety and protecting the wire rope.

9. Built-in Level Gauge for Stability Control

Allows operators to quickly check whether the crane is properly leveled, ensuring safer lifting operations.

10. Automatic Slewing Brake System

Automatically locks the slewing motion when needed, enhancing operational safety and preventing unintended movement.

11. Stable Outrigger System

Provides solid ground support for safe lifting, even under heavy loads or uneven terrain.

12. Smooth and Precise Hydraulic Control

Ensures responsive and stable operation, enabling accurate load handling and improved safety.

Eritelmä

Item	Parameter
Shipping Size	40HC Container
Shipping Weight	2210 kg
Brand	UNIC
Max Lifting Moment	5.05 t × 2.5 m
Max Lifting Capacity	5.05 t
Max Hydraulic Outreach	8.13 m
Lämmityskulma	360°
Max Lines of Hook	4
Boom Raising Angle	78°
Max Lifting Height	10.1 m
Boom Length	3.54 – 5.97 – 8.37 m
Boom Sections	3
Turha (Täysin laajennettu)	4.8 m
Recommended Flow Rate	60 L/min
Operating Pressure	20.6 MPa (210 kgf/cm²)
Recommended Oil Tank Capacity	60 Lens
