BREF

CARACTÉRISTIQUES

• Avec une capacité de charge de 5.7 tonnes, this truck is capable of handling substantial weights. The Isuzu engine provides reliable power, ensuring smooth operation even when carrying heavy loads.
• The articulated design allows for excellent maneuverability, enabling the truck to navigate tight spaces and complex terrains with ease.

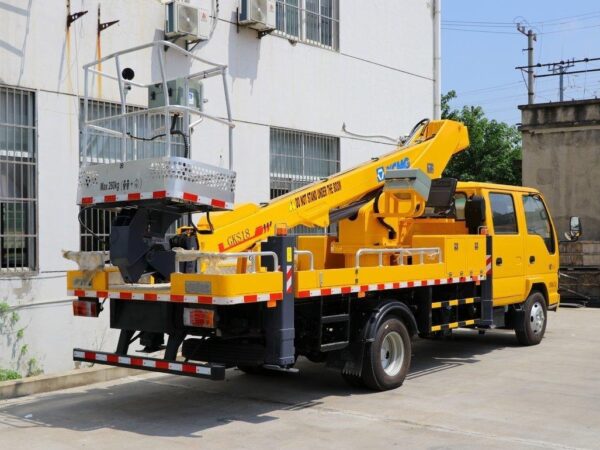

• The bucket lift mechanism is a key feature of this truck. It offers a safe and stable platform for workers to access heights. The lift can be adjusted to different heights and angles, providing flexibility for various work requirements.
• The system is equipped with safety features such as overload protection and emergency stop buttons to ensure the safety of operators.

• Isuzu is known for its quality construction, and this truck is no exception. The chassis and body are built to withstand heavy use and harsh working conditions.
• The materials used are of high quality, ensuring long service life and minimal maintenance requirements.

• The cab of the Isuzu 5.7 Ton Articulated Bucket Lift Truck is designed for operator comfort. It features a spacious interior, adjustable seats, et une bonne visibilité.
• The controls are ergonomically placed, making it easy for operators to control the truck and the bucket lift system.

• This truck is equipped with a range of safety features to protect operators and those working around it. These include rollover protection, seat belts, and warning lights.
• The bucket lift system also has safety locks and interlocks to prevent accidental movement.

• The Isuzu 5.7 Ton Articulated Bucket Lift Truck is suitable for a wide range of applications, including construction, entretien, et les services publics. It can be used for tasks such as tree trimming, electrical work, and signage installation.

SPÉCIFICATION

Informations de base
Formulaire de lecteur	4X2
Empattement	3360mm
Taper	Aerial work platform vehicle
Vehicle size	6.935X2X3.21 meters
Masse totale	5.775 tonnes
Poids du véhicule	5.45 tonnes
Porte-à-faux avant/porte-à-faux arrière	1.015/2.175 mètres
Voie avant/voie arrière	Front： 1504mm; Rear：1425mm
Engine parameters
Modèle de moteur	Qingling Isuzu 4KH1CN6LB
Déplacement	2.999L
Puissance de sortie maximale	88kW
Puissance maximale	120 puissance
Norme d'émission	Euro VI
Transmission parameters
Modèle de transmission	Isuzu 5
Nombre de vitesses	5 engrenages
Chassis parameters
Marque de châssis	Qingling
Série de châssis	Isuzu 600P
Modèle de châssis	QL1070BUHWY
Nombre de ressorts à lames	8/6+5
Pneus
Nombre de pneus	6
Spécification des pneus	7.00R16 14PR, 7.00-16 14PR.
