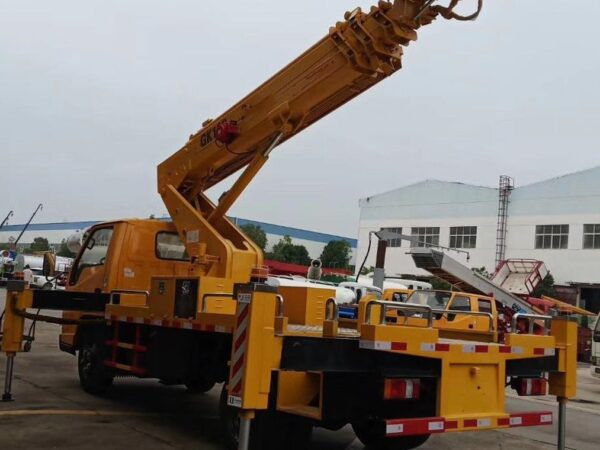

BREF

1. Powerful Chassis and Loading Capacity:
   • It is built on a reliable chassis that can handle a loading capacity of 4.5 tonnes, ensuring the stability and durability of the vehicle during operation. This allows it to carry not only the bucket lift structure but also necessary tools and equipment for the job.
2. Articulated Design:
   • The articulated structure is a key feature of this truck. It provides enhanced maneuverability, especially in confined spaces or areas with complex terrains. The articulation joint enables the vehicle to make turns more easily, allowing for greater access to different work areas that may be difficult for traditional vehicles to reach.
3. Bucket Lift System:
   • The bucket lift is designed to offer a safe and stable working platform at elevated heights. It has a certain lifting height and outreach, enabling workers to perform tasks such as maintenance, construction, and installation at heights. The lift system is equipped with safety features like overload protection and stability controls to ensure the safety of the operators.
4. Versatile Applications:
   • This type of truck is widely used in various fields, including urban construction, electrical maintenance, street lighting installation and repair, and tree trimming. Its ability to reach high places makes it an essential tool for these types of work.
5. Comfortable and User-Friendly Cab:
   • The cab of the Jmc 4.5 Tonne Chariot élévateur à godets articulé is designed for operator comfort. It is equipped with features such as a comfortable seat, air conditioning, et une bonne visibilité, allowing the operator to work in a relatively comfortable environment for extended periods. En plus, the control panel is intuitive and easy to operate, reducing the operator’s workload and improving work efficiency.

CARACTÉRISTIQUES

• With a capacity of 4.5 tonnes, this truck is capable of handling heavy loads. The robust engine provides ample power for both transportation and operation of the bucket lift.
• The articulated design allows for excellent maneuverability in tight spaces and on uneven terrain, ensuring that the truck can access even the most challenging work sites.

• The bucket lift on the Jmc truck is highly advanced. It offers a significant reach and height, enabling workers to access areas that would otherwise be difficult to reach.
• The lift is stable and secure, providing a safe working platform for operators. It is equipped with safety features such as overload protection and emergency stop buttons.

• Built to last, the Jmc 4.5 Ton Articulated Bucket Lift Truck is constructed from high-quality materials. The chassis and body are designed to withstand heavy use and harsh working conditions.
• Le camion’s components are engineered for durability, reducing the need for frequent maintenance and minimizing downtime.

• The truck is designed with the operator in mind. The controls are intuitive and easy to use, allowing for efficient operation.
• The cab is comfortable and provides good visibility, enabling the operator to work safely and effectively.

• This bucket lift truck is suitable for a wide range of applications. It can be used in construction, entretien, telecommunications, and other industries where elevated work is required.
• Le camion’s versatility makes it a valuable asset for businesses that need to perform various tasks at different heights.

SPÉCIFICATION

Informations de base
Formulaire de lecteur	4X2
Empattement	3360mm
Taper	Chariot élévateur à godets articulé
Vehicle size	5.998×2.0×2.9 meters
Masse totale	4.495 tonnes
Poids du véhicule	4.365 tonnes
Porte-à-faux avant/porte-à-faux arrière	1.065/1.573 mètres
Voie avant/voie arrière	Front：1385mm; Rear：1425mm
Engine parameters
Modèle de moteur	Jiangling JX493ZLQ5
Déplacement	2.771L
Puissance de sortie maximale	85kW
Puissance maximale	116 puissance
Norme d'émission	National V
Transmission parameters
Modèle de transmission	Getrag 5-speed
Nombre de vitesses	5 engrenages
Chassis parameters
Marque de châssis	Jiangling Motors
Série de châssis	Shunda narrow body
Modèle de châssis	JX1041TG25
Nombre de ressorts à lames	7/4+6, 7/5+6
Pneus
Nombre de pneus	6
Spécification des pneus	7.00R16LT 8PR, 7.00R16LT 8PR, 7.00R16LT 10PR
