BRIEF

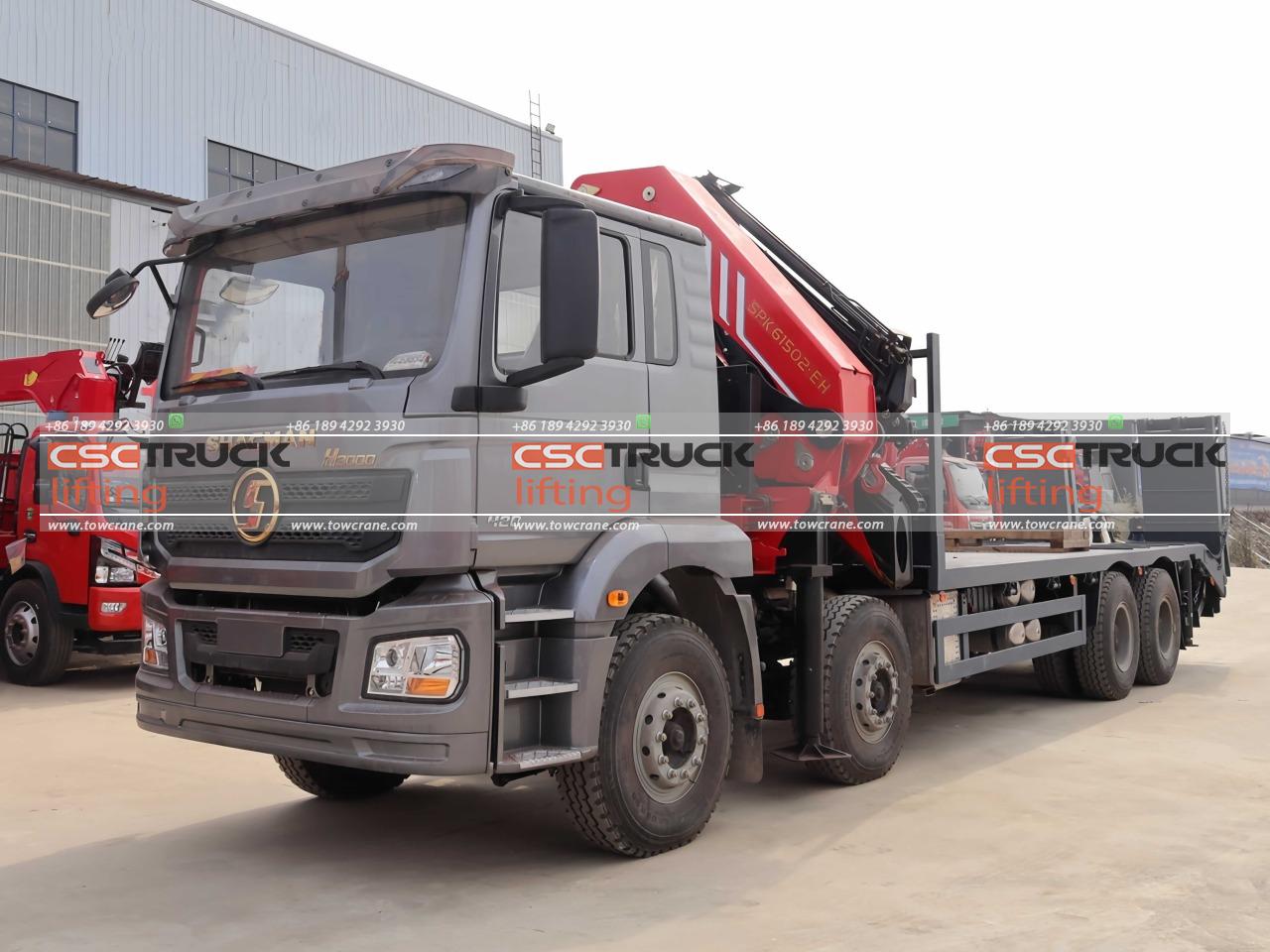

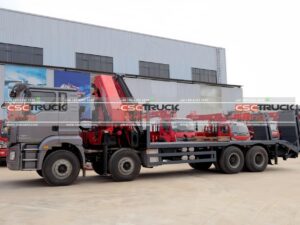

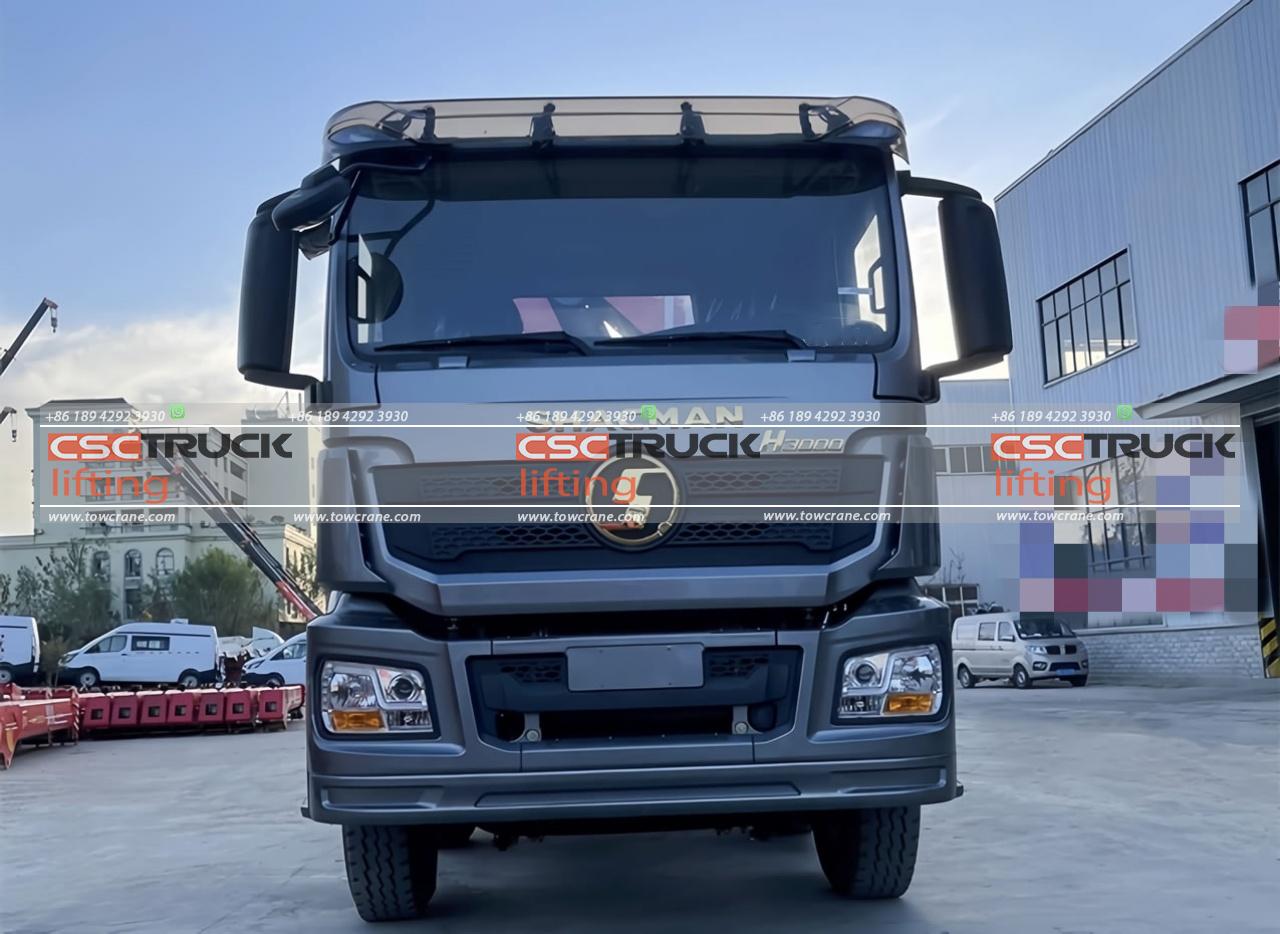

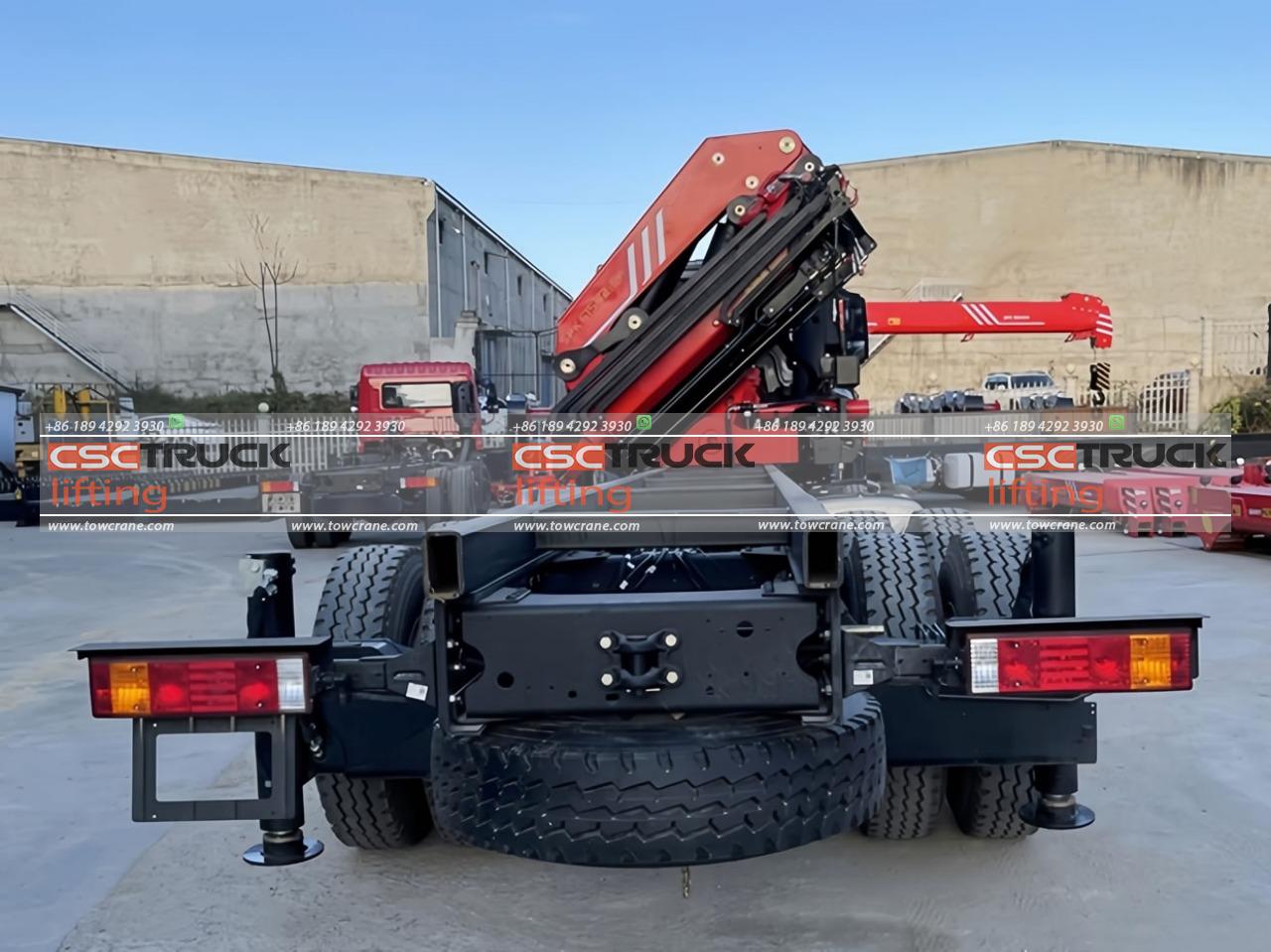

Tá an SHACMAN H3000 21-ton knuckle boom crane, manufactured by CSCTRUCK Tow Crane, is engineered for robust and versatile heavy-lifting applications. This model features 4 hydraulic boom extensions, providing an extensive reach and adaptability in various operations. It boasts a substantial lifting moment of 57.3 metric tons, supporting a maximum lifting capacity of 20,700 kilograms. With a hydraulic outreach extending up to 11.5 meters, it covers a wide operational area effectively.
Tá an knuckle boom crane offers a 370-degree slewing angle, delivering comprehensive maneuverability and ease of operation. Its slewing torque of 6.5 metric tons ensures powerful and smooth rotational movements, facilitating precise handling of heavy loads. Tá an SHACMAN H3000 operates at a maximum pressure of 35 Megapascals, powered by a pump with a capacity of 80 chuig 100 liters per minute, ensuring consistent hydraulic performance.
Weighing 5,641 kilograms, the standard crane configuration balances durability with efficiency. Tá an SHACMAN H3000 is tailored to meet the demanding requirements of sectors such as construction, logistics, and heavy machinery handling. Its advanced hydraulic system and robust build quality ensure reliability and effectiveness in challenging environments.
Overall, an SHACMAN H3000 21-ton knuckle boom crane excels in delivering exceptional lifting capabilities and operational flexibility. Its design integrates high performance with user-friendly features, making it a valuable asset for professionals seeking a dependable and efficient lifting solution.
FEATURES
1. Impressive Lifting Performance:
– Capable of lifting to 20,700 kg, this crane is engineered to handle substantial weights with a lifting moment of 57.3 metric tons, ensuring robust performance for demanding tasks.
2. Extended Operational Reach:

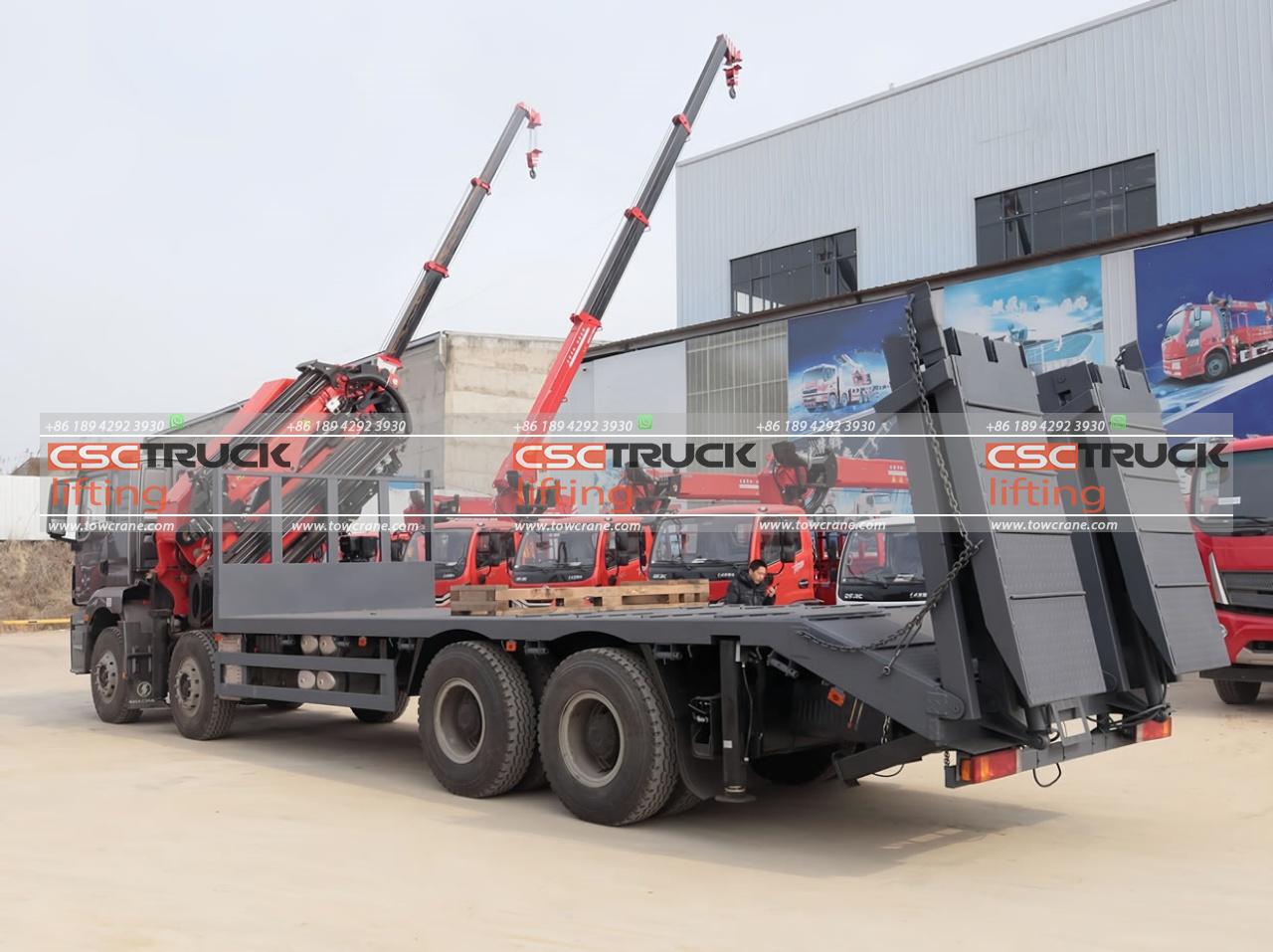

– Featuring 4 hydraulic boom extensions, the crane offers a maximum hydraulic outreach of 11.5 meters, allowing operators to access hard-to-reach areas with precision and ease.
3. Wide Slewing Range:
– With a slewing angle of 370° and a torque of 6.5 metric tons, the crane provides extensive rotational capability, enhancing its flexibility and control during operations.
4. High-Performance Hydraulics:
– The crane’s hydraulic system operates at an impressive 35MPa pressure with a pump capacity ranging from 80 chuig 100 liters per minute, ensuring powerful and reliable functionality.
5. Balanced and Stable Design:
– Weighing 5,641kg, the crane is designed for optimal weight distribution, ensuring stability and safety during both lifting and transport phases when mounted on the SHACMAN H3000 chassis.
SPECIFICATION
| Item | Unit | CSCKBC61502C | CSCKBC61502D | CSCKBC61502E |
| Hydr. boom extensions | / | 4 | 5 | 6 |
| Lifting moment | mt | 57.3 | 57.3 | 57.3 |
| Max. lifting capacity | kg | 20,700 | 19,700 | 19,200 |
| Max. hydraulic outreach | m | 11.5 | 13.7 | 15.9 |
| Slewing angle | ° | 370 | 370 | 370 |
| Slewing torque | mt | 6.5 | 6.5 | 6.5 |
| Pump capacity | L/min | 80-100 | 80-100 | 80-100 |
| Operating pressure | Mpa | 35 | 35 | 35 |
| Standard crane weight | kg | 5,641 | 5,883 | 6,020 |
| Outrigger span(mm) | R3X-STZS3 | 7,400 | 7,400 | 7,400 |
| R3X-STZY | 7,413 | 7,413 | 7,413 |
