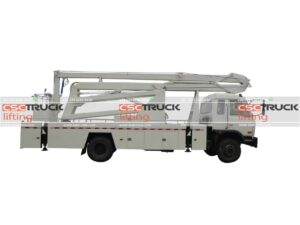

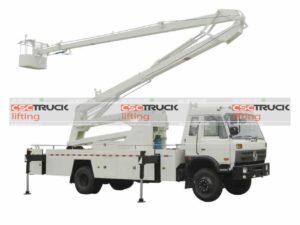

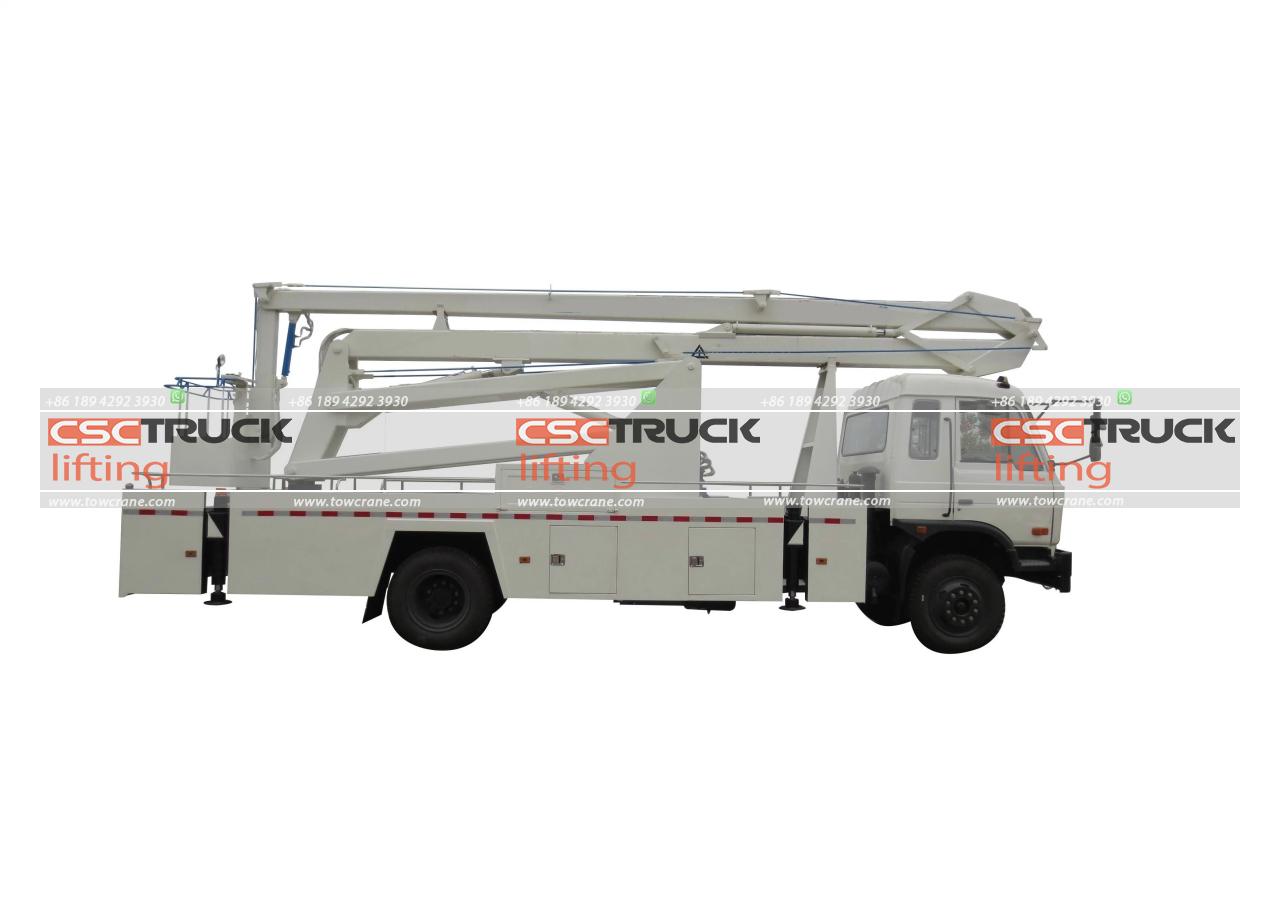

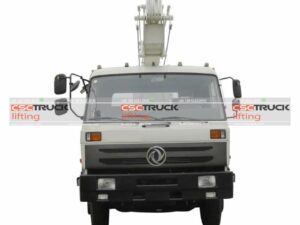

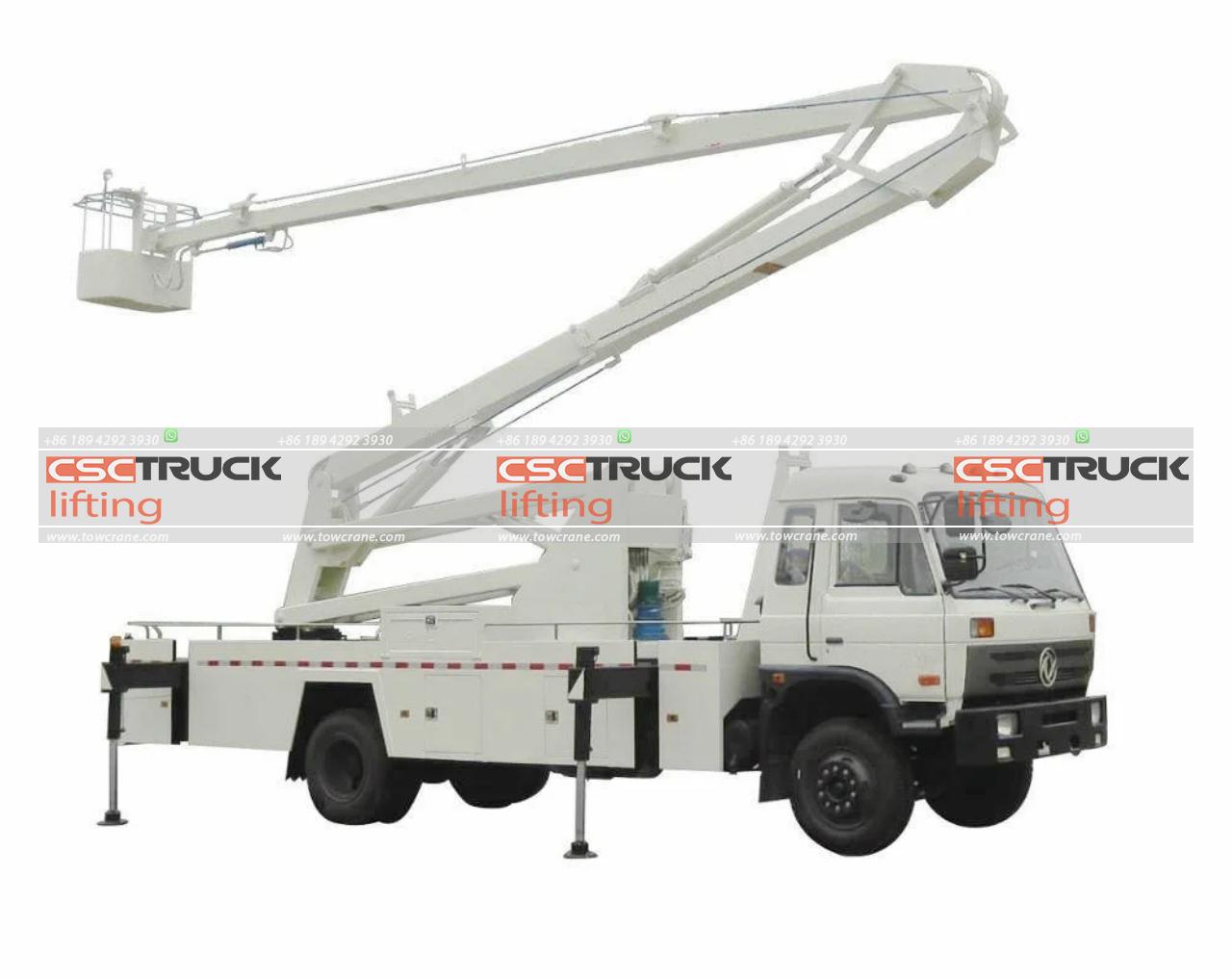

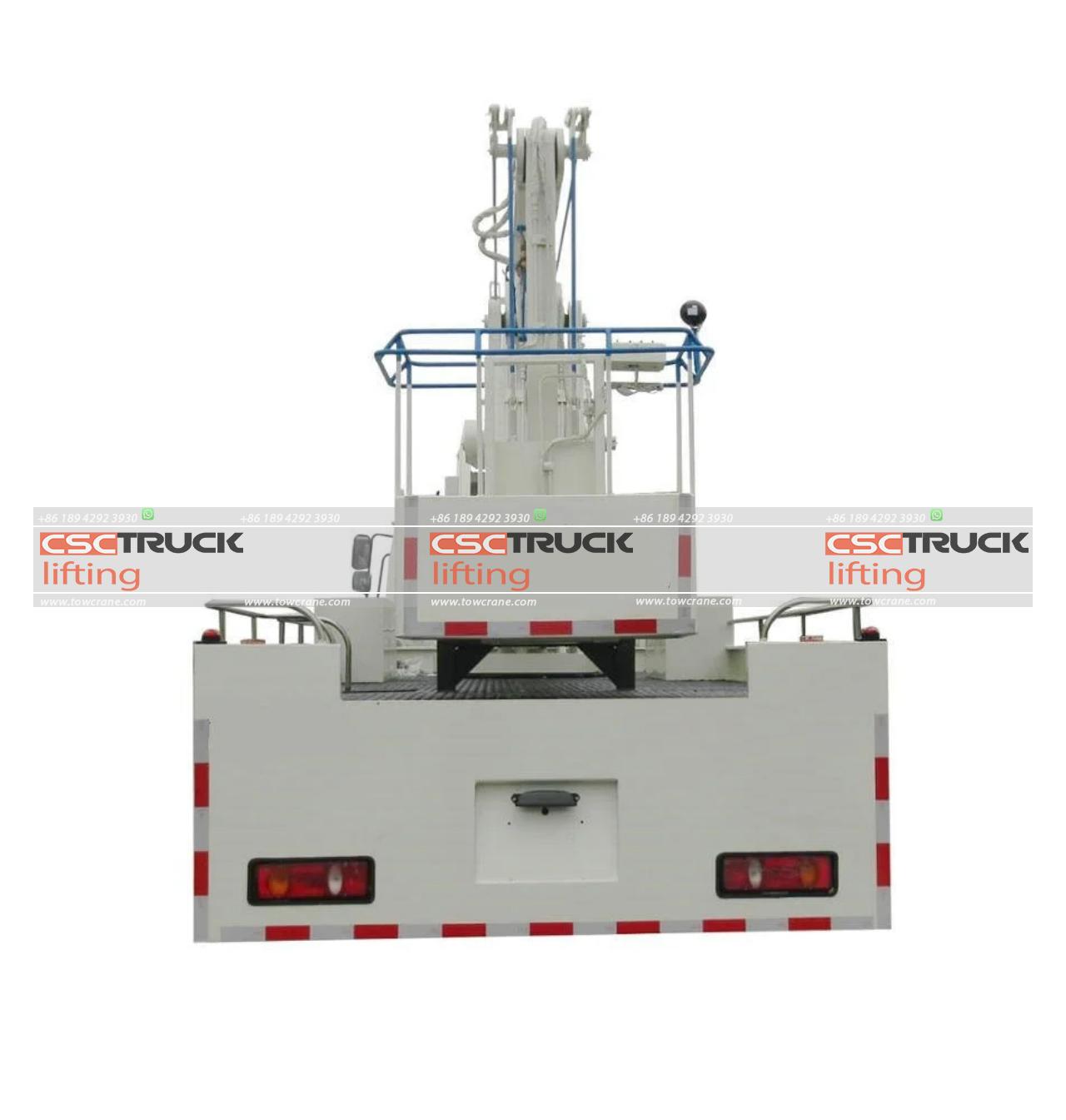

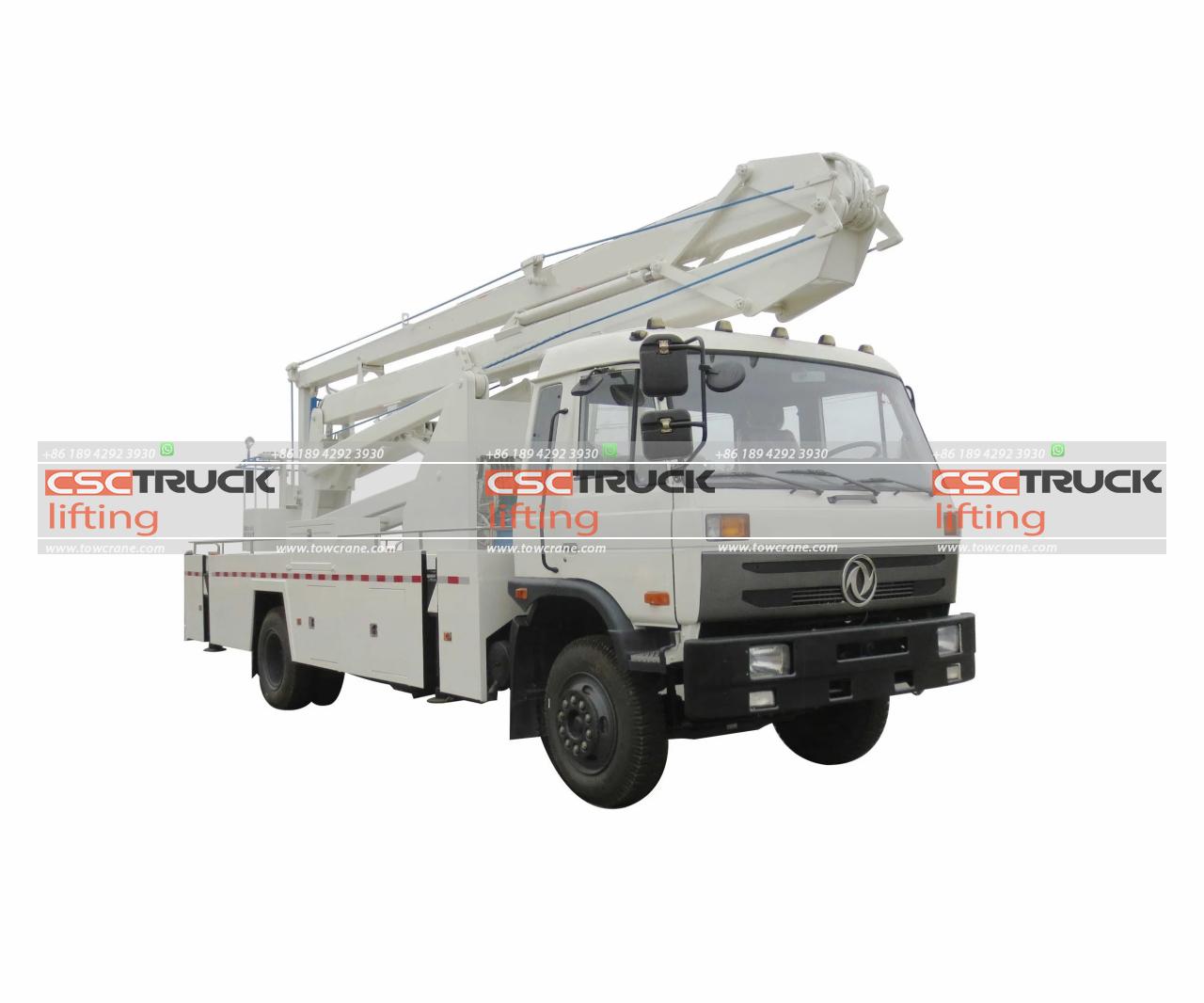

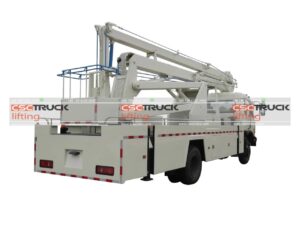

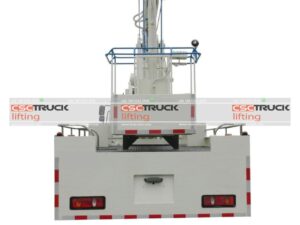

ה 24מ articulated bucket lift truck מיוצר על ידי מנוף גרר CSCTRUCK is a versatile and robust vehicle designed for high-reach tasks. This truck features a maximum working height of 24 מטרים, making it suitable for various applications such as utility maintenance, construction, and tree trimming. Built on a sturdy דונגפנג chassis with a 4×2 drive type, it ensures reliable performance and stability across different terrains.
Under the hood, the truck is powered by a קאמינס engine, known for its durability and efficiency. The engine delivers 190 כּוֹחַ סוּס, providing ample power for both lifting and driving tasks. It meets the Euro III emission standard, reflecting a commitment to environmental considerations and compliance with emission regulations.
ה 24m articulated bucket lift truck‘s lifting mechanism can handle a maximum weight of 200 קילוגרמים, making it suitable for lifting personnel and light equipment. The articulated design of the bucket lift allows for flexible positioning and maneuverability, enhancing the truck’s ability to perform in tight or complex spaces.
בְּנוֹסַף, the vehicle boasts a maximum speed of 80 km/h, allowing it to travel efficiently between job sites. This speed, combined with its robust engine and efficient design, makes it an excellent choice for companies needing a reliable, high-performance lift truck for various high-altitude tasks.
בסך הכל, את 24m articulated bucket lift truck עַל יְדֵי מנוף גרר CSCTRUCK is a powerful and efficient solution for industries requiring elevated work capabilities, offering a blend of performance, בְּטִיחוּת, and environmental compliance.
תכונות
1. High Working Height: The truck offers a maximum working height of 24 מטרים, making it suitable for a variety of high-altitude maintenance and installation tasks.
2. Robust Engine Performance: מופעל על ידי א 190HP Cummins engine, the truck provides reliable performance with sufficient power for both driving and lifting operations.
3. Modern Emission Standards: מצויד ב Euro III emission standard engine, the truck meets contemporary environmental regulations, ensuring reduced emissions and environmental impact.
4. Durable Chassis and Drive Configuration: Built on a דונגפנג chassis with a 4×2 drive type, the truck ensures durability and stable handling, suitable for various road conditions.
5. Efficient Lifting Capacity and Speed: With a maximum lifting weight of 200 kg and a maximum speed of 80km/h, the truck balances between efficient load handling and swift mobility, enhancing operational efficiency.
מִפרָט
24מ 'משאית הרמת דלי מפורשת |
||
| General | Vehicle Brand | מנוף גרר CSCTRUCK |
| Chassis Brand | דונגפנג | |
| Overall Dimension | 9,600×2,500×3,620 מ"מ | |
| GVW / Kerb Weight | 15,825kg/15,500kg | |
| מוֹנִית | Cab Capacity | 3 persons allowed |
| Air Conditioner | The air conditioner is optional | |
| מָנוֹעַ | Fuel Type | Diesel |
| מותג מנוע | קאמינס engine | |
| Power | 190Ps(40KW) | |
| תְזוּזָה | 5,900ml | |
| Emission Standard | Euro III | |
| Chassis | סוג כונן | 4X2, left or right-hand drive |
| Transmission | 6-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4,700mm/2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 80km/h | |
| Paint | Metallic paint | |
| Superstructure | Working Cage | 200kg capacity, anti-slip floor |
| Working Height | ≤24M | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| An emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at the base and operator’s cage. | ||
| Optional | A hoist hook with cables can be equipped for the function of a crane. | |
