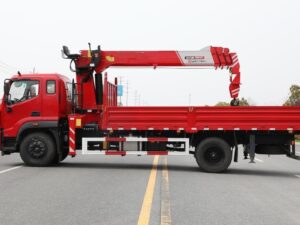

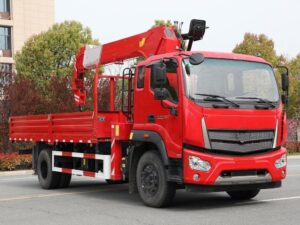

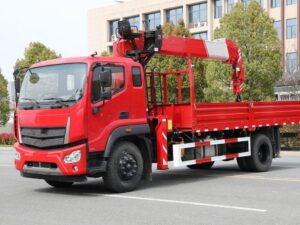

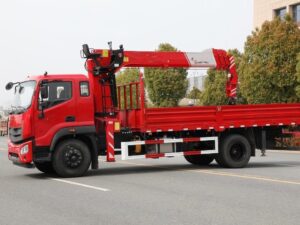

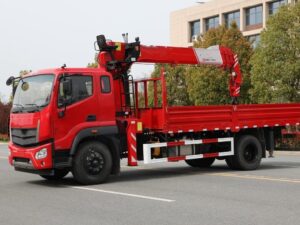

Dajin’Gang Es7 220Horsepower 4X2 18Ton Truck Mounted Crane

SUMMARY

• מופעל על ידי א 220 – horsepower engine, the Es7 has sufficient power to drive on various terrains and perform crane – related operations. The 4X2 drive configuration offers a good balance between power transfer and fuel efficiency, making it suitable for use in construction sites as well as on normal roads for transportation.
• With an 18 – ton load capacity, the truck can carry a significant amount of construction materials or other heavy items. The truck – mounted crane is a crucial feature that enables on – site lifting and placement of loads without the need for additional large – scale lifting equipment.

• The crane on the Dajin’Gang Es7 is designed to handle loads up to 18 טונות. This allows it to lift and place a variety of heavy items such as steel beams, concrete slabs, and large machinery components commonly used in construction projects.
• It provides precise control over the movement of the load, which is essential for accurate placement of materials during construction, ensuring the proper assembly of structures.

• In the construction industry, it is a valuable asset. It can be used to transport building materials to the site and then use the crane to unload and position them precisely. It is also applicable for infrastructure projects like road and bridge construction where heavy materials need to be lifted and installed.
• In industrial settings, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. In warehouses, it can assist in loading and unloading bulky items from trucks and placing them in the right storage locations.

• The cab of the Dajin’Gang Es7 is likely designed with operator comfort in mind. It may feature ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

תכונות

Power and Drivetrain

• Engine Power
  • ה 220 – horsepower engine is a key component of the Dajin’Gang Es7. It provides the necessary force to drive the vehicle, whether on flat roads or on slopes. This power level also enables the operation of the truck – mounted crane effectively. The engine is designed to offer a balance between performance and fuel economy, so that the vehicle can operate efficiently during both transportation and on – site operations.
• 4X2 Drive Configuration
  • The 4X2 drive configuration of the Dajin’Gang Es7 has its own set of advantages. It is a relatively simple and cost – effective drive system. This configuration provides good traction on different terrains, from paved roads to the more uneven surfaces found at construction sites. It also contributes to the vehicle’s maneuverability, allowing it to make turns and navigate through narrow spaces more easily.

Load Capacity and Crane Features

• 18 – Ton Load Capacity
  • With an 18 – ton load capacity, the Dajin’Gang Es7 truck can carry a substantial amount of heavy materials. This includes construction materials such as large steel beams, thick concrete slabs, and heavy – duty machinery parts. In industrial applications, it can transport bulky raw materials or finished products. The load – carrying capacity is an important factor in determining the vehicle’s utility in different industries, as it can handle a wide range of loads that are common in medium – אֶל – large – scale operations.
• Crane Capabilities
  • The truck – mounted crane is a central feature of the Dajin’Gang Es7. It is engineered to lift loads up to 18 טונות, providing flexibility in handling heavy objects on – site. The crane likely has a well – designed hydraulic system that enables smooth and precise lifting operations. It may feature a telescopic boom or other mechanisms to adjust its reach and height, allowing it to access different areas on a construction site or within an industrial facility. Precise control over the movement of the load is a key aspect of the crane, which is crucial for accurate placement of materials in construction projects and for the safe handling of equipment in industrial settings.

Construction and Industrial Applications

• Versatility in Construction
  • In construction, the Dajin’Gang Es7 is highly versatile. It can be used to transport construction materials from suppliers to the building site. Once on – site, the crane can be used to unload the materials directly and place them in the exact location required, reducing the need for additional handling equipment. It can be involved in a variety of construction tasks, such as erecting scaffolding, placing formwork, and installing large – scale structural components.
• Industrial Applications
  • In industrial settings, the Dajin’Gang Es7 serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, תַחזוּקָה, or relocation. לְדוּגמָה, in a manufacturing plant, it can move large – scale machinery for repair or repositioning. In warehouses, it can load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• תכונות בטיחות
  • The Dajin’Gang Es7 is likely equipped with safety features. There may be an overload protection system for the crane to prevent lifting beyond its 18 – ton capacity, safeguarding the integrity of the crane and ensuring safe operation. יַצִיבוּת – enhancing mechanisms are probably in place to ensure the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. The crane may also have safety locks on its moving parts to prevent accidental movement, and there could be warning systems to alert the operator of any abnormal operating conditions.
• Operator Comfort
  • The cab of the Dajin’Gang Es7 is designed with the operator’s comfort in mind. It may have ergonomic seating with adjustable lumbar support to reduce fatigue during long working hours. The controls for driving the truck are likely placed in an accessible and intuitive manner, and the same goes for the crane – operating controls. For the crane operator, there may be a well – designed control panel with clear labels and indicators, enabling precise control of the crane’s movements. בְּנוֹסַף, the cab may be insulated from noise and vibration to create a more pleasant working environment.

SPECIFICATIONS

מידע בסיסי
טופס כונן	4X2
בסיס גלגלים	5100מ"מ
סוּג	Truck – mounted crane vehicle
Vehicle dimensions	9 × 2.55 × 3.68 מטרים
Gross mass	18 טונות
מסה מדורגת	6.82 טונות
Front overhang / Rear overhang	1.29 / 2.61 מטרים
פרמטרים של מנוע
דגם מנוע	Weichai WP4.6NQ220E61
תְזוּזָה	4.58ל
כוח פלט מרבי	162KW
כוחות סוס מקסימליים	220 כּוֹחַ סוּס
תקן פליטה	לאומי VI
סוג דלק	Diesel
מהירות מדורגת	2300סל"ד
מותג מנוע	Weichai
מומנט מקסימלי	800N · m
מהירות מומנט מקסימאלית	1200 – 1800סל"ד
Mounting Parameters
Vehicle announcement	BJ5184JSQKPFN – 01
Mounting brand	Foton Revo
מודל מנוף	SQS250 – 4
פרמטרי שידור
מודל הילוכים	Fast 8JS85C
מספר הילוכים	8 – speed
פרמטרי שלדה
מותג השלדה	Foton Revo
סדרת שלדה	Dajin’gang ES7
מודל שלדה	BJ1184VKPFN – 02
Number of spring leaves	10/12 + 9, 10/10 + 9, 4/10 + 3, 10/ –
צמיגים
מספר הצמיגים	6
מפרט צמיגים	10.00R20 18PR, 11R22.5 18PR, 295/60R22.5 18PR, 315/70R22.5 18PR
