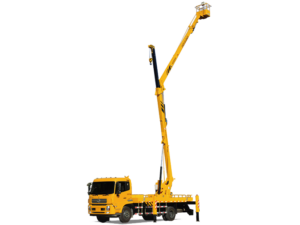

The Dongfeng 21 Meter משאית הרמת דלי מפרקי is a sophisticated piece of machinery designed to meet the demands of diverse aerial work scenarios.
1.Robust Chassis and Stability
At its core, the truck is built on a robust Dongfeng chassis. Renowned for its durability and strength, the chassis is engineered to handle heavy loads with ease. It features a well – designed frame that distributes the weight of the extended boom, the operator, and any equipment in the bucket evenly. This not only ensures stability during operation but also reduces wear and tear on the vehicle. Whether on flat urban roads or uneven construction sites, the Dongfeng chassis provides a reliable foundation for safe and efficient aerial work.
2.Impressive Articulated Boom
ה 21 – meter articulated boom is the highlight of this truck. It offers an extensive reach, enabling access to high – altitude areas that are otherwise difficult to reach. The multiple articulation points on the boom provide exceptional flexibility. Operators can navigate around obstacles such as buildings, trees, or power lines with precision. This flexibility allows for precise positioning of the bucket at various angles, making it suitable for tasks like installing high – rise signage, maintaining power lines, or trimming large trees.
3.גָבוֹהַ – Precision Hydraulic System
An advanced hydraulic system powers the movement of the boom and bucket. This system is designed for high – precision control, enabling smooth and accurate adjustments. Whether it’s a slow and steady lift, a lateral shift, or a rotation of the bucket, the hydraulic controls respond promptly to the operator’s commands. This precision is crucial for tasks that require delicate handling, such as replacing small components on tall structures.
4.מאפייני בטיחות מקיפים
Safety is a top priority in the design of the Dongfeng 21 Meter Articulated Bucket Lift Truck. The bucket is equipped with non – slip flooring and sturdy handrails to prevent accidental falls. The outriggers, with their H – type structure, have a large force – bearing area, enhancing the overall stability of the vehicle during operation. בְּנוֹסַף, the hydraulic system is fitted with safety interlocks that prevent the boom from operating in unsafe conditions, such as when the outriggers are not properly extended or when the load exceeds the rated capacity.
מִפרָט
Chassis Model: Dongfeng DFH1120E1
Engine Model: Dongfeng Cummins D4.5NS6B190/135KW
Rated Load of the Work Bucket: 320 ק"ג
Maximum Working Height: 21 מ
Maximum Working Range: 11.6 מ
Number of Passengers: 3
כושר הרמה מדורג: 5000 ק"ג
גובה ההרמה המרבי: 13 מ
מידות כוללות: 9250/9100mm × 2500mm × 3850mm
