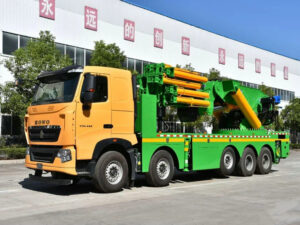

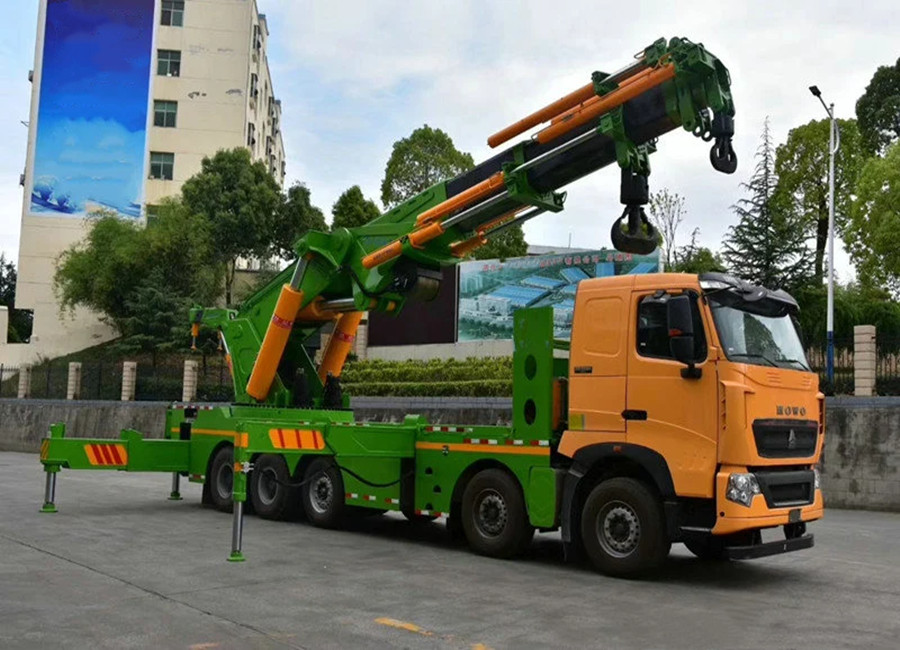

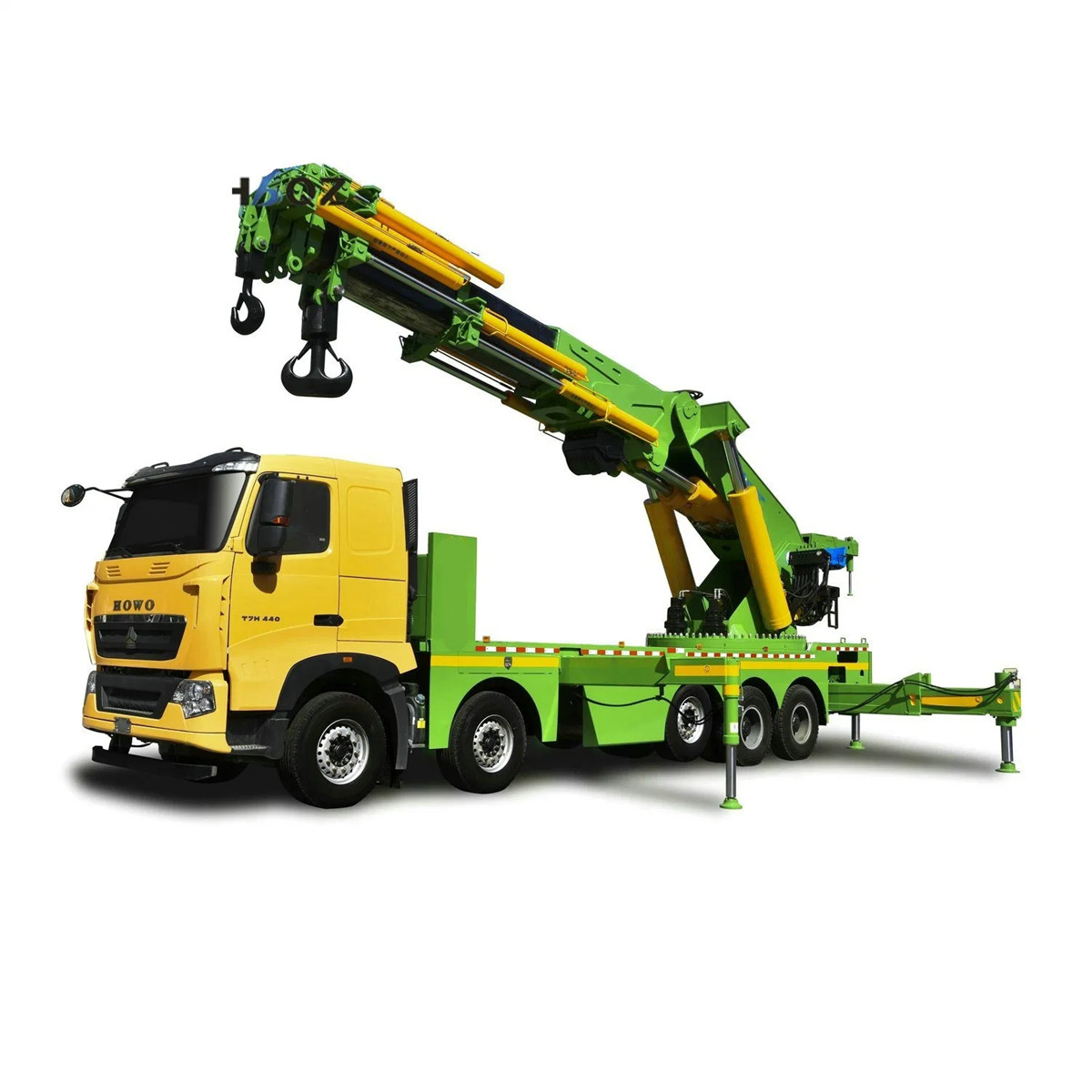

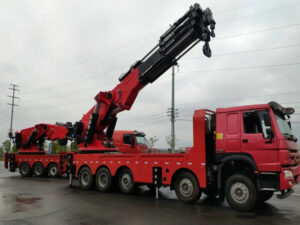

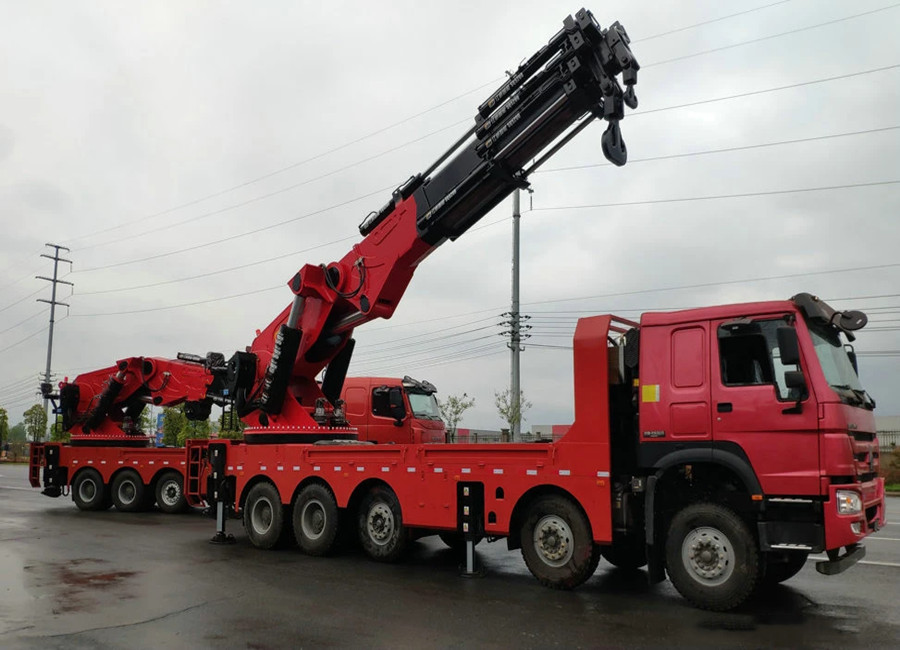

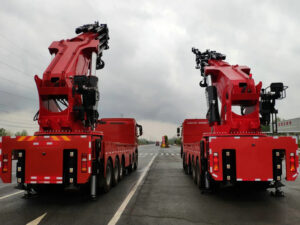

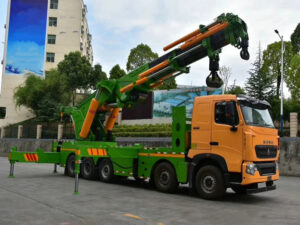

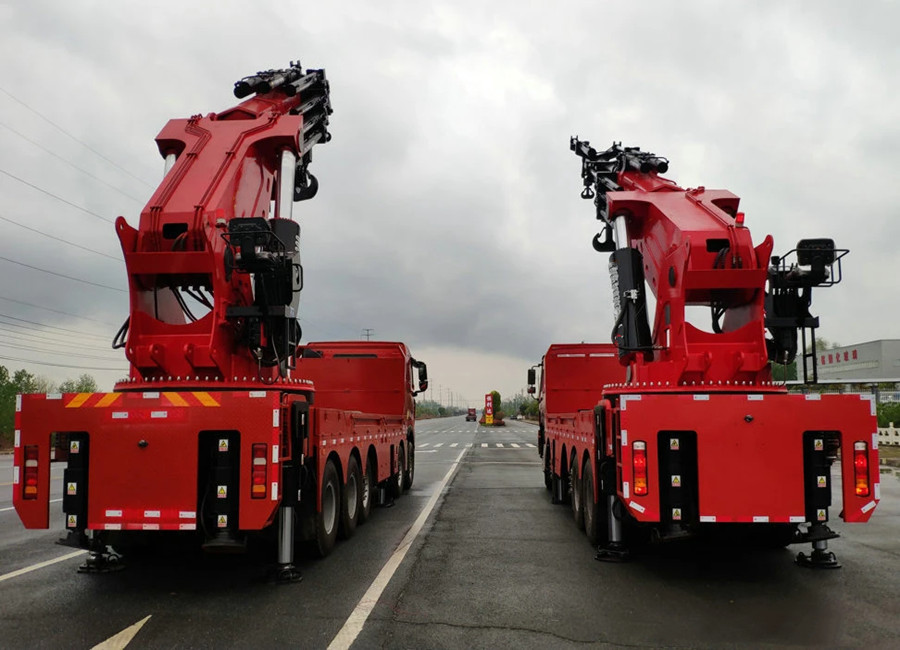

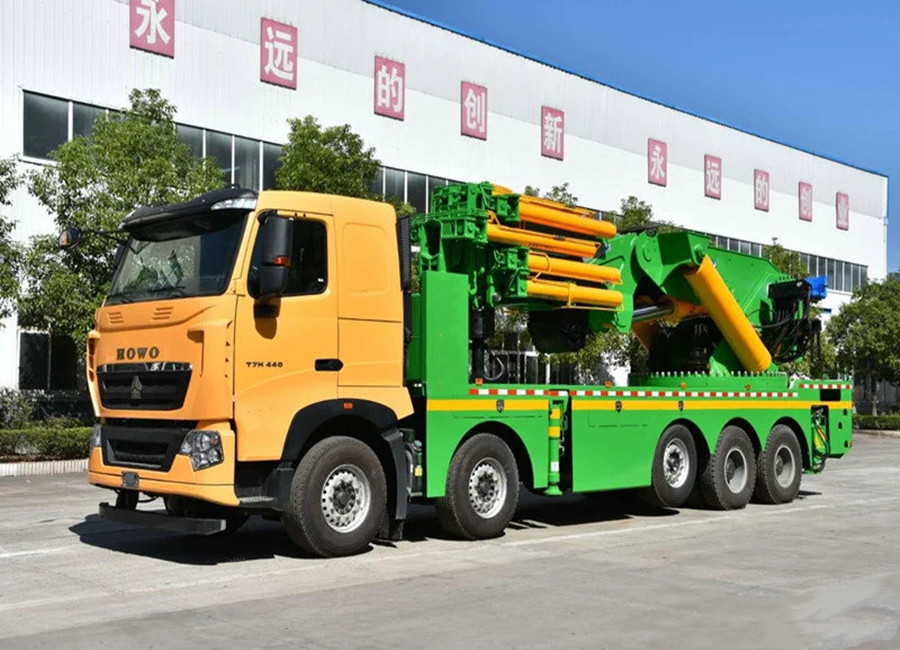

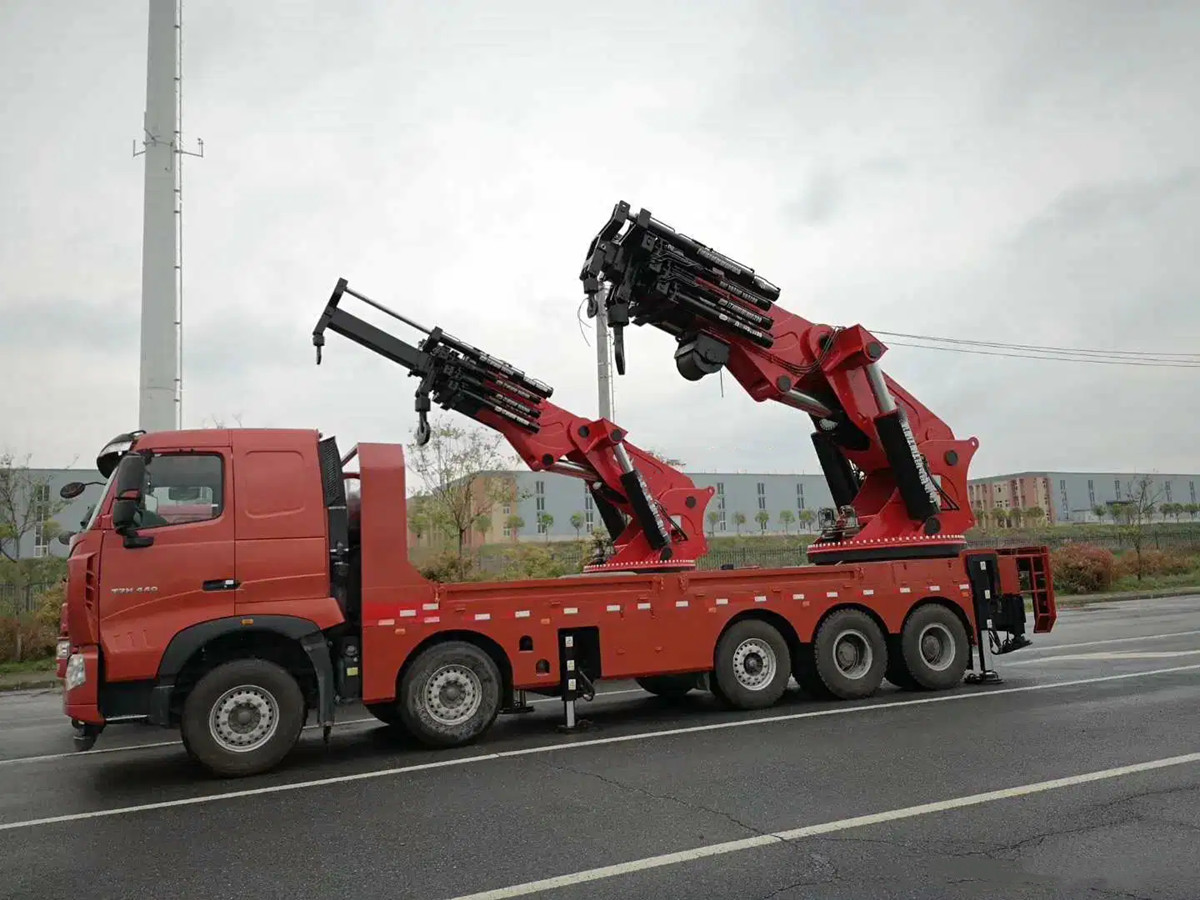

HOWO 260 Ton Truck Mounted Super Knuckle Boom Crane

BRIEFS:

ה HOWO 260 Ton Truck Mounted Super Knuckle Boom Crane is a powerful and versatile heavy-duty crane designed to handle demanding lifting tasks. With exceptional lifting capacity, reach, and advanced features, it is a reliable solution for a wide range of applications.

This Super Knuckle Boom Crane is designed to meet the demands of heavy-duty lifting operations, offering exceptional performance, safety features, and versatility.

תכונות:

• Model #: SQ5200ZB6 / Knuckle Crane 130ton at 4m
• Max Lifting Moment: 5200 Kn.m
• Max Lifting Capacity:
  • 260,000 kg at 2.0m
  • 75,000 kg at 6.7m
  • 60,000 kg at 8.2m
  • 32,000 kg at 14m
• Max Lifting Height: 17.8 מטרים
• Max Working Radius: 15.3 מטרים
• Boom Section: 6 stages
• Rotation Angle: 360° All Rotation
• Rated Working Pressure: 28 MPA
• יְכוֹלֶת: 130 טונות
• Driving Height: 3.45 מטרים
• Outrigger: 4 hydraulic outriggers with adjustable settings, Hydraulic operating
• Crane Weight: 52,000 ק"ג
• Installation Space: 8,000 מ"מ
• Swing Type: Planetary gear reduction
• Safety Device: Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device
• Options: Aux. Winch, Aux. Boom, Remote Control
• Material: HG785D
• Truck for Reference: דונגפנג (other truck brands can be customized)
• Cabin: סוג נהיגה: 8×4, Left-hand drive (Right-hand drive type can be customized)
• צֶבַע: Optional
• Vehicle Main Dimensions: Overall size (L x W x H): 11,950 x 2,500 x 3,800 מ"מ
• Wheel Base: 1,800 + 4,600 + 1,350 מ"מ
• Cargo Body: Dimensions of 6,800 x 2,350 x 500 מ"מ
• Weight in KGS:
  • GVW: 31,000 ק"ג
  • Tare Weight: 14,500 ק"ג
• מָנוֹעַ:
  • סוּג: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
  • Horse Power: 371 HP (273 KW)
  • Max Torque: 1,500 N.m
  • תקן פליטה: Euro II
• Max Speed: 102 km/h
• תֵבַת הִלוּכִים: Manual gearbox with 10 forwards & 2 reverses, with PTO
• Tire: 12R22.5 tubeless tire, 13 pieces including one spare tire

Advantages:

1. The material of the truck-mounted crane is HG785D international standard high-strength steel, reducing weight while maintaining strength.
2. Hexagonal structure boom for enhanced lateral stability.
3. Core components, such as the balance valve, hydraulic lock, operated valve, and hydraulic pump, are of Italian brand for precision and reliability.
4. Hydraulic pump oil seals and gaskets are from the Parker brand.
5. Remote control operation is provided by Sweden Brand Scanreco.
6. The truck crane comes in various configurations, including telescopic boom truck cranes and folding boom truck cranes, with lifting capacities ranging from 3.2 tons to 300 טונות.
