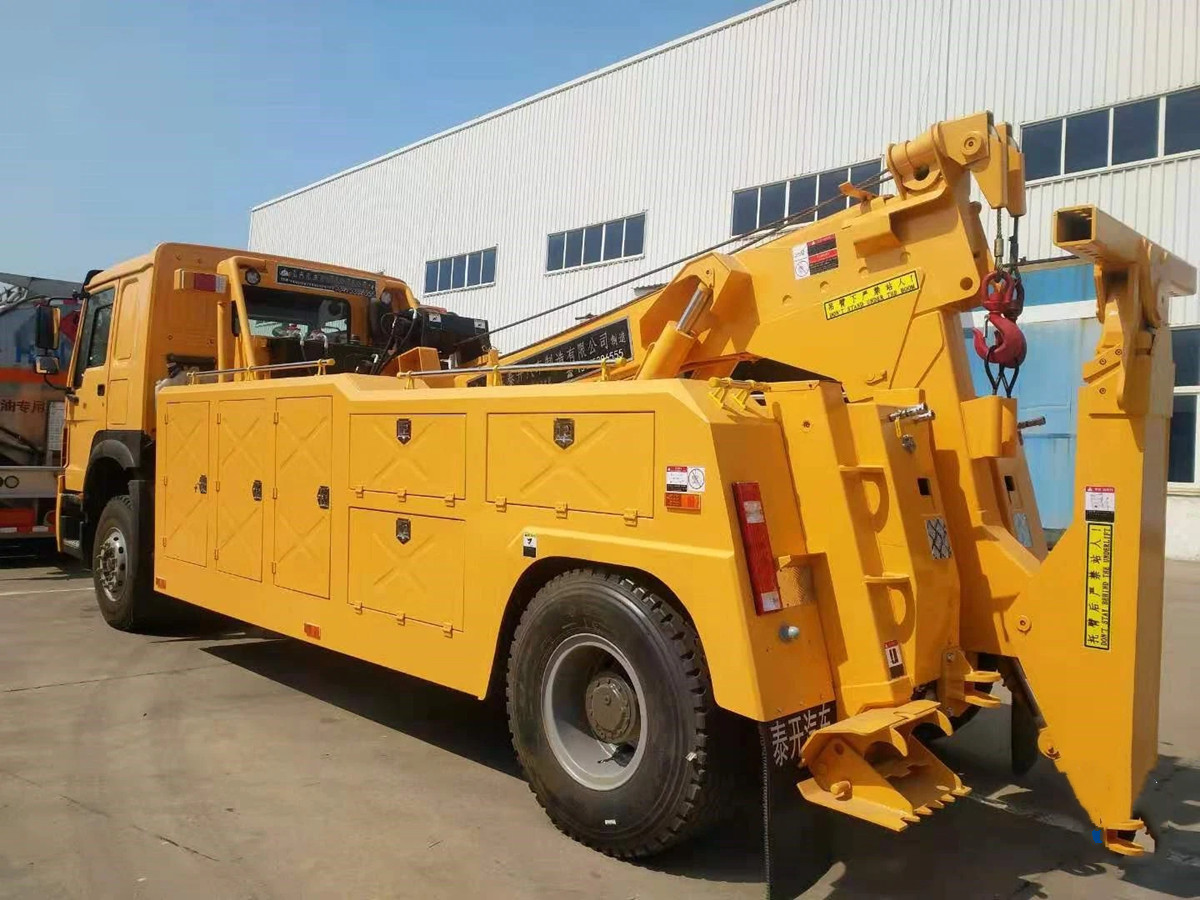

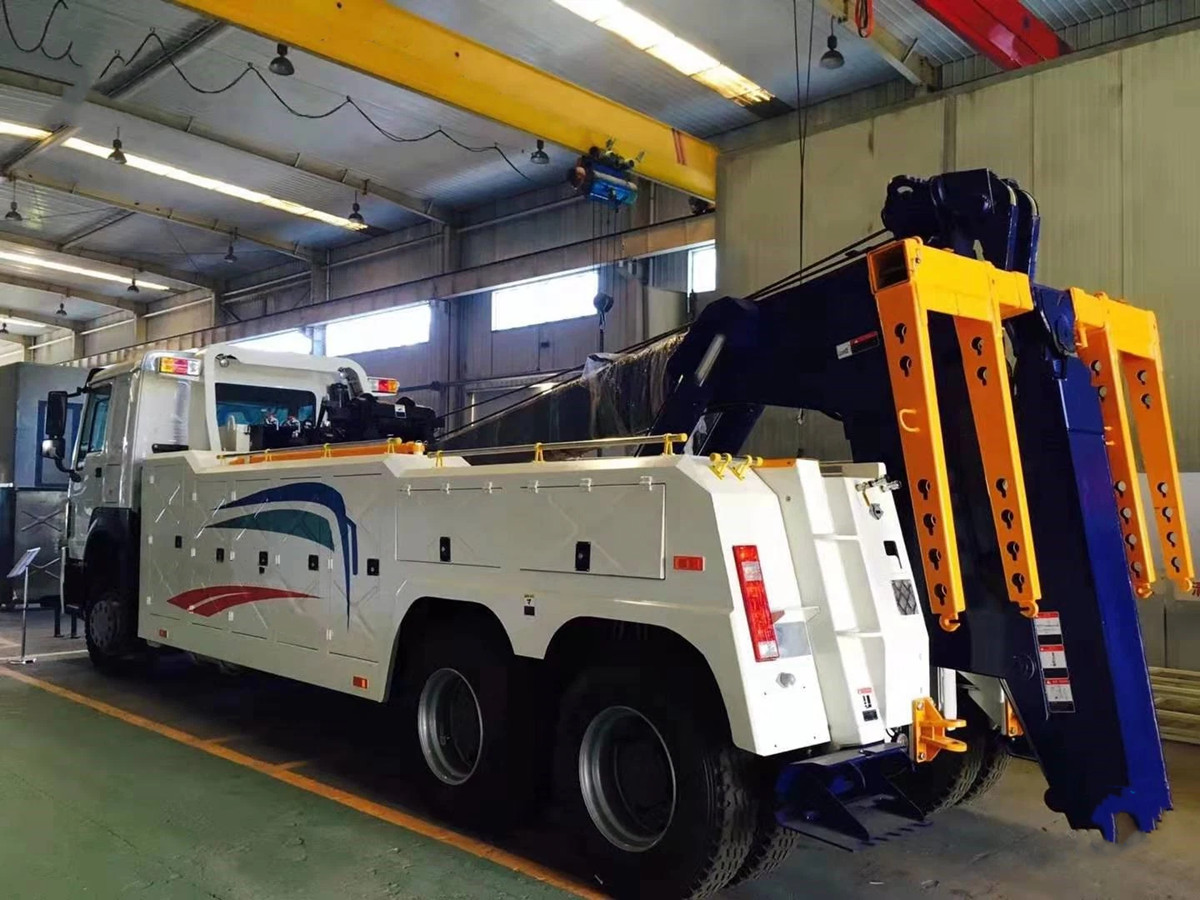

ה HOWO 50 Ton Rotator Emergency Wrecker Tow Truck is a robust and powerful vehicle designed for emergency towing and recovery operations. With impressive load-bearing capabilities and advanced engineering, this tow truck ensures efficient and reliable recovery assistance for various scenarios.
This rotator truck is a reliable and high-performance vehicle, suitable for addressing a wide range of recovery and towing needs. Its combination of powerful engineering, impressive load capacity, and advanced features makes it an invaluable asset in emergency situations.
תכונות:
- Impressive Load Capacity: The HOWO tow truck boasts a total mass of 31,000 ק"ג, providing exceptional load-bearing capacity. Its curb weight ranges from 20,750 kg to 22,750 ק"ג, ensuring it can handle heavy recovery tasks.
- Versatile Chassis: Equipped with the ZZ1317N4668W chassis model, this tow truck delivers robust performance both on and off the road. It features an approach angle of 16 degrees and a departure angle of 11 degrees, making it suitable for a wide range of terrains.
- Spacious Dimensions: With dimensions of 11,300 mm to 11,460 mm in length, 2,500 mm in width, ו 3,190 mm to 3,390 mm in height, the truck offers ample space to accommodate various recovery equipment and tools.
- Superior Trailer Support: The vehicle’s four-axle configuration and biaxial load capabilities make it well-equipped for towing heavy trailers, with a maximum speed of 90 km/h.
- Robust Tires: The truck features 12 high-quality tires with specifications including 11.00-20, 12.00-20 16PR, 11.00R20, and 12.00R20 16PR. These tires ensure stability and grip during towing operations.
- Advanced Engine: Powered by the WD615.95E engine manufactured by China Heavy Duty, the tow truck delivers a robust 247 kW of power. It meets Euro 3 emission standards and runs on efficient diesel fuel.
SPECIFICATIONS:
| Parameter | Specifications |
|---|---|
| General Information | |
| Total Mass (ק"ג) | 31,000 |
| Curb Weight (Kg) | 20,750, 22,750 |
| Rated Load (Kg) | N/A |
| Chassis Model | ZZ1317N4668W |
| Approach / Departure Angle (°) | 16/11 |
| Front Overhang / Rear Overhang (מ"מ) | 1,500/2,050, 1,500/2,210 |
| Dimensions (מ"מ) | 11,300, 11,460 x 2,500 x 3,190, 3,390 |
| Compartment Dimension (מ"מ) | N/A |
| Trailer Information | |
| Total Mass of Trailer (ק"ג) | N/A |
| Axle Load | 6,500/7,000/17,500 (biaxial load) |
| Number of Axes | 4 |
| Maximum Speed (km/h) | 90 |
| Tire and Wheel Information | |
| Tire Specifications | 11.00-20, 12.00-20 16PR, 11.00R20, 12.00R20 16PR |
| Number of Tires | 12 |
| Front Track (מ"מ) | 2,022/2,022, 2,041/2,041 |
| Rear Track (מ"מ) | 1,830/1,830 |
| בסיס גלגלים (מ"מ) | 1,800+4,600+1,350, 1,800+4,575+1,400 |
| Number of Spring | L14R13/L14R13/12, 11/11/12, 4/4/-, 11/11/- |
| Emissions and Engine Information | |
| Emission Standards | Euro 3 |
| Type of Fuel | Diesel |
| Engine Model | WD615.95E |
| Engine Manufacturer | China Heavy Duty |
| Engine Displacement (ml) | 9,726 (ml) |
| Engine Power (kw) | 247 (kw) |
