SUMMARY
Nta
Tus JAC 4.5Tons Telescopic Aerial Lift Truck is a versatile and efficient piece of equipment designed for a variety of high-altitude operations. Here are its key features:
- Chassis and Engine: The truck is built on a robust JAC chassis, ensuring excellent driving performance . It is powered by a Chaoyang engine, which is known for its super power and reliable performance, with no major overhaul needed for up to 100,000 km .
- Design and Structure: The truck boasts a nice shape and a rational structure, making it both aesthetically pleasing and functional . It is massive, durable, and designed for a long service life .
- Specifications: The overall dimensions of the truck are 8400 mm in length, 2340 mm in width, and 3400 mm in height . The Gross Vehicle Weight (GVW) is 7,450 kg, with a kerb weight of 7,255 kg .
- Cab and Comfort: The cab can accommodate up to 3 persons and is equipped with an optional air conditioner for operator comfort .
- Transmission and Drive: The drive type is 4X2, with a left-hand drive configuration. The transmission consists of a 5-speed front and 1 reverse, providing versatility in movement .
- Tyres and Speed: The truck is fitted with 7.00-16 tyre specifications and can reach a maximum speed of 95 km/h .
- Paint and Finish: The exterior is finished with metallic paint, adding to its durability and visual appeal .

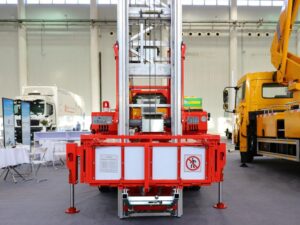

- Working Cage: The working cage has a capacity of 200 kg and features an anti-slip floor for safety .
- Working Height and Rotation: The working height ranges from 14-16 meters, with a 360° continuous rotation capability with the base turntable .
- Control Systems: The truck allows for control both on the ground and within the cage, providing flexibility in operation .
- Safety Features: It is equipped with an emergency electrical/manual pump to operate the equipment in case of engine failure. Emergency stop switches are located at the base and operator’s cage for quick response in emergencies .
- Optional Features: The truck can be fitted with a hoist hook and cables, enabling it to function as a crane .
These features make the JAC 4.5Tons Telescopic Aerial Lift Truck an ideal choice for maintenance tasks such as traffic lights, street lights, landscaping, signboard cleaning/setting, and other high-altitude works.
SPECIFICATIONS
| Basic Information | |
| Drive Type | 4X2 |
| Wheelbase | 3360mm |
| Type | Double-row Aerial Work Platform Vehicle |
| Vehicle Dimensions | 5.995 × 1.9 × 2.85 meters |
| Gross Vehicle Mass | 4.495 tons yog li tons |
| Vehicle Weight | 4.17 tons yog li tons |
| Front Overhang/Rear Overhang | 1.065 / 1.57 meters |
| Front Tread/Rear Tread | Front: 1385mm; Rear: 1425mm |
| Engine Parameters | |
| Engine Model | Jiangling JX493ZLQ5 |
| Displacement | 2.8L |
| Maximum Output Power | 85kW |
| Maximum Horsepower | 115hp |
| Emission Standard | Euro V |
| Mounted Equipment Parameters | |
| Mounted Equipment Brand | Runzhixing Brand |
| Other Special Instructions | The vehicle is used for high-altitude operations such as emergency repair of power, communication, and street lights. The main devices are lifting platforms and working arms. The cab can be optionally installed with the chassis. The side and rear protections are made of carbon steel/Q235B and are connected by welding. The cross-sectional dimensions (width × height) of the rear protection (mm): 100 × 50, and the height from the ground is 390mm. |
| Transmission Parameters | |
| Transmission Model | 5-speed Manual |
| Number of Gears | 5-speed |
| Chassis Parameters | |
| Chassis Brand | Jiangling Motors |
| Chassis Series | Shunda |
| Chassis Model | JX1041TSG25 |
| Number of Leaf Springs | 7 / 4 + 6, 7 / 5 + 6 |
| Tires | |
| Number of Tires | 6 |
| Tire Specification | 7.00R16LT 8PR, 7.00R16LT 10PR |
