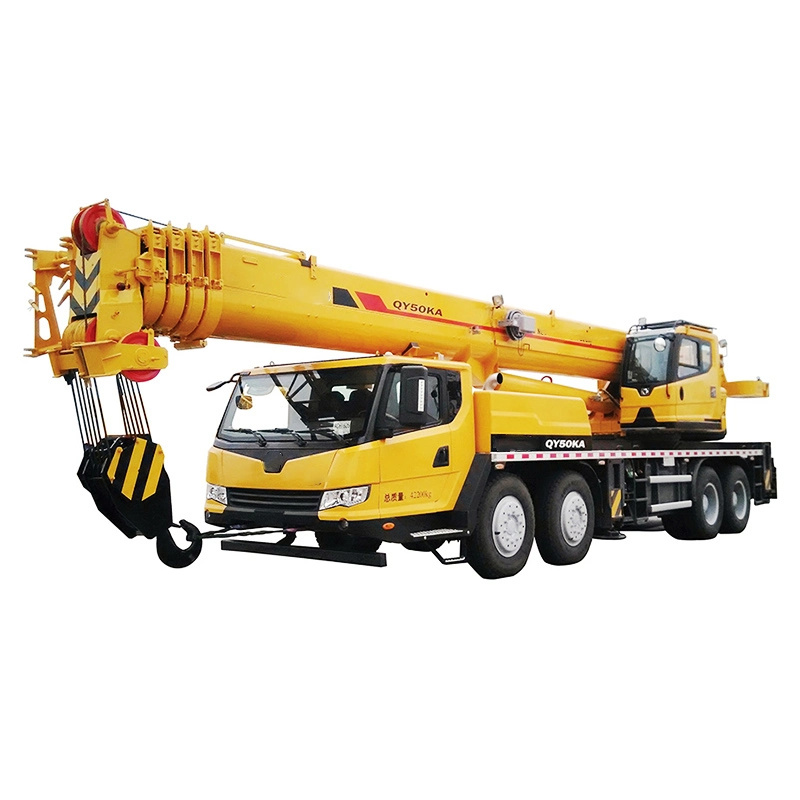

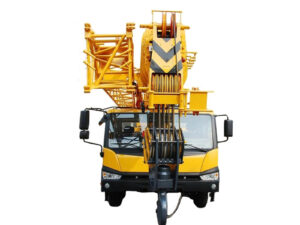

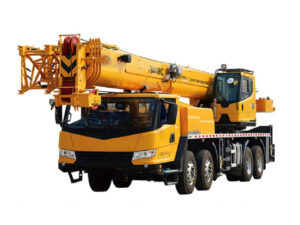

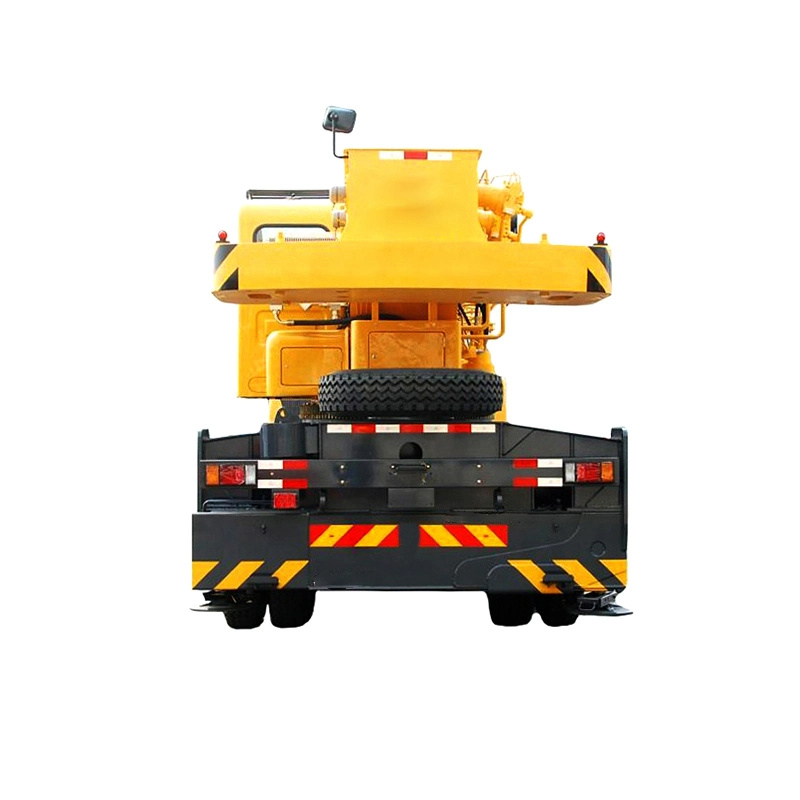

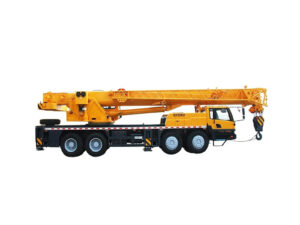

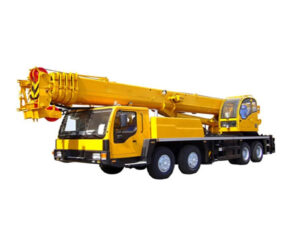

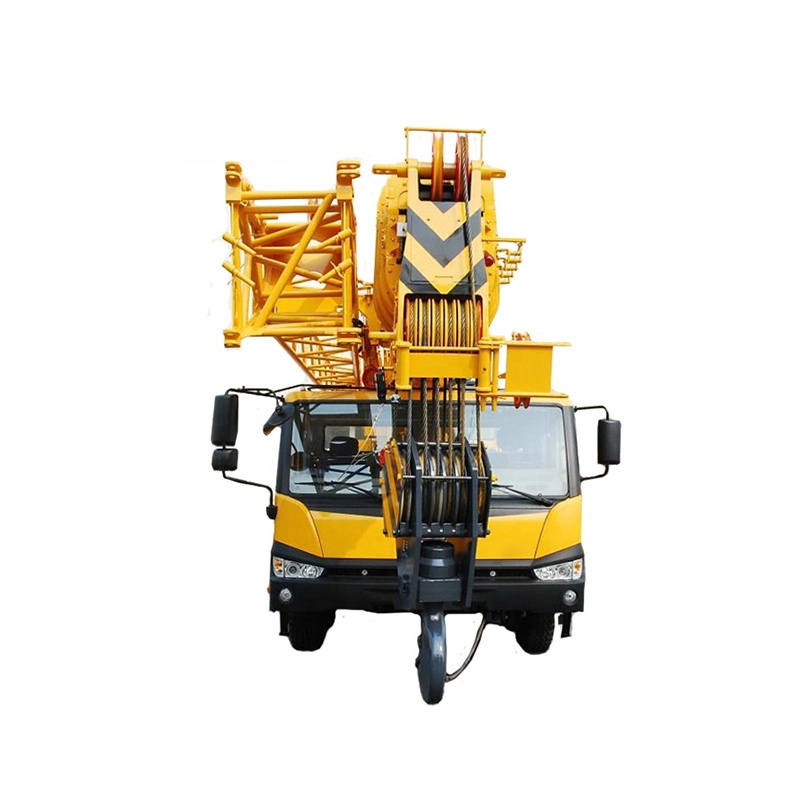

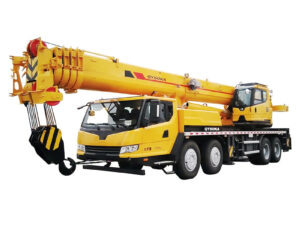

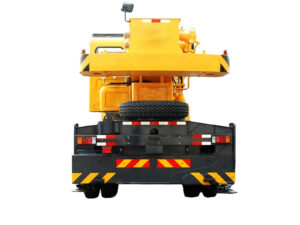

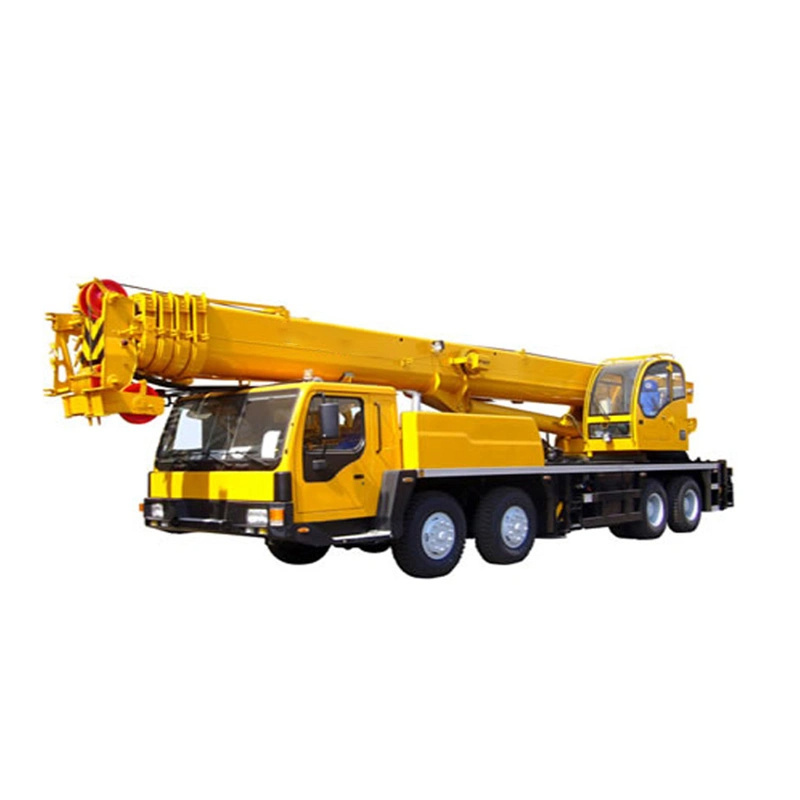

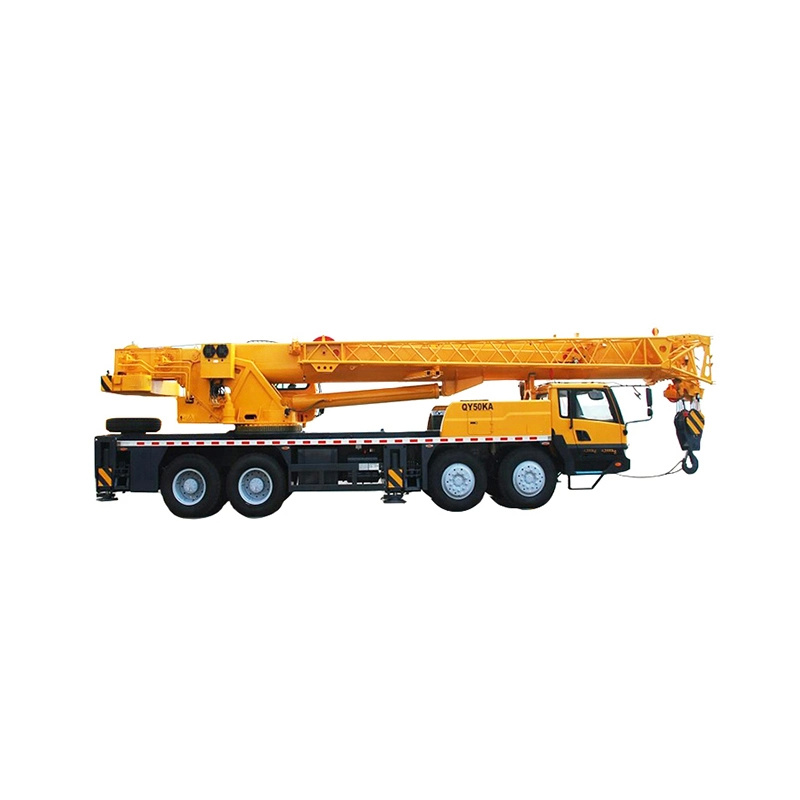

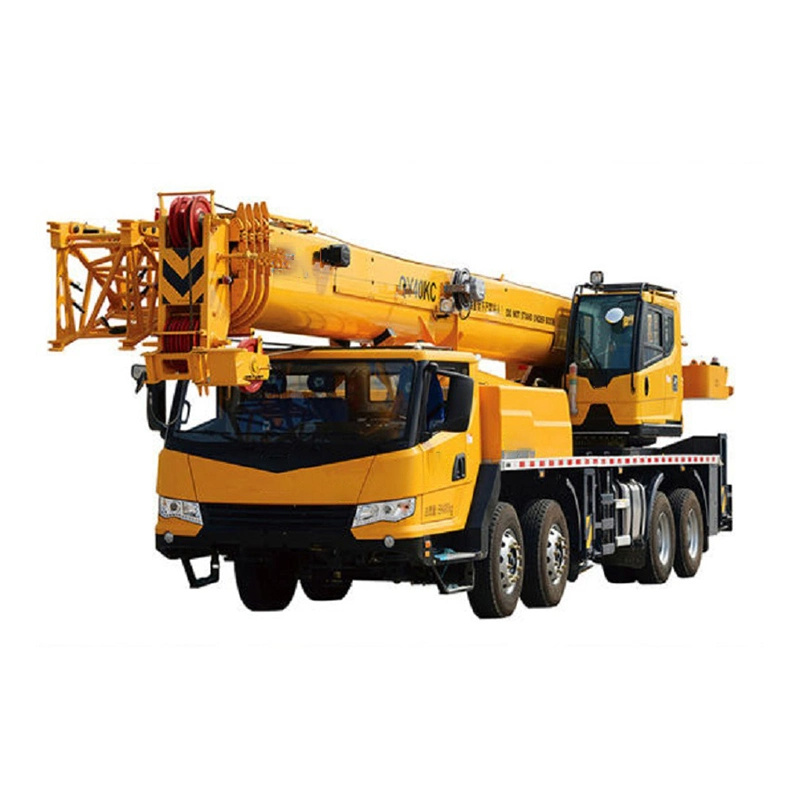

Machinery 40 Ton Side Lifter Crane Construction Truck

BRIEF:

Tus Machinery 40 Ton Side Lifter Crane Construction Truck is a powerhouse of efficiency and versatility designed to meet the demands of heavy-duty construction and logistics operations. With its robust build and advanced features, this truck is engineered to handle substantial loads with precision and safety. Whether you’re in the construction industry or engaged in transporting heavy cargo, this truck is your trusted partner in achieving optimal performance and productivity.

Tus Sab Lifter Crane Construction Truck is your ultimate solution for heavy-duty construction and logistics tasks. Its robust construction, powerful engine, and advanced features make it a dependable workhorse capable of taking on the most challenging projects. Invest in this truck to elevate your construction and transportation capabilities to new heights.

Nta:

1. Impressive Dimensions: The Machinery 40 Ton Side Lifter Crane Construction Truck boasts substantial dimensions that make it a formidable presence on the job site. With an overall length of 13,745 mm, width of 2,800 mm, and height of 3,560 mm, this truck offers ample space for carrying heavy loads and construction materials.
2. Sturdy Wheelbase: The truck’s wheelbase of 1,470 mm + 4,050 mm + 1,350 mm ensures exceptional stability even when handling massive loads. It contributes to the truck’s excellent weight distribution, minimizing the risk of tipping.
3. Durable Axles: The four axles are designed to endure the most challenging terrains and loads. The axle load configuration includes a 1st axle and 2nd axle each carrying 6,890 kg and a 3rd axle and 4th axle each supporting 12,810 kg, ensuring the truck’s ability to handle heavy cargo with ease.
4. Powerful Engine: The SC9DF340Q5 engine by Machinery delivers an impressive 251 kW (kilowatts) of power at 1,900 revolutions per minute (r/min). With a displacement of 7,470 ml (milliliters) and turbocharging capabilities, it ensures that the truck operates efficiently under heavy loads.
5. High Torque: The engine produces a maximum output torque of 1,450 N·m (newton-meters) at 1,100-1,400 r/min, providing the necessary power to navigate rugged terrains and transport hefty materials.
6. Impressive Speed: This construction truck is no slouch when it comes to speed, with a maximum travel speed of over 90 km/h (kilometers per hour), allowing you to swiftly move from one work site to another.
7. Maneuverability: Despite its substantial size, the truck offers remarkable maneuverability with a minimum turning diameter of less than 24 meters. This feature is invaluable when working in tight spaces.
8. Ground Clearance: The truck offers a minimum ground clearance of 293 mm, ensuring it can navigate uneven terrains and obstacles while safeguarding the vehicle’s undercarriage.
9. Exceptional Grade Ability: With a maximum grade ability of over 45%, this truck can tackle steep inclines and challenging gradients with confidence.
10. Approach and Departure Angles: The truck’s approach angle of 19° and departure angle of 15° enable it to conquer inclines and declines smoothly, ensuring stability and safety during operations.
11. Responsive Braking: The truck’s braking system, with an impressive braking distance of less than 10 meters at 30 km/h with full load, guarantees responsive and reliable stopping power, enhancing safety.
