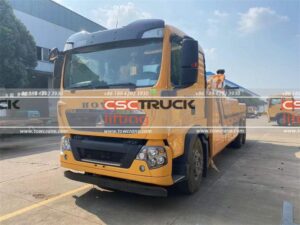

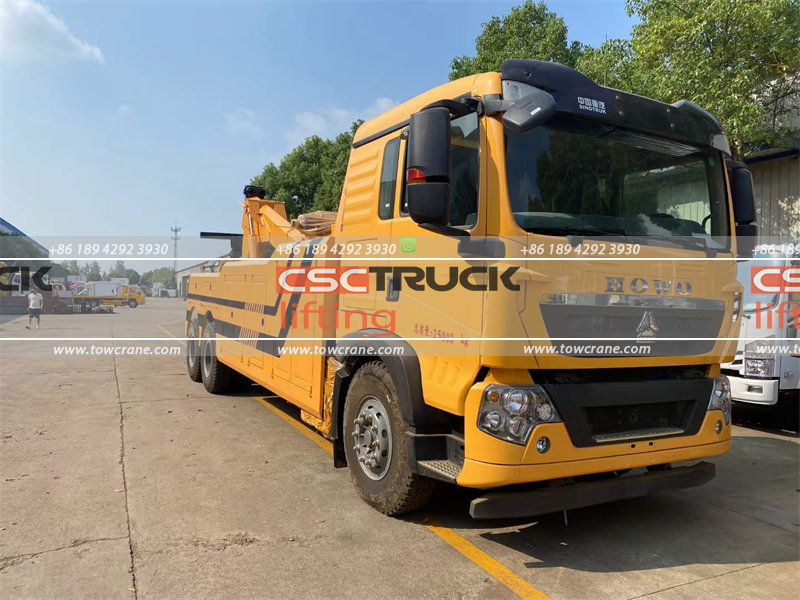

SITRAK 30Ton Integated Wrecker Truck

Features	4114 mm Cab to centre of tandem aluminum body
	Extra extending boom total 2 extending boom+1 fix boom
	Two 15 ton dual speed plantery winch
	Frame fork holders
	Frame fork racks
	Chain racks

Tsheb Nruas

Kev piav txog
Xyuas (0)

Luv

The SITRAK 30Ton Integated Wrecker Truck is a powerful and reliable vehicle designed for efficient towing and recovery operations. With a towing capacity of 30 tons yog li tons, it is capable of handling heavy-duty tasks, ensuring smooth and safe rescue on the road.

Nta

The SITRAK 30Ton Integated Wrecker Truck stands out with several remarkable features.

The 30-ton towing capacity is a defining characteristic, enabling it to handle a wide range of heavy vehicles and equipment. This makes it suitable for dealing with large trucks, buses, and other substantial road vehicles in need of towing or recovery.

The integrated design ensures seamless functionality and enhanced structural integrity. The components are engineered to work in harmony, providing reliable performance in challenging situations.

The truck is likely equipped with a powerful and efficient engine that offers sufficient horsepower and torque to handle the weight of the load being towed without straining.

It probably features a sophisticated winch system with a high pulling force and precise control mechanisms. This allows for smooth and controlled towing operations, minimizing the risk of damage to the vehicles being recovered.

The chassis and suspension system are designed to withstand the heavy loads and provide stability during towing, ensuring safe transportation of the disabled vehicle.

The cab is likely to be equipped with modern amenities and ergonomic designs to provide the driver with a comfortable and productive working environment.

Advanced safety features such as anti-lock brakes, traction control, and stability assist systems may also be incorporated to ensure the safety of both the driver and other road users during towing operations.

Piv txwv, in the event of a major accident on the highway involving a heavy-duty vehicle, the SITRAK 30Ton Integated Wrecker Truck can quickly and safely remove the damaged vehicle, minimizing traffic disruptions and potential hazards.

Zuag qhia tag nrho, the SITRAK 30Ton Integated Wrecker Truck sib xyaw uaf, reliability, and advanced technology to provide an effective solution for heavy-duty towing and recovery needs.

Kev qhia tshwj xeeb

DESCRIPTION
Chassis Truck	C7H 6×4	side door C7H logo
Engine	440hp,EURO Ⅴ ,Silicone oil fan,180Ah battery,Intake pipe heater
Transmission	16 speed manual
Kev tsav tsheb	Hydraulic steering with power assistance
Cab	White color with sleeper
Suspension	Front and rear less spring suspension(4/5)
Front Axle	(Drum),Load capacity:9.5 Ton*1
RearAxle	(Drum)(ratio:4.63),Load capacity:13 Ton*2
Rim\|Tyres	(front longitudinal tread/rear block tread/20PR) (including spare wheel)
Brake	EBS+ESC
Fuel tank	600L
Frame	(8+5/300)
Wheel base	4600lub hli
Bumper	High position (metal)
Battery	240ah
Others	side spare tire rack	cab rear window removed
	reserved driving recorder wiring harness	speed limit 89km/h
	vehicle front lower protection	with parking wedge
SPECIFICATIONS
Boom	Retracted capacity (at 39°)	66666 lbs
	Extended capacity (at 39°)	16000 lbs
	Maximum Lift angle	39°
	Maximum Hook Height	286”
	Reach Past Tailboard	132”
Underlift	Retracted capacity on forks	35000lbs
	Retracted distance to the forks	60”
	Extended capacity on forks	16000lbs
	Extended distance to the forks	122”
	Negative tilt angle	-7～93°
	Tow Rating	80000lbs
Winch	Quantity	2pcs
	Pulling force (on 1st layer)	33333lbs
	Winch type	Planetary
	Cable length	197’
	Cable diameter	0.63”
