BRIEFS:

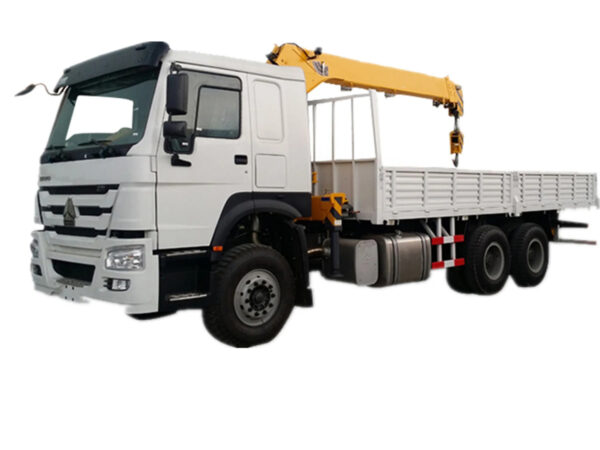

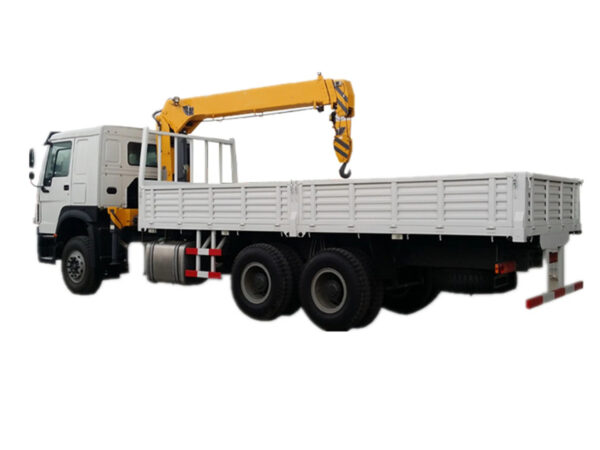

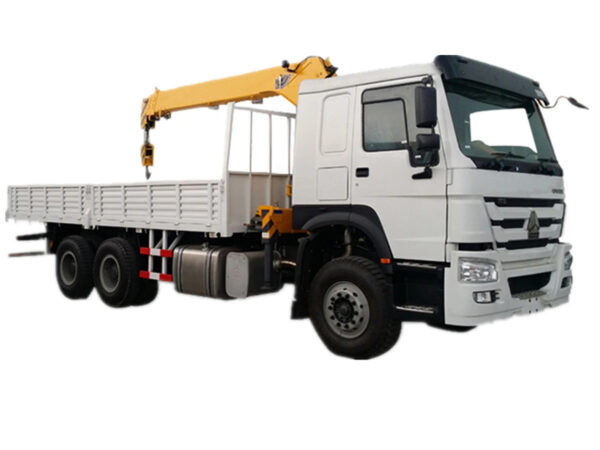

Այն Sinotruck HOWO 12 Ton Hydraulic Telescopic Boom Crane Truck is a versatile and powerful vehicle designed to handle various lifting and transportation tasks. With a maximum lifting capacity of 10,000 kg and a range of advanced features, this truck is perfect for construction, logistics, and industrial applications. It combines a robust crane system with a reliable chassis to ensure efficient and safe operation.
Սա Telescopic Boom Crane Truck is a powerful and reliable solution for demanding lifting and transportation tasks. Whether on construction sites, logistics operations, or industrial projects, this truck is designed to deliver exceptional performance and efficiency.
ԱՌԱՆՁՆԱՀԱՏԿՈՒԹՅՈՒՆՆԵՐ:
- High Lifting Capacity: With a maximum lifting capacity of 10,000 kg, this crane truck can handle heavy loads with ease, making it suitable for a wide range of applications.
- Impressive Lifting Moment: The crane boasts a maximum lifting moment of 25 T.M, providing the necessary power to lift and maneuver heavy objects.
- Efficient Hydraulic System: The hydraulic system delivers a maximum oil flow of 63 L/min and operates at a pressure of 26 MPa, ensuring smooth and precise crane movements.
- 360° Rotation: The crane offers full rotation capability, allowing for flexible and efficient positioning of loads in all directions.
- Extended Working Radius: With a maximum working radius of 12 մետր, this truck can reach objects at a distance, enhancing its versatility on job sites.
- Stable Support: Equipped with four supporting legs, including two rear hydraulic-controlled legs, this truck ensures stability during lifting and loading operations.
- Durable Chassis: The truck’s chassis is built for rugged use, with dimensions of 10,350 x 2,496 x 3,850 mm and a loading capacity of 25 տոննա, providing ample space for cargo.
- Smooth Transmission: The HW19710 transmission offers 10 speeds forward and 2 reverse, facilitating seamless gear changes.
- Reliable Engine: Powered by a WD615.69 diesel engine with 336 HP, this truck offers robust performance while meeting EURO II emissions standards.
- Comfortable Cab: The HOWO 76 New Face Cab features a one-bed design with air conditioning, providing a comfortable and ergonomic workspace for the driver.
- Անվտանգության առանձնահատկություններ: The truck includes safety features such as dual-circuit compressed air brakes, a ZF8118 steering system, and 12.00R22.5 radial tires for enhanced stability and control.
- Electrical System: The truck comes equipped with a 28V-1500kw alternator, ա 7.5 kW/24V starter, և 2 x 12V/165Ah batteries to ensure reliable electrical performance.
- User-Friendly Design: The cab features adjustable seating, a stereo radio/cassette recorder, and various amenities to enhance the driver’s experience.
Տեխնիկական պայմաններ:
| SPECIFICATION FOR CRANE | |
|---|---|
| Max Lifting Capacity | 10,000 kg |
| Max Lifting Moment | 25 T.M |
| Max Oil Flow of Hydraulic System | 63 L/min |
| Max Pressure of Hydraulic System | 26 MPa |
| Rotation Angle | All Rotation |
| Max Working Radius (մ) | 12 մ |
| Supporting Leg | Four Supporting Leg with Hydraulic Control (Including Two Rear Supporting Legs) |
| SPECIFICATION FOR CHASSIS | |
|---|---|
| Dimension (L x W x H) (unloaded) | 10,350 x 2,496 x 3,850 մմ |
| Loading Capacity (տոննա) | 25 տոննա |
| Cargo Body Size (L x W x H) (մմ) | 6,500 x 2,300 x 600, Bottom 3 մմ, Side 2 մմ |
| Approaching Angle/Departure Angle (°) | 16/15 |
| Overhang (Front/Rear) (մմ) | 1,500/2,600 |
| Wheel Base (մմ) | 4,600 + 1,350 |
| Max Speed (կմ / ժամ) | 102 |
| Curb Weight (kg) | 14,525 |
| Engine | |
|---|---|
| Մոդել | WD615.69, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, direct injection |
| Fuel Type | Diesel |
| Power, Max (kW/rpm) | 336 HP |
| Emission | EURO II |
| Fuel Tanker Capacity (Լ) | 400L aluminum oil tank |
| Transmission | |
|---|---|
| Մոդել | HW19710, 10 speeds forward and 2 reverse |
| Brake System | |
| Service Brake | Dual circuit compressed air brake |
| Steering System | |
|---|---|
| Մոդել | ZF8118 |
| Axles | |
|---|---|
| Front Axle | HF9 |
| Rear Axle | HC16 |
| Tire | |
|---|---|
| 12.00R22.5 (Radial Tyre) |
| Electrical System | |
|---|---|
| Battery | 2 x 12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5 Kw/24V |
| Cab | |
|---|---|
| ԻՆՉՊԵՍ 76 New Face Cab (One bed, with air conditioner) | |
| All-steel forward control, 55º hydraulically tiltable to the front | |
| 2-arm windscreen wiper system with three speeds | |
| Laminated windscreen with casted-in radio aerial | |
| Hydraulically damped adjustable driver’s seat and rigid adjustable co-drivers seat | |
| With a heating and ventilating system | |
| Outer sun visor | |
| Adjustable roof flap | |
| With stereo radio/cassette recorder | |
| Safety belts and adjustable steering wheel | |
| Air horn | |
| With 4-point support fully floating suspension and shock absorbers |
