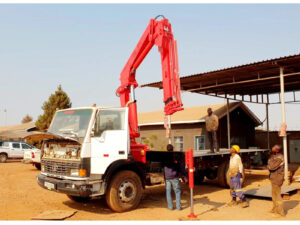

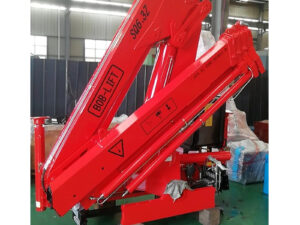

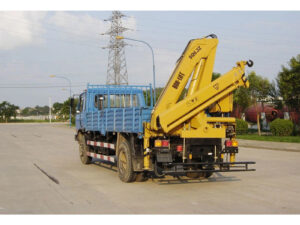

Oseihe nwoke 5 Ton Hydraulic Knuckle Boom Loader Truck Mounted Crane is a versatile and efficient lifting solution designed for a wide range of applications. With ergonomic controls and advanced safety features, this crane offers a powerful yet easy-to-use solution for various industries.
EGO:
- Ergonomic Crane Control:
- Ergonomically arranged operating levers for all crane functions.
- Functional design for improved comfort during crane operation.
- Straightforward service and maintenance.
- High Density Paint:
- Top-quality surface paint with corrosion protection.
- Long-term UV-resistant coating.
- Aesthetically pleasing and attractive color.
- Load Holding Valve:
- Holds the cylinder in position.
- Standard fittings on all cylinders.
- Strategically positioned to protect from damage.
- High-Speed Extension:
- Increased extension and retraction speed of the boom system.
- Crane works faster with return oil utilization.
- Time-saving during crane operation.
- Radio Remote Control:
- Efficient control of the crane remotely.
- Safe crane operation outside of the danger zone.
- Easy maintenance and quick troubleshooting.
- Top Seat:
- Excellent visibility of the surrounding area.
- Foldable sun protection umbrella for hot weather.
- Seat cover to prevent exposure from the sun.
- Hydraulic Overload Safety Device:
- Prevents the crane from overloading.
- Overload protection system with an emergency cut-off function.
- Stops all movements of the crane that increase the load.
- Hose Equipment for Attachments:
- Additional hydraulic functions for attachments.
- Simple installation with hose tray protection.
- Diverse applications suitable for different industries.
SPECIFICATIONS:
| technical Data | Basic Data |
|---|---|
| Marnet. lifting moment [mt] | 5.8 |
| Marnet. lifting capacity [k] | 3300 |
| Marnet. hydraulic outreach [m] | 9.6 |
| Marnet. hydraulic outreach lifting capacity [k] | 530 |
| Marnet. number of extension boom | 3(B) |
| Slewing angle [Kporo] | 400 |
| Slewing moment [mt] | 0.9 |
| Marnet. stabilizer spread [mm] | 4950 |
| Std. stabilizer spread [mm] | 3000 |
| Fitting space required [mm] | 598 |
| Width folded [mm] | 2309 |
| Marnet. operating pressure [bar] | 20 – 30 |
| Recommended pump capacity [l/min] | 315 |
| Dead weight standard crane [k] | 708 |
