Brief:

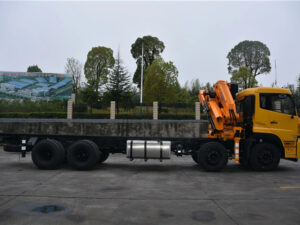

Oseihe nwoke DONGFENG 16 Ton Knuckle Boom Truck Mounted Crane is a versatile and powerful lifting solution designed to handle various heavy lifting tasks with precision and efficiency. This crane combines robust construction with advanced features to ensure safe and reliable performance in a wide range of applications.
This Knuckle Boom Truck Mounted Crane is designed to meet high-performance standards, making it an ideal choice for various lifting and construction applications. Its powerful crane and robust truck chassis ensure exceptional lifting capacity and reliability.
Features:
- Model: SQ330ZB4 / Knuckle Crane 10.65 ton at 3m
- Max Lifting Moment: 330 Kn.m
- Max na-ebuli ike:
- 10,650 kg at 3.0m
- 5,400 kg at 6m
- 2,800 kg at 9.6m
- 2,200 kg at 11.4m
- Max na-ebuli elu: 13.8m
- Max radius: 11.4m
- Boom Section: 4 stages
- Rotation Angle: 360° All Rotation
- Rated Working Pressure: 28 MPa
- Oil Tank Capacity: 120L
- Related Oil Flow: 60 L/min
- Outrigger Span: 2,330 – 7,100 mm
- Outrigger: 4, adjustable, Hydraulic operating
- Crane Weight: 4,800 k
- Installation Space: 1,470 mm
- Swing Type: Planetary gear reduction
- Safety Device: Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device
- Options: Aux. Winch, Aux. Boom, Remote Control
- Material: HG785D
Truck for Reference:
- Truck Brand: Dongfeng (other truck brands can be customized)
- Cabin:
- Driving Type: 6×4
- Left Hand Drive (Right Hand Drive Type Can Be Customized)
- Color is Optional
Vehicle Main Dimensions:
- Overall Size (L x W x H): 11,950 x 2,490 x 3,850 mm
- Wheel Base: 5,850 + 1,350 mm
- Cargo Body: 8,400 x 2,300 x 550 mm
Weight in KGS:
- GVW (Gross Vehicle Weight): 25,000 k
- Tare Weight: 16,250 k
- Front Axle Loading Capacity: 2 x 2,500 k
- Rear Axles Loading Capacity: 2 x 27,500 k
Enjin:
- Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
- Horse Power: 240 HP (177 kW)
- Max Torque: 1,000 N.m
- Emission Standard: Euro V
- Max Speed: 102 km/h
Givebox:
- Manual gearbox with 9 forwards & 1 reverse, with PTO
Tire:
- 11.00R20 (11 pieces including one spare tire)
SPECIFICATIONS:
| Model # | SQ330ZB4 / Knuckle Crane 10.65 ton at 3m |
|---|---|
| Max Lifting Moment | 330 Kn.m |
| Max na-ebuli ike | – 10,650 kg at 3.0m |
| – 5,400 kg at 6m | |
| – 2,800 kg at 9.6m | |
| – 2,200 kg at 11.4m | |
| Max na-ebuli elu | 13.8m |
| Max radius | 11.4m |
| Boom Section | 4 stages |
| Rotation Angle | 360° All Rotation |
| Rated Working Pressure | 28 MPa |
| Oil Tank Capacity | 120L |
| Related Oil Flow | 60 L/min |
| Outrigger Span | 2,330 – 7,100 mm |
| Outrigger | 4, adjustable, Hydraulic operating |
| Crane Weight | 4,800 k |
| Installation Space | 1,470 mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | Aux. Winch, Aux. Boom, Remote Control |
| Material | HG785D |
| Truck for Reference | |
| Truck Brand | Dongfeng (other truck brands can be customized) |
| Cabin | Driving Type: 6×4, Left Hand Drive (Right Hand Drive Type Can Be Customized) |
| Color is Optional | |
| Vehicle Main Dimensions | |
| Overall Size (L x W x H) | 11,950 x 2,490 x 3,850 mm |
| Wheel Base | 5,850 + 1,350 mm |
| Cargo Body | 8,400 x 2,300 x 550 mm |
| Weight in KGS | |
| GVW | 25,000 k |
| Tare Weight | 16,250 k |
| Front Axle Loading Capacity | 2 x 2,500 k |
| Rear Axles Loading Capacity | 2 x 27,500 k |
| Enjin | |
| Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power | 240 HP (177 kW) |
| Max Torque | 1,000 N.m |
| Emission Standard | Euro 2, Euro 3, Euro 4, Euro 5 |
| Max Speed | 102 km/h |
| Givebox | Manual gearbox with 9 forwards & 1 reverse, with PTO |
| Tire | 11.00R20 (11 pieces including one spare tire) |
