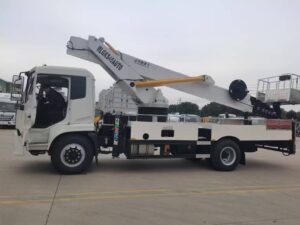

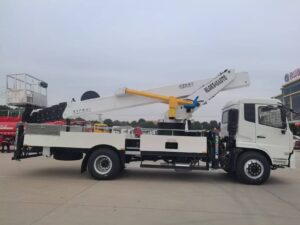

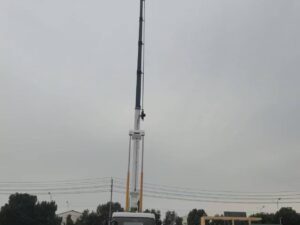

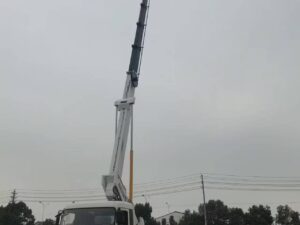

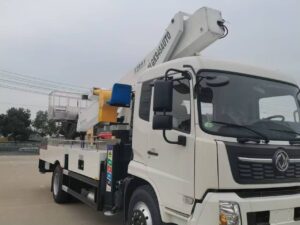

Dongfeng 13 Ton Telescopic Aerial Lift Truck

Dongfeng 45 Mita telescopic ebuliala

Model		B190 33
Oge obula		Euro 3
Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power		190hp,rated power speed 2500rpm 190hp，
Displacement		5900ml

Ajuju nyocha

Nkowa
Ntule (0)

Nkowa

Oseihe nwoke Dongfeng 45 Mita telescopic ebuliala is a heavyweight in the realm of aerial work platforms. Built on the trusted Dongfeng truck chassis, it offers unrivaled mobility and stability. With an astonishing 45-meter maximum lift height, it towers over many competitors, making it perfect for high-altitude tasks.

In large-scale construction projects, it enables workers to access the uppermost floors for activities like installing glass facades, painting exterior walls, or conducting detailed inspections. For maintaining tall infrastructure such as transmission towers and bridges, this lift truck is indispensable.

The telescopic boom, crafted from high-strength steel, can be smoothly extended and retracted. It’s powered by a reliable engine that provides the necessary force for seamless operation. Safety is prioritized, with features like sturdy guardrails on the platform and emergency stop buttons, ensuring workers are protected while working at extreme heights.

EGO

The Dongfeng 45 Meters Telescopic Aerial Elu is a paragon of engineering excellence, designed to meet the most demanding high-altitude work requirements across various industries.

1.Exceptional Lift Height

The most striking feature is its 45-meter maximum lift height. This remarkable elevation capability sets it apart, allowing workers to access areas that are simply out of reach for many other aerial lift trucks. In the construction of skyscrapers, it provides a stable platform for tasks like installing intricate curtain walls, applying finishing touches to upper floors, or carrying out safety inspections. For the maintenance of towering power transmission towers or long-span bridges, this height is invaluable, minimizing the need for complex and time-consuming scaffolding setups.

2.Robust Telescopic Boom

The telescopic boom, forged from high-strength, heat-treated steel, forms the backbone of this lift truck. It can be smoothly extended and retracted, offering precise control over the working height. Multiple telescopic sections work in harmony, enabling incremental adjustments to reach the exact position required. This flexibility means it can adapt to different job site layouts, whether it’s a cramped urban construction zone or an open industrial area. The boom’s construction also ensures durability, withstanding the stresses of frequent elevation changes and heavy loads.

3.Dependable Power Source

Powered by a high-performance engine, the Dongfeng lift truck has the muscle to drive the telescopic operation and move around the worksite. The engine is tuned for reliability, delivering consistent power even under the strain of lifting heavy equipment and personnel to great heights. It’s also engineered for fuel efficiency, which is beneficial for long-term projects where minimizing operational costs is crucial.

4.Enhanced Safety Features

Safety is of the utmost importance. The work platform is equipped with sturdy, high-raised guardrails that prevent accidental falls. Emergency stop buttons are strategically placed both on the platform and in the operator’s cab, allowing for immediate shutdown in case of any unforeseen hazards. The vehicle also has advanced stability control systems, constantly monitoring the center of gravity and adjusting the outriggers or wheel suspension as needed to keep the truck firmly planted on the ground, even when the boom is fully extended.

5.Maneuverability and Mobility

Built on a Dongfeng truck chassis, it benefits from excellent mobility. The chassis is designed to traverse various terrains, from smooth paved roads to rough construction sites. Its turning radius is optimized, enabling it to navigate tight spaces with relative ease. This mobility allows the lift truck to be quickly relocated between different job sites, saving time and increasing overall productivity.

Na ngwụcha, the Dongfeng 45 Meters Telescopic Aerial Lift Truck combines power, precision, safety, and mobility, making it an essential asset for any project involving high-altitude work.

Nkowa

Vehicle parameters
Vehicle Model			EQ1180GK	Vehicle Brand	DONGFENG
Overall dimensions			9550×2550X3850mm	Curb weight	13365k
Chassis parameters
Chassis model			EQ1180GT3DJ	Chasssis ika	DONGFENG
Overall dimensions			8650x2500x2950mm	Wheel base	4700mm
Front/rear wheel track			1880/1800mm	Front/rear suspension	1430/2160mm
Approach/departure angle			20/13°	Maximum speed	90km/h
Chassis Manufacturer			Dongfeng Motor Company
Cab	Configuration		VR a row and a half deluxe cab(with sleeping berth),allowable 3 passengers ，A/C
	Agba		white,other color is optional
Enjin	Model		B190 33
	Oge obula		Euro 3
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		190hp,rated power speed 2500rpm 190hp，
	Displacement		5900ml
	Max.torque		640N·m
	Bore x stroke		102x120mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		10.00R20
	Number		6+1 nos
Clutch	push type diaphragm spring clutch,Φ395mm
Fuel tank	160L,steel 160L
Front axle	5.0T
Rear axle	10.0T
Drive form	4X2
Rated voltage	24V,DC 24V
Transmissions	Gearbox FAST, 8 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Aerial work truck structure parameters
Max operation height 度			45.0m
Max rotation angle			360°	Working platform rated loading	220k
Color and Logo			White
Standard configuration		A.Seven section working arm, six section synchronous telescopic, dual amplitude hydraulic cylinder B.360 degree continuous rotation, V-shaped front and rear legs, two telescopic legs, individually adjustable C. Electrical operation of work platform and ground remote control, hydraulic operation of turntable, load sensitive proportional control system, achieving stepless speed regulation D. Hydraulic automatic leveling, the work vehicle can achieve a platform load of 220KG, a maximum working height of 45 meters, and a maximum working range of 25 meters. E.Automatic interlocking device for boarding and disembarking, emergency electric emergency pump, emergency stop device F. Night safety warning device, vehicle level gauge, engine ignition and shutdown, real-time communication, wireless intercom on the platform and when getting off the vehicle G. Non insulated bucket, stainless steel fence and anti slip walking board
