Brief:

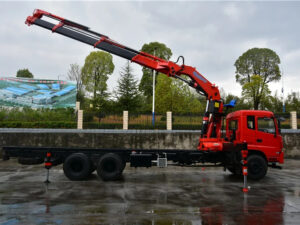

Oseihe nwoke DONGFENG Chassis 20 Ton Knuckle Boom Hydraulic Crane Truck, equipped with the SQ400ZB5 knuckle crane, is a versatile and powerful solution designed for heavy lifting and various applications. This truck offers exceptional lifting capacity, mgbanwe, and safety features, making it an ideal choice for demanding tasks.
Oseihe nwoke Knuckle Boom Hydraulic Crane Truck is designed to meet rigorous lifting demands, ensuring efficiency, reliability, and safety in various industrial applications.
Features:
- Model: SQ400ZB5 Knuckle Crane with a lifting capacity of 20 tons at 2 meters.
- Max Lifting Moment: Impressive 400 Kn.m for heavy-duty lifting requirements.
- Max na-ebuli ike:
- 12,000 kg at 3.0 meters
- 6,300 kg at 6.15 meters
- 3,600 kg at 9.75 meters
- 2,300 kg at 13.3 meters
- Max na-ebuli elu: Reaches up to 15.7 meters for high-reaching tasks.
- Max radius: Provides a working radius of 13.3 meters.
- Boom Section: Features 5 stages, enhancing reach and flexibility.
- Rotation Angle: Full 360° rotation capability for precise positioning.
- Rated Working Pressure: High-pressure hydraulic system with a rating of 28 MPa.
- Oil Tank Capacity: Equipped with a 200-liter oil tank for extended operation.
- Related Oil Flow: Offers a flow rate of 64 L/min for efficient crane operation.
- Outrigger Span: Adjustable outriggers with a span range of 2,330 to 7,100 mm.
- Outrigger: Four hydraulic-operated, adjustable outriggers ensure stability during operation.
- Crane Weight: 5,600 kg for balanced lifting and maneuverability.
- Installation Space: Requires 1,530 mm for installation, optimizing truck configuration.
- Swing Type: Utilizes a planetary gear reduction mechanism for precision and control.
- Safety Device: Includes load indicators, hydraulic safety valves, counter-balance valves, automatic swing brakes, and hook safety devices.
- Options: Available with auxiliary winch, auxiliary boom, and remote control for added versatility.
- Material: Built with HG785D steel for durability and strength.
Truck Specifications:
- Truck Brand: DONGFENG (customizable to other brands).
- Cabin: Designed for an 8X4 configuration with left-hand drive (right-hand drive available upon request).
- Color Options: Optional for personalized aesthetics.
- Vehicle Main Dimensions:
- Overall Size (L x W x H): 11,950 x 2,500 x 3,800 mm
- Wheelbase: 1,800 + 4,600 + 1,350 mm
- Cargo Body: 6,800 x 2,350 x 500 mm
- Weight Capacity:
- GVW (Gross Vehicle Weight): 31,000 k
- Tare Weight: 14,500 k
- Front Axle Loading Capacity: 2 X 7,000 k
- Rear Axles Loading Capacity: 2 X 16,000 k
- Engine Specifications:
- Engine Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter cooling.
- Horsepower: 371 HP (273 kW)
- Max Torque: 1,500 N.m
- Emission Standard: Euro II
- Max Speed: Capable of reaching speeds of up to 102 km/h.
- Givebox: Manual gearbox featuring 10 forwards & 2 reverses, equipped with PTO.
- Tire: Comes with 12R22.5 tubeless tires, including 13 pieces and one spare tire.
SPECIFICATIONS:
| Parameter | Specification |
|---|---|
| Crane Model | SQ400ZB5 / Knuckle Crane 20-ton at 2m |
| Max Lifting Moment | 400 Kn.m |
| Max na-ebuli ike | – 12,000 kg at 3.0m |
| – 6,300 kg at 6.15m | |
| – 3,600 kg at 9.75m | |
| – 2,300 kg at 13.3m | |
| Max na-ebuli elu | 15.7m |
| Max radius | 13.3m |
| Boom Section | 5 stages |
| Rotation Angle | 360° All Rotation |
| Rated Working Pressure | 28 MPa |
| Oil Tank Capacity | 200L |
| Related Oil Flow | 64 L/min |
| Outrigger Span | 2,330 – 7,100 mm |
| Outrigger | 4, adjustable, Hydraulic operating |
| Crane Weight | 5,600 k |
| Installation Space | 1,530 mm |
| Swing Type | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device |
| Options | Aux. Winch, Aux. Boom, Remote Control |
| Material | HG785D |
| Truck for Reference | |
| Truck Brand | Dongfeng (other truck brands can be customized) |
| Cabin | – Driving Type: 8X4 |
| – Left Hand Drive (Right Hand Drive Type Can Be Customized) | |
| – Color is Optional | |
| Vehicle Main Dimensions | – Overall Size (L x W x H): 11,950 x 2,500 x 3,800 mm |
| – Wheel Base: 1,800 + 4,600 + 1,350 mm | |
| – Cargo Body: 6,800 x 2,350 x 500 mm | |
| Weight in KGS | – GVW (Gross Vehicle Weight): 31,000 k |
| – Tare Weight: 14,500 k | |
| Front Axle Loading Capacity | – 2 X 7,000 k |
| Rear Axles Loading Capacity | – 2 X 16,000 k |
| Enjin | – Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| – Horse Power: 371 HP (273 kW) | |
| – Max Torque: 1,500 N.m | |
| – Emission Standard: Euro II | |
| Max Speed | 102 km/h |
| Givebox | Manual gearbox with 10 forwards & 2 reverses, with PTO |
| Tire | – 12R22.5 tubeless tire, 13 pieces including one spare tire |
