Yfirlit

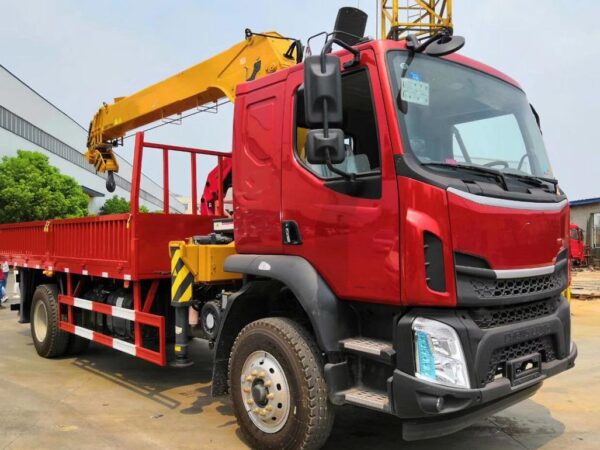

• It is equipped with a 220 – horsepower engine, which provides sufficient power to carry out its operations. The 4X2 drive configuration offers a balance between traction and fuel efficiency. This setup is suitable for various road conditions and terrains that the vehicle may encounter during its work.
• The truck has a maximum load capacity of 7.5 tonn, making it capable of transporting a substantial amount of weight. The 5.8 – meter length of the truck-mounted crane gives it a certain reach for lifting and placing loads at different distances.

• The truck-mounted crane is a key feature. It allows for the lifting and moving of heavy objects with relative ease. The crane’s design and capabilities are engineered to handle loads up to its specified capacity. It can be used in construction sites for lifting building materials such as steel beams, concrete blocks, etc.
• It can also be utilized in industrial settings for loading and unloading heavy machinery or equipment. The crane’s operation is likely to be precise, enabling it to place loads accurately at the desired location.

• In the construction industry, it is an invaluable asset. It can be used for erecting structures, as well as for transporting construction materials to different levels of a building site. It is also useful in infrastructure projects such as road and bridge construction, where materials need to be lifted and placed in specific positions.
• Að auki, in the logistics and warehousing sectors, it can be used for loading and unloading large and heavy items from trucks or storage areas. It can also be employed in the maintenance and repair of large facilities, where heavy components need to be removed or installed.

• The cab of the vehicle is likely designed with the driver’s comfort in mind. It may have ergonomic seating to reduce fatigue during long hours of operation. The controls for both driving the truck and operating the crane are probably designed to be intuitive and easy to use.
• For the crane operator, there may be a control panel with clear indicators and levers to ensure precise control of the crane’s movements. The overall design of the vehicle aims to provide a safe and efficient working environment for both the driver and the crane operator.

Eiginleikar

Kraftur og drif

• Engine Power: With a 220 – horsepower engine, this vehicle has the necessary power to perform a variety of operations. The engine is designed to provide sufficient torque and horsepower, enabling the truck to carry heavy loads and operate the mounted crane effectively. This power output allows for smooth acceleration and the ability to navigate different terrains, whether on flat roads or gentle slopes commonly encountered in construction sites or during transportation routes.
• 4X2 drifstilling: The 4X2 drive system offers a practical balance. It provides enough traction for the vehicle to move with stability, especially when carrying a significant load or when the crane is in operation. This configuration also contributes to fuel efficiency, which is an important factor for long – term operation and cost – skilvirkni. It is well – adapted to typical road conditions and is less complex compared to some other drive configurations, resulting in potentially lower maintenance requirements.

Load Capacity and Dimensions

• 7.5 – Ton Load Capacity: The truck has a maximum load capacity of 7.5 tonn. This substantial capacity allows it to transport a wide range of heavy items, such as construction materials (e.g., large quantities of bricks, steel bars, or pre – cast concrete elements), industrial machinery parts, or bulky equipment. It can handle these loads both on the truck bed and when using the crane for lifting and loading operations.

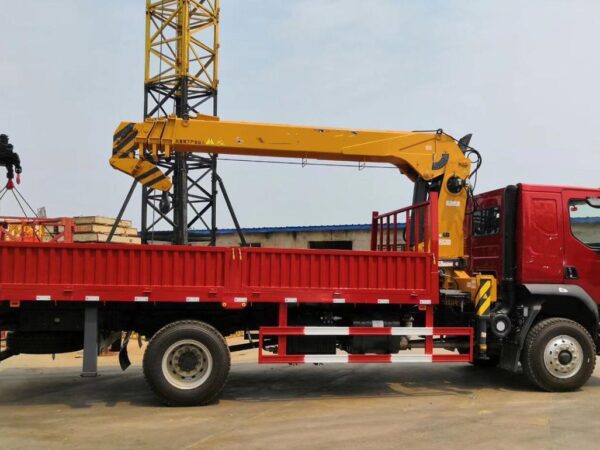

• 5.8 – Meter Crane Reach: The 5.8 – meter length of the truck – mounted crane provides a considerable reach. This reach is crucial for lifting and placing loads at different distances from the vehicle. In construction projects, it can access different areas of a building site, such as reaching upper floors or placing materials in a designated area within a large construction zone. It also offers flexibility in industrial settings where the placement of heavy items within a factory or warehouse may require a certain lifting distance.

Crane Features

• Lifting Capability: The crane is engineered to lift loads up to its specified capacity. It is likely equipped with a strong hydraulic system that enables smooth and precise lifting operations. This system provides the necessary force to raise heavy objects steadily, ensuring safety during the lifting process. The crane’s structure is designed to withstand the stress of lifting heavy loads without compromising stability.
• Precision and Control: It offers precise control over the movement of the load. The operator can manipulate the crane’s boom, jib, and winch with a high degree of accuracy. This precision is vital for tasks such as placing construction materials exactly where they are needed on a building structure or loading and unloading delicate industrial equipment without causing damage. The controls are likely designed to be intuitive, allowing the operator to quickly learn and master the operation of the crane.

Application – Specific Features

• Construction – Friendly: In construction applications, the Chenglong M3 truck – mounted crane is an ideal choice. It can easily access construction sites, which may have uneven surfaces or limited space. The combination of its load capacity, crane reach, and maneuverability makes it suitable for tasks like erecting scaffolding, installing roofing materials, or moving heavy construction equipment around the site. It can also be used for transporting materials between different parts of a large – scale construction project.
• Logistics and Warehousing Utility: In the logistics and warehousing sectors, this vehicle is useful for handling large and heavy items. It can load and unload trucks quickly, reducing waiting times and increasing the overall efficiency of the supply chain. The crane’s ability to reach into different areas of a warehouse or storage yard enables it to place items in their proper storage locations, even in areas that may be difficult to access with other equipment.

Öryggi og þægindi rekstraraðila

• Öryggisaðgerðir: The vehicle is likely equipped with a range of safety features. These may include safety locks on the crane to prevent accidental movement, overload protection systems to avoid overloading the crane and causing damage or accidents, and stability – enhancing mechanisms to keep the truck and crane stable during lifting operations. There may also be warning systems for the operator in case of abnormal operating conditions.
• Þægindi rekstraraðila: The cab of the vehicle is designed with the driver’s comfort in mind. It may have adjustable seats with good lumbar support to reduce fatigue during long hours of driving and crane operation. The controls for both driving and crane operation are ergonomically placed, allowing the operator to reach them easily. The interior may also be insulated from noise and vibration, creating a more pleasant working environment. For the crane operator, there may be a well – designed control station with a clear view of the lifting area and easy – til – read instruments for monitoring the crane’s operation.

Forskriftir

Grunnupplýsingar
Drifform	4X2
Hjólhýsi	5100mm
Tegund	Truck-mounted crane
Mál ökutækja	9.0 × 2.55 × 3.8 metrar
Total mass	18 tonn
Rated mass	6.605 tonn
Framan yfirhengi / Aftari yfirhengi	1.445 / 2.455 metrar
Engine parameters
Engine model	Dongfeng Cummins ISB220 50
Displacement	5.9L
Maximum output power	162KW
Maximum horsepower	220 horsepower
Emission standard	National V
Fuel type	Dísel
Rated speed	2500rpm
Engine brand	Dongfeng Cummins
Maximum torque	800N·m
Maximum torque speed	1500 – 1600rpm
Mounting parameters
Vehicle announcement	LZ5181JSQM3AB
Mounting brand	Dongfeng Liuqi
Crane model	SQS200
Lifting weight	7.5 tonn
Crane own weight	3.5 tonn
Cab parameters
Cab	M31BS
Transmission parameters
Sending líkan	Fast 8JS85E
Fjöldi gíra	8 gears
Chassis parameters
Undirvagn	Dongfeng Liuqi
Undirvagnsröð	Chenglong M3
Chassis model	LZ5182XXYM3ABT
Rear axle description	153
Spring leaf number	11 / 12 + 9
Frame size	264 (6) mm
Speed ratio	4.1
Dekk
Fjöldi dekkja	6
Tire specification	295 / 60R22.5
