簡単な:

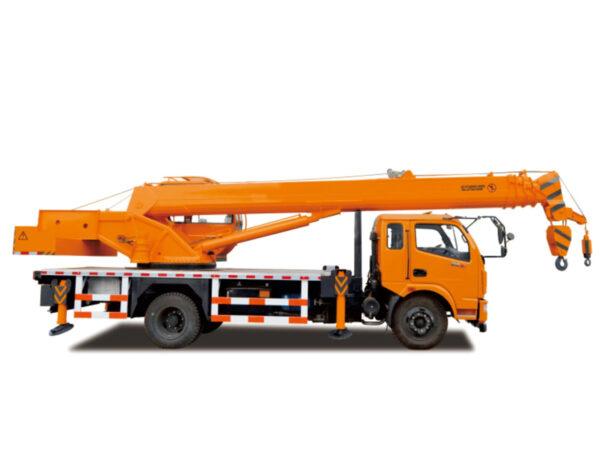

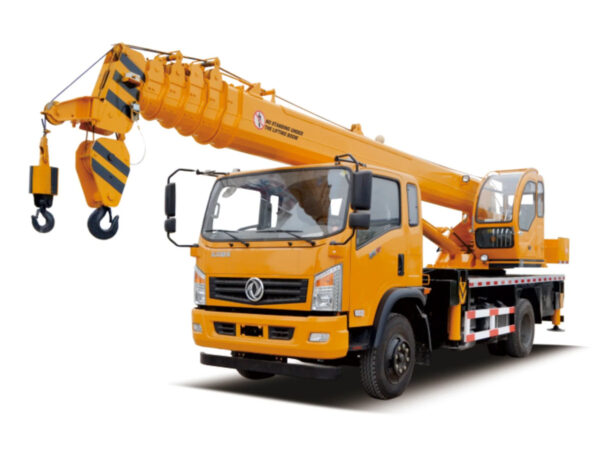

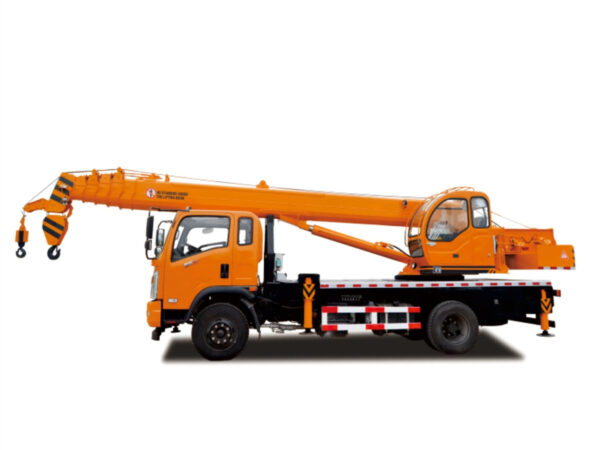

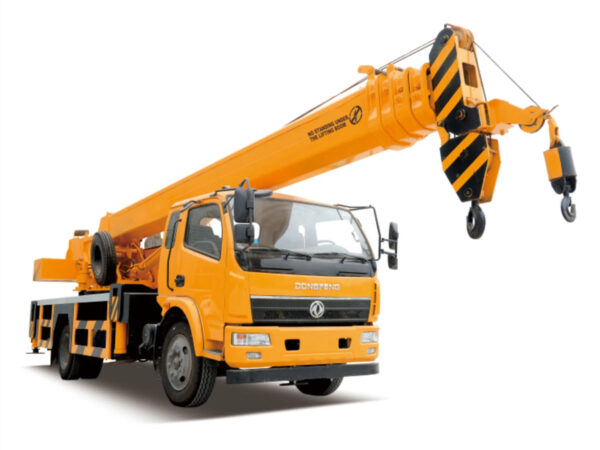

The DONGFENG 8 Ton Loader Crane Hydraulic Telescopic Boom Truck is a versatile heavy-duty mobile crane designed for a wide range of lifting operations. It offers exceptional reach, lifting capacity, そして安定性, making it suitable for various construction and industrial applications.
This ローダークレーン is a powerful and versatile lifting solution suitable for demanding construction and industrial projects. Its combination of compact design, impressive lifting capacity, and advanced features makes it an asset for various applications.
特徴:

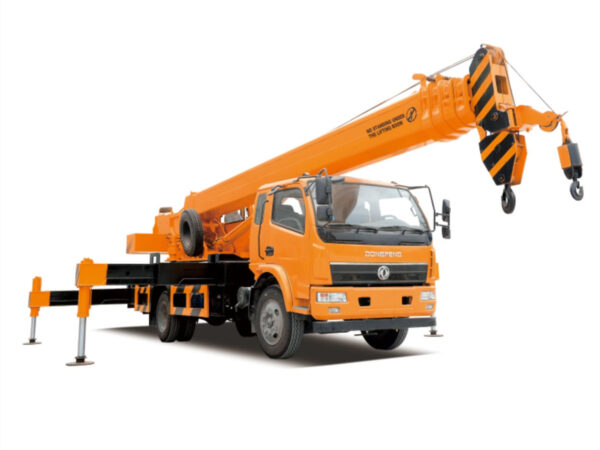

- Crane Dimensions: The crane’s compact dimensions of 9030mm x 2240mm x 3095mm ensure ease of maneuverability and operation in tight spaces. The outriggers provide stability, with a longitudinal span of 3900mm a horizontal span of 2240-4840mm, and a total of 5 outrigger pieces.
- Basic Boom: The crane’s basic boom offers a lifting length ranging from 7.45 meters to an impressive 25.5 メートル, providing flexibility for a wide range of lifting tasks. The main boom can be elevated from 3° to 80°, allowing for precise positioning of loads.
- Chassis and Truck Data: The crane is mounted on a 4×2 left-hand drive chassis, complying with Euro 5 emission standards. It is powered by a robust 102 HP engine with a displacement of 3707 ml. The front and rear axle load is distributed at 2520 kg and 7480 kg, respectively.
- Tire Size: The crane is equipped with sturdy 8.25-16LT tires, providing excellent traction and load-bearing capabilities. The front and rear track dimensions are 1690mm and 1650mm, respectively, with a wheelbase of 3500mm.
- Working Parameter: The crane features a 5-piece hexagon boom with a maximum total lifting capacity of 8000 kg. The basic boom lifting torque can reach a maximum of 240 KN.m, and it offers a maximum lifting height of 28 メートル. The longest boom lifting torque is 18 KN.m, and the working radius spans from 3 に 18 メートル.
- Winches: The crane is equipped with both a main winch and an auxiliary winch, each capable of a maximum speed of 95 meters per minute, ensuring efficient load handling.
- Traveling Parameter: With a maximum travel speed of 75 km/h, the crane can be quickly relocated between job sites. It offers a 30% gradeability and has a minimum turning diameter of 14 メートル, enhancing its maneuverability during transport.
仕様:
| Crane Dimension | |
|---|---|
| モデル | QY 8-5-28 |
| Dimensions (LengthWidthHeight) | 9030mm x 2240mm x 3095mm |
| Outrigger Longitudinal Span/Horizontal Span | 3900mm / 2240-4840mm |
| Outriggers Quantity | 5 |
| Basic Boom Lifting Length | 7.45メートル – 25.5メートル |
| Main Boom Elevation | 3° – 80° |
| Chassis Truck Data and Weight | |
|---|---|
| Total Mass | 9805kg |
| Front and Rear Axle Load | 2520kg / 7480kg |
| エンジン出力 / Engine Displacement | 102 HP / 3707 ml |
| Drive Type | 4*2 Left Hand Drive |
| Emission Standard | Euro 5 |
| Tyre Size | 8.25-16LT |
| Front / Rear Track | 1690mm / 1650mm |
| Wheel Base | 3500mm |
| Working Parameter | |
|---|---|
| Sections | 5 Pieces Hexagon Sections |
| Speed of Single Rope (No Load) | 95 メートル/分 |
| Hydraulic Tank Capacity | 160L |
| マックス. Total Lifting Capacity | 8000kg |
| The Basic Boom Lifting Torque (マックス) | 240 KN.m |
| Max Lifting Height | 28メートル |
| The Longest Boom Lifting Torque (マックス) | 18 KN.m |
| Working Radius | 3メートル – 18メートル |
| マックス. Speed for Main Winch | 95 メートル/分 | | マックス. Speed for Auxiliary Winch | 95 メートル/分 |
| Traveling Parameter | |
|---|---|
| マックス. Travel Speed | 75 Km/h |
| マックス. Gradeability | 30% |
| Min. Turning Diameter | 14メートル |
