Brief:

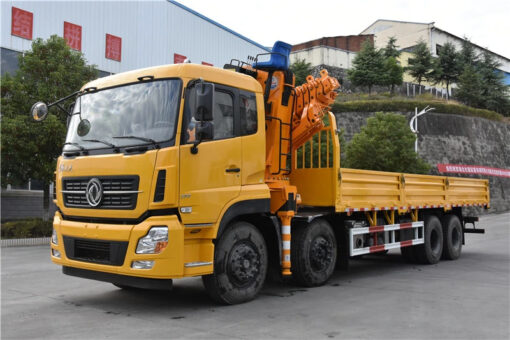

The Dongfeng 16 Ton Knuckle Boom Truck Mounted Crane is a versatile and powerful lifting solution designed to handle various heavy lifting tasks with precision and efficiency. This crane combines robust construction with advanced features to ensure safe and reliable performance in a wide range of applications.
Iki Knuckle Boom Truck Mounted Crane is designed to meet high-performance standards, making it an ideal choice for various lifting and construction applications. Its powerful crane and robust truck chassis ensure exceptional lifting capacity and reliability.
Features:
- Model: SQ330ZB4 / Knuckle Crane 10.65 ton at 3m
- Maksimal Angkat: 330 Kn.m
- Kapasitas Angkatan Max:
- 10,650 kg at 3.0m
- 5,400 kg at 6m
- 2,800 kg at 9.6m
- 2,200 kg at 11.4m
- Dhuwur Angkat: 13.8m
- Radius Max sing Makarya: 11.4m
- Bagean BOOM: 4 tahapan
- Sudut rotasi: 360° Kabeh Rotasi
- Tekanan kerja: 28 MPA
- Oil Tank Capacity: 120L
- Related Oil Flow: 60 L / min
- Outrigger Span: 2,330 – 7,100 mm
- Outrigger: 4, adjustable, Operasi hidraulik
- Bobot kren: 4,800 kg
- Spasi Instalasi: 1,470 mm
- Jenis Swing: Pengurangan gear planet
- Piranti keamanan: Indikator mbukak, Katup safety hidraulik, Katup imbangan kontra, Automatic Swing Brake, Piranti safety pancing
- Pilihan: Menyang. Winch, Menyang. Boom, Remot kontrol
- Bahan: HG785D
Truk kanggo referensi:
- Truck Brand: Dongfeng (Merek truk liyane bisa disesuaikan)
- Kabin:
- Driving Type: 6×4
- Left Hand Drive (Right Hand Drive Type Can Be Customized)
- Color is Optional
Ukuran utama kendharaan:
- Overall Size (L x w x h): 11,950 x 2,490 x 3,850 mm
- Dasar rodha: 5,850 + 1,350 mm
- Awak kargo: 8,400 x 2,300 x 550 mm
Bobot ing KGS:
- GVW (Gross Vehicle Weight): 25,000 kg
- Bobot: 16,250 kg
- Front Axle Loading Capacity: 2 x 2,500 kg
- Rear Axles Loading Capacity: 2 x 27,500 kg
Mesin:
- Ketik: Diesel, 4-injeksi langsung stroke, 6-Silinder ing-line karo banyu pendinginan, Turbo-Ngatur, lan inter-adhem
- Daya jaran: 240 Hp (177 kw)
- Torque Max: 1,000 N.m
- Emission Standard: Euro V
- Kacepetan maksimal: 102 KM / H
Gearbox:
- Kothak gear manual nganggo 9 maju & 1 mbalikke, karo pto
Ban:
- 11.00R20 (11 potongan kalebu siji ban cadhangan)
Spesifikasi:
| Model # | SQ330ZB4 / Knuckle Crane 10.65 ton at 3m |
|---|---|
| Maksimal Angkat | 330 Kn.m |
| Kapasitas Angkatan Max | – 10,650 kg at 3.0m |
| – 5,400 kg at 6m | |
| – 2,800 kg at 9.6m | |
| – 2,200 kg at 11.4m | |
| Dhuwur Angkat | 13.8m |
| Radius Max sing Makarya | 11.4m |
| Bagean BOOM | 4 tahapan |
| Sudut rotasi | 360° Kabeh Rotasi |
| Tekanan kerja | 28 MPA |
| Oil Tank Capacity | 120L |
| Related Oil Flow | 60 L / min |
| Outrigger Span | 2,330 – 7,100 mm |
| Outrigger | 4, adjustable, Operasi hidraulik |
| Bobot kren | 4,800 kg |
| Spasi Instalasi | 1,470 mm |
| Jenis Swing | Pengurangan gear planet |
| Piranti keamanan | Indikator mbukak, Katup safety hidraulik, Katup imbangan kontra, Automatic Swing Brake, Piranti safety pancing |
| Pilihan | Menyang. Winch, Menyang. Boom, Remot kontrol |
| Bahan | HG785D |
| Truk kanggo referensi | |
| Truck Brand | Dongfeng (Merek truk liyane bisa disesuaikan) |
| Kabin | Driving Type: 6×4, Left Hand Drive (Right Hand Drive Type Can Be Customized) |
| Color is Optional | |
| Ukuran utama kendharaan | |
| Overall Size (L x w x h) | 11,950 x 2,490 x 3,850 mm |
| Dasar rodha | 5,850 + 1,350 mm |
| Awak kargo | 8,400 x 2,300 x 550 mm |
| Bobot ing KGS | |
| GVW | 25,000 kg |
| Bobot | 16,250 kg |
| Front Axle Loading Capacity | 2 x 2,500 kg |
| Rear Axles Loading Capacity | 2 x 27,500 kg |
| Mesin | |
| Ketik | Diesel, 4-injeksi langsung stroke, 6-Silinder ing-line karo banyu pendinginan, turbo-charging and inter-cooling |
| Daya jaran | 240 Hp (177 kw) |
| Torque Max | 1,000 N.m |
| Emission Standard | Euro 2, Euro 3, Euro 4, Euro 5 |
| Kacepetan maksimal | 102 KM / H |
| Gearbox | Kothak gear manual nganggo 9 maju & 1 mbalikke, karo pto |
| Ban | 11.00R20 (11 potongan kalebu siji ban cadhangan) |
