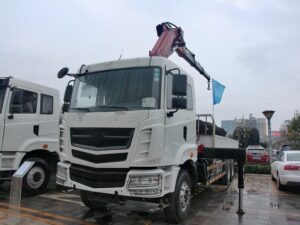

Hanma 420Horsepower 6X4 25Ton Truck Mounted Crane

SUMMARY

• It is equipped with a robust 420 – horsepower engine, which endows the truck with substantial power. This high – horsepower engine enables the vehicle to carry out its operations with ease, whether it’s transporting a heavy load or operating the mounted crane. The 6X4 drive configuration provides excellent traction and stability, making it suitable for various terrains, including rough construction sites and long – haul routes.
• With a maximum load capacity of 25 Ton, the truck can handle a significant amount of cargo. The truck – mounted crane adds to its functionality, allowing it to lift and move heavy objects on – site without the need for additional lifting equipment.

• The crane on the truck is a key feature. It is designed to handle loads up to 25 Ton, enabling it to lift and place a variety of heavy items. In construction sites, it can be used to lift building materials such as large steel beams, pre – cast concrete elements, and heavy machinery.
• The crane offers precise control over the movement of the load, which is crucial in construction projects where accurate positioning of materials is essential for the proper building of structures.

• In the construction industry, this truck is an invaluable asset. It can be used for transporting construction materials to and from the site and also for directly placing them in the required positions during the building process. It is also suitable for infrastructure projects like road and bridge construction, where heavy materials need to be lifted and installed.
• In industrial settings, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. It can also be employed in warehouses for loading and unloading bulky items from trucks or for moving them around within the storage area.

• The cab of the truck is likely designed with the operator’s comfort in mind. It may have ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

Fitur

Power and Drivetrain

• Engine Power
  • The 420 – horsepower engine is a significant component of this truck – mounted crane. This high – powered engine provides the necessary force to move the vehicle, even when fully loaded with its 25 – ton capacity. It also offers ample power for the crane operations, ensuring that lifting heavy objects is carried out smoothly. The engine’s power output allows for efficient acceleration and reliable performance, whether on flat roads or when traversing inclines at construction sites or during transportation.
• 6X4 Drive Configuration
  • The 6X4 drive system offers multiple advantages. It provides enhanced traction, which is crucial for a vehicle of this size and load – carrying capacity. This configuration distributes the weight of the vehicle and its load more evenly across the axles, improving stability during movement. It is well – adapted to various terrains, from rough and uneven construction sites to highways, reducing the risk of wheel slippage and enhancing overall control. Kajaba iku, it can contribute to better handling when making turns, especially in tight spaces on construction sites.

Load Capacity and Crane Features

• 25 – Ton Load Capacity
  • With a load capacity of 25 Ton, the Hanma truck can transport a large volume of heavy materials. This includes construction materials such as steel girders, large concrete slabs, and heavy machinery components. In industrial applications, it can carry bulky raw materials or finished products. The high load capacity makes it a valuable asset in industries where heavy – item transportation is a common requirement.
• Crane Capabilities
  • The truck – mounted crane is a central feature. It is designed to work in harmony with the truck’s load – carrying capacity, having a lifting capacity of up to 25 Ton. The crane is likely equipped with a sophisticated hydraulic system that enables smooth and precise lifting operations. It offers a good reach and a wide range of motion, allowing it to access different areas on a construction site or within an industrial facility. The crane can be precisely controlled, enabling accurate placement of loads, which is essential in construction for proper alignment of building components and in industrial settings for safe and efficient handling of equipment.

Construction and Industrial Applications

• Versatility in Construction
  • In construction projects, this vehicle is highly versatile. It can be used for transporting construction materials from suppliers to the building site. Once on – site, the crane can be used to unload the materials directly and place them in the exact location required, reducing the need for additional handling equipment. It is useful for tasks such as erecting structural frameworks, lifting and placing roofing materials, and installing large – scale pre – cast elements.
• Industrial Applications
  • In industrial settings, the Hanma truck – mounted crane serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, Pangopènan, or relocation. Umpamane, in a manufacturing plant, it can move large – scale machinery for repair or repositioning. In warehouses, it can load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• Fitur Keamanan
  • The vehicle is likely equipped with a range of safety features. Overload protection systems for both the truck and the crane prevent overloading, safeguarding the vehicle’s structural integrity and ensuring safe operation. Stability – enhancing mechanisms ensure that the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. Safety locks on the crane prevent accidental movement of the boom or load, and there may be warning systems to alert the operator of any abnormal operating conditions.
• Operator Comfort
  • The cab of the truck is designed with the operator’s comfort in mind. It may have ergonomic seating with adjustable features to support different body types and reduce fatigue during long working hours. The controls for driving the truck are conveniently placed and easy to operate. For the crane operator, there is likely a well – designed control panel with clear labels and indicators. The panel provides intuitive control over the crane’s movements, and the operator has a good view of the lifting area to ensure accurate and safe operations. Kajaba iku, the cab may be insulated from noise and vibration, creating a more pleasant working environment.

SPECIFICATIONS

Informasi dhasar
Formulir Drive	6X4
Wheelbase	3,600 + 1,350mm
Type	Truck – mounted crane
Vehicle dimensions	7.16 x 2.55 x 3.85 meter
Gunggunge Jawaban	25 Ton
Front overhang / Rear overhang	1.475 / 0.84 meter
Parameter mesin
Model Mesin	Hanma Power CM6D18.420 50
Pamindahan	9.84L
Daya output maksimal	309kw
Tenaga maksimal	420 Tenaga jaran
Standar emisi	National V
Jinis bahan bakar	Diesel
Rated speed	1900rpm
Engine brand	Hanma
Maximum torque	1840N·m
Maximum torque speed	1100 – 1500rpm
Mounting Parameters
Vehicle announcement	HN5250JQQHB42C6M5
Mounting brand	Valin
Crane model	HSQZ420
Lifting weight	16 Ton
Crane self – weight	5 Ton
Parameters Chassis
Brand Chassis	Valin
Series Chassis	Hanma H6
Ban
Jumlah ban	10
Spesifikasi Tirus	11.00R20, 12.00R20 16PR, 12R22.5
