Kuerz

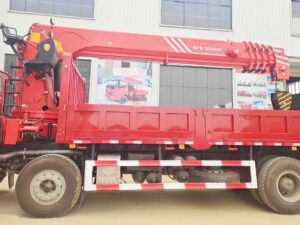

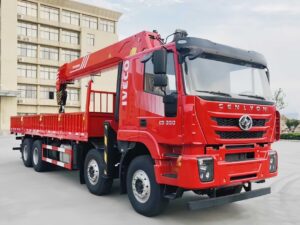

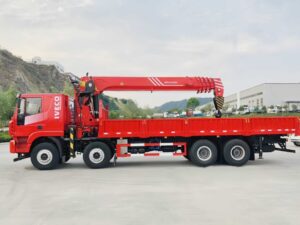

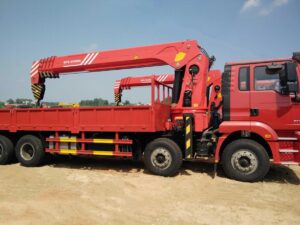

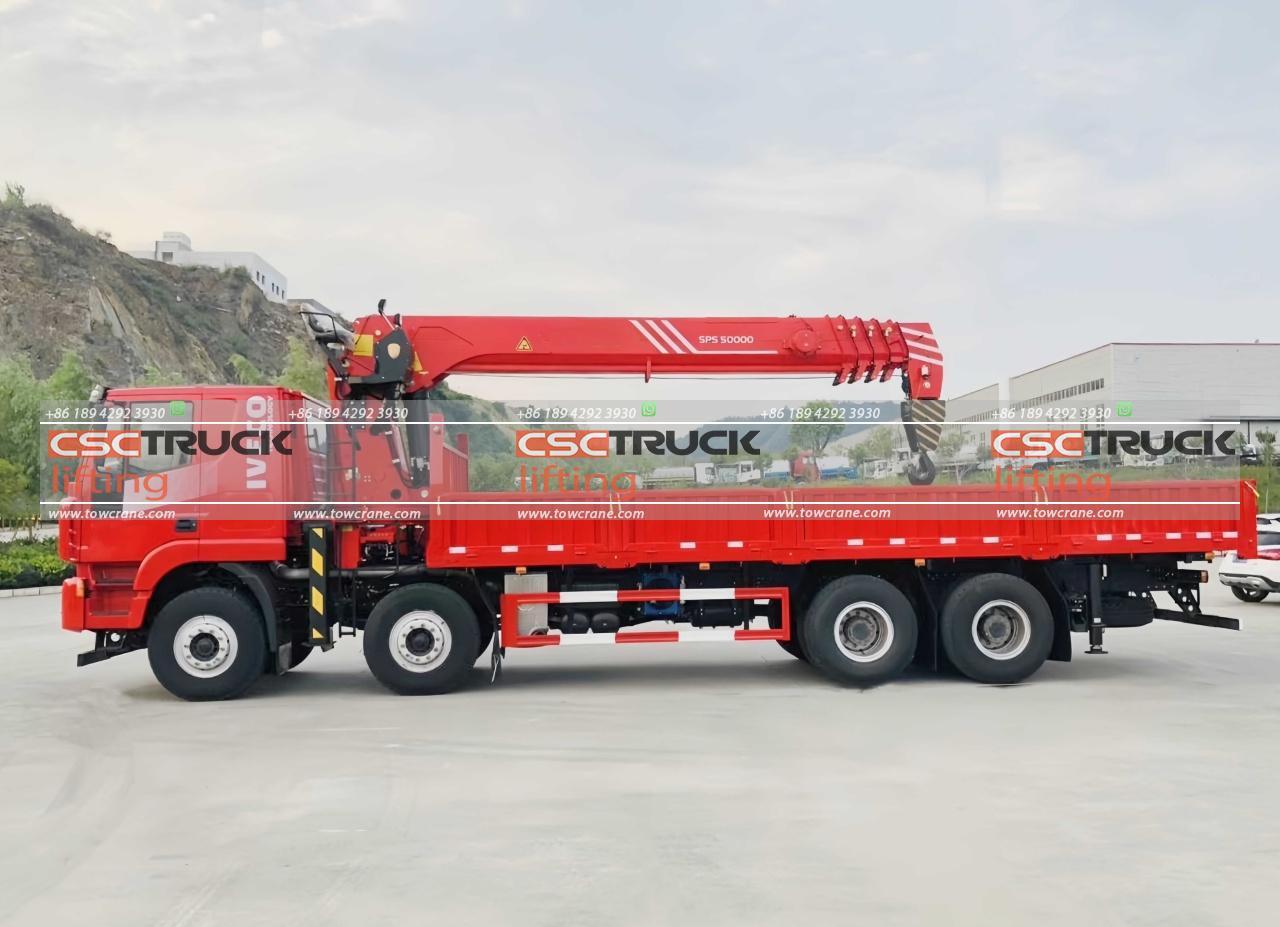

The 12-wheeler 20-ton truck telescopic crane produzéiert vun CSCTRUCK TOW CRANE, featuring an IVECO chassis, exemplifies advanced engineering and robust performance for heavy lifting tasks. This 8×4 drive-type truck boasts a 50 mt rated lifting moment and a remarkable 20,000 KG (2.5 m) rated lifting capacity. It offers a maximum outreach of 21.2 Meter sinn, accommodating various lifting needs with impressive reach and flexibility.
The crane ensures comprehensive maneuverability, equipped with a full rotation slewing angle for continuous movement. The boom, capable of raising angles from 0 zu 75 Grad, achieves a maximum lifting height of 22.4 Meter sinn, making it ideal for high-altitude operations. The crane features a basic boom length of 6.25 Meter sinn, extending to 21.6 meters across 5 sections, allowing for versatile applications in different scenarios.
The truck telescopic crane‘s design includes 6 maximum lines of the hook, ensuring enhanced stability and load distribution during operations. Its outrigger span, fully extended to 7.25 Meter sinn, provides superior support and stability. The hydraulic system is optimized for efficiency with a recommended volume of 100 L/min and operates at pressures of 29/32 MPa MPa. The system is supported by a recommended oil tank capacity of 300 liters, ensuring sustained performance during intensive use.
In summary, The CSCTRUCK TOW CRANE truck telescopic crane on an IVECO chassis combines high capacity, extensive reach, and robust stability, making it a formidable solution for demanding lifting tasks in various industrial and construction environments.
FONTassementer
1. Versatile Lifting Capacity: With a hefty 20-ton rated lifting capacity at 2.5 meters and a 50 mt rated lifting moment, this 12-wheeler truck telescopic crane by CSCTRUCK TOW CRANE is designed to handle a wide range of lifting tasks with ease and efficiency.
2. Extended Reach: Boasting a maximum outreach of 21.2 Meter sinn, this crane can access and lift loads from significant distances, making it suitable for construction sites, industrial settings, and more.
3. Robust Construction: Built on an IVECO chassis with an 8×4 drive type, this crane ensures stability and durability even in challenging terrain and weather conditions, enhancing its reliability and longevity.
4. Flexible Boom Configuration: Featuring a fully extended boom length of 21.6 meters and a basic boom length of 6.25 Meter sinn, with 5 boom sections, this crane offers versatility in adjusting its boom length according to specific lifting requirements.
5. Safety and Stability: Equipped with a 7.25-meter outrigger span when fully extended, along with a full rotation slewing angle and a recommended oil tank capacity of 300 liters, this crane provides enhanced stability and control during lifting operations, minimizing risks and ensuring safety on-site.
Spezifizéierung
| Basic Data | CSCTTC2005-1 |
| Rated lifting moment | 50 Mech |
| Rated lifting capacity | 20,000 KG (2.5 m) |
| Max. outreach | 21.2 m |
| Max. lines of the hook | 6 |
| Schlitten Wénkel (continuous) | Full rotation |
| Boom raising angle | 0~75° |
| Max. lifting height (the measurement from the ground after the outriggers are fully extended) | 22.4 m |
| Length of the basic boom | 6.25 m |
| Length of fully extended boom | 21.6 m |
| Boom sections | 5 |
| Outrigger span (fully extended) | 7.25 m |
| Recommended volume for the system | 100 L / min |
| Betrib Drock | 29/32 MPa MPa |
| Recommended oil tank capacity | 300 L |
