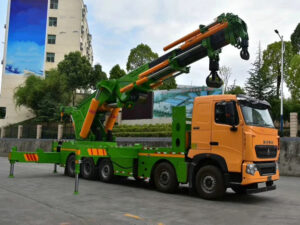

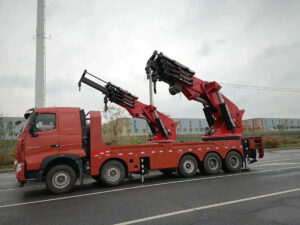

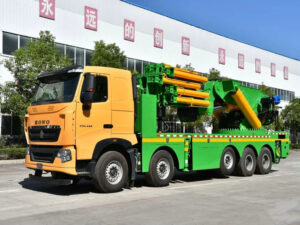

Oodo 260 Ton Truck Mounted Super Knuckle Boom Crane

BRIEFS:

The Oodo 260 Ton Truck Mounted Super Knuckle Boom Crane is a powerful and versatile heavy-duty crane designed to handle demanding lifting tasks. With exceptional lifting capacity, erreechen, and advanced features, it is a reliable solution for a wide range of applications.

This Super Knuckle Boom Crane is designed to meet the demands of heavy-duty lifting operations, offering exceptional performance, safety features, and versatility.

FONTassementer:

• Model #: SQ5200ZB6 / Knuckle Crane 130ton at 4m
• Max Lifting Moment: 5200 Kn.m
• Max Lifting Capacity:
  • 260,000 kg at 2.0m
  • 75,000 kg at 6.7m
  • 60,000 kg at 8.2m
  • 32,000 kg at 14m
• Max Lifting Height: 17.8 Meter sinn
• Max Working Radius: 15.3 Meter sinn
• Boom Section: 6 stages
• Rotation Angle: 360° All Rotation
• Rated Working Pressure: 28 MPa MPa
• Capacity: 130 tons
• Driving Height: 3.45 Meter sinn
• Outrigger: 4 hydraulic outriggers with adjustable settings, Hydraulic operating
• Crane Weight: 52,000 KG
• Installation Space: 8,000 mm
• Swing Type: Planetary gear reduction
• Safety Device: Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device
• Options: Aux. Winch, Aux. Boom, Remote Control
• Material: HG785D
• Truck for Reference: Dongfeng (other truck brands can be customized)
• Cabin: Driving type: 8×4, Left-hand drive (Right-hand drive type can be customized)
• Color: Optional
• Vehicle Main Dimensions: Overall size (L x W x H): 11,950 x 2,500 x 3,800 mm
• Wheel Base: 1,800 + 4,600 + 1,350 mm
• Cargo Body: Dimensions of 6,800 x 2,350 x 500 mm
• Weight in KGS:
  • GVW: 31,000 KG
  • Tare Weight: 14,500 KG
• Engine:
  • Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
  • Horse Power: 371 HP (273 kW)
  • Max Torque: 1,500 N.m
  • Emission standard: Euro II
• Max Speed: 102 km/h
• Gearbox: Manual gearbox with 10 forwards & 2 reverses, with PTO
• Tire: 12R22.5 tubeless tire, 13 pieces including one spare tire

Advantages:

1. The material of the truck-mounted crane is HG785D international standard high-strength steel, reducing weight while maintaining strength.
2. Hexagonal structure boom for enhanced lateral stability.
3. Core components, such as the balance valve, hydraulic lock, operated valve, and hydraulic pump, are of Italian brand for precision and reliability.
4. Hydraulic pump oil seals and gaskets are from the Parker brand.
5. Remote control operation is provided by Sweden Brand Scanreco.
6. The truck crane comes in various configurations, including telescopic boom truck cranes and folding boom truck cranes, with lifting capacities ranging from 3.2 tons to 300 tons.
