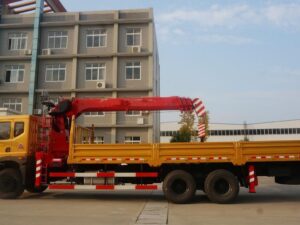

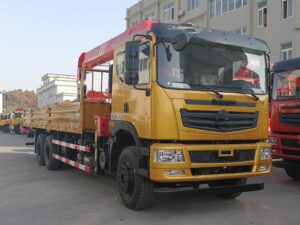

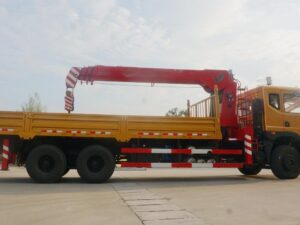

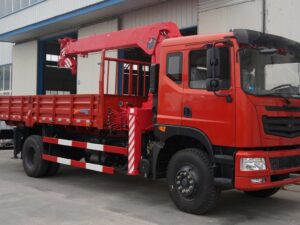

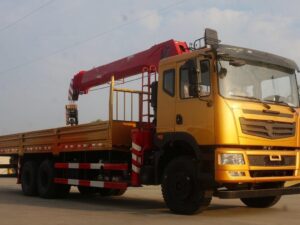

T5 180Horsepower 4X2 18Ton Truck Mounted Crane

SUMMARY

• Powered by a 180 – horsepower engine, the T5 has enough power to drive on various terrains and perform crane operations. The 4X2 drive configuration provides a good balance between power delivery and fuel efficiency. It is suitable for use in construction sites as well as on normal roads for transportation.
• With an 18 – ton load capacity, the truck can carry a significant amount of construction materials or other heavy items. The truck – mounted crane is a key feature that adds to its versatility, allowing for on – site lifting and placement of loads without the need for additional large – scale lifting equipment.

• The crane on the T5 is designed to handle loads up to 18 tonsen. This enables it to lift and place various heavy items such as steel beams, concrete slabs, and large machinery components commonly used in construction projects.
• It provides precise control over the movement of the load, which is essential for accurate placement of materials during construction, ensuring the proper assembly of structures.

• In the construction industry, it is a valuable asset. It can be used to transport building materials to the site and then use the crane to unload and position them precisely. It is also applicable for infrastructure projects like road and bridge construction where heavy materials need to be lifted and installed.
• In industrial settings, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. In warehouses, it can assist in loading and unloading bulky items from trucks and placing them in the right storage locations.

• The cab of the T5 is likely designed with operator comfort in mind. It may feature ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

FONTassementer

Power and Drivetrain

• Engine Power
  • The 180 – horsepower engine is a crucial part of the T5. It provides sufficient power to move the vehicle, whether it is driving on flat roads or on slightly sloped terrains. This power level also enables the operation of the truck – mounted crane effectively. The engine is designed to offer a balance between performance and fuel economy, so that the vehicle can operate efficiently during both transportation and on – site operations.
• 4X2 Drive Configuration
  • The 4X2 drive configuration of the T5 has its own set of advantages. It is a relatively simple and cost – effective drive system. This configuration provides good traction on different terrains, from paved roads to the more uneven surfaces found at construction sites. It also contributes to the vehicle’s maneuverability, allowing it to make turns and navigate through narrow spaces more easily.

Load Capacity and Crane Features

• 18 – Ton Load Capacity
  • With an 18 – ton load capacity, the T5 truck can carry a substantial amount of heavy materials. This includes construction materials such as large steel beams, thick concrete slabs, and heavy – duty machinery parts. In industrial applications, it can transport bulky raw materials or finished products. The load – carrying capacity is an important factor in determining the vehicle’s utility in different industries, as it can handle a wide range of loads that are common in medium – zu – large – scale operations.
• Crane Capabilities
  • The truck – mounted crane is a central feature of the T5. It is engineered to lift loads up to 18 tonsen, providing flexibility in handling heavy objects on – site. The crane likely has a well – designed hydraulic system that enables smooth and precise lifting operations. It may feature a telescopic boom or other mechanisms to adjust its reach and height, allowing it to access different areas on a construction site or within an industrial facility. Precise control over the movement of the load is a key aspect of the crane, which is crucial for accurate placement of materials in construction projects and for the safe handling of equipment in industrial settings.

Construction and Industrial Applications

• Versatility in Construction
  • In construction, the T5 is highly versatile. It can be used to transport construction materials from suppliers to the building site. Once on – site, the crane can be used to unload the materials directly and place them in the exact location required, reducing the need for additional handling equipment. It can be involved in a variety of construction tasks, such as erecting scaffolding, placing formwork, and installing large – scale structural components.
• Industrial Applications
  • In industrial settings, the T5 serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, maintenance, or relocation. Zum Beispill, in a manufacturing plant, it can move large – scale machinery for repair or repositioning. In warehouses, it can load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• Sécherheetsfunktiounen
  • The T5 is likely equipped with safety features. There may be an overload protection system for the crane to prevent lifting beyond its 18 – ton capacity, safeguarding the integrity of the crane and ensuring safe operation. Stabilitéit – enhancing mechanisms are probably in place to ensure the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. The crane may also have safety locks on its moving parts to prevent accidental movement, and there could be warning systems to alert the operator of any abnormal operating conditions.
• Operator Comfort
  • The cab of the T5 is designed with the operator’s comfort in mind. It may feature ergonomic seating with adjustable lumbar support to reduce fatigue during long working hours. The controls for driving the truck are likely placed in an accessible and intuitive manner, and the same goes for the crane – operating controls. For the crane operator, there may be a well – designed control panel with clear labels and indicators, enabling precise control of the crane’s movements. Ganz nachelesch, the cab may be insulated from noise and vibration to create a more pleasant working environment.

SPECIFICATIONS

Basic Information
Drive form	4X2
Wheelbase	5100mm
Tipps	Truck – mounted crane vehicle
Vehicle dimensions	9 × 2.55 × 3.68 Meter sinn
Gross mass	18 tonsen
Rated mass	7.125 tonsen
Front overhang / Rear overhang	1.25 / 2.65 Meter sinn
Engine Parameters
Engine model	Yuchai YC6JA180 – 50
Verschiebung	6.87L
Maximum output power	132KW
Maximum horsepower	180 horsepower
Emission standard	National V
Fuel type	Diesel
Rated speed	2300RPM
Engine brand	Yuchai
Maximum torque	700N·m
Maximum torque speed	1200 – 1800RPM
Mounting Parameters
Vehicle announcement	PFT5180JSQGLV
Mounting brand	Perfect Brand
Crane Modell	SPS16000
Lifting weight	6.3 tonsen
Crane self – gewun Du	3.5 tonsen
Transmission Parameters
Transmission model	Fast 8JS85E
Number of gears	8 – speed
Chassis Parameters
Chassis brand	Dongfeng Huashen
Chassis series	Huashen T5
Chassis model	EQ5180GLVJ
Number of spring leaves	9/10 + 8, 9/11 + 8, 8/10 + 8, 8/11 + 8, 3/4 + 3
Tires
Number of tires	6
Tire specification	10.00R20
