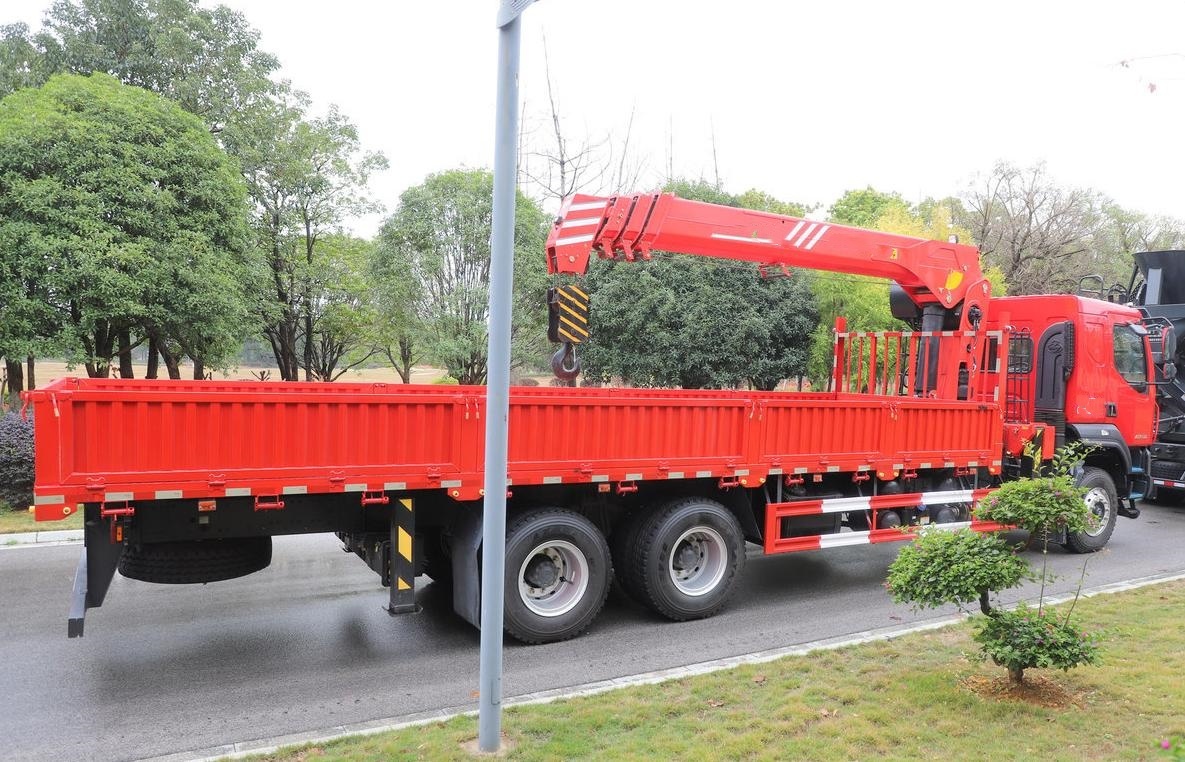

Chenglong H5 270Horsepower 6X2 25Ton Truck Mounted Crane Vehicle

အကျဉ်းချုပ်

• It is powered by a 270 – မြင်းကောင်ရေအင်ဂျင်, which provides the necessary strength to carry out its operations. The 6X2 drive configuration offers a balance between power delivery and fuel efficiency. This setup is suitable for different terrains, such as construction sites and regular roads for transportation.
• With a maximum load capacity of 25 တန်, the truck can transport a substantial amount of cargo. The truck – mounted crane on it adds to its functionality, allowing it to lift and move heavy objects on – site without the need for additional lifting equipment.

• The crane on the vehicle is a crucial component. It is designed to handle loads up to 25 တန်, enabling it to lift and place various heavy items. In construction sites, it can be used to lift building materials like steel beams, concrete slabs, and large machinery components.
• The crane provides precise control over the movement of the load, which is essential in construction projects where accurate placement of materials is necessary for the proper building of structures.

• ဆောက်လုပ်ရေးလုပ်ငန်းမှာ, this vehicle is an invaluable asset. It can be used for transporting construction materials to the site and then using the crane to unload and position them as required. It is also suitable for infrastructure projects like road and bridge construction, where heavy materials need to be lifted and installed.
• စက်မှုဇုန်များတွင်, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. It can also be employed in warehouses for loading and unloading bulky items from trucks or for moving them around within the storage area.

• The cab of the truck is likely designed with the operator’s comfort in mind. It may have ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

အင်္ဂါရပ်များ

Power and Drivetrain

• Engine Power
  • ဟိ 270 – horsepower engine offers a significant amount of power. This power level is sufficient to drive the vehicle while carrying its 25 – ton load capacity and operating the mounted crane. It strikes a balance between performance and fuel efficiency, enabling the truck to complete tasks without excessive fuel consumption. The engine is designed to provide consistent power across different operating conditions, whether it’s on flat roads, inclines, or during crane operations.
• 6X2 Drive Configuration
  • The 6X2 drive configuration provides a practical solution for this vehicle. It offers a good compromise between traction and fuel economy. This setup is adaptable to various terrains, from relatively smooth roads during transportation to the often – uneven surfaces of construction sites. The 6X2 arrangement also contributes to the vehicle’s maneuverability, allowing it to make relatively tight turns, which is beneficial when operating in confined spaces such as construction yards or industrial facilities.

Load Capacity and Crane Features

• 25 – Ton Load Capacity
  • With a maximum load capacity of 25 တန်, the Chenglong H5 can transport a large volume of heavy materials. This includes construction – related items like steel beams, ကွန်ကရစ်တုံးများ, and large – scale machinery components. The load – carrying capacity is well – matched with the crane’s lifting ability, ensuring seamless integration of transportation and on – site lifting operations.
• Crane Functionality
  • The truck – mounted crane is a key feature. It is engineered to lift loads up to 25 တန်, providing the flexibility to handle a wide range of heavy objects. The crane likely has a well – designed structure, perhaps with features such as a telescopic boom or adjustable jib for enhanced reach and versatility. It is equipped with a precise control system that allows the operator to manipulate the crane’s movements with great accuracy. This includes functions like lifting, lowering, လွှဲခြင်း။, and telescoping (if applicable), enabling accurate placement of loads, which is crucial in construction and industrial applications.

Construction and Industrial Applications

• Versatility in Construction
  • In construction projects, the Chenglong H5 is highly versatile. It can be used to transport construction materials from suppliers to the building site. Once on – site, the crane can be used to unload and position materials precisely where they are needed, reducing the need for additional handling equipment. It can be involved in various construction tasks, such as erecting scaffolding, placing formwork, and installing large – scale structural components. The vehicle’s size and maneuverability are advantages on construction sites, allowing it to access areas with limited space.
• Industrial Applications
  • စက်မှုဇုန်များတွင်, this vehicle serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, maintenance, or relocation. ဥပမာအားဖြင့်, in a manufacturing plant, it can move large machinery for repair or repositioning. In warehouses, it can be used to load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• ဘေးကင်းရေးအင်္ဂါရပ်များ
  • The vehicle is likely equipped with safety features to protect both the operator and the surrounding environment. There may be an overload protection system for the crane to prevent lifting beyond its capacity, which could lead to accidents or damage to the equipment. Stability – enhancing mechanisms are probably in place to ensure the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. There may also be safety interlocks and warning systems to alert the operator of any abnormal conditions.
• Operator Comfort
  • The cab of the truck is designed with the operator’s comfort in mind. It may feature ergonomic seating with adjustable lumbar support to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are likely arranged in an intuitive manner, minimizing operator stress and potential for error. The operator has a clear view of the working area, both for driving and crane operations, which is essential for safety and accurate load handling. ထို့ အပြင်, the cab may be insulated from noise and vibration to create a more pleasant working environment.

အသေးစိတ်အချက်အလက်

အခြေခံအချက်အလက်
Drive form	6x2
ဘီးတပ်	2050 + 5350မီလီမီတာ
ပုံနှိပ်စာ	Truck-mounted crane vehicle
Vehicle dimensions	8.2 × 2.45 × 0.55 မီတာ
Total mass	25 တန်
Rated mass	8.87 တန်
Front overhang / rear overhang	1.445 / 3.15 မီတာ
အင်ဂျင်ပါရာမီတာများ
အင်ဂျင်မော်ဒယ်	Yuchai YCS06270-60
မတရားနေှာ	6.23ြဌ
အများဆုံးထွက်ရှိပါဝါ	199kW
Maximum horsepower	270 မြင်းကောင်ရေ
Emission standard	National VI
Fuel type	Diesel
Rated speed	2300rpm
Engine brand	Yuchai
Maximum torque	1050N路m
Maximum torque speed	1200 – 1700rpm
Mounting Parameters
Vehicle announcement	LZ5250JSQH5CC1
Mounting brand	Dongfeng Liuzhou Motor
Lifting weight	12 တန်
Cab Parameters
Cab	H51S
ဂီယာ parameters တွေကို
Transmission model	Fast 8JS105TA
Number of gears	8
Chassis Parameters
Chassis brand	Dongfeng Liuzhou Motor
Chassis series	Chenglong H5
ကိုယ်ထည်မော်ဒယ်	LZ1250H5CCT
Rear axle description	10t
Number of spring leaves	10/10/12 + 9
Speed ratio	4.875
တာယာ
Number of tires	8
Tire specification	11.00R20 18PR
