SUMMARY
အင်္ဂါရပ်များ
ဟိ Dongfeng 4.5 Tons Ladder Lift Truck, also known as a truck-mounted ladder crane, is designed for a variety of lifting and aerial work applications. Here are its key features:
- ကိုယ်ထည်: The truck is mounted on a robust chassis, which can be either HOWO or HAOMAN, providing a solid foundation for the crane operations.
- Total Mass and Weight: With a total mass of 4495kg and a curb weight of 4365kg, the truck is built for heavy-duty lifting tasks.
- Engine Power: The truck is equipped with an engine that delivers 130 မြင်းကောင်ရေ, ensuring it has the power needed for various lifting jobs.
- Wheel Base and Size: The wheelbase is 3280mm, and the total size of the truck is 5995mm x 2200mm x 2850mm, which allows for maneuverability and stability on the job site.
- Axle Weight: The front and rear axles have a weight capacity of 1.79T and 2.7T respectively, distributing the load effectively.
- Tyre Model: The truck is fitted with 7.00R16LT 10PR tyres, suitable for various terrains and providing good traction.
- Lifting Capacity ၊: The maximum lifting weight is 4 တန်, making it suitable for a wide range of lifting tasks.
- Working Height and Range: The maximum working height is 20 မီတာ, with a maximum working range of 12 မီတာ, allowing the truck to reach high and far during operations.

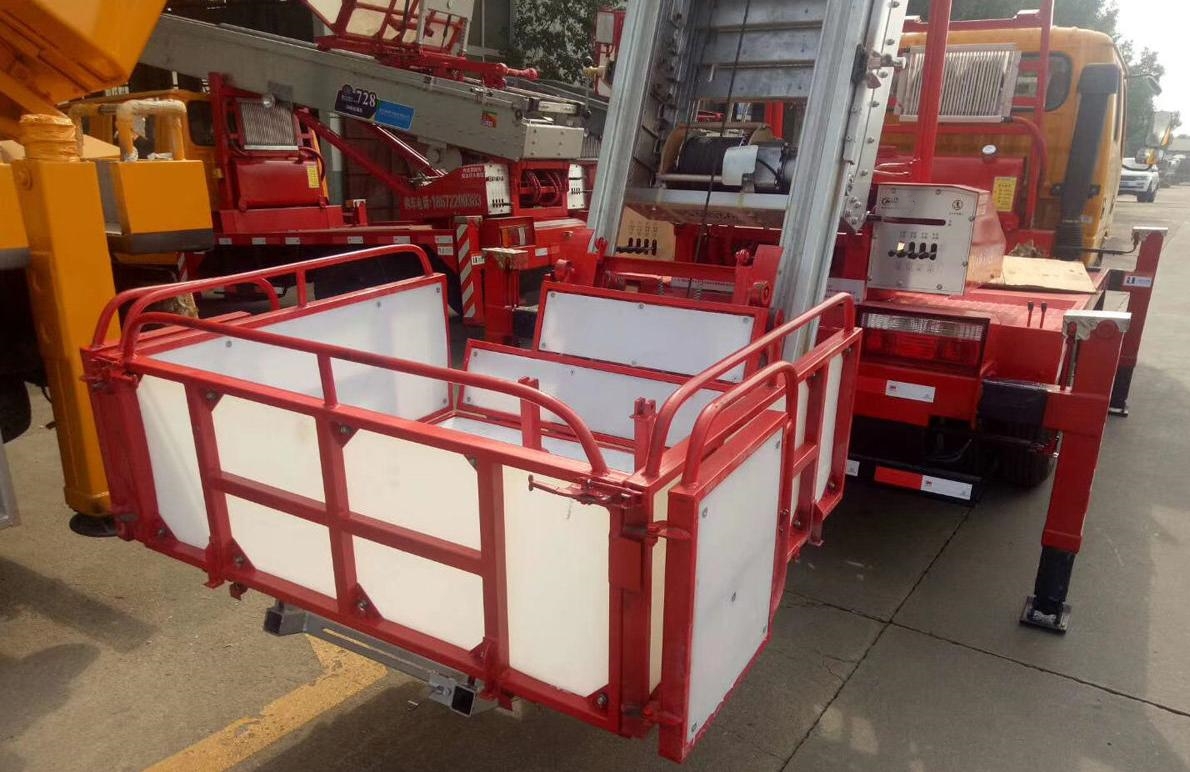

- Bucket Load and Size: The bucket can carry a load of 200kg and has dimensions of 1500mm x 700mm x 1100mm, providing ample space for various materials.
- Boom Turning Angle and Bucket Turning Range: The boom can turn a full 360°, and the bucket can turn ±180°, offering flexibility during operations.
- Leg Span: The lateral span of the front and rear legs is 5150mm/4500mm, and the longitudinal span is 3400mm, providing a stable base for the crane.
- Braking System: The truck is equipped with an air brake system, ensuring safe and effective braking.
- Boom Type: The truck features a six-boom synchro telescopic boom, which allows for precise control and extended reach.
These features make the Dongfeng 4.5 Tons Ladder Lift Truck a versatile and powerful piece of equipment suitable for construction sites, utilities, and other industries requiring aerial work and lifting capabilities.
SPECIFICATIONS
| အခြေခံအချက်အလက် | |
| Drive အမျိုးအစား | 4X2 |
| ဘီးတပ် | 3308မီလီမီတာ |
| Type | Moving Operation Vehicle |
| Vehicle Dimensions | 5.81 × 2.01 × 3.25 မီတာ |
| Gross Vehicle Mass | 4.495 တန် |
| Vehicle Weight | 4.17 တန် |
| Front Overhang/Rear Overhang | 1.04 / 1.462 မီတာ |
| Front Tread/Rear Tread | Front: 1503မီလီမီတာ; Rear:1494မီလီမီတာ |
| အင်ဂျင်ပါရာမီတာများ | |
| Engine Model | Yuchai YC4FA115 – 50 |
| Displacement | 2.982L |
| Maximum Output Power | 85kW |
| Maximum Horsepower | 115hp |
| Emission Standard | Euro V |
| Mounted Equipment Parameters | |
| Mounted Equipment Brand | Chengl iwei Brand |
| Transmission Parameters | |
| Transmission Model | Wanliyang 6 – speed |
| Number of Gears | 6 – speed |
| Chassis Parameters | |
| Chassis Brand | Dongfeng Duolika |
| Chassis Series | Duolika D6 |
| Chassis Model | EQ1041DJ3BDF |
| Number of Leaf Springs | 6 / 6 + 5 |
| Tires | |
| Number of Tires | 6 |
| Tire Specification | 7.00 – 16 8PR, 7.00R16 8PR |
