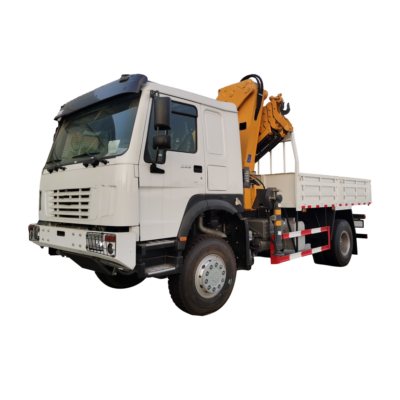

HOWO Truck 4X2 5.7Ton Mounted Palfinger Crane

အကျဉ်းချုပ်

အင်္ဂါရပ်များ

• The 4X2 configuration of the HOWO truck provides excellent stability and maneuverability. It is designed to handle a variety of road conditions and terrains.
• The truck is powered by a reliable engine that offers sufficient horsepower and torque to carry the weight of the crane and perform various tasks.

• The mounted Palfinger crane has a 5.7-ton lifting capacity, making it suitable for a wide range of heavy lifting operations. It can handle loads with precision and ease.
• The crane is known for its advanced technology and functionality. It features smooth operation, precise controls, and a wide range of movement, allowing for efficient loading and unloading.

• This combination of truck and crane is highly versatile. It can be used in construction sites, industrial settings, logistics operations, နှင့် ပို.
• The crane can be adjusted and positioned to reach different heights and angles, enabling it to access hard-to-reach areas and perform tasks in confined spaces.

• Both the HOWO truck and the Palfinger crane are built to last. They are constructed with high-quality materials and components to withstand heavy use and harsh environments.
• Regular maintenance and servicing can ensure the longevity and reliable performance of the vehicle and crane.

• The HOWO Truck 4X2 5.7Ton Mounted Palfinger Crane is equipped with various safety features to protect the operator and those around the vehicle.
• These may include safety locks, overload protection systems, and warning indicators to ensure safe operation during lifting and transportation.

အသေးစိတ်အချက်အလက်

Cab Truck		Crane
Chassis Make/Model:	SINOTRUK/ZZ1167N4617B1	Make/Model:	Palfinger/ SPK10000A
အတိုင်းအတာ,မီလီမီတာ:	9190×2550×3850	Crane Type	Knuckle Boom Crane
ဘီးတပ်,မီလီမီတာ:	5600	မက်တယ်။. lifting moment	9.5mt
G.V.W,ကီလိုဂရမ်:	23000	မက်တယ်။. lifting စွမ်းရည်	5700ကီလိုဂရမ်
Tare Weight,ကီလိုဂရမ်:	10530	မက်တယ်။. ဟိုက်ဒရောလစ်အဝေးရောက်	12.4ဍ
F/R Axle Rating,ကီလိုဂရမ်:	7000/16000	Max.outreach lifting capacity	590ကီလိုဂရမ်
Cab		Number of extension boom	2(တစ်),3(B),4(C)
Cab Make/Model:	SINOTRUK/HOWO 7	Slewing ထောင့်	400ံ
Cab Type:	Sleeper Cab, AC	Slewing moment	1.2mt
Cab Width:	2080မီလီမီတာ	မက်တယ်။. stabilizer spread	4870မီလီမီတာ
Cab Height:	Standard w/o Streamlined Dome	Fitting space required	657မီလီမီတာ
Rated Nr. of Passengers:	3 People	Width folded	2500မီလီမီတာ
စက်ယန္တရား		မက်တယ်။. operating pressure	315bar
Engine Make/Model:	WEICHAI/WP10.300E2	Recommended pump capacity	30-45lmp
Engine Power/Speed:	220kW(300တင်)/2200rpm	Dead weight standard crane	1031ကီလိုဂရမ်
Output Torque/Speed:	1240N.m/1300-1500rpm	Standard package includes
မတရားနေှာ:	9.726 ြဌ	– Oil tank mounted
ထုတ်လွှတ်စံ:	Tier Level III Emission	– Load holding valves
Transmission		– Painting
Gearbox Make/Model:	SINOTRUK/HW19710	– High pressure filter
ပုံနှိပ်စာ:	Manual,Forward 10 Speed/Reverse 2 Speed	– Digital hour counter
ဖမ်း		– Load hook
ပုံနှိပ်စာ:	Single, Dry, Diaphragm Spring	– Crane preservation
Diameter:	φ320mm	– Mounting bolts
Steering		Dropside Platform
Position:	Right Hand Drive	Max Load Rating:	15 တစ်တန်, dropside
ပုံနှိပ်စာ:	Recirculating Ball	Deck Size,မီလီမီတာ:	5200*2500,exterior
Axle	Front VGD71,Rear ST16	Construction:	Sheet Metal Forming
Main Brake	Dual-circuit air Braking Booster	Material Thick, မီလီမီတာ:	Bottom 5, Side 3
Parking Brake	Acting on axle, Central Drum Brake	Doors:	All dropside open
Suspension		Electrical Equipment
ပုံနှိပ်စာ:	Semi-elliptical Alloy Leaf Spring with Hydraulic Two-way Telescopic Shock Absorber	Battery:	24V/(Two Batteries in Parallel)
အသေးစိတ်အချက်အလက်:	10/9+6H	Starter:	24Volts/2.8kW
Tyre	295/80R22.5,6+1 Nos
Tool Box:	2 nos
