BRIEF

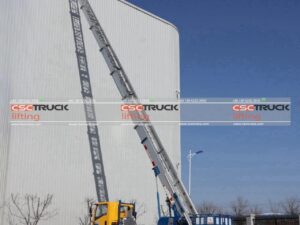

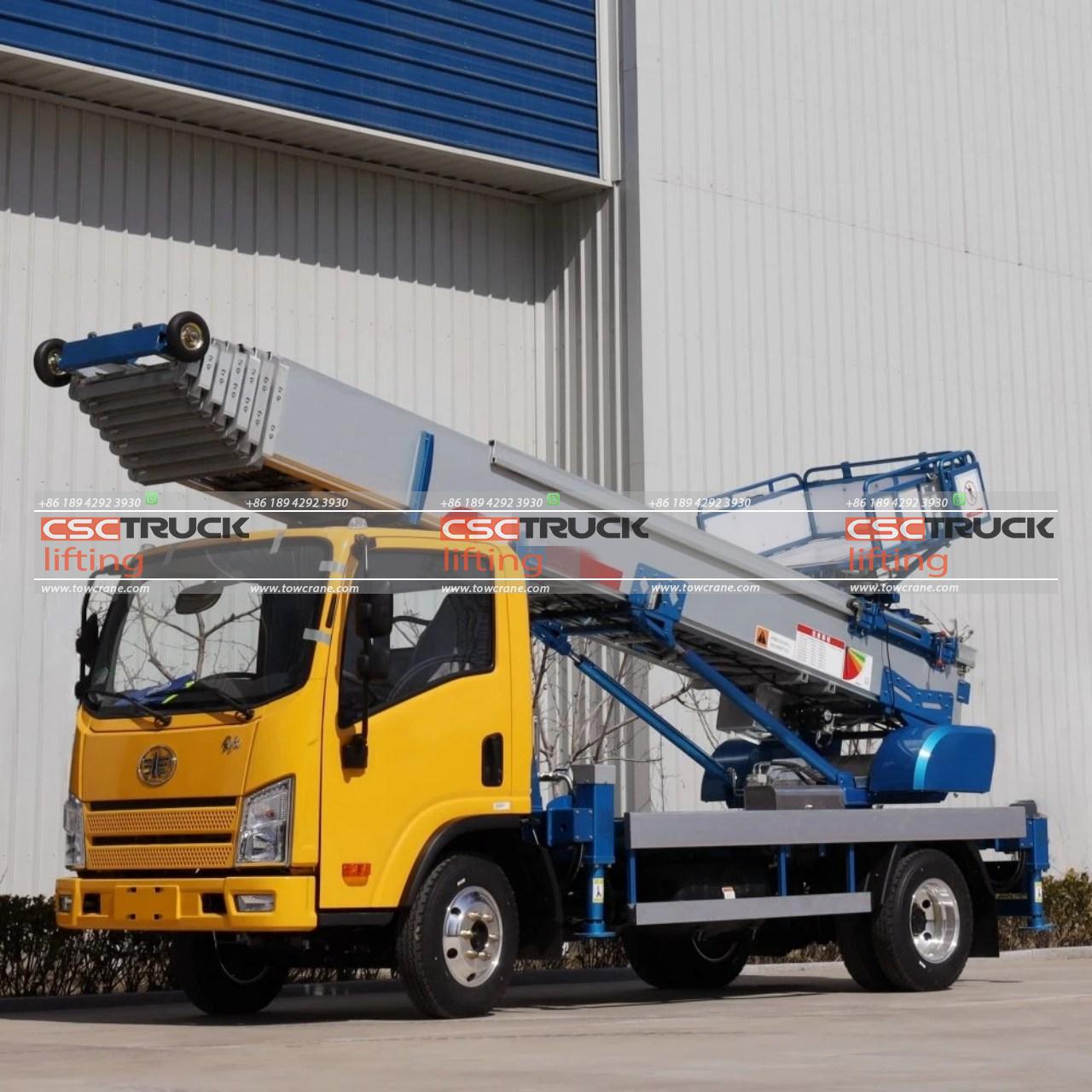

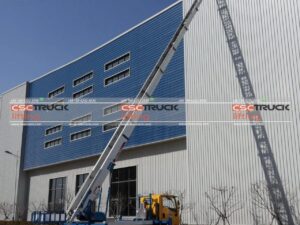

The 6-wheeler 36m ladder lift truck, produced by CSCTRUCK Tow Crane, is a versatile and efficient vehicle designed for high-reaching tasks. With a maximum working height of 36 meters, this lift truck is ideal for applications such as firefighting, maintenance of tall structures, and rescue operations.
Built on a robust FAW chassis, the truck features a 4×2 drive type, providing a balance of power and maneuverability. Its JX4D30B6H engine model delivers an engine power of 85/115 kW/Ps, ensuring strong performance and reliability. The truck can achieve a maximum driving speed of 100 km/h, allowing for rapid deployment to emergency sites or job locations.
One of the standout features of this ladder lift truck is its 400kg bucket rated weight, which can safely accommodate personnel and equipment for various tasks at height. This capacity makes it suitable for both heavy-duty industrial applications and precise operations requiring careful handling.
Overall, the CSCTRUCK Tow Crane 36m ladder lift truck combines advanced engineering with practical functionality. Its impressive reach, solid engine performance, and significant bucket capacity make it a valuable asset for a range of industries requiring reliable and efficient access to elevated work areas. Whether used by municipal services, utility companies, or construction firms, this vehicle exemplifies a blend of power, safety, and versatility.
FEATURES

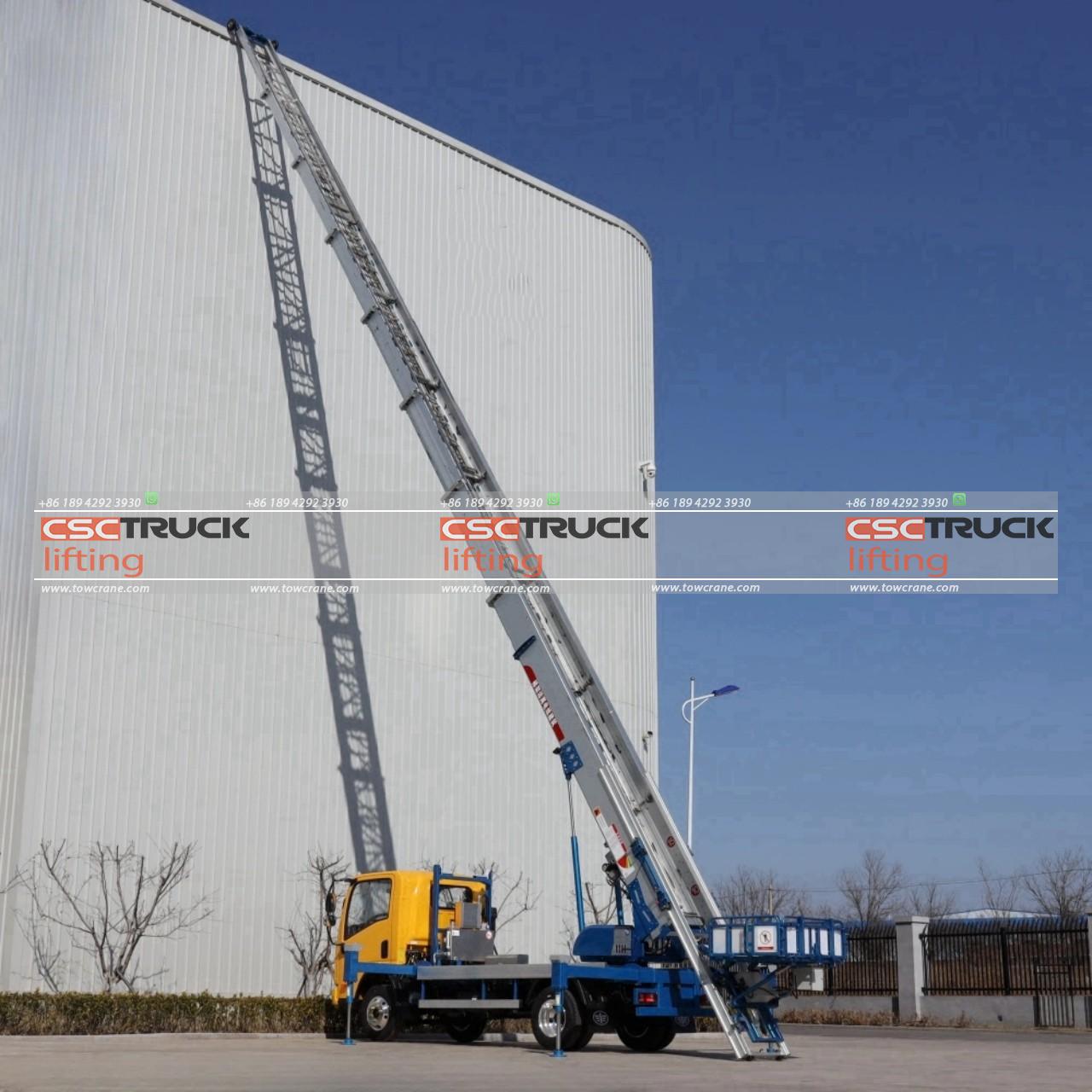

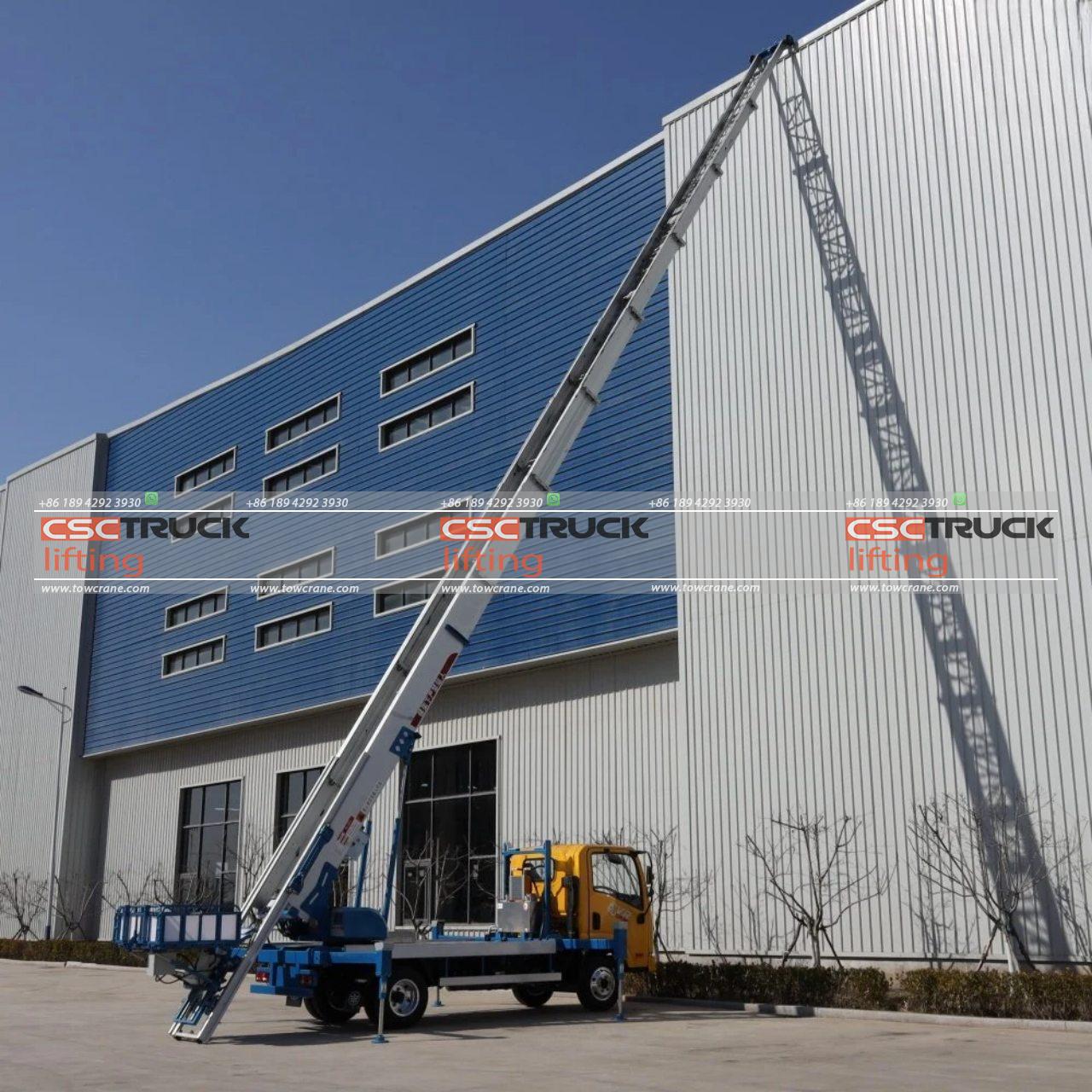

1. Maximum Working Height: The truck is equipped with a ladder lift that can extend to a maximum working height of 36 meters, allowing for operations at significant elevations.
2. Chassis and Drive Type: Built on an FAW chassis, this truck features a 4×2 drive type, providing a robust and reliable foundation for various lifting and towing tasks.
3. Engine Specifications: The vehicle is powered by a JX4D30B6H engine model, which delivers an engine power output of 85kW(115 Ps), ensuring adequate performance and efficiency.
4. Speed Capability: The truck can reach a maximum driving speed of 100 km/h, facilitating rapid deployment and mobility on highways and urban roads.
5. Bucket Capacity: The ladder lift truck includes a bucket with a rated weight capacity of 400kg, suitable for safely lifting personnel and equipment to elevated work sites.
SPECIFICATION
| Category | Item | Unit | 36m |
| Overall Dimension | Overall Length | mm | 5,995 |
| Overall Width | mm | 1,900 | |
| Overall Height | mm | 2,950 | |
| Weight Parameters | Passengers (including driver) | People | 2 |
| Gross Weight | kg | 4,495 | |
| Curb Weight | kg | 4,365 | |
| Main Parameters | Bucket rated weight | kg | 400 |
| Max. Working Height | m | 36 | |
| Outrigger span | mm | 1,300 | |
| Outrigger retraction time | S | 20 | |
| Chassis Parameters | Chassis | / | FAW |
| Engine Model | / | JX4D30B6H | |
| Engine power | kW/ps | 85/115 | |
| Max. Driving Speed | km/h | 100 | |
| No. of Tires | pcs | 6+1 | |
| Tite Spec. | / | 7.00R16LT 8PR/10PR | |
| Ladder arm | / | Imported ladder arm | |
| Boom form | / | Eight-section synchronous telescoping | |
| Hydraulic System | / | MS Brake | |
| / | MS Motor |
