HOWO Truck Mounted 5T Palfinger Crane

HOWO Truck Mounted 5T Palfinger Crane

Max Load Rating:	15 Tonelada, dropside
Deck Size,mm:	6000*2500,exterior
Construction:	Sheet Metal Forming
Material Thick, mm:	Bottom 5, Side 3
Doors:	All dropside open

Hño nthoki camiones

Category: Grúa Tag: HOWO Truck

Description
Reviews (0)

BRIEF

The HOWO Truck Mounted 5T Palfinger Crane is a highly functional and versatile vehicle-mounted crane system.

This equipment combines the reliable chassis of the HOWO truck with a powerful 5T Palfinger crane. The crane offers precise and efficient lifting capabilities, capable of handling loads up to 5 tons. It features advanced hydraulic systems that ensure smooth operation, whether it’s lifting heavy materials like construction aggregates or machinery parts.

The truck-mounted design provides excellent mobility, allowing it to reach different job sites with ease. It’s suitable for various industries such as construction, logistics, and warehousing.

Equipped with user-friendly controls, operators can easily manage the crane’s movements and the truck’s driving functions. Overall, the HOWO Truck Mounted 5T Palfinger Crane is a valuable asset, integrating strength, precision, and mobility for efficient lifting and transportation tasks.

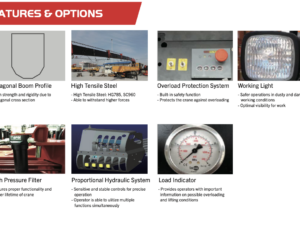

FEATURES

The HOWO Truck Mounted 5T Palfinger Crane is a remarkable combination of a robust truck chassis and a highly capable crane, designed to meet diverse lifting and transportation needs with efficiency and precision.

1.Powerful Lifting Capacity
With a lifting capacity of 5 tons, this crane can handle a significant amount of weight. It is well-suited for lifting various materials such as construction materials like steel beams, concrete blocks, and also machinery parts in industrial settings. The crane’s robust structure and advanced engineering ensure that it can safely and steadily lift these heavy loads without compromising on performance.

2.Advanced Hydraulic System
The crane is equipped with an advanced hydraulic system that plays a crucial role in its smooth operation. The hydraulic components work in harmony to provide precise control over the crane’s movements. Whether it’s extending the boom, rotating the crane head, or lifting and lowering the load, the hydraulic system enables seamless and accurate adjustments. This not only enhances the efficiency of lifting operations but also reduces the risk of sudden jerks or instability that could potentially damage the load or cause accidents.

2.Truck-Mounted Mobility
Mounted on a HOWO truck chassis, this crane enjoys excellent mobility. The truck’s reliable performance and sturdy build allow it to travel to different job sites with ease, whether it’s on rough construction terrains or smooth highways. This mobility feature makes the crane highly versatile, as it can be quickly deployed wherever lifting work is required, saving both time and transportation costs compared to using separate truck and crane setups.

3.User-Friendly Controls
The operation of the HOWO Truck Mounted 5T Palfinger Crane is made easy with its user-friendly controls. The control panel is designed in a way that operators can quickly familiarize themselves with the various functions. They can effortlessly manage the crane’s movements such as boom extension, rotation, and load handling, while also being able to control the truck’s driving functions if needed. This intuitive control setup reduces the learning curve for operators and ensures efficient and safe operation.

4.Durable Construction
Both the truck chassis and the crane itself are built with durability in mind. The HOWO truck chassis is known for its strength and ability to withstand heavy loads and rough terrains. The crane components are made of high-quality materials that can endure the rigors of regular use, including exposure to different weather conditions. This durable construction ensures a long service life for the entire setup, providing reliable performance over the years.

In conclusion, the HOWO Truck Mounted 5T Palfinger Crane’s combination of these features makes it an excellent choice for a wide range of lifting and transportation tasks, offering both power and precision along with mobility and durability.

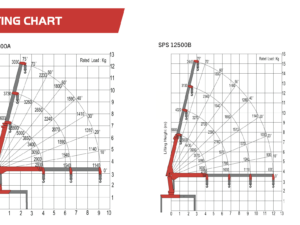

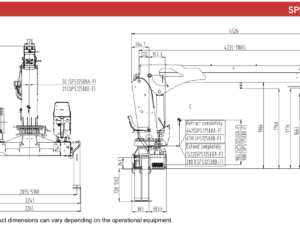

SPECIFICATION

Cab Truck		Crane
Chassis Make/Model:	HOWO/ZZ1167N5617B1	Make/Model:	Palfinger/ SPS12500B
Dimensions,mm:	9378×2550×3895	Crane Type	Telecopic Boom
Wheelbase,mm:	5600	Rated Lifting Moment	12.5mt
G.V.W,kg:	23000	Rated lifting capacity	5000 kg (2.2m)
Tare Weight,kg:	10530	Max. outreach	11.6m
F/R Axle Rating,kg:	7000/16000	Max.line of the hook	4
Cab		Number of extension boom	2(A),3(B),4(C)
Cab Make/Model:	SINOTRUK/HOWO 7	Slewing angle	Continous
Cab Type:	Sleeper Cab, AC	Boom raising angle	0 ~ 75 °
Cab Width:	2080mm	Max. lifting height	13.6m
Cab Height:	Standard w/o Streamlined Dome	Length of the boom	4.3 m
Rated Nr. of Passengers:	3 People	Outrigger span(fully extended)	5100 mm
Engine		Flow Rate	35 – 50 L/min
Engine Make/Model:	WEICHAI/WP10.300E2	Operating pressure	25 Mpa
Engine Power/Speed:	220kW(300hp)/2200rpm	Oil tank capacity	100 L
Output Torque/Speed:	1240N.m/1300-1500rpm	Standard package includes
Displacement:	9.726 L		– Oil tank mounted
Emission Standard:	Tier Level III Emission		– Load holding valves
Transmission			– Painting
Gearbox Make/Model:	SINOTRUK/HW19710		– High pressure filter
Type:	Manual,Forward 10 Speed/Reverse 2 Speed		– Digital hour counter
Clutch			– Load hook
Type:	Single, Dry, Diaphragm Spring		– Crane preservation
Diameter:	φ320mm		– Mounting bolts
Steering		Dropside Platform
Position:	Right Hand Drive	Max Load Rating:	15 Tonelada, dropside
Type:	Recirculating Ball	Deck Size,mm:	6000*2500,exterior
Axle	Front VGD71,Rear ST16	Construction:	Sheet Metal Forming
Main Brake	Dual-circuit air Braking Booster	Material Thick, mm:	Bottom 5, Side 3
Parking Brake	Acting on axle, Central Drum Brake	Doors:	All dropside open
Suspension
Type:	Semi-elliptical Alloy Leaf Spring with Hydraulic Two-way Telescopic Shock Absorber
Specifications:	10/9+6H
Electrical Equipment:
Battery:	24V/(Two Batteries in Parallel)
Starter:	24Volts/2.8kW
Tyre	295/80R22.5,6+1 Nos
Tool Box:	2 nos
