BRIEF

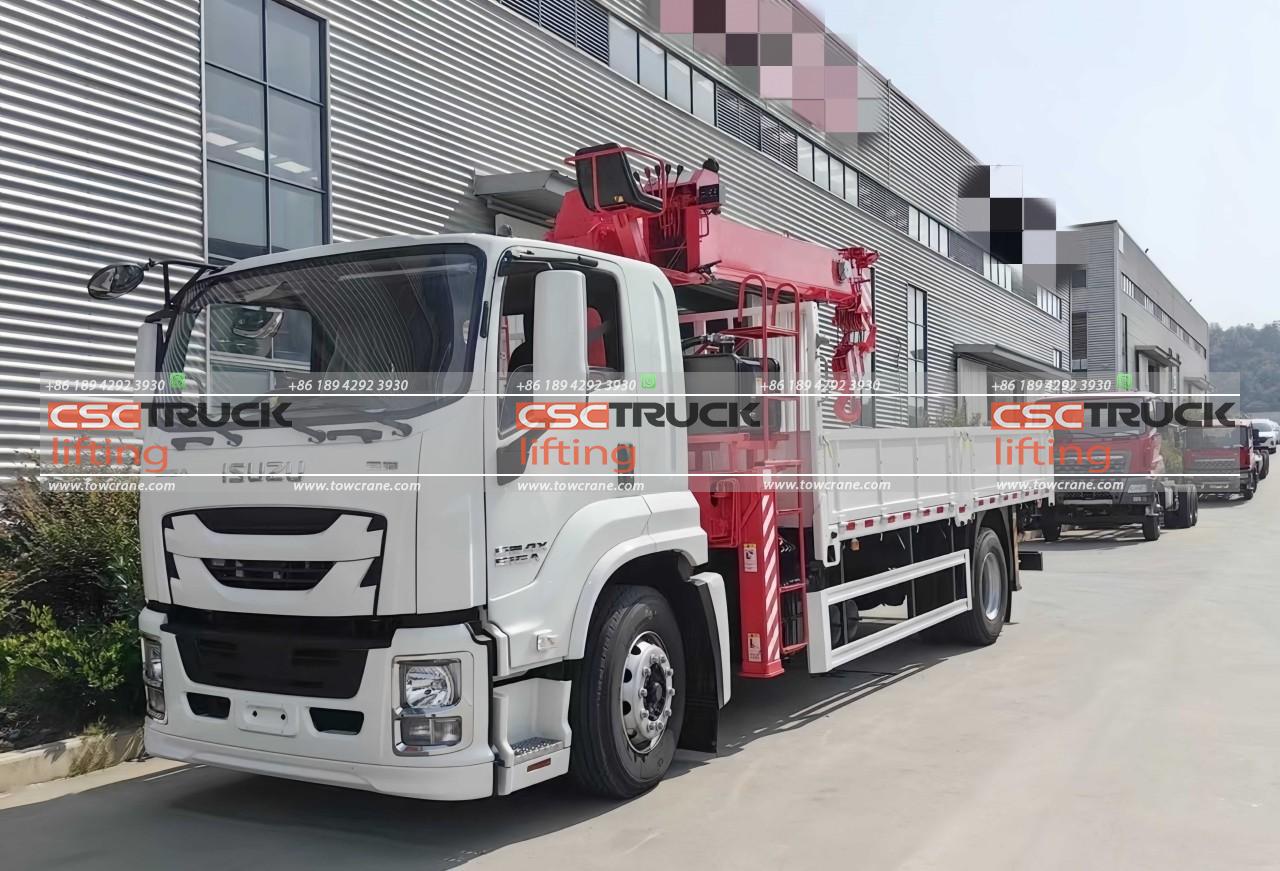

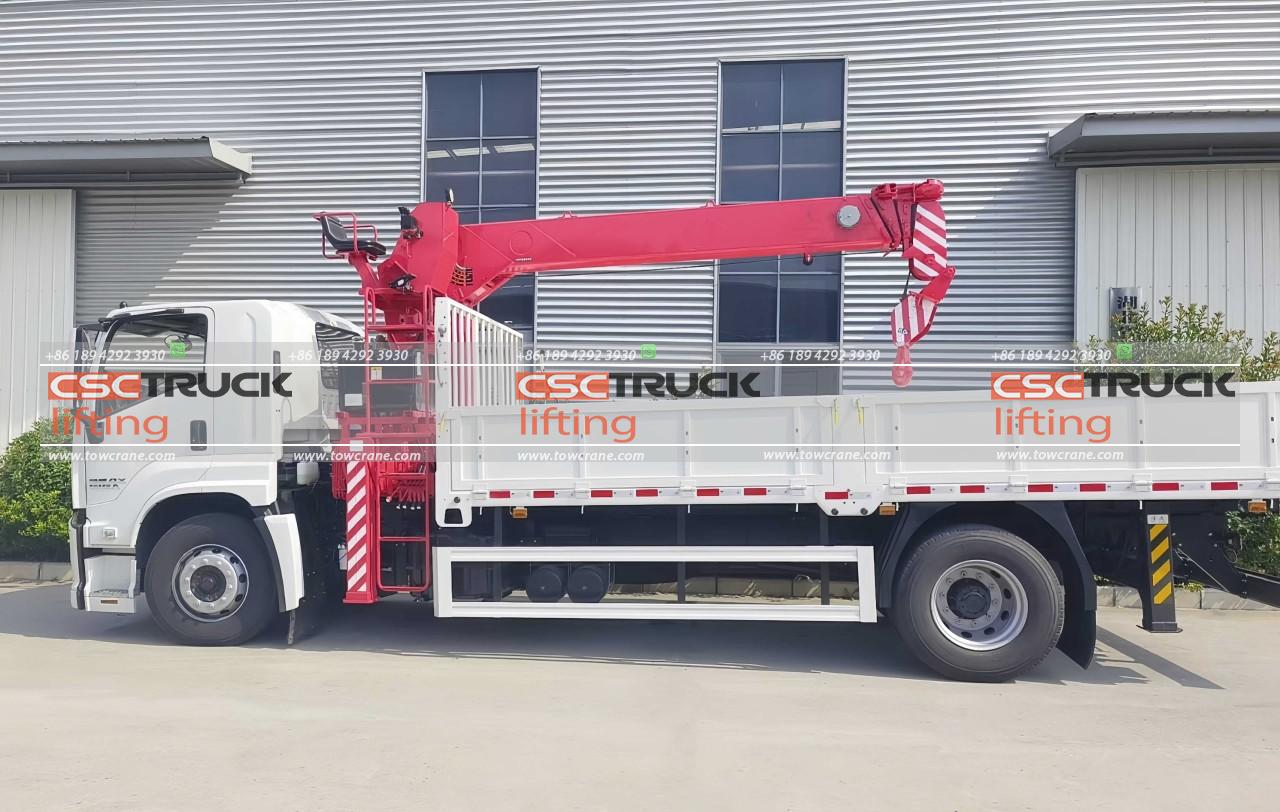

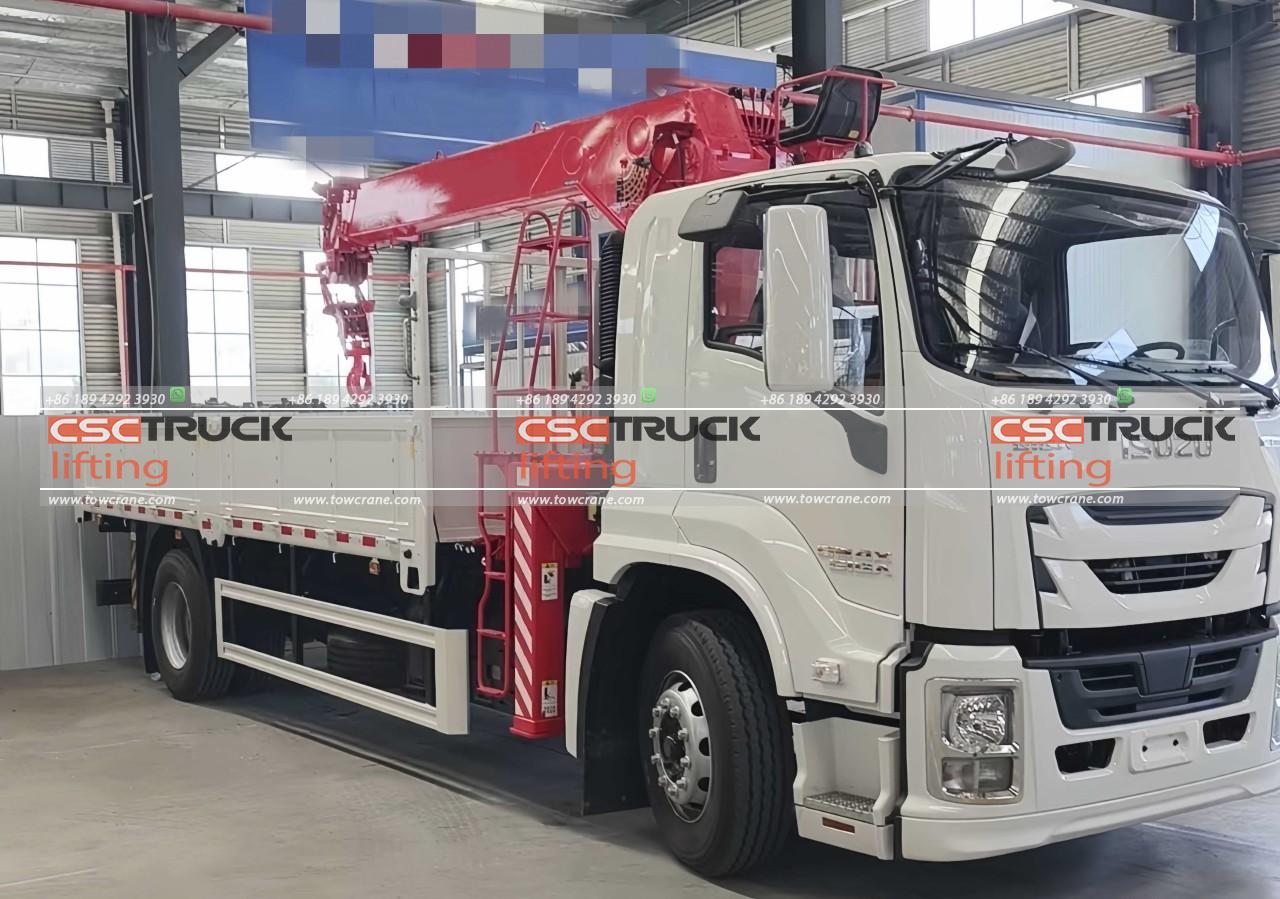

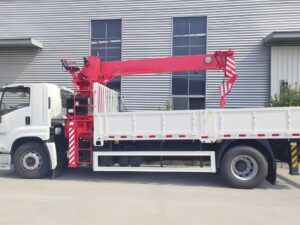

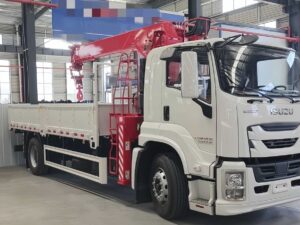

The ISUZU GIGA 8-ton truck telescopic crane, manufactured by CSCTRUCK Tow Crane, is a robust and versatile vehicle designed for heavy lifting and precise maneuvering. This model features a 4×2 drive type, ensuring reliable performance on various terrains. Powered by a dependable ISUZU engine, it boasts a rated lifting capacity of 8,070 kg, making it suitable for demanding construction and industrial applications.
The truck telescopic crane‘s capabilities are highlighted by its impressive specifications. With a maximum working radius of 9.2 meters and a maximum lifting height of 10.8 meters, it provides substantial reach for a variety of tasks. The crane is equipped with 3 boom sections, enhancing its flexibility and extension range. Its 5.1-meter outrigger span ensures stability during operations, even when handling heavy loads.
The ISUZU GIGA crane’s operational efficiency is further enhanced by its 360° continuous turning angle and a turning speed of 1.5 revolutions per minute (rpm), allowing for smooth and precise positioning of loads. The crane’s hydraulic system is supported by a 90-liter hydraulic oil tank, ensuring consistent and reliable hydraulic pressure for all movements.
This truck telescopic crane is an excellent choice for businesses requiring a combination of mobility, lifting power, and precision. Its design caters to both safety and efficiency, making it a valuable asset for construction, logistics, and various other industries requiring heavy-duty lifting solutions. The ISUZU GIGA 8-ton truck crane exemplifies the integration of advanced engineering and practical functionality, setting a high standard in the truck crane market.
FEATURES
1. High Lifting Capacity and Reach:
– The truck is equipped with a telescopic crane that has an impressive rated lifting capacity of 8,070 kg.
– It can achieve a maximum working radius of 9.2 meters and a maximum lifting height of 10.8 meters, facilitated by three boom sections.
2. Advanced Mobility and Stability:
– The 4×2 drive type provides reliable on-road performance, while the outrigger span of 5.1 meters ensures stability during lifting operations.
– The crane can rotate continuously through a 360° turning angle, enhancing maneuverability and efficiency on job sites.
3. Powerful ISUZU Engine:
– The truck is powered by a robust ISUZU engine, known for its durability and performance, ensuring reliable operation even under demanding conditions.
4. Efficient Hydraulic System:
– The crane features a hydraulic system with a 90-liter hydraulic oil tank capacity, providing sufficient hydraulic fluid for smooth and efficient crane operation.
– The turning speed of 1.5 rpm allows for controlled and precise positioning of loads.
5. User-Friendly Design:
– The crane’s three boom sections and continuous rotation capability simplify complex lifting tasks.
– The overall design, including the telescopic mechanism and extensive reach, makes it versatile for various lifting applications in construction, logistics, and other industries.
SPECIFICATION
| Basic data | CSCTTC803 |
| Rated lifting capacity | 8,070kg |
| Rated lifting moment | 8,070*2.5 |
| Max. working radius | 9.2m |
| Max. lifting height | 10.8m |
| Boom section | 3 |
| Outrigger Span | 5.1m |
| Turning angle | Consecutively turn 360° |
| Turning speed | 1.5 rmp |
| Hydraulic oil tank capacity | 90L |
