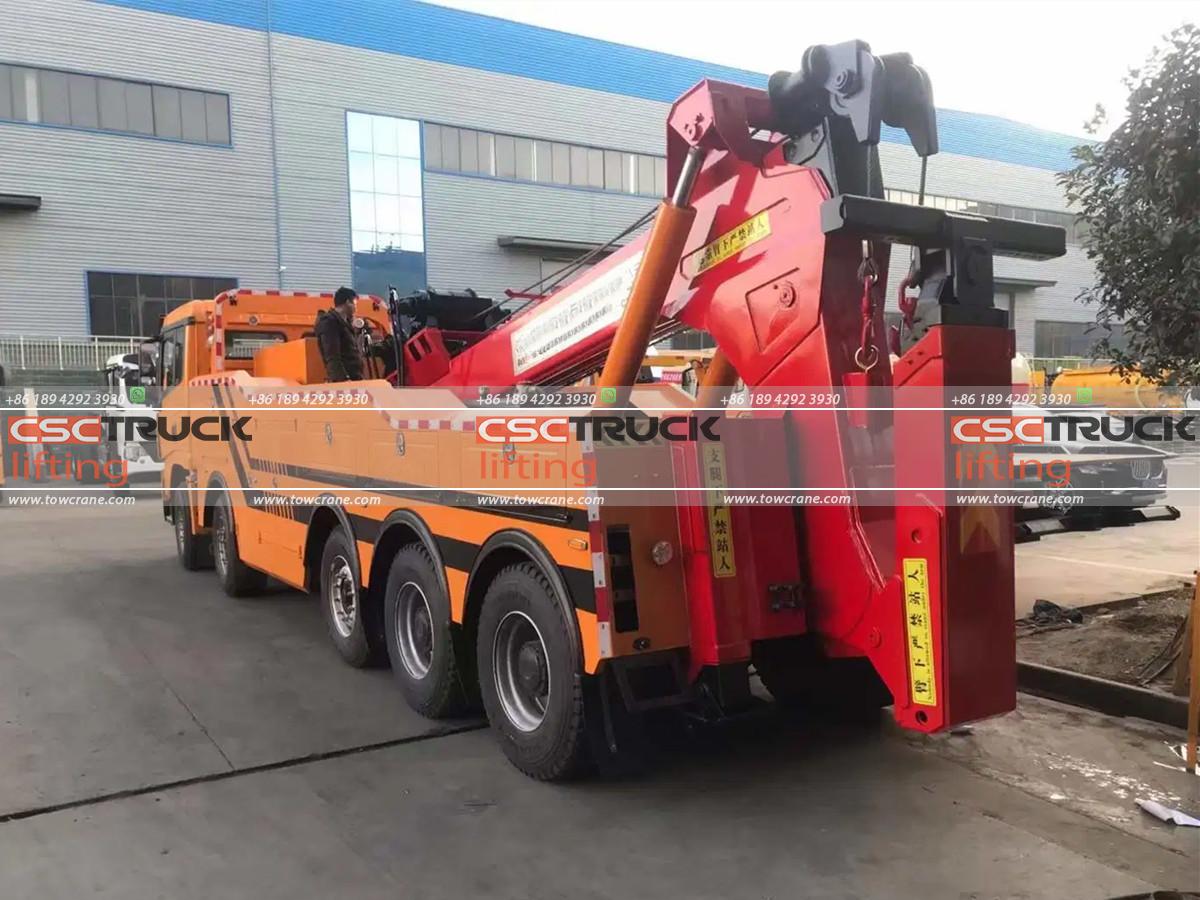

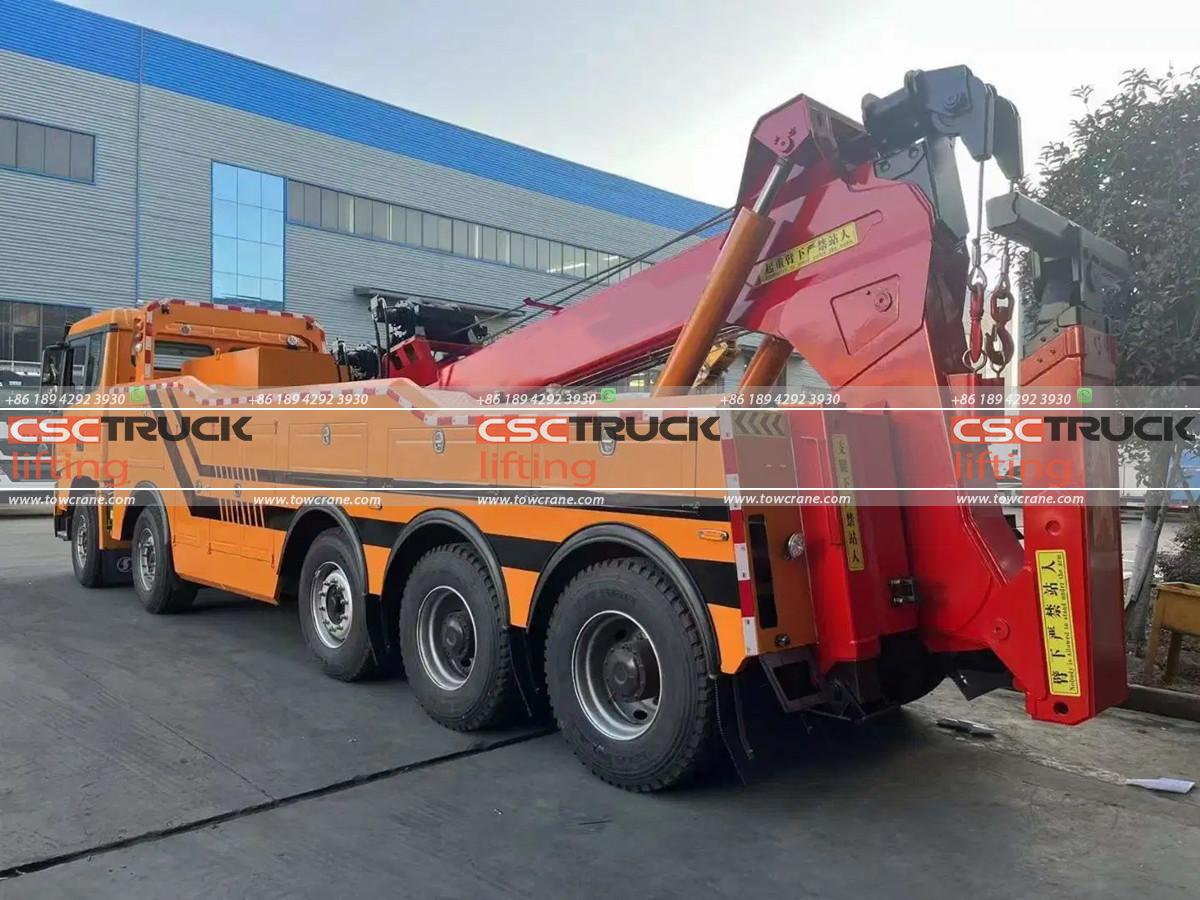

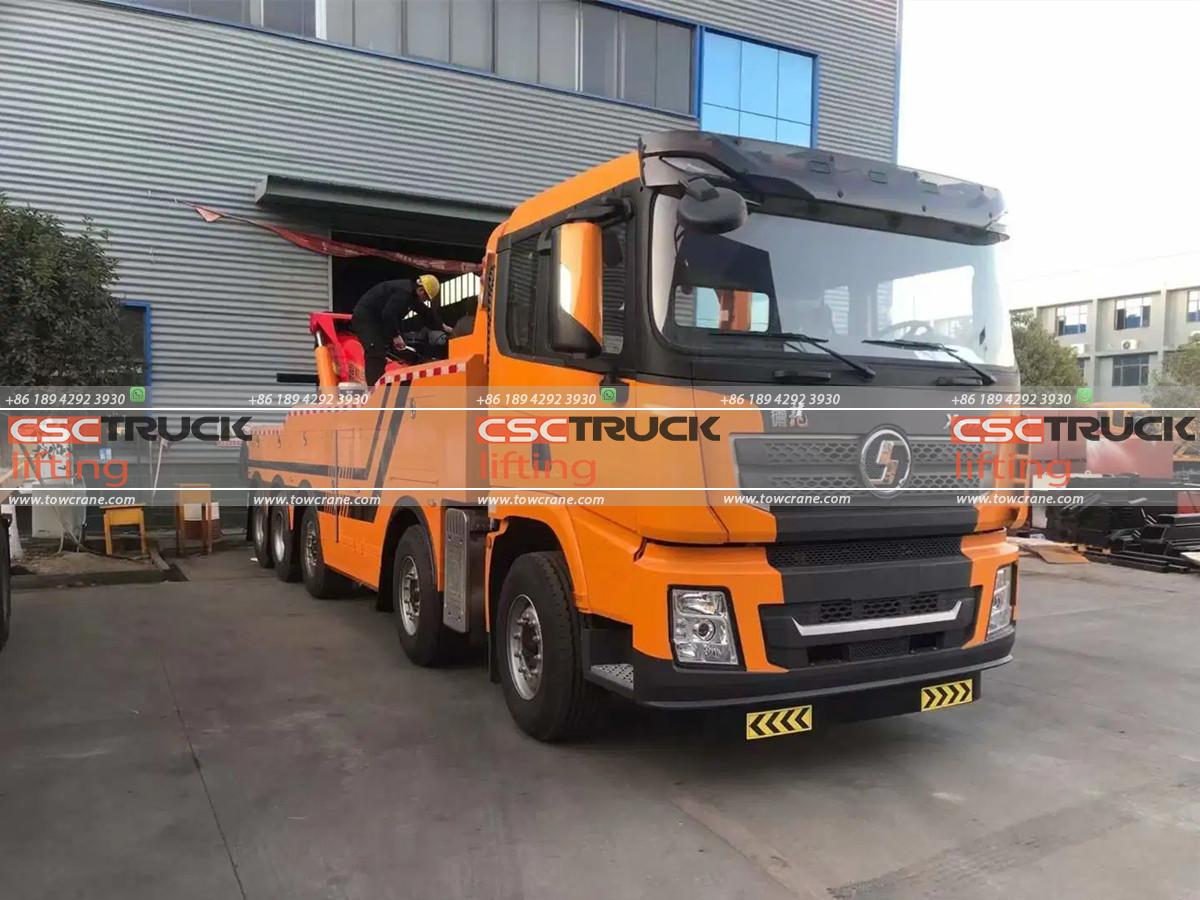

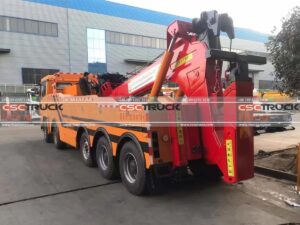

Shacman 80 Ton Heavy Rotator Wrecker Towing Truck

BRIEF:

The Shacman 80 Ton Heavy Rotator Wrecker Towing Truck is a powerhouse designed for the most demanding towing and recovery operations. Its impressive capabilities and robust construction make it a go-to choice for professionals who require reliability and power in challenging scenarios. With its top-tier specifications and rugged design, this towing truck is a reliable workhorse for handling heavy-duty recovery tasks.

The rotator wrecker towing truck is an exceptional vehicle for heavy-duty recovery operations. With its powerful engine, robust build, and advanced features, it provides the reliability and strength required to handle the most challenging towing and recovery tasks.

FEATURES:

Parameter Configuration:

• Description: The SHACMAN towing and lifting hypodermic tow truck is engineered for heavy-duty towing and recovery applications.
• Drive Model: The 10X4 drive model provides exceptional traction and control, ensuring the truck can handle a wide range of terrains.
• Vehicle Main Dimensions:
  • Dimensions (L x W x H): Measuring 11700x2550x3450 mm, the vehicle offers substantial size for accommodating a range of recovery equipment.
  • Wheelbase (mm): 2100+3475+1400+1400/1750 to provide stability and support for heavy loads.
  • Overhang (Front/Rear) (mm): The overhang measurements of 1525/1800 balance the vehicle’s weight distribution.
  • Axle Load (kg): Capable of bearing 9000/9000/9000/13000/13000 kg on its axles.
• Approach/Departure Angle (°): Offers an approach angle of 16° and a departure angle of 15°, making it versatile for various terrains.
• Weight in KGS:
  • Curb Weight: Weighs 27,800 kg, indicating a sturdy build for heavy-duty operations.
  • GVW (Gross Vehicle Weight): Can handle a massive weight of 53,000 kg, showcasing its substantial load-bearing capacity.
• Max. Driving Speed (km/h): Achieves a maximum speed of 100 km/h for efficient and timely response to recovery scenarios.
• Engine:
  • Model: Equipped with a WP12.460E62 engine that provides a robust power source.
  • Horsepower (HP): Generates a remarkable 459 HP, ensuring the truck’s ability to tackle heavy loads and challenging environments.
  • Emission Standard: Complies with Euro II emissions standards.
• Gearbox: Features a 12-forward and 1-reverse gearbox, providing flexibility in various driving scenarios.
• Clutch: Equipped with a reinforced diaphragm clutch for enhanced durability.
• Steering Gear: Offers power steering with hydraulic assistance for smooth and responsive control.
• Tire: Fitted with high-quality tires, such as 385/65R22.5 20PR and 12.00R20 20PR, totaling 14 pieces, ensuring traction and stability.
• Brakes: Features an exhaust brake for reliable and effective braking, especially when dealing with heavy loads on varied terrains.
