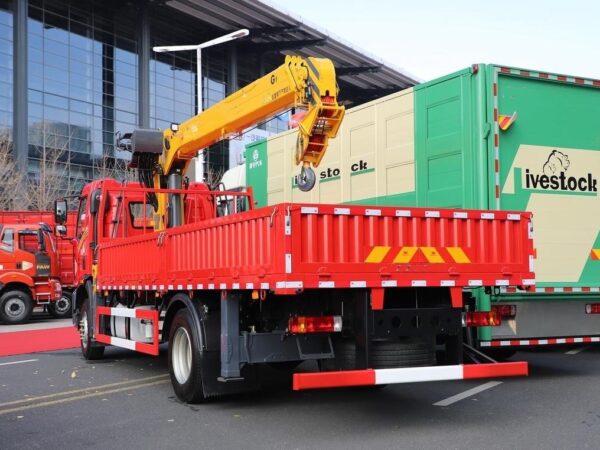

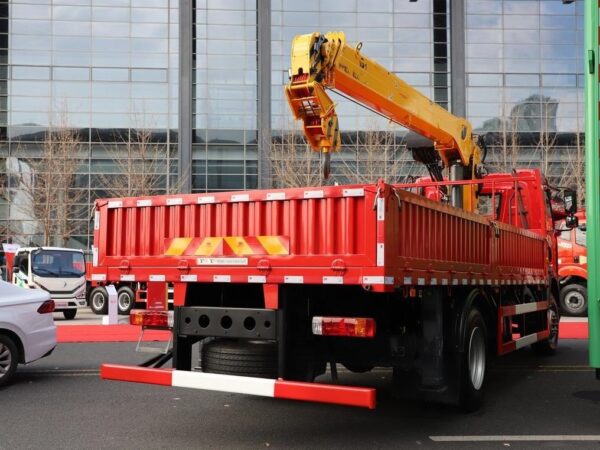

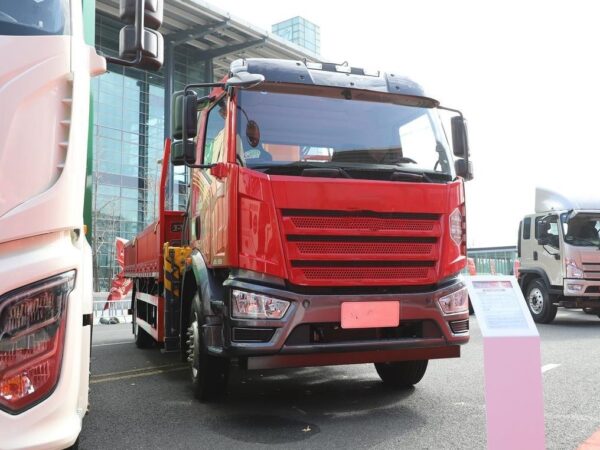

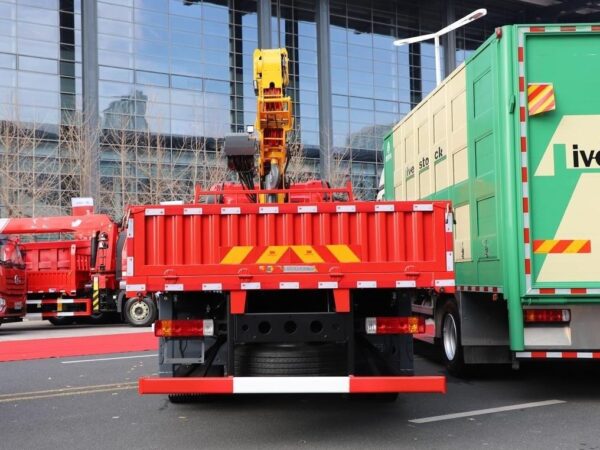

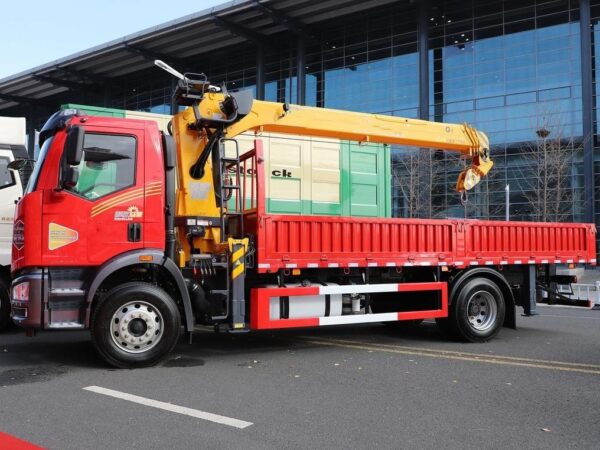

J6L 220Horsepower 4X2 18Ton Truck Mounted Crane

STRESZCZENIE

• Powered by a 220 – silnik o mocy, this truck has the necessary power to perform its operations efficiently. The 4X2 drive configuration offers a good balance between power transfer and fuel efficiency. It is suitable for different terrains, including construction sites and transportation routes.
• With a maximum load capacity of 18 mnóstwo, the truck can carry a significant amount of cargo. The truck – mounted crane adds to its versatility, allowing it to lift and move heavy objects on – site without the need for additional lifting equipment.

• The crane on the truck is a crucial feature. It is designed to handle loads up to 18 mnóstwo, enabling it to lift and place various heavy items. In construction sites, it can be used to lift building materials such as steel beams, concrete slabs, and large machinery components.
• The crane provides precise control over the movement of the load, which is essential in construction projects where accurate placement of materials is necessary for the proper building of structures.

• In the construction industry, this vehicle is a valuable asset. It can be used for transporting construction materials to the site and then using the crane to unload and position them as required. It is also suitable for infrastructure projects like road and bridge construction, where heavy materials need to be lifted and installed.
• In industrial settings, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. It can also be employed in warehouses for loading and unloading bulky items from trucks or for moving them around within the storage area.

• The cab of the truck is likely designed with the operator’s comfort in mind. It may have ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

CECHY

Power and Drivetrain

• Moc silnika
  • The 220 – horsepower engine serves as the power source for the J6L. This level of horsepower provides sufficient energy to drive the truck, whether it’s traveling on the road or maneuvering on – site. It is designed to offer a balance between performance and fuel efficiency, ensuring that the vehicle can complete its tasks without consuming excessive amounts of fuel. When operating the crane, the engine has enough power to support the lifting, swinging, and other movements required.
• 4X2 Drive Configuration
  • The 4X2 drive configuration of the J6L offers certain advantages. It is a relatively simple and cost – effective drive system. This configuration provides good traction on a variety of terrains, from paved roads to construction sites with relatively firm surfaces. It also contributes to the vehicle’s maneuverability, allowing it to navigate through narrow spaces and make turns more easily, which is beneficial in both construction areas and during transportation in urban or industrial environments.

Load Capacity and Crane Features

• 18 – Ton Load Capacity
  • With an 18 – ton load capacity, the J6L truck can transport a substantial amount of heavy materials. This includes construction materials like steel beams, concrete slabs, and large – scale machinery components. In industrial applications, it can carry bulky raw materials or finished products. The load capacity is an important factor in determining the vehicle’s utility in various industries, as it can handle a wide range of loads that are common in medium – Do – large – scale operations.
• Crane Capabilities
  • The truck – mounted crane is a central feature of the J6L. It is engineered to lift up to 18 mnóstwo, providing flexibility in handling heavy objects on – site. The crane likely has a hydraulic system that enables smooth lifting and lowering operations. It may have features such as a telescopic boom or adjustable jib to increase its reach and versatility. Precise control over the load’s movement is a key aspect of the crane, which is crucial for accurate placement of materials in construction projects and for the safe handling of equipment in industrial settings.

Construction and Industrial Applications

• Versatility in Construction
  • In construction, the J6L is highly versatile. It can be used to transport construction materials from suppliers to the building site. Once on – site, the crane can be used to unload the materials directly and place them in the exact location required, reducing the need for additional handling equipment. It can be involved in tasks such as erecting scaffolding, placing formwork, and installing large – scale structural components.
• Industrial Applications
  • In industrial settings, the J6L serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, maintenance, or relocation. Na przykład, in a manufacturing plant, it can move large – scale machinery for repair or repositioning. In warehouses, it can load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• Funkcje bezpieczeństwa
  • The J6L is likely equipped with safety features. There may be an overload protection system for the crane to prevent lifting beyond its 18 – ton capacity, safeguarding the integrity of the crane and ensuring safe operation. Stability – enhancing mechanisms are probably in place to ensure the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. The crane may also have safety locks on its moving parts to prevent accidental movement, and there could be warning systems to alert the operator of abnormal operating conditions.
• Operator Comfort
  • The cab of the truck is designed with the operator’s comfort in mind. It may have ergonomic seating with adjustable lumbar support to reduce fatigue during long working hours. The controls for driving the truck are likely placed in an accessible and intuitive manner, and the same goes for the crane – operating controls. For the crane operator, there may be a well – designed control panel with clear labels and indicators, enabling precise control of the crane’s movements. Dodatkowo, the cab may be insulated from noise and vibration to create a more pleasant working environment.

SPECYFIKACJE

Podstawowe informacje
Formularz jazdy	4X2
Rozstaw osi	5000mm
Typ	Ciężarówka – mounted crane vehicle
Vehicle dimensions	9 × 2.55 × 3.7 metrów
Gross mass	18 mnóstwo
Rated mass	6.305 mnóstwo
Front overhang / Rear overhang	11.5 metrów
Front track	1928mm
Rear track	1878mm
Engine Parameters
Model silnika	Dachai CA4DK2 – 22E65
Przemieszczenie	5.17L
Maksymalna moc wyjściowa	165kW
Maksymalna moc	220 moc w koniach mechanicznych
Norma emisji	Narodowy VI
Rodzaj paliwa	Diesel
Engine brand	Dachai
Mounting Parameters
Ogłoszenie pojazdu	XGS5180JSQJ6
Cab Parameters
Taksówka	New J6L semi – floating flat – top single – row cab
Transmission Parameters
Model transmisji	Fast 8JS85E
Liczba biegów	8 – speed
Chassis Parameters
Marka podwozia	FAW Jiefang
Seria podwozi	J6L
Model podwozia	CA1180P62K1L2E6Z
Opis tylnej osi	ф378 Cast Axle
Liczba wiosennych liści	10/12 + 8, 12/12 + 8
Frame size	253 × 83×(7 + 6.5 + 4)mm
Sprzęgło
Speed ratio	4.875
Opony
Liczba opon	12
Specyfikacja opon	295/80R22,5
Control Configuration
ABS anti – lock	Standard.
