T5 270Horsepower 6X4 25Ton 8.5Meter Truck Mounted Crane

STRESZCZENIE

• Powered by a 270 – silnik o mocy, this truck has the strength to perform various operations. The 6X4 drive configuration offers excellent traction and stability, making it suitable for different terrains, including construction sites and transportation routes.
• With a maximum load capacity of 25 tons and a crane reach of 8.5 metrów, it combines significant lifting and carrying capabilities. The truck – mounted crane allows for on – site lifting and moving of heavy objects without the need for additional lifting equipment.

• The crane on the truck is a crucial feature. It is designed to handle loads up to 25 tons and can reach up to 8.5 metrów. This enables it to lift and place a variety of heavy items such as building materials (steel beams, concrete slabs) and large machinery components in construction sites.
• Precise control over the load’s movement is provided by the crane. This is essential in construction projects where accurate placement of materials is necessary for the proper building of structures.

• In the construction industry, it is a valuable asset. It can transport construction materials to the site and then use the crane to unload and position them as required. It is also suitable for infrastructure projects like road and bridge construction, where heavy materials need to be lifted and installed.
• In industrial settings, it can be used for handling large and heavy equipment during maintenance, installation, or relocation. It can also be employed in warehouses for loading and unloading bulky items from trucks or for moving them around within the storage area.

• The cab of the truck is likely designed with the operator’s comfort in mind. It may have ergonomic seating to reduce fatigue during long working hours. The controls for both driving the truck and operating the crane are probably designed to be user – friendly.
• For the crane operator, there may be a well – laid – out control panel with clear instructions and indicators, enabling precise control of the crane’s movements. The overall design aims to provide a safe and efficient working environment for those operating the vehicle.

CECHY

Power and Drivetrain

• Moc silnika
  • The 270 – horsepower engine is a significant component of this truck – mounted crane. It provides ample power to drive the vehicle, even when fully loaded with its 25 – ton capacity. This power level also ensures efficient operation of the crane. The engine is designed to deliver consistent performance across various terrains, whether it’s on flat roads, inclines, or rough construction sites. It offers a good balance between power and fuel efficiency, enabling the vehicle to carry out its tasks without excessive fuel consumption.
• 6X4 Drive Configuration
  • The 6X4 drive system of the T5 truck offers several advantages. It provides enhanced traction, which is crucial for a vehicle of this size and load – carrying capacity. By distributing the weight more evenly across the axles, it improves the vehicle’s stability during movement. This configuration is well – adapted to different terrains, from muddy construction sites to paved highways. It also contributes to better handling when making turns, which is especially important in tight spaces on construction sites or during loading and unloading operations.

Load Capacity and Crane Features

• 25 – Ton Load Capacity
  • With a load capacity of 25 mnóstwo, the T5 truck can transport a substantial amount of heavy materials. This includes construction materials like steel girders, large concrete slabs, and heavy machinery parts. In industrial applications, it can carry bulky raw materials or finished products. The high load capacity makes it a valuable asset in industries where heavy – item transportation is common.
• 8.5 – Meter Crane Reach
  • The crane’s 8.5 – meter reach is a key feature. It allows the crane to access areas that are relatively far from the truck’s position. This is especially useful in construction sites where materials need to be placed at a distance from the vehicle, such as on upper floors of a building or in the far corners of a large construction area. The crane is designed to work in harmony with the truck’s load – carrying capacity, having a lifting capacity of up to 25 tons within this reach.
• Crane Functionality
  • The truck – mounted crane is equipped with advanced features for smooth and precise operation. It likely has a hydraulic system that enables seamless lifting, lowering, swinging, and telescoping (if applicable) actions. The crane provides precise control over the movement of the load, which is essential for accurate placement of materials in construction projects and for handling equipment in industrial settings.

Construction and Industrial Applications

• Versatility in Construction
  • In construction projects, the T5 truck – mounted crane is highly versatile. It can be used for transporting construction materials from suppliers to the building site. Once on – site, the crane can be used to unload the materials directly and place them in the exact location required, reducing the need for additional handling equipment. It can be involved in a wide range of construction tasks, such as erecting scaffolding, lifting and placing roofing materials, and installing large – scale structural components.
• Industrial Applications
  • In industrial settings, the T5 serves multiple purposes. It can be used for loading and unloading heavy equipment during installation, maintenance, or relocation. Na przykład, in a manufacturing plant, it can move large – scale machinery for repair or repositioning. In warehouses, it can load and unload bulky items from trucks and place them in the appropriate storage locations, optimizing the use of storage space.

Safety and Operator Comfort

• Funkcje bezpieczeństwa
  • The vehicle is likely equipped with a range of safety features. Overload protection systems for both the truck and the crane prevent overloading, safeguarding the vehicle’s structural integrity and ensuring safe operation. Stability – enhancing mechanisms ensure that the truck remains stable during crane operations, especially when lifting heavy loads at extended reaches. Safety locks on the crane prevent accidental movement of the boom or load, and there may be warning systems to alert the operator of any abnormal operating conditions.
• Operator Comfort
  • The cab of the truck is designed with the operator’s comfort in mind. It may have ergonomic seating with adjustable features to reduce fatigue during long working hours. The controls for driving the truck are conveniently placed and easy to operate. For the crane operator, there is likely a well – designed control panel with clear labels and indicators. The panel provides intuitive control over the crane’s movements, and the operator has a good view of the lifting area to ensure accurate and safe operations. Dodatkowo, the cab may be insulated from noise and vibration, tworzenie przyjemniejszego środowiska pracy.

SPECYFIKACJE

Podstawowe informacje
Formularz jazdy	6X4
Rozstaw osi	5850 + 1350mm
Typ	Ciężarówka – mounted crane vehicle
Vehicle dimensions	12 × 2.49 × 3.85 metrów
Gross mass	25 mnóstwo
Rated mass	9.835 mnóstwo
Front overhang / Rear overhang	1.45 / 3.3 metrów
Engine Parameters
Model silnika	Yuchai YC6A270 – 50
Przemieszczenie	7.52L
Maksymalna moc wyjściowa	199kW
Maksymalna moc	270 moc w koniach mechanicznych
Norma emisji	National V
Rodzaj paliwa	Diesel
Rated speed	2300rpm
Engine brand	Yuchai
Maximum torque	1100N · m
Maximum torque speed	1200 – 1800rpm
Mounting Parameters
Ogłoszenie pojazdu	EQ5250JSQL
Marka mocowania	Dongfeng Huashen
Crane models	QYS – 10, SQS250, URV1004, SPS25000, KS2305, nicoleV1004
Lifting weight	10 mnóstwo
Crane self – waga	4.95 mnóstwo
Transmission Parameters
Model transmisji	Fast 9 – speed
Liczba biegów	9 – speed

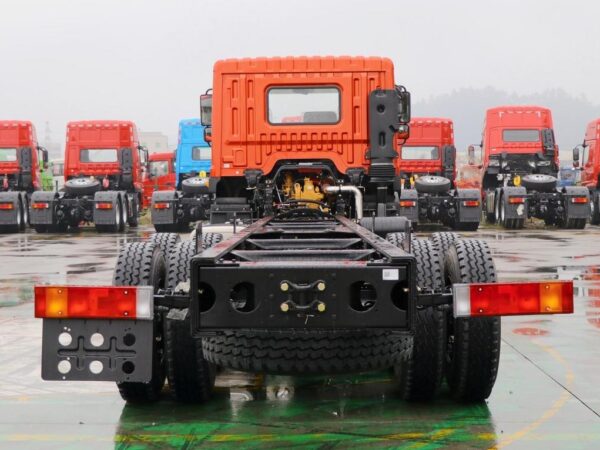

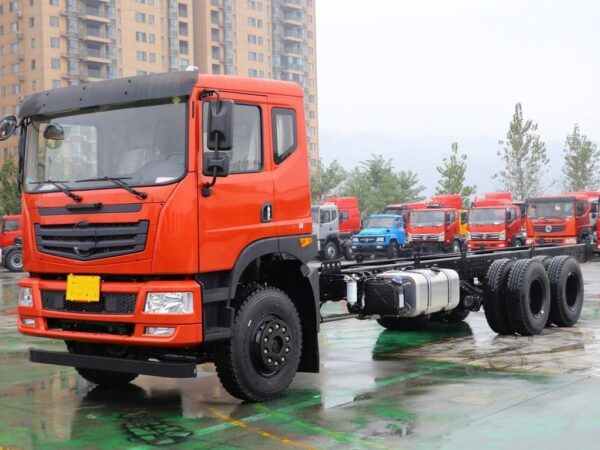

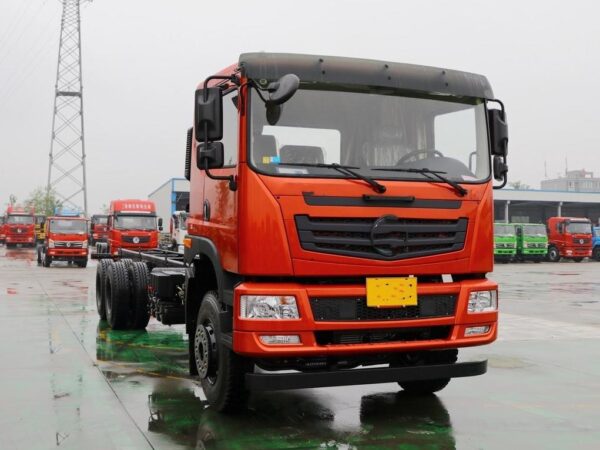

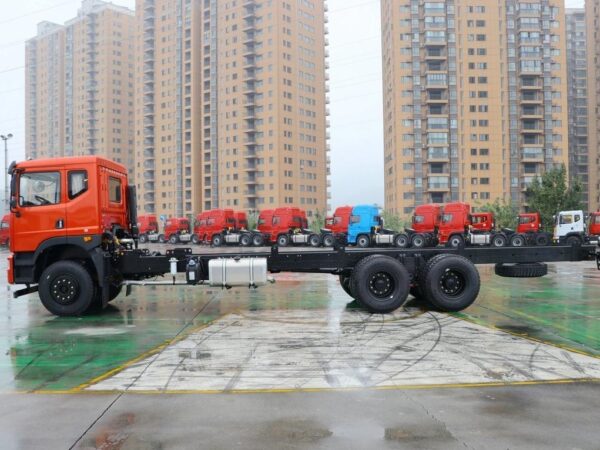

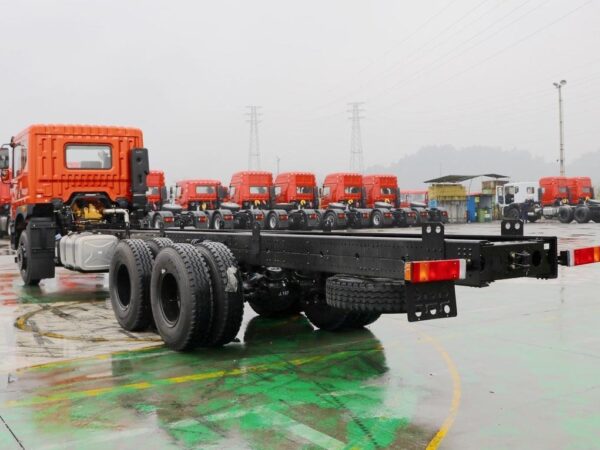

Chassis Parameters
Marka podwozia	Dongfeng Huashen
Seria podwozi	Huashen T5
Model podwozia	EQ1250GLJ
Opis tylnej osi	10T
Liczba wiosennych liści	9/10, 9/13
Opony
Liczba opon	10
Tire specifications	11.00 – 20 18PR, 11.00R20 18PR
