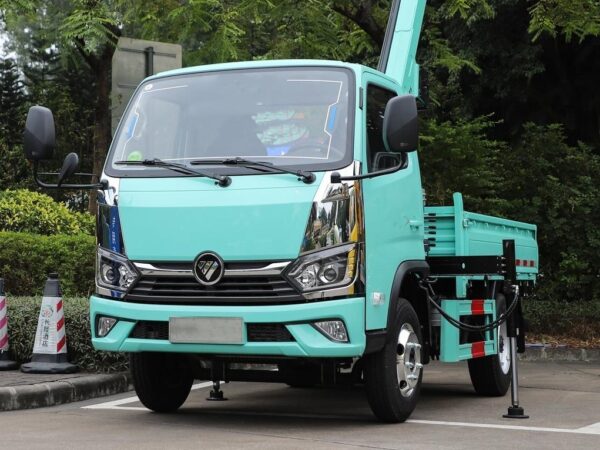

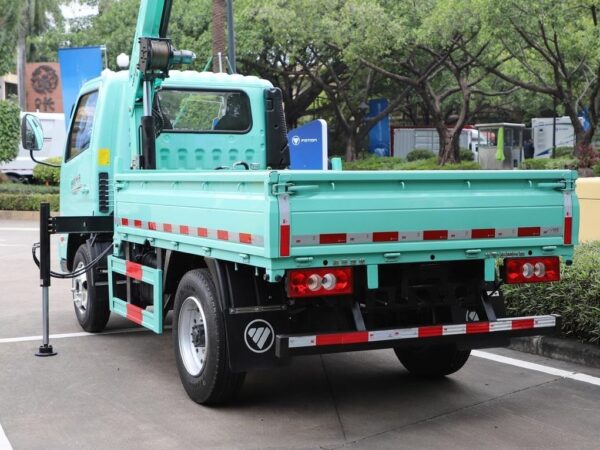

Foton 4.5 Tons Side Lifter Crane

Foton 4.5 Tons Side Lifter Crane

Gross Vehicle Mass	4.495 tons
Emission Standard	China VI
Cargo Box Length	2.6 meters
Cargo Box Width	1.9 meters
Cargo Box Height	0.4 meters

Truck Enquiry

Category: Side Lifter Crane Tag: Foton 4.5 Tons

Description
Reviews (0)

SUMMARY

The Foton 4.5 Tons Side Lifter Crane is an outstanding piece of lifting equipment.

With a lifting capacity of 4.5 tons, it is capable of handling a wide range of medium-weight cargo. Its side-lifting design is a remarkable feature. Instead of the traditional front or rear crane configurations, this side lifter can conveniently hoist goods from the side of the vehicle. This enables it to access cargo storage areas more easily in certain scenarios, significantly enhancing work efficiency.

The crane is constructed with advanced mechanical structures and high-quality materials, ensuring stability and safety during the lifting process. It is also equipped with a precise control system, allowing operators to accurately manipulate the crane’s movements, achieving smooth lifting, moving, and placing of the cargo. Whether in logistics warehouses, construction sites, or other places where frequent cargo handling is required, the Foton 4.5 Tons Side Lifter Crane plays a crucial role with its excellent performance and practical design.

FEATURES

Foton 4.5 Tons Side Lifter Crane is a robust and versatile piece of heavy machinery designed for efficient lifting and transportation of heavy loads. Here are its key features:

Engine and Performance: Powered by a 2.8L, 4-cylinder diesel engine, the crane delivers a maximum torque of 172 Nm at 2,200 rpm. This ensures it has the necessary power to handle heavy lifting tasks.
Transmission: It comes with a 5-speed manual transmission, providing the operator with control over the crane’s movement and lifting operations.
Dimensions and Capacity: With a length of 6,010 mm, width of 1,990 mm, and height of 2,280 mm, the crane is designed for maneuverability and stability. It has a ground clearance that allows it to navigate various terrains, though the exact measurement is not specified.
Safety and Security: The crane is equipped with essential safety features such as Anti-lock Brake System (ABS) and Electronic Brake Distribution, ensuring safe operation. It also includes an immobilizer and security alarm for added security.
Comfort and Convenience: The cab is equipped with air-conditioning for operator comfort, and it features a push-start button for convenience. The entertainment system includes an AM/FM radio with CD player and MP3 connectivity.
Lifting Specifications: As a side lifter crane, it is designed to lift and move loads laterally. While specific lifting height and radius are not detailed in the provided information, such cranes are typically engineered for high lifting capacities and reach.
Fuel Efficiency: The crane runs on diesel and has a fuel capacity of 70.0 L, though the combined fuel consumption is not specified.
Construction and Design: The crane is built with durability in mind, featuring a robust construction that can withstand the rigors of heavy lifting and transportation.
Operational Features: It offers a 360° rotation for versatile lifting angles and a straight crane specification that allows for efficient use of space during lifting operations.

The Foton 4.5 Tons Side Lifter Crane is an ideal choice for construction sites, warehouses, and other industrial settings where heavy lifting and side loading are required. Its combination of power, safety features, and operational capabilities make it a reliable asset for heavy-duty lifting tasks.

SPECIFICATIONS

Basic Information
Drive Type	4X2
Wheelbase	2700mm
Type	Truck-mounted Crane
Vehicle Dimensions	5 × 2.098 × 2.65 meters
Gross Vehicle Mass	4.495 tons
Rated Mass	1.8 tons
Front Overhang/Rear Overhang	1.115 / 1.185 meters
Front Tread	1490mm
Rear Tread	1550mm
Engine Parameters
Engine Model	Quanchai Q23 – 132E60
Displacement	2.3L
Maximum Output Power	97kW
Maximum Horsepower	132hp
Emission Standard	China VI
Fuel Type	Diesel
Rated Rotational Speed	3000rpm
Engine Brand	Quanchai
Cargo Box Parameters
Cargo Box Length	2.6 meters
Cargo Box Width	1.9 meters
Cargo Box Height	0.4 meters
Mounted Equipment Parameters
Mounted Equipment Brand	Shenbai Heavy Industry Brand
Crane Model	SQS25
Lifting Capacity	1 ton
Self-weight of Crane	0.57 ton
Cab Parameters
Cab	Single Row
Transmission Parameters
Transmission Model	5-speed Transmission
Number of Gears	5-speed
Chassis Parameters
Chassis Brand	Foton Aoling
Chassis Series	Aoling M Card
Chassis Model	BJ1044V9JB4 – AA1
Number of Leaf Springs	3 / 5 + 3
Frame Size	140(4 + 5)mm
Gear Ratio	4.875
Tires
Number of Tires	4
Tire Specification	6.50R16LT 10PR / 235 / 75R17.5 14PR
Control Configuration
ABS Anti-lock	Standard Equipment
Clutch Assist	Standard Equipment
Power Steering	Standard Equipment
Internal Configuration
Reverse Radar	Optional Equipment
Remote Key	Standard Equipment
Electronic Central Locking	Standard Equipment
Multifunctional Steering Wheel	Standard Equipment
Air Conditioning Adjustment Form	Manual
Power Windows	Standard Equipment
Power Outlet	Standard Equipment
Multimedia Configuration
External Audio Source Interface (AUX/USB/iPod, etc.)	Standard Equipment
Radio	Standard Equipment
Lighting Configuration
Front Fog Lights	Optional Equipment
Headlight Height Adjustment	Standard Equipment
