BRIEF

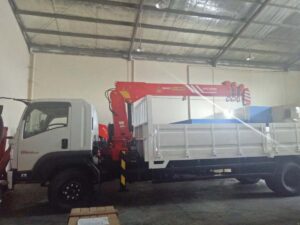

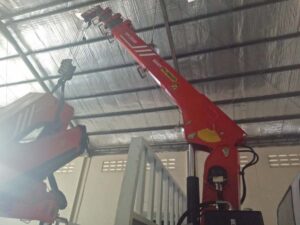

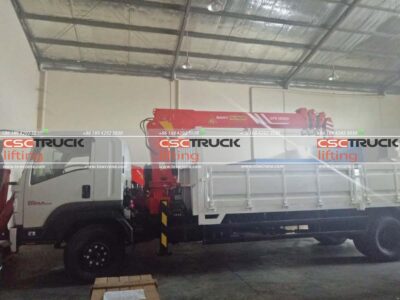

The PALFINGER 5-ton telescopic boom crane superstructure is a high-performance hydraulic lifting solution designed to meet the demands of medium-duty lifting operations. Combining powerful lifting capability with a compact and space-efficient structure, it delivers reliable performance across a wide range of applications.

Engineered with an advanced telescopic boom system and a robust hydraulic setup, the loader crane enables precise, smooth, and efficient lifting—even in confined or complex working environments. Its design allows seamless integration onto various truck platforms, making it an ideal choice for mobile operations in logistics, construction, equipment handling, and municipal services.

With its 360° continuous slewing capability and extended working reach, the telescopic boom crane enhances operational flexibility while minimizing the need for repositioning. This not only improves job-site efficiency but also reduces overall operational costs. Altogether, the PALFINGER 5T crane offers a balanced combination of power, versatility, and cost-effectiveness for modern lifting needs.

FEATURES

• Advanced Proportional Hydraulic System

Equipped with a sensitive and stable proportional hydraulic control system, the crane ensures smooth, precise movements. Operators can perform multiple functions simultaneously, significantly improving efficiency and control during complex lifting tasks.

• High-Strength Octagonal Boom Design

The octagonal boom profile enhances structural strength and rigidity compared to traditional designs. This results in better load stability, reduced deformation, and improved overall lifting performance.

• Durable High-Tensile Steel Construction

Built with high-grade steel (HG785 / SC960), the crane offers exceptional strength while maintaining a relatively lightweight structure. This allows it to withstand higher stress and extend service life under demanding working conditions.

• Intelligent Engineering & Digital Optimization

The crane structure is developed using advanced digital simulation and engineering analysis. This ensures optimal balance between safety, reliability, and weight efficiency, delivering a highly refined and dependable product.

• High-Pressure Filtration System

A high-quality hydraulic filtration system protects internal components from contamination, ensuring consistent performance and extending the lifespan of the hydraulic system.

• Automatic Hook Retraction System

The automatic hook retraction function improves safety during transport by stabilizing the hook position. It also protects the wire rope and maximizes available cargo space on the truck.

• 360° Continuous Slewing for Flexible Operation

Full rotation capability allows the crane to operate efficiently in confined or complex environments without repositioning the vehicle.

• Extended Working Range for Higher Productivity

With a long outreach and lifting height, the crane covers a larger working area, reducing downtime and increasing operational efficiency.

• Compact Yet Versatile Design

The telescopic boom structure ensures excellent reach when deployed while maintaining a compact footprint when folded, making it ideal for truck-mounted applications.

SPECIFICATION

Item	Specification
Condition	Brand New
Shipping Size	40HC Container
Shipping Weight	2370 kg
Brand	PALFINGER
Max Lifting Moment	12.5 mt / 122.5 kN·m
Max Lifting Capacity	5,000 kg (at 2.5 m)
Max Hydraulic Outreach	9 m
Slewing Angle	360° Continuous
Max Lines of Hook	4
Boom Raising Angle	0° – 75°
Max Lifting Height	11.1 m
Boom Length	4.2 – 9.3 m
Boom Sections	3
Outrigger Span (Fully Extended)	5100 mm
Recommended Flow Rate	55 L/min
Operating Pressure	23 / 25 MPa
Recommended Oil Tank Capacity	100 L
