BRIEF

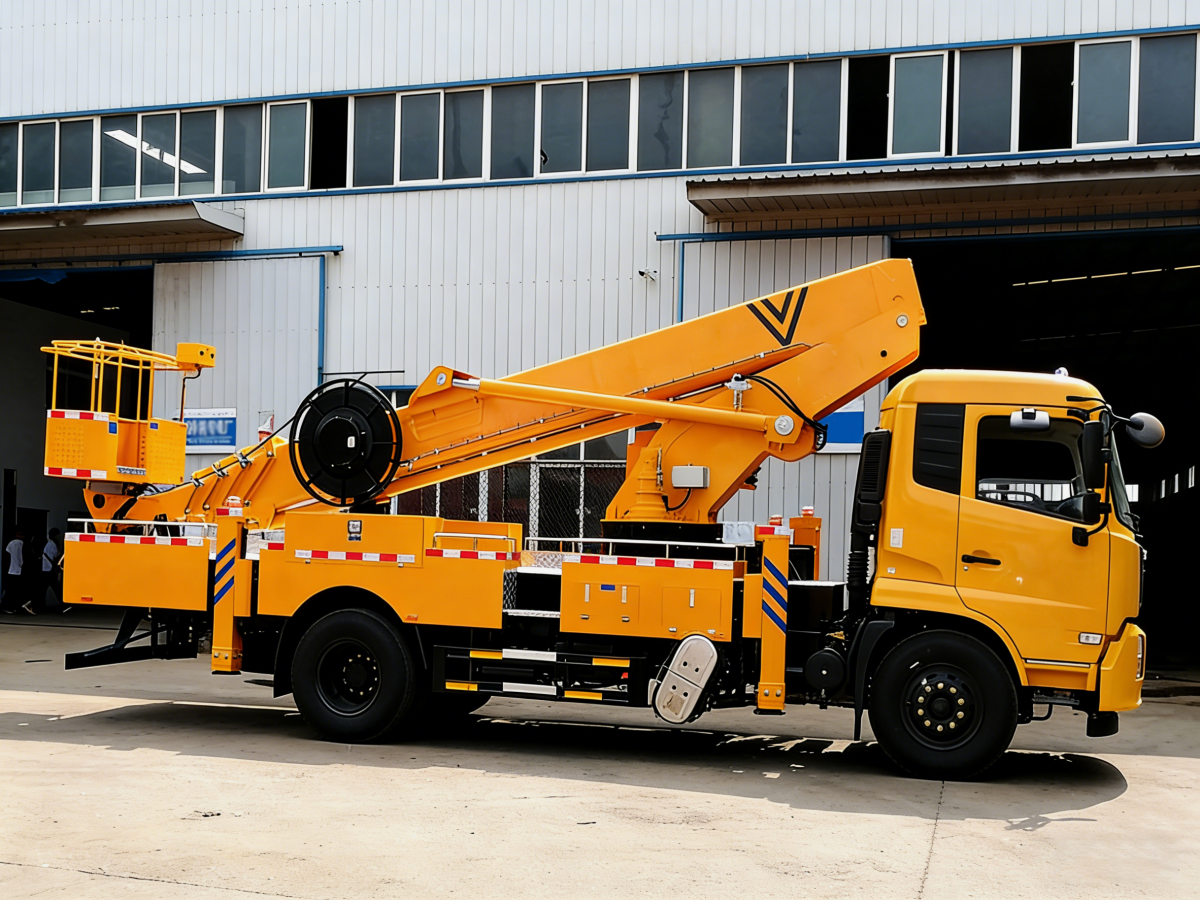

The SHACMAN 28m Telescopic Bucket Truck is a professional high-altitude working vehicle designed for demanding tasks in construction, utilities, and maintenance. Combining a robust SHACMAN chassis with an advanced telescopic boom system, this bucket truck delivers exceptional reach, stability, and operational efficiency.
Its 28-meter maximum working height and 360° rotation capability allow operators to perform tasks safely and efficiently in tight or complex environments. Built for durability, ease of use, and reliable performance, the Telescopic Bucket Truck is ideal for street lighting maintenance, power line work, building repairs, and other high-altitude operations.
FEATURES
- Exceptional Reach & Versatility
- 28-meter working height with 360° boom rotation
- Long horizontal reach for hard-to-access areas
- Suitable for diverse applications, from construction to utilities
- Smooth & Stable Telescopic Boom
- Multi-section telescopic boom ensures precise positioning
- Stable lifting performance reduces vibration at height
- Enables safe operation even in windy or uneven conditions
- Robust & Reliable Chassis
- SHACMAN chassis designed for heavy-duty performance
- Strong engine torque supports extended operations
- Durable suspension and drivetrain handle long-distance travel with load
- Advanced Safety Systems
- Automatic leveling system and outriggers for maximum stability
- Emergency stop and interlock systems prevent accidents
- Boom movement limits and safety alerts protect operators
- User-Friendly Operation
- Remote and manual control options for flexibility
- Intuitive control layout reduces learning curve for operators
- Quick deployment minimizes setup time and increases productivity
- Designed for Efficiency & Low Maintenance
- Hydraulic and mechanical systems engineered for reliability
- Easy access to service points for regular maintenance
- Reduced downtime and operational costs over the vehicle’s lifecycle
SPECIFICATION
| ITEM | PARAMETER |
|---|---|
| Chassis Model | SX5185GSSE2Y15J3810 |
| Drive Type | 4×2, LHD |
| G.V.W | 8500 kg |
| Engine | YC / YC4D150-50 |
| Displacement | 4.214L |
| Output Power | 110kW (150 HP) |
| Type | 4-Cylinder in-line, Diesel engine |
| Max. Output Torque | 500N.m |
| Transmission | FAST / C6155T; 6F&1R, Manual |
| Cabin | SHACMAN / X9 1995; Sleeper cab, 3 seats, Air Conditioner |
| Front Axle | Steering axle, 2500kg |
| Rear Axle | Driving axle, 6000kg |
| Rim/Tire | 7.50R16/14PR, 6 tyres + 1 spare tyre |
| Wheel base | 3800mm |
| Color | Standard |
| Fuel tank | 130L |
| Suspension | Front and rear reinforced, multi-leaf springs 9/11+8 |
| Emissions | EURO 5 |
| Superstructure | CSCTRUCK/TBT28 |
| Bucket Rated Capacity | 200kg |
| Max Working Height | 28m |
| Max Working Radius | 5m at Max. Working Height |
| Max Working Radius | 19m |
| Bucket Size | 1600×730×1000mm, Stainless steel, customizable |
| Outrigger Span (Lateral) | 5100mm |
| Outrigger Span (Longitudinal) | 5000mm |
| Platform Swing Angle | 360° |
| Boom Type | Telescopic boom |
| Boom section | 6 |
| Outriggers | Front V & Rear H, 2-stages |
| Control | Manual, Remote Control |
| Leveling System | Hydraulic Automatic Leveling |
| Safety | Stop Work in False Support Area, Automatic Interlocking Device, Emergency Stop Device, Automatically Limit Outreach,
Vehicle Leveling State Tester, Engine Ignition Stalls, Force Operation Function |
