BRIEF

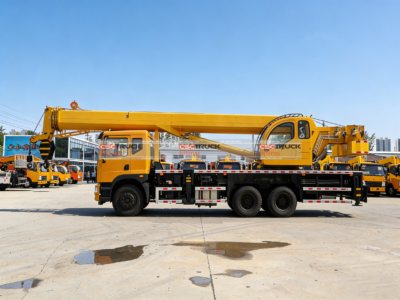

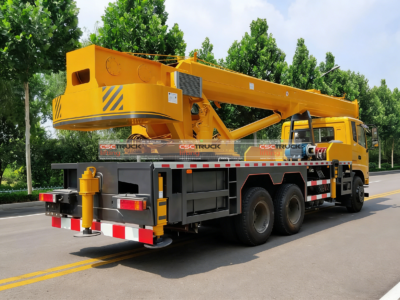

The SINOTRUK HOWO 25 Ton Crane Truck is a versatile and powerful lifting solution designed for demanding construction, infrastructure, and industrial operations. Built on a robust HOWO 6×4 chassis and equipped with a high-performance crane system, it delivers excellent lifting capacity, extended reach, and reliable performance across various working environments.

With its advanced hydraulic system, enhanced stability, and operator-friendly design, this crane truck ensures safe, efficient, and precise lifting operations, making it an ideal choice for both urban and off-road applications.

FEATURES

1. Reliable HOWO 6×4 Chassis for Tough Conditions

Built on a SINOTRUK HOWO 6×4 chassis with a 440 HP engine, the truck offers strong power and excellent mobility, making it suitable for construction sites, rough terrain, and long-distance transportation.

2. Powerful Lifting Capacity for Heavy-Duty Operations

With a maximum lifting capacity of 25 tons, this crane truck is designed to handle demanding lifting tasks such as heavy equipment installation and structural construction. It delivers reliable performance even under high-load conditions.

3. Extended Working Height and Outreach

Featuring a maximum lifting height of 42 meters and a working radius of 24 meters, the crane provides excellent coverage, allowing operators to complete more tasks without repositioning the vehicle.

4. Efficient and Smooth Hydraulic Performance

Equipped with a high-performance hydraulic system, the crane ensures smooth and precise movements. The fast hoisting speed of up to 120 m/min improves working efficiency and reduces operation time on site.

5. Enhanced Stability for Safe Lifting

The optimized outrigger design, with a wide span of up to 7000 mm, provides strong support and balance during lifting operations, ensuring safety even in challenging working environments.

6. Precision Control with Flexible Boom Design

The multi-section boom design allows flexible operation and precise positioning, making it easier to handle complex lifting tasks in confined or hard-to-reach areas.

7. Operator-Friendly and Safe Operation

The crane is equipped with an operational control cabin and a load moment indicator (LMI), helping operators monitor lifting conditions in real time and ensuring safe, controlled operations.

8. Durable Design with Low Operating Cost

With robust construction, a 400L fuel tank for extended working hours, and high-quality components, this crane truck minimizes downtime and maintenance costs, delivering long-term value for users.

SPECIFICATION

Category	Item	Specification
General	Chassis Model	ZZ1257V464JE1
	Drive Type	6×4
	Cabin	H77L with one sleeper, A/C
Engine & Power	Engine Model	MC11.44-50
	Horsepower	440 HP
	Emission Standard	EURO 5
Transmission	Transmission	HW25712XACL (AMT)
	Gearbox	12 forward + 2 reverse
Fuel	Fuel Type	Diesel
	Fuel Tank	400 L
Structure	Frame	Double layer (8+8+8 mm)
	Front Axle	7.5 Ton
	Rear Axle	13 Ton × 2
	Suspension	10/12
	Tire	315/80R22.5
Crane	Crane Model	CSCTRUCK TBC25
	Max Lifting Capacity	25,000 kg
	Max Lifting Height	42 m
	Max Working Radius	24 m
	Boom Sections	8 sections
	Slewing Speed	0–2 rpm
	Main Winch Speed	120 m/min
	Auxiliary Winch Speed	110 m/min
	Hydraulic System	Manual hydraulic pump
Outrigger	Outrigger Span (Horizontal)	5650 mm
	Outrigger Span (Vertical)	7000 mm
Safety & Control	Safety System	Load Moment Indicator (LMI)
	Operation System	Control cabin
