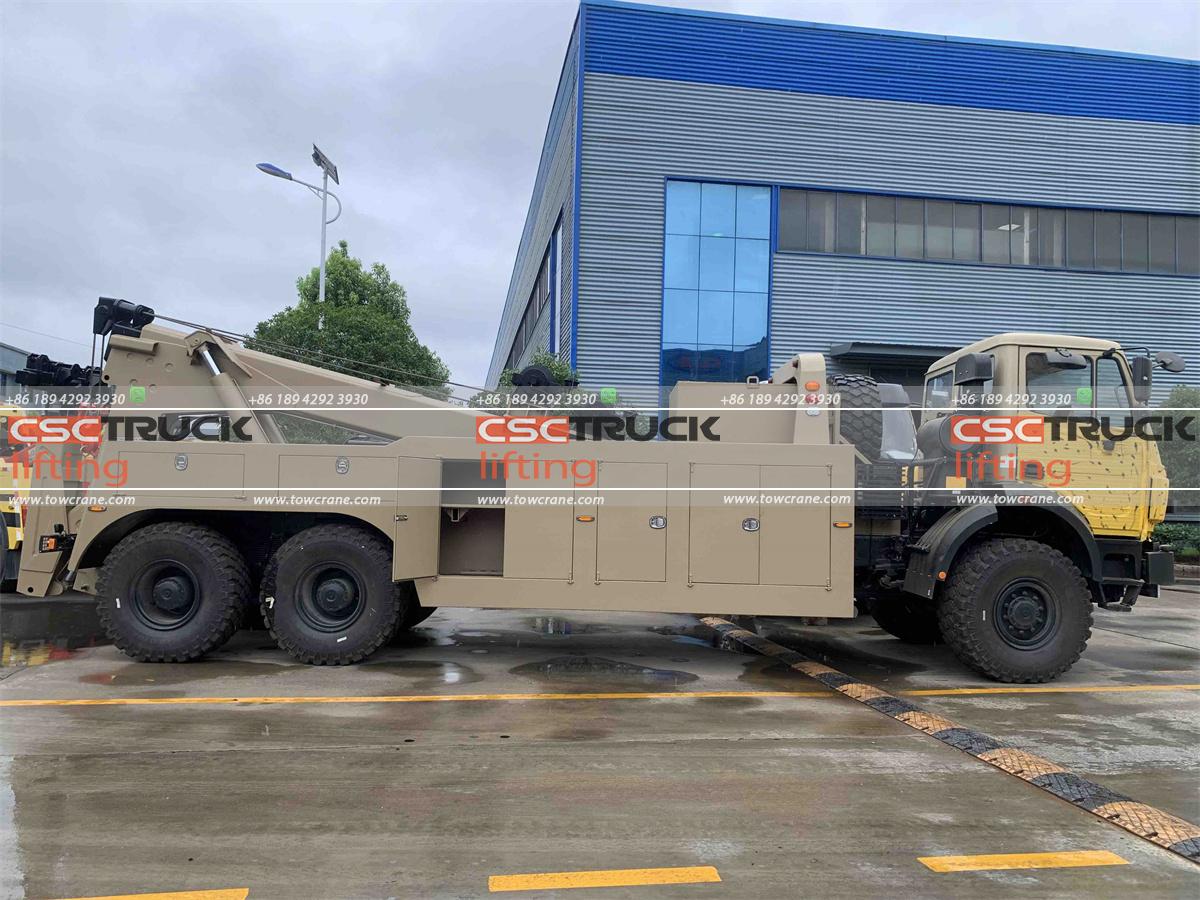

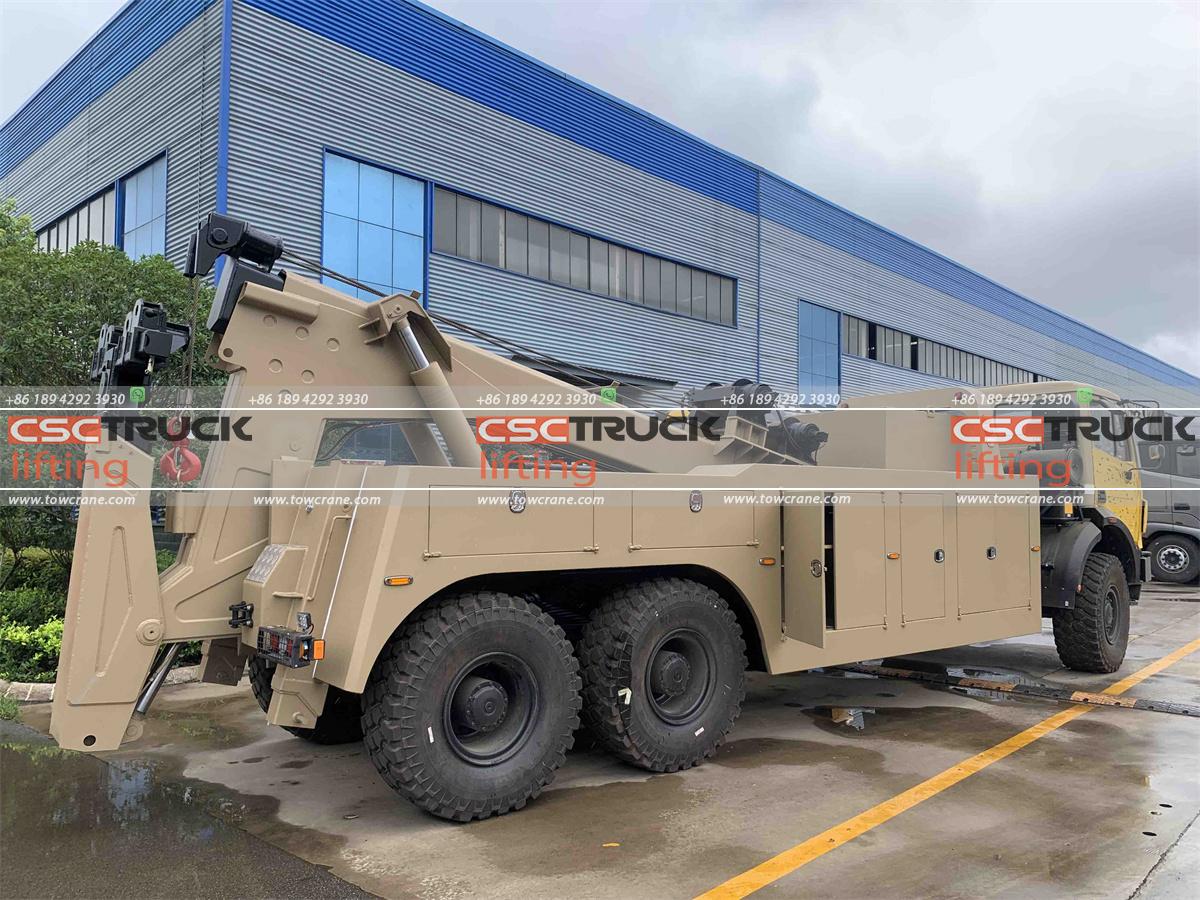

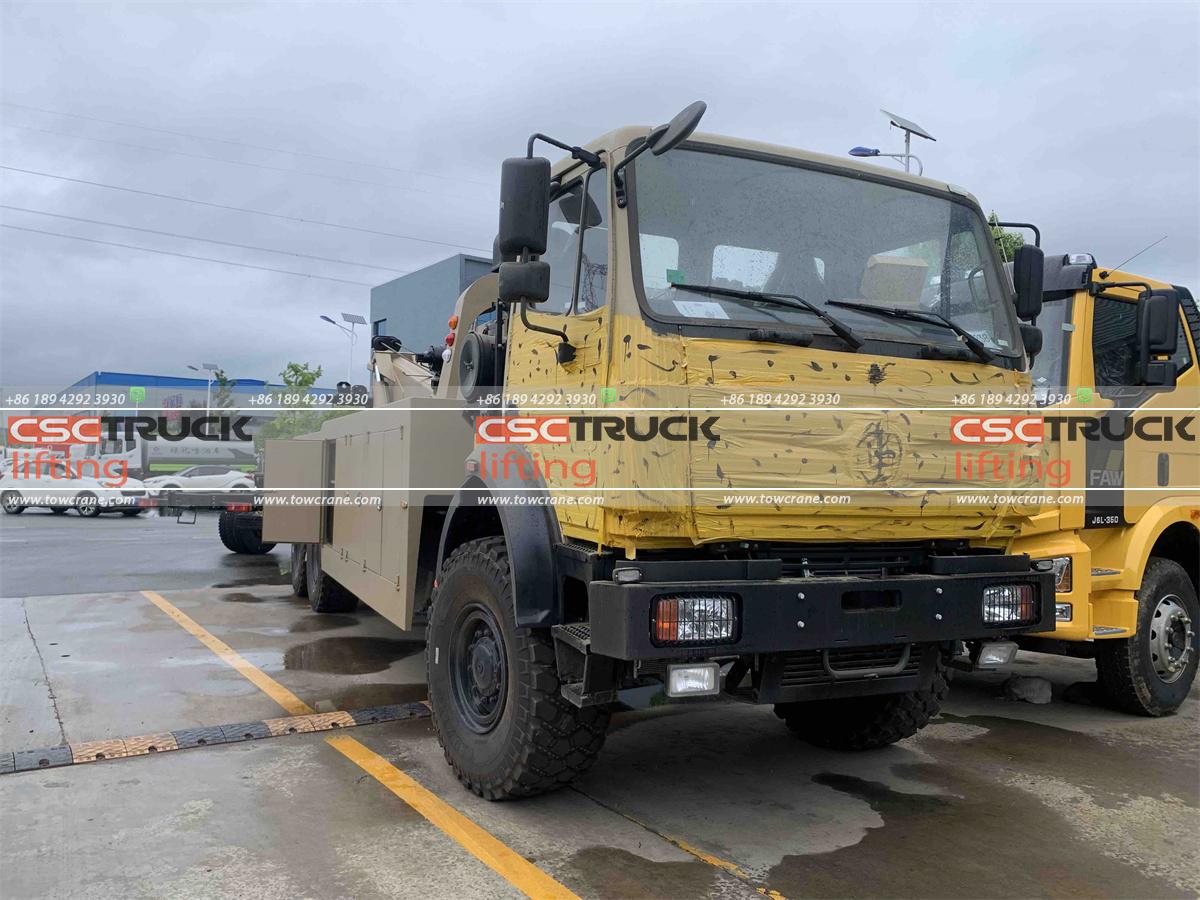

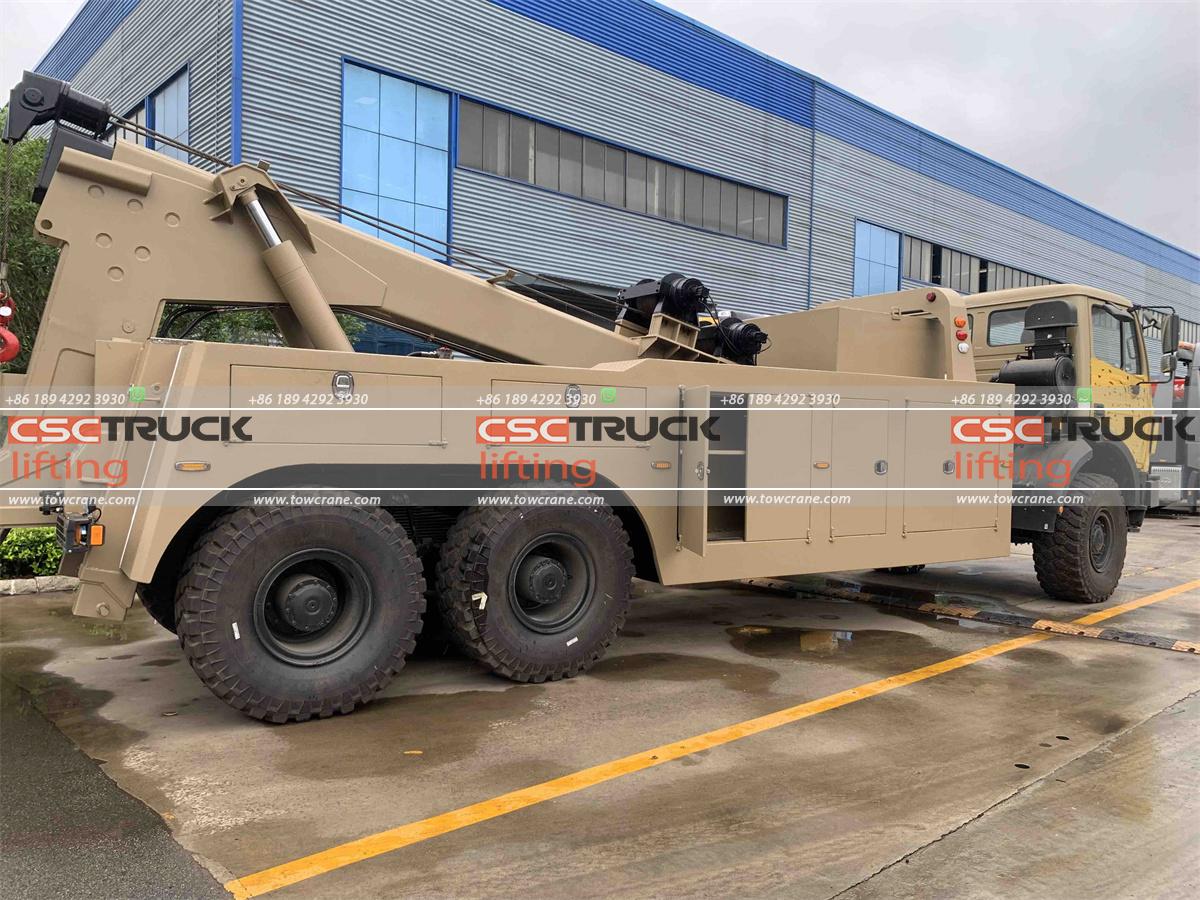

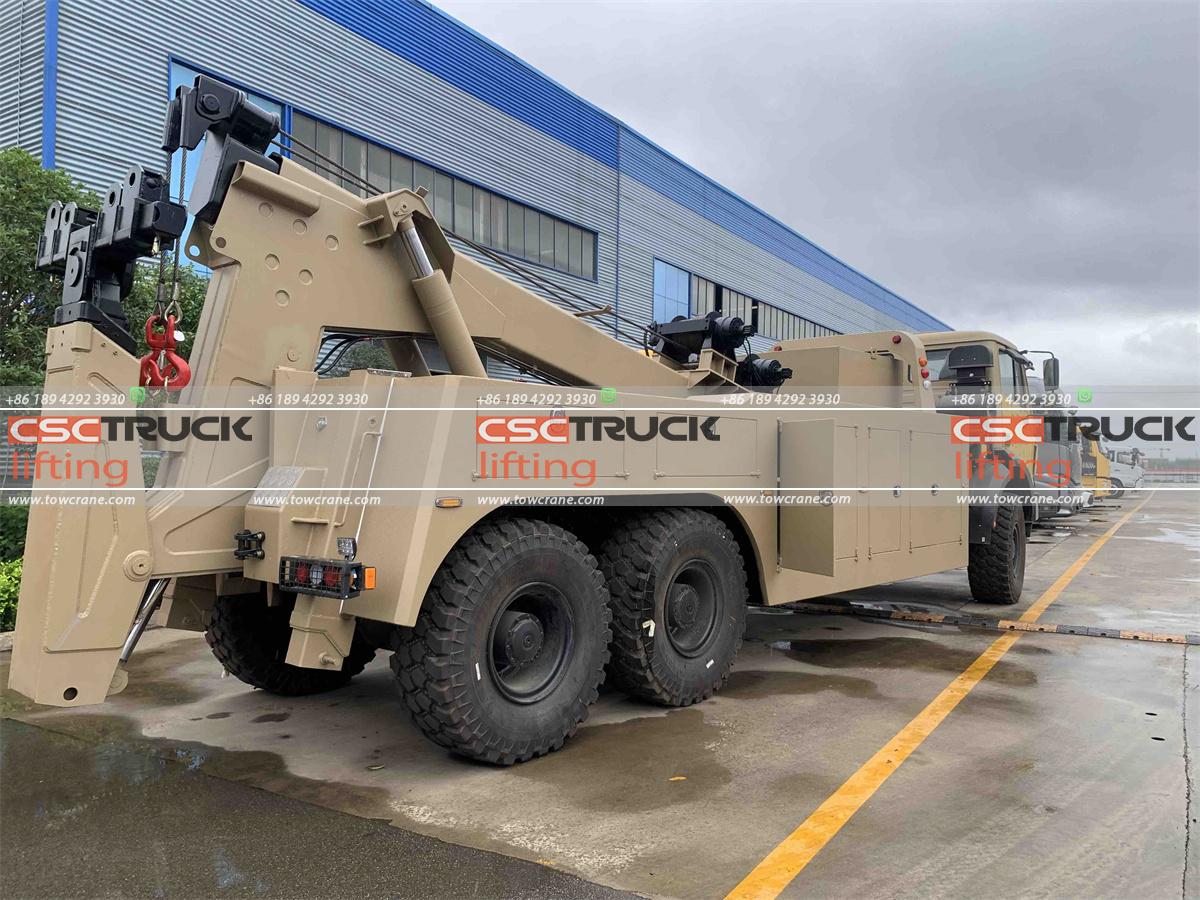

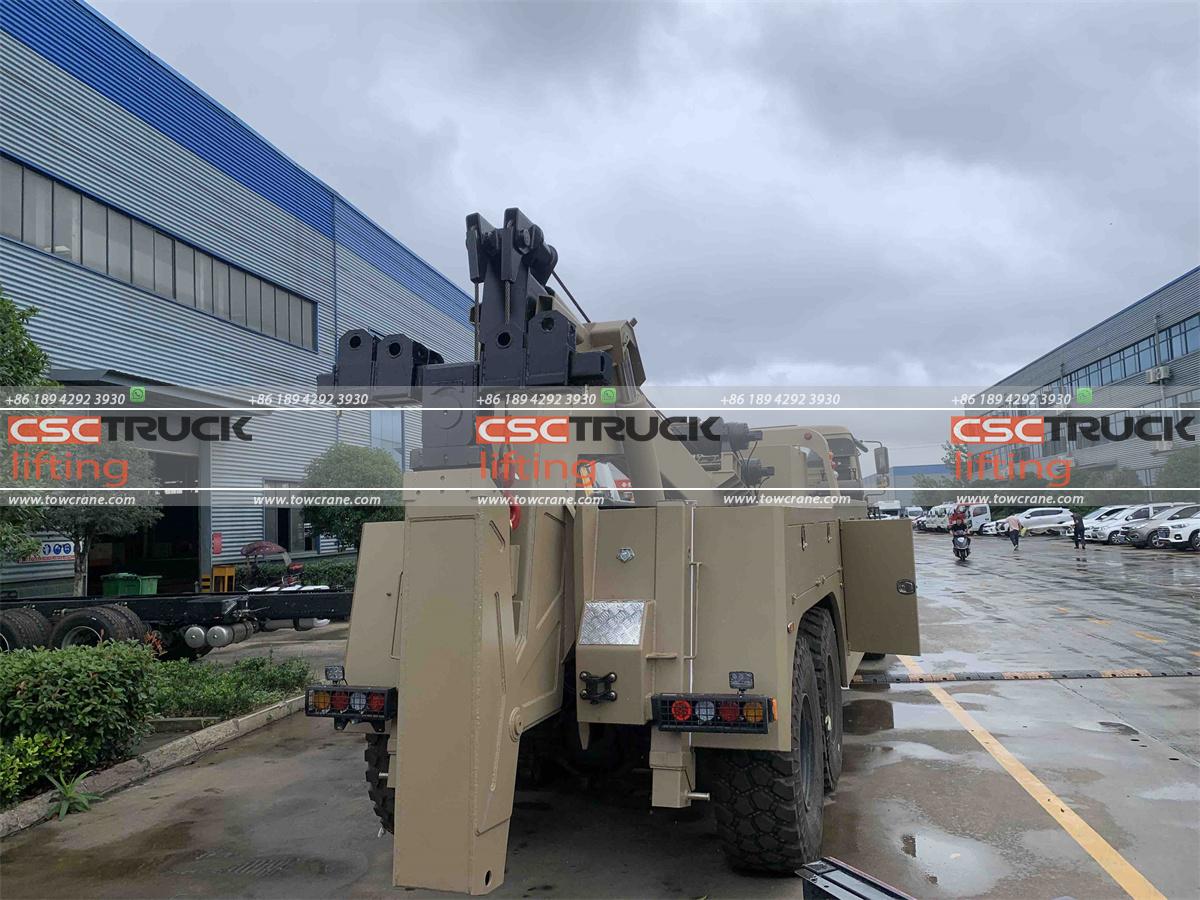

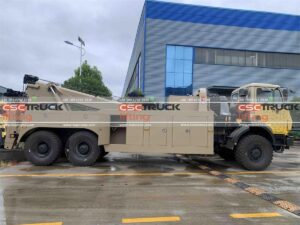

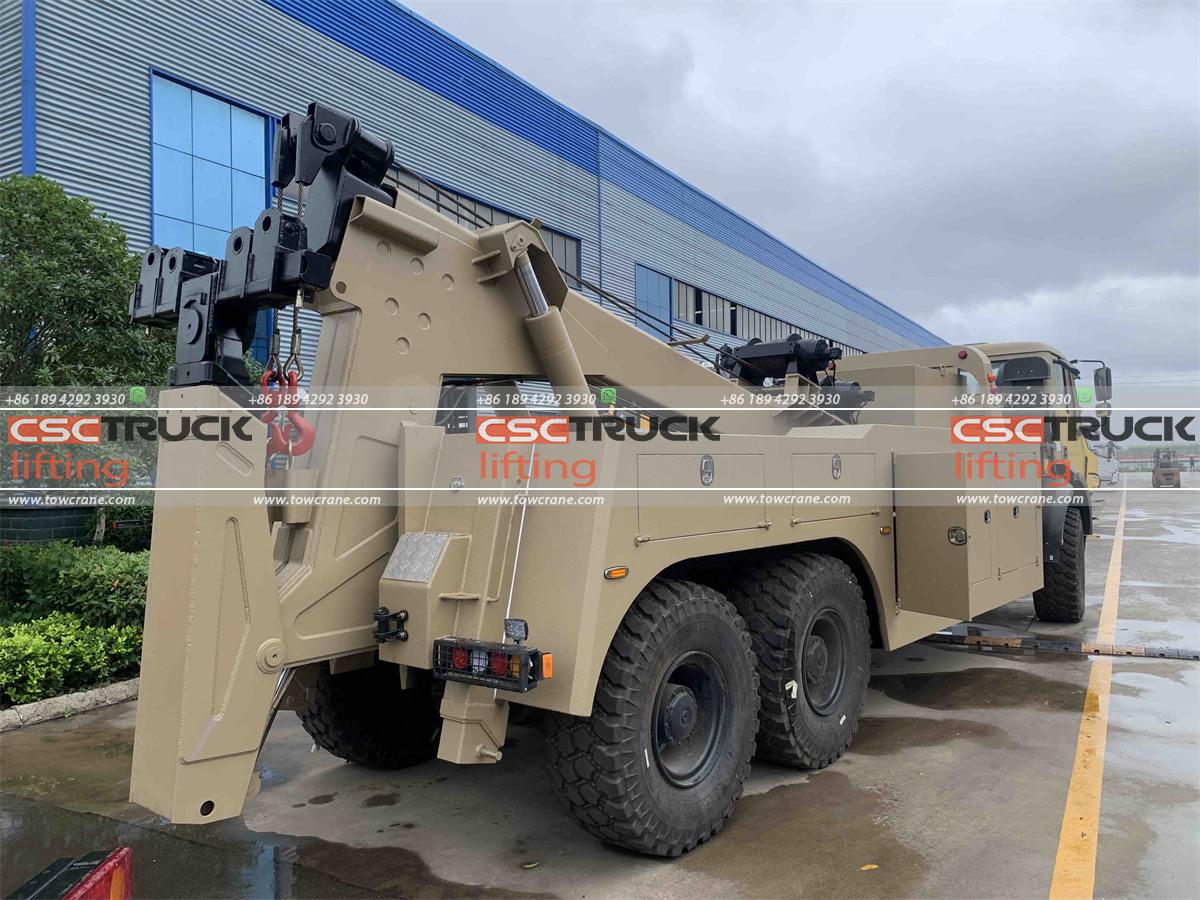

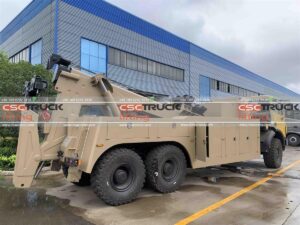

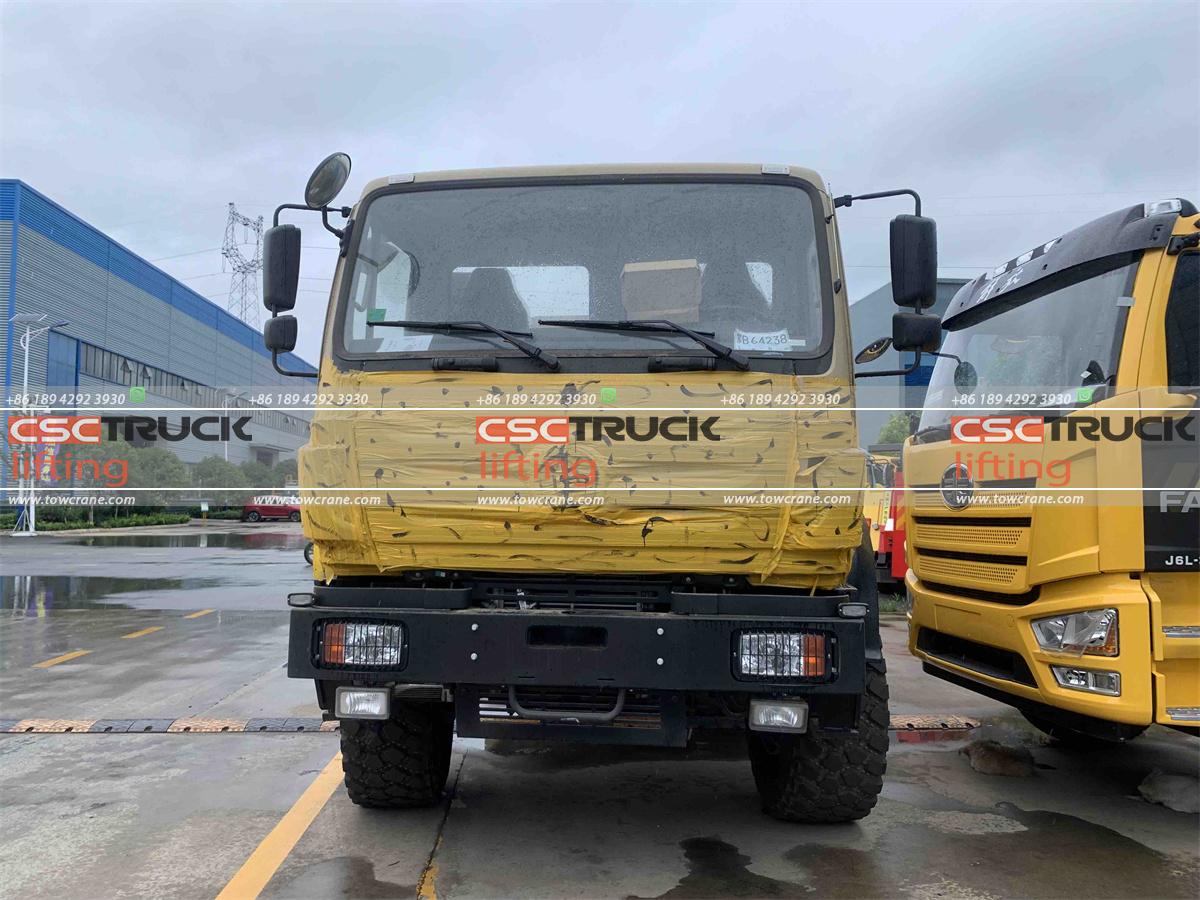

BEIBEN 35Ton Integrated Tow Truck with Side Puller

SUMMARY

The BEIBEN 35Ton Integrated Tow Truck with Side Puller presents a remarkable fusion of power, versatility, and advanced technology. Designed to excel in various towing scenarios, its specifications and features underscore its commitment to efficiency and performance. From a robust engine to advanced suspension systems, this tow truck is primed to tackle challenges with precision and power.

The tow truck’s features collectively exemplify its dedication to performance, functionality, and versatility. It stands as a dependable partner for towing operations across a spectrum of scenarios, showcasing innovation and excellence in the towing industry.

FEATURES

Izvi Yakabatanidzwa Tow Truck‘s impressive features span multiple categories, each contributing to its exceptional performance:

Powerful Engine and Performance:

• Engine: A robust six-cylinder, turbocharged Diesel engine from Weichai Power Technology.
• Output: Generates 250Kw (340HP) at 2200rpm and 1250Nm of torque at 1400-1600rpm.
• Emission Standard: Complies with Euro 3 for an environmentally friendly operation.

Mechanical Excellence and Handling:

• Gearbox: Fuller Eaton technology provides 9 forward gears and 1-speed reverse, equipped with synchronizers for smooth transitions.
• Steering System: ZF Technology-designed system for precise control and handling.
• Suspension: Benz Technology’s circulation ball, hydraulic boosting suspension system with shock absorbers and stabilizer bar for a comfortable ride.

Advanced Chassis and Suspension:

• Chassis: Constructed with a robust fish belly-shaped frame with variable width.
• Suspension: Non-free standing 13 pcs leaf spring suspension on both front and rear for optimal load distribution and ride comfort.

Wrecker Body and Capabilities:

• Wrecker Body: Equipped with a mechanical body for efficient functionality.
• Underlift: Offers a 16-ton fully retracted and a 6.8-ton fully extended capacity.
• Boom System: Advanced boom system with 35-ton retracted and 15-ton extended ratings, featuring maximum angles of 41° for precision.

Winches and Pulling Power:

• Winches: Two planetary winches with a 17.5-ton rating of pulling force each.
• Kuvaka: Ductile casting casing with hub redactor for durability and reliability.
• Cable: 19 mm by 60 m cable for secure grip on heavy loads.

Enhanced Functionality and Safety:

• Side Puller: X-shaped side puller for added control and stability.
• Hydraulic Pivoting Stiff-Leg: Integrated technology for precise maneuvering and positioning.
• Winches: Two 15-ton winches provide versatility and reliability in complex towing situations.



SECIFICATIONS

Measurements					Electrical system
Wheelbase		4450+1450 mm			Battery		2×12V/165Ah
Overall Size		9840×2495×3260mm			Generator		28V-70A
Speed		≤80km/h			Starter		5.58Kw/24V
Front/rear overhang		1435/2505mm			Brake System
Tare Weight		17000kg			Service brak		Auto-adjusted, dual-air brake
GVW		33000kg			Assistant brake		Engine exhaust brake
Engine		Weichai Power Technology			Park brake		Spring energy on all wheels
Make/Model		WEICHAI/WP10.340E32			Cab		Benz Technology
Type		6 cylinders, turbocharged Diesel			Make/Model		BEIBEN/NG80B
Rated Power/Speed		250Kw(340HP)/2200rpm			Type		Day, short cab With inner A/C
Output Torque/speed		1250Nm/1400-1600rpm			Kuvaka		Full steel, covered 2-layer steel
Displacement		9.726L					Tipped forwardly
Emission Standard		EURO 3			Interior		Integral interior, instrument
Fuel tank capacity		400L Iron					Digital instrument (radio, USB, MP3)
Clutch					Seats		High/shock absorption, driver
Make/Model		#430, Single dry, Hydraulic boosting			Steering wheel		Adjustable, Right-hand drive
Gearbox		Fuller Eaton technology			Exterior		Steel bumper,3 steps, Sunvisor
Make/Model		FAST/9JS150A			WRECKER BODY
Type		Mechanical			Underlift
Gear Numbers		9 Forward, 1-speed reverse			Fully Retracted			16 ton
Synchronizer		Equipped			Retracted Distance			2135 mm
PTO		QH50, Flange, Side mounted			Fully Extended			6.8 ton
Steering System		ZF Technology			Extended Distance			3773 mm
Make/Model		ZF/8098			Tilt Angle			-13°
Type		Circulation ball, hydraulic boosting			Tilt Angle			20°
Suspension System		Benz Technology			Tow Rating			36 ton
Front/Rear Suspension		Non-free standing 13 pcs leaf spring			Boom
		Shock absorber with stabilizer bar			Boom Rating Retracted			35 ton
Chassis Frame		Fish belly shape, variable width			Boom Rating Extended			15 ton
Cross-Sectional		317×70×8.5+7+8.5 mm			Maximum Angle			41°
Front axle		Benz Technology			Hook Height			5117 mm
Type		Double-shoe pneumatic brake, steering axle			Reach Past Tailboard			1853 mm (73”)
Rating		7.5 ton			Winch
Rear axle		Benz Technology			Winch Quantity			2 pcs
Make/Model		BEIBEN/ HD7/016DGS-13 HL7/015DS-13			Rating Pulling Force			17.5 ton
Type		Double-shoe pneumatic brake,			Winch Type			Planetary
		ductile casting casing with hub redactor			Cable Length			19 mm x 60 m
		double reduction driving axle			X-shape side puller
Rating		13matani			Type		Hydraulic Pivoting Stiff-Leg
Ratio		5.263			Winches		2 nos of 15-ton Winches
