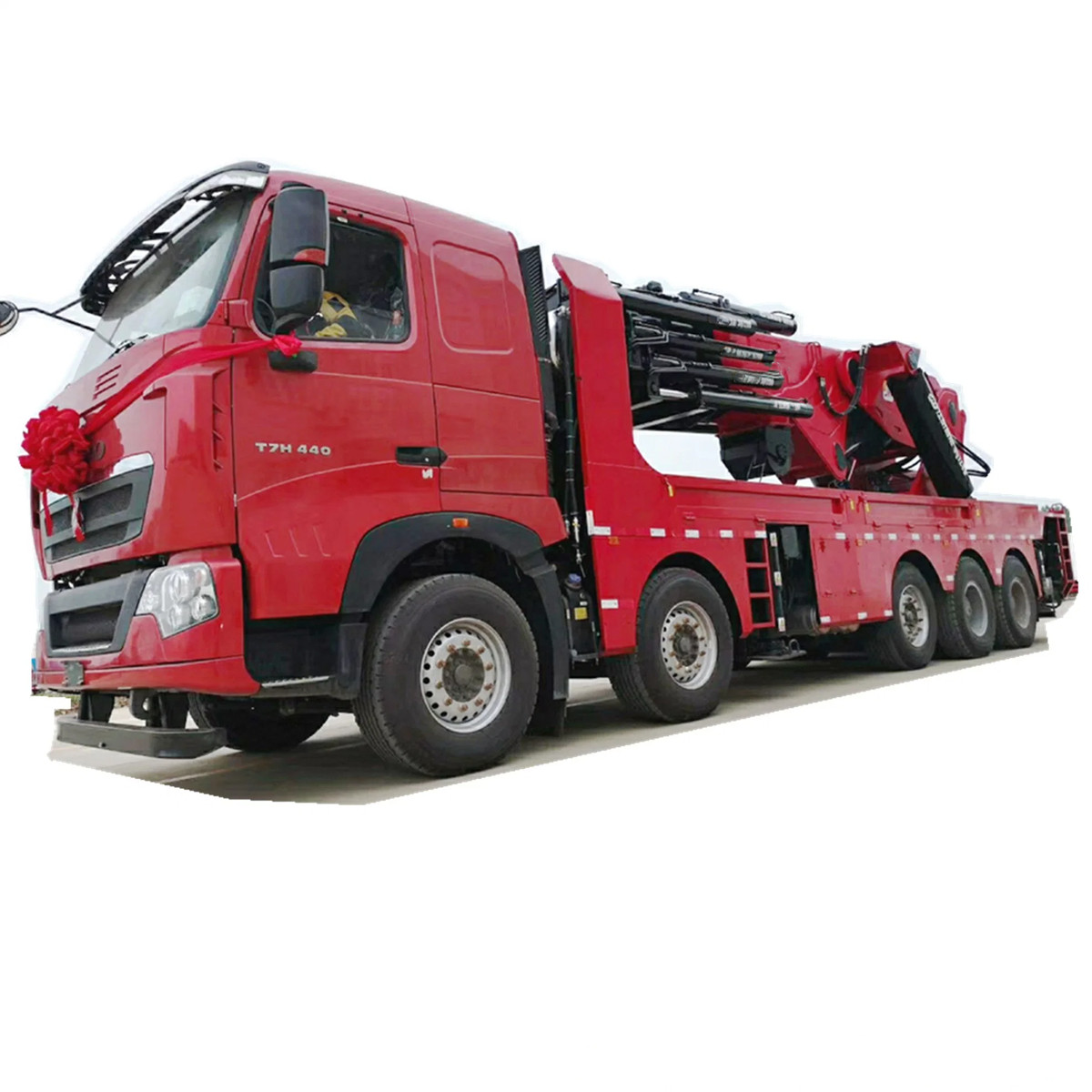

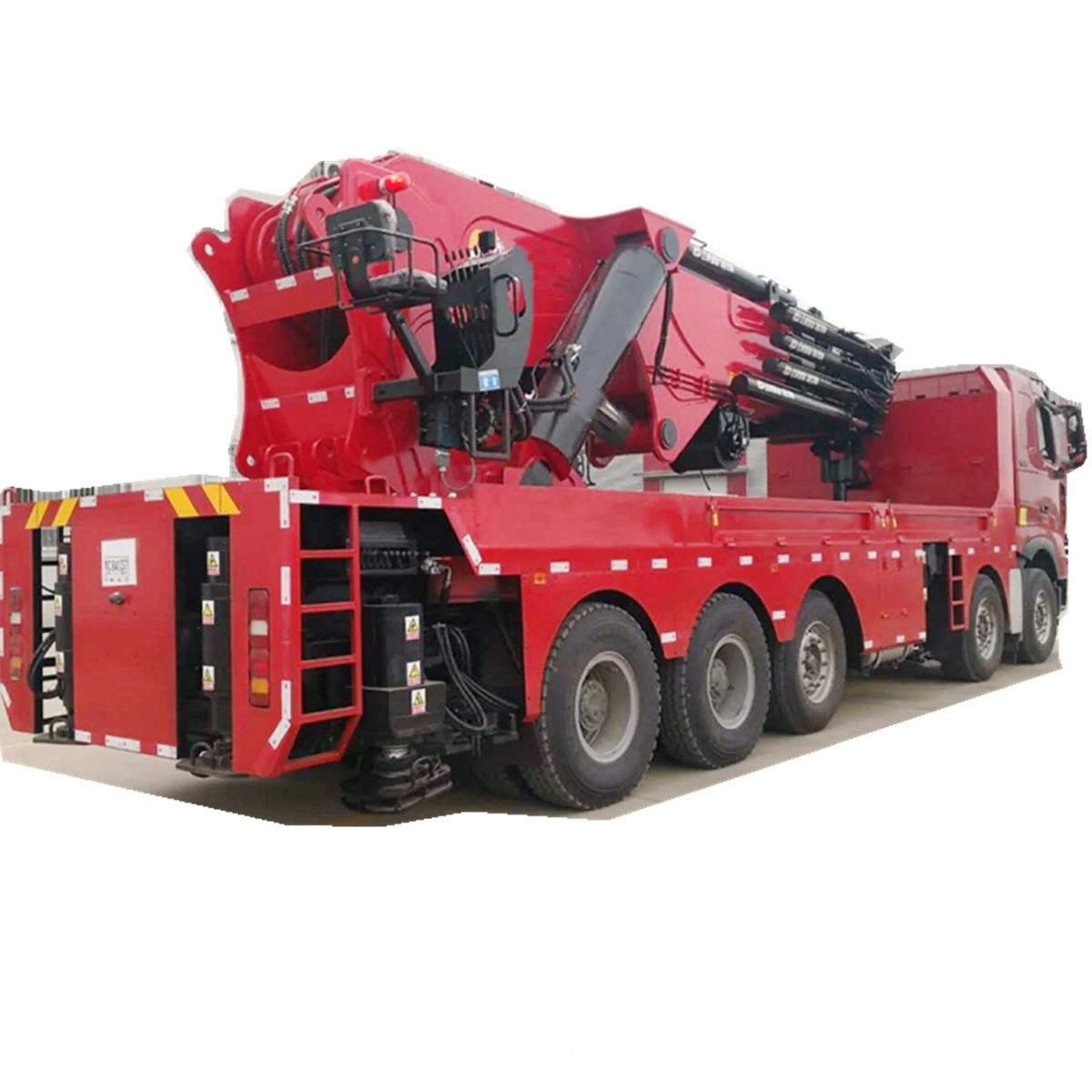

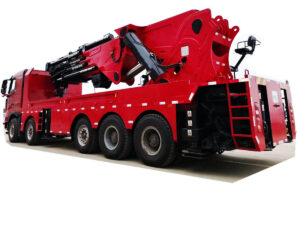

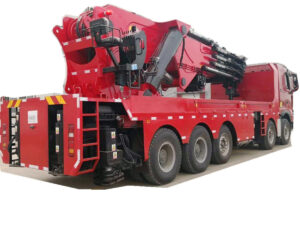

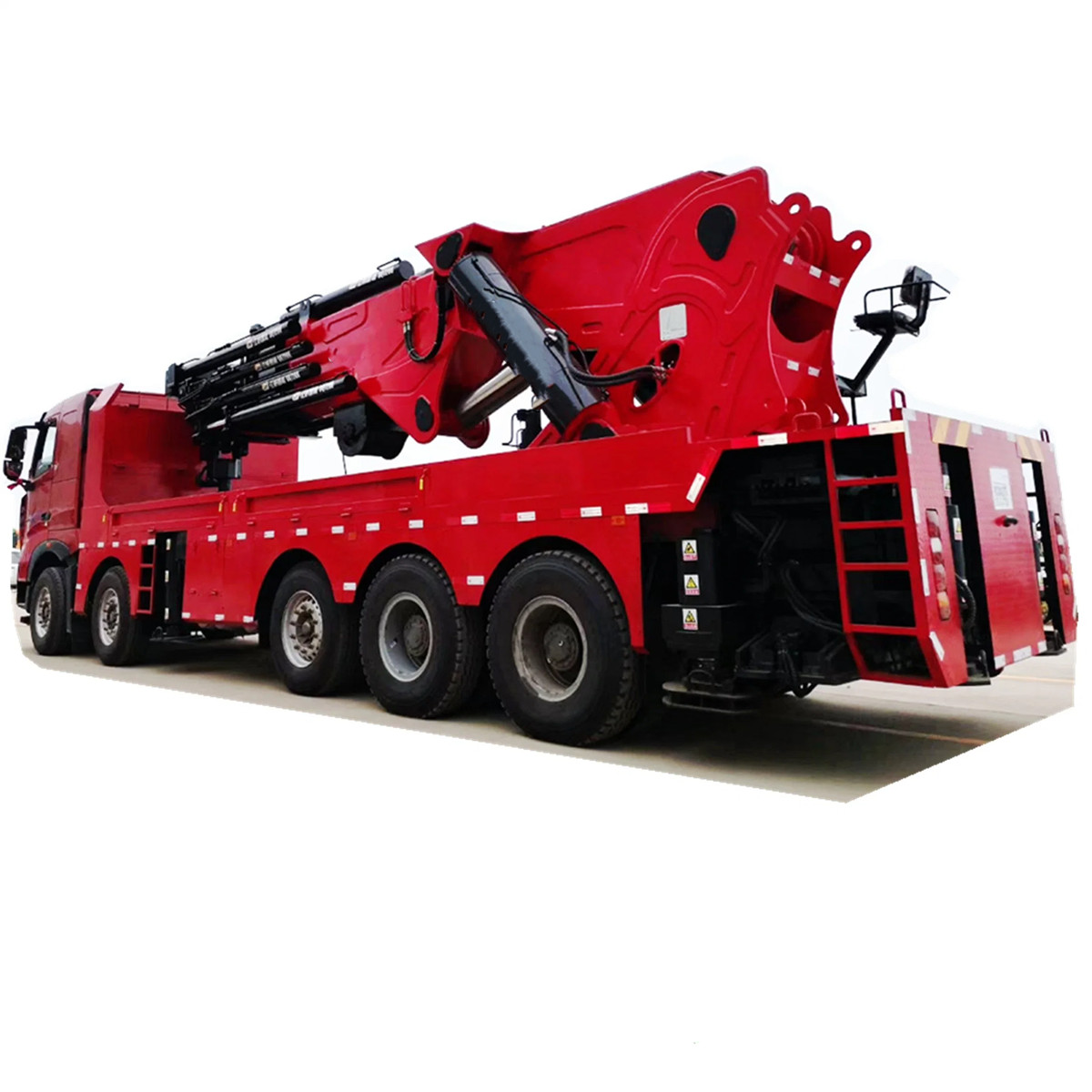

HOWO 360 Ton Knuckle Truck Mounted Crane

Brief:

The HOWO 260 Ton Truck Mounted Super Knuckle Boom Crane is a powerful and versatile lifting solution designed to handle heavy loads with ease. With its impressive lifting capacity, extended reach, and advanced safety features, this crane is the perfect choice for a wide range of heavy-duty lifting tasks.

Features:

• Modhi #: SQ5200ZB6 / Knuckle Crane 130ton at 4m
• Max Lifting Moment: 5200 Kn.m
• Max Lifting Capacity:
  • 260,000 kg at 2.0m
  • 75,000 kg at 6.7m
  • 60,000 kg at 8.2m
  • 32,000 kg at 14m
• Max Lifting Height: 17.8 mamita
• Max Working Radius: 15.3 mamita
• Boom Section: 6 stages for enhanced flexibility
• Rotation Angle: Full 360° All Rotation for precise positioning
• Rated Working Pressure: 28 Mpa for efficient hydraulic performance
• Capacity: 130 matani, making it suitable for heavy-duty applications
• Driving Height: 3.45 meters for improved visibility
• Outrigger: 4 hydraulic outriggers with adjustable settings and Hydraulic operating for stability and safety
• Crane Weight: 52,000 kg for a balance of strength and mobility
• Installation Space: 8,000 mm, ensuring compatibility with various vehicles
• Swing Type: Planetary gear reduction for smooth operation
• Safety Device: Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device for enhanced safety during operation
• Options: Aux. Winch, Aux. Boom, Remote Control for added functionality
• Material: HG785D for durability and strength
• Truck for Reference: Dongfeng (other truck brands can be customized)
• Cabin: Kutyaira rudzi: 8×4, Left-hand drive (Right-hand drive type can be customized)
• Ruvara: Optional to suit your preferences
• Mota Zvikuru Zvidimbu: Overall size (L x w x h): 11,950 x 2,500 x 3,800 mm
• Vhiri vhiri: 1,800 + 4,600 + 1,350 mm
• Cargo Body: Dimensions of 6,800 x 2,350 x 500 mm
• Uremu muMGS: GVW: 31,000 kg, Tare Weight: 14,500 kg
• Injini: Type: Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling
  • Simba remagetsi: 371Hp (273kw)
  • Max Torque: 1500N.m
  • Emission standard: Euro Ii
• Max Speed: 102 km / h
• Gearbox: Manual gearbox with 10 forwards & 2 reverses, with PTO
• Tire: 12R22.5 tubeless tire, 13 pieces including one spare tire

Advantages:

1. The material of the truck-mounted crane is made from HG785D international standard high-strength steel, reducing weight while maintaining strength.
2. Hexagonal structure boom enhances lateral stability for safer operations.
3. Core components, including the balance valve, hydraulic lock, operated valve, and hydraulic pump, are of the Italian brand, ensuring precision and reliability.
4. Hydraulic pump oil seals and gaskets are from the Parker brand, known for their quality.
5. Remote control operation is provided by Sweden Brand Scanreco, offering convenience and precision.
6. The truck crane is available in various configurations, including telescopic boom and folding boom options, with lifting capacities ranging from 3.2 tons to 300 matani, making it suitable for a wide range of applications.

SECIFICATIONS:
